2005 HONDA CIVIC HATCHBACK Owners Manual

If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.Use a f lat-tipped screwdriver to
remove the holding clip f rom the
inner f ender.
Pull the inner f ender cover back.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
If you loosened the bolt on the
battery plate, tighten it securely.
3. 4. 5.
1.
3.
2.
6. 7.
Lights
Replacing a Front T urn Signal Bulb
146 HOLDING CLIP
——
y
y
()y
y

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Front bumper: Push the f ront
edge of the side marker lens
toward the rear of the vehicle. The
f ront edge will pop out of the
bumper.
Rear bumper: Push the rear edge
of thesidemarkerlenstowardthe
f ront of the vehicle. The rear edge
will pop out of the bumper.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Put the inner f ender cover in place.
Install the holding clip. Lock it in
placebypushingonthecenter.
4. 5. 6.7. 8.
1.
Lights
Replacing a Side Marker Bulb
Maint enance
147
SOCKET
BULB
SOCKET
BULB
——
y
y
()y
y

Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.Open the hood. The f ront parking
light is next to the headlight bulb.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Testthelightstomakesurethe
new bulb is working.
Place the tabbed end of the side
marker assembly into the bumper
f irst, then the looped end. Press on
the looped end to get the assembly
to snap back in place. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the parking lights and
check that the new bulb is
working.
1. 2. 3. 4.5.
3.4.5. 6.
2.
Replacing a Front Parking L ight Bulb
Lights
148 SOCKET
BULB
——
y
y
()y

y

Open the hatch.
Remove the cover f rom the inside
panel by caref ully prying on its
upper f ront edge with a small f lat-
tipped screwdriver.Remove the socket f or that bulb
by turning it one-quarter turn
counterclockwise.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Reinstall the socket in the taillight
assembly and turn it clockwise to
lock it in place.
Testthelightstomakesurethe
new bulb is working. Reinstall the
cover over the taillight assembly.
Determine which bulb, stop/
taillight, back-up light, or turn
signal is burned out.
1.
3.
2. 4. 5. 6. 7. 8.
Lights
Replacing Rear Bulbs
Maint enance
149
COVER BULB
SOCKET
——
y

y
()y
y

Open the hatch.Put your fingers between the
interior trim and the hatch glass
on either side of the high-mount
brake light. Caref ully pull down on
the trim to unsnap the clips f rom
the hatch. Work your way toward
each end of the trim. Remove the
trim.Remove the bulb holder f rom the
light assembly by pushing the tabs
on both sides and pulling the bulb
holder down.
Pull the bulb straight out of its
holder. Push the new bulb in until
it bottoms in its holder.
1.
3.
2.
4.
Lights
Replacing the High-mount Brake
Light Bulb 150 BULB HOLDER
——
y


y
()y
y

Push the bulb holder into the light
assembly until it locks in place.
Testthelightstomakesurethe
new bulb is working.
Line up the clips on the interior
trim with the corresponding holes
in the hatch.Push on the trim to
snap it back in place.Pushthefrontof thesideturn
signal assembly toward the rear of
the vehicle until it pops out of the
body.
Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Testthelightstomakesurethe
new bulb is working.
Put the side turn signal assembly
back into the body, rear first. Push
on the f ront edge until it snaps into
place.
1.
2. 3. 5. 6.
4.
6.7.
5.
Lights
Replacing a Side T urn Signal Bulb
Maint enance
151
BULB
SOCKET
——
y

y
()y
y

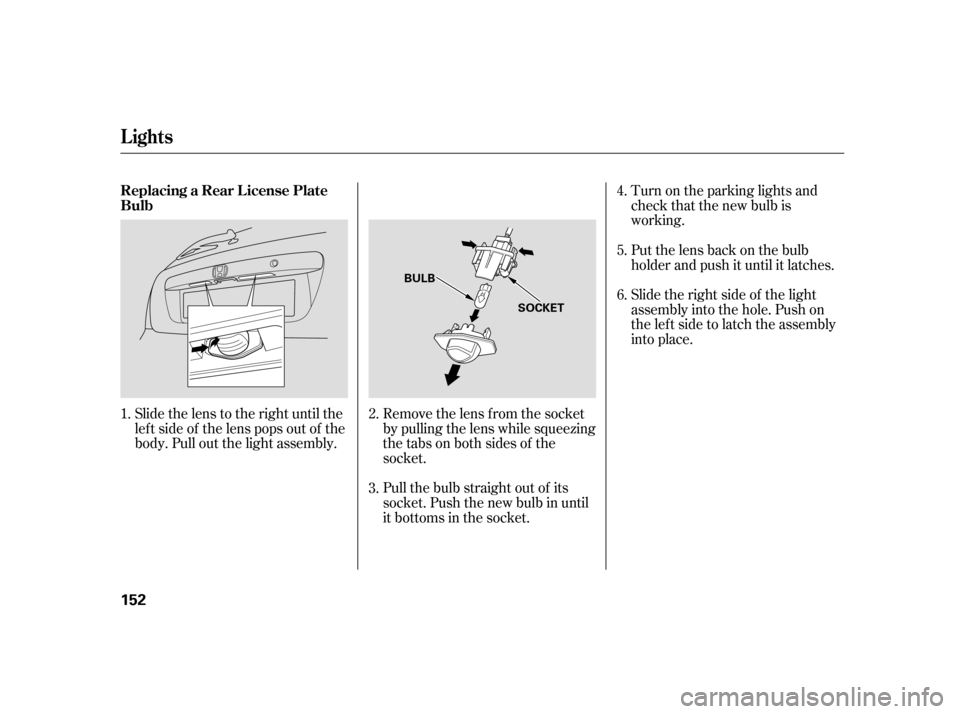

Slide the lens to the right until the
lef t side of the lens pops out of the
body. Pull out the light assembly.Remove the lens f rom the socket
by pulling the lens while squeezing
the tabs on both sides of the
socket.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.Turn on the parking lights and
check that the new bulb is
working.
Put the lens back on the bulb
holder and push it until it latches.
Slide the right side of the light
assembly into the hole. Push on
theleftsidetolatchtheassembly
into place.
1. 3.
2. 6.
4. 5.
Lights
Replacing a Rear License Plate Bulb 152 BULB
SOCKET
——
y

y
()y
y

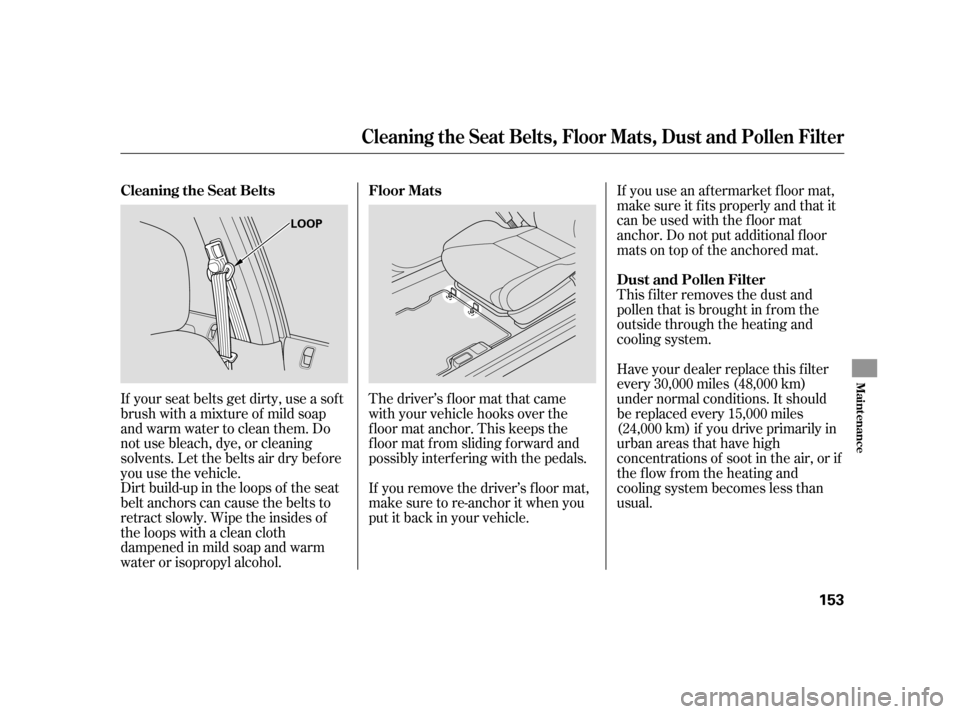

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.If you use an aftermarket floor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchor. Do not put additional f loor
mats on top of the anchored mat.
If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air dry bef ore
you use the vehicle. The driver’s f loor mat that came
with your vehicle hooks over the
f loor mat anchor. This keeps the
f loor mat f rom sliding f orward and
possibly interf ering with the pedals.
If you remove the driver’s f loor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system.
Have your dealer replace this filter
every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the f low f rom the heating and
cooling system becomes less than
usual.
Floor Mats
Cleaning the Seat Belts
Dust and Pollen Filter
Cleaning the Seat Belts, Floor Mats, Dust and Pollen Filter
Maint enance
153
LOOP
——
