2005 HONDA CIVIC HATCHBACK Owners Manual

However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (seeon page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads. The brake system indicator
normally comes on when
you turn the ignition switch
to ON (II), and as a
reminder to check the
parking brake. It will stay
on if you do not f ully
release the parking brake.
144 186Emergency
Towing
Brake System Indicator
T aking Care of t he Unexpect ed
179
Canada
U.S.
——
y
y
()y
y

Check the f use f or the moonroof
motor (see page ). If the f use
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof . If the
new f use blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.

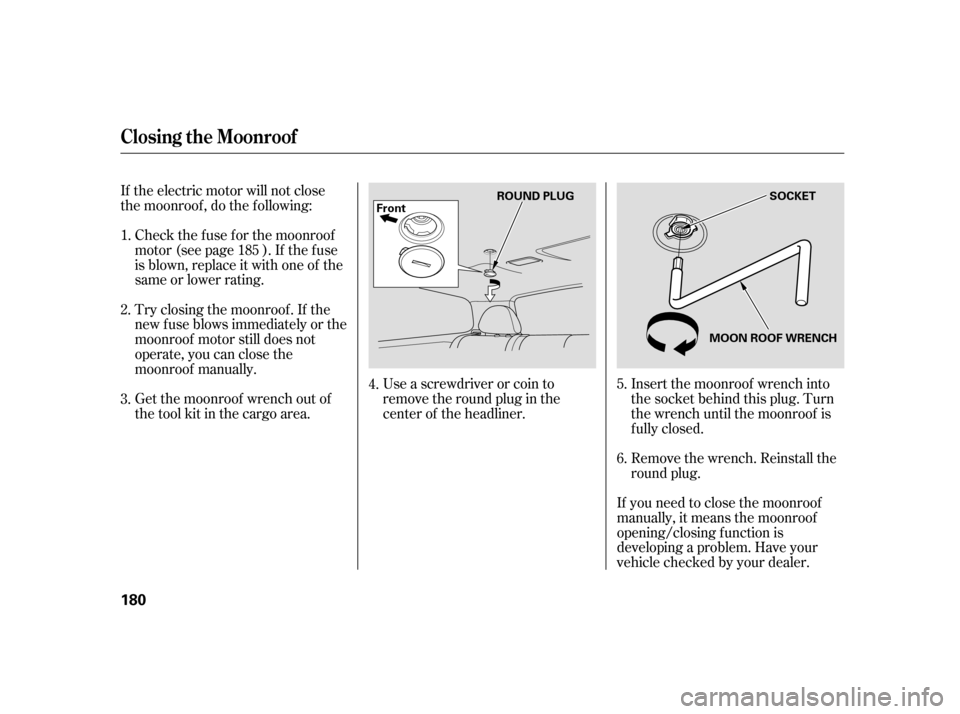

Get the moonroof wrench out of
the tool kit in the cargo area.Use a screwdriver or coin to
remove the round plug in the
center of the headliner.Insert the moonroof wrench into
the socket behind this plug. Turn
the wrench until the moonroof is
f ully closed.
Remove the wrench. Reinstall the
round plug.
If the electric motor will not close
the moonroof , do the f ollowing:
If you need to close the moonroof
manually, it means the moonroof
opening/closing f unction is
developing a problem. Have your
vehicle checked by your dealer.
1.
2. 3. 4.
5. 6.
185
Closing t he Moonroof
180 Front
ROUND PLUG
SOCKET
MOON ROOF WRENCH
——
y

y
()y
y

If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f uses control that device. Check
those fuses first, but check all the
f uses bef ore deciding that a blown
f use is the cause. Replace any blown
f uses, and check if the device works.
The under-hood f use box is located
in the back of the engine
compartment on the lef t side. To
open it, push the tabs as shown.
The vehicle’s f uses are contained in
two fuse boxes. The interior fuse
box is located underneath the
steering column. To open it, turn the
knobsasshown. 184 185
Fuses
Checking and Replacing Fuses
T aking Care of t he Unexpect ed
181
UNDER-HOOD
INTERIOR
——
y
y
()y
y

Remove the cover f rom the f use
box.
Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Remove the screws with a
phillips-head screwdriver.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the under-hood
fuse box.Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
1. 2. 3. 4.
5.
Fuses
182 BLOWN
BLOWN
FUSE
FUSE PULLER
——
y
y
()y
y

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘COdE’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page ).
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can. 6.
103
Fuses
T aking Care of t he Unexpect ed
183
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
——
y
y
()y
y

Î
Î No. Amps. Circuits Protected
1 23456789
1011121314151617181920 20A15A
7.5A
20A10A15A15A20A10A40A30A40A40A40A20A20A20A60A80A40A50A Condenser Fan
Small Light
Interior Light
Cooling Fan
Hazard
FI ECU
Horn, Stop
ABS (F/S)
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window
Option
Lef t Headlight
Door Lock
Right Headlight
Main Fuse EPS
Main Fuse Battery
Main Fuse Ignition
On Canadian model
Fuse Locations
184
UNDER-HOOD FUSE BOX
——
y
y
()y
y

ÎÎ
Î
µ µ µ µ µ
Î
Î
No. Circuits Protected No. Circuits Protected
Amps. Amps.
123456789
10 Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used
Power Window Relay
Moonroof
ACC Radio
Rear Wiper
Meter 111213141516171819202122 23 2425
ABS
Daytime Running Lights
SRS
Power Mirror
Not Used
Heated Seat
Fuel Pump
Accessory Power Socket
Turn Signal Lights
Front Wiper
Not Used
Front Passenger’s Power
Window
Driver’s Power Window
Not Used
Not Used
15A20A10A10A
7.5A 20A
7.5A 10A
7.5A 7.5A7.5A
10A10A 20A 15A15A
7.5A 30A 20A20A
2: Not Used
1: On Canadian model
1 1
2
Fuse Locations
T aking Care of t he Unexpect ed
185
INTERIOR FUSE BOX
——
y
y
()y
y

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck.
Thereareonlytwowaystotowyour
vehicle. If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do the f ollowing:
Release the parking brake.
Shif t the transmission to Neutral.
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground. If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.Flat -bed Equipment
Wheel-lif t Equipment
This is the best way to trans-
port your vehicle.
T his is
an acceptable way to tow your
vehicle.
Emergency T owing
186 Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
——
