2005 HONDA ACCORD Owners Manual

Playing a T ape (Opt ional)
142
AM/FM BUTTONAM/FM
BUTTON
PRESET BARS
CD/AUX
BUTTON
TAPE DIRECTION INDICATOR
SEEK/SKIP BAR PWR/VOL KNOB TAPE DIRECTION
INDICATOR
CD/AUX
BUTTON
SEEK/SKIP BAR PRESET BARS PWR/VOL KNOB

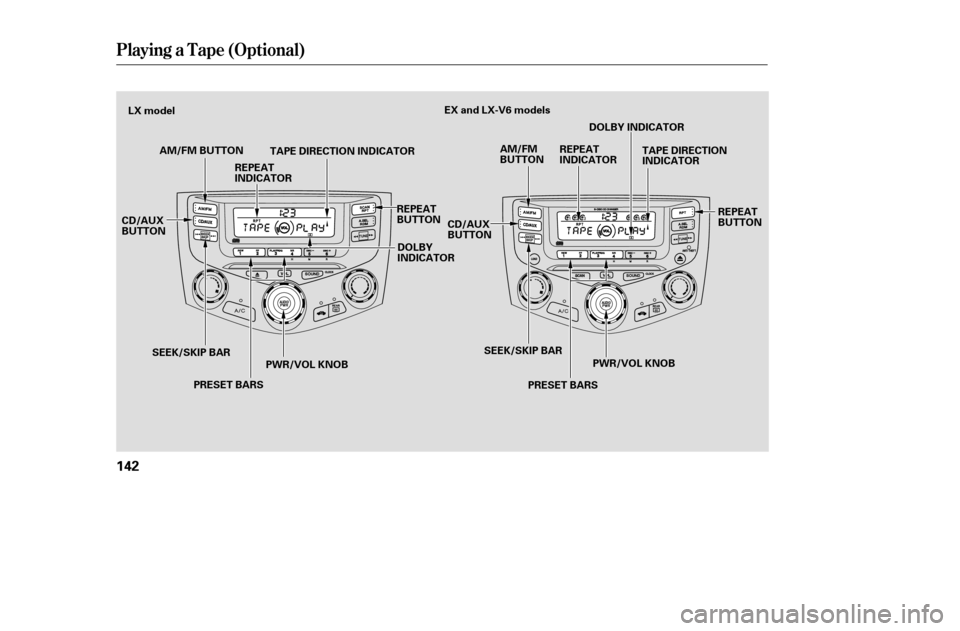

EX and LX-V6 models
LX model
REPEAT
BUTTONREPEAT
INDICATOR
DOLBY
INDICATOR DOLBY INDICATOR
REPEAT
BUTTON
REPEAT
INDICATOR
——y
y
(%y
y

CONT INUED
Playing a T ape (Opt ional)
Features
143
AM/FM
BUTTON
PRESET BARS
CD/AUX
BUTTON
SEEK/SKIP BAR PWR/VOL KNOB CD/AUX
BUTTON
SEEK/SKIP BAR
PRESET BARS PWR/VOL KNOB
AM/FM
BUTTON
TAPE DIRECTION
INDICATOR
TAPE DIRECTION
INDICATOR
DOLBY INDICATOR
REPEAT
INDICATOR
REPEAT
BUTTON REPEAT INDICATOR
REPEAT
BUTTON

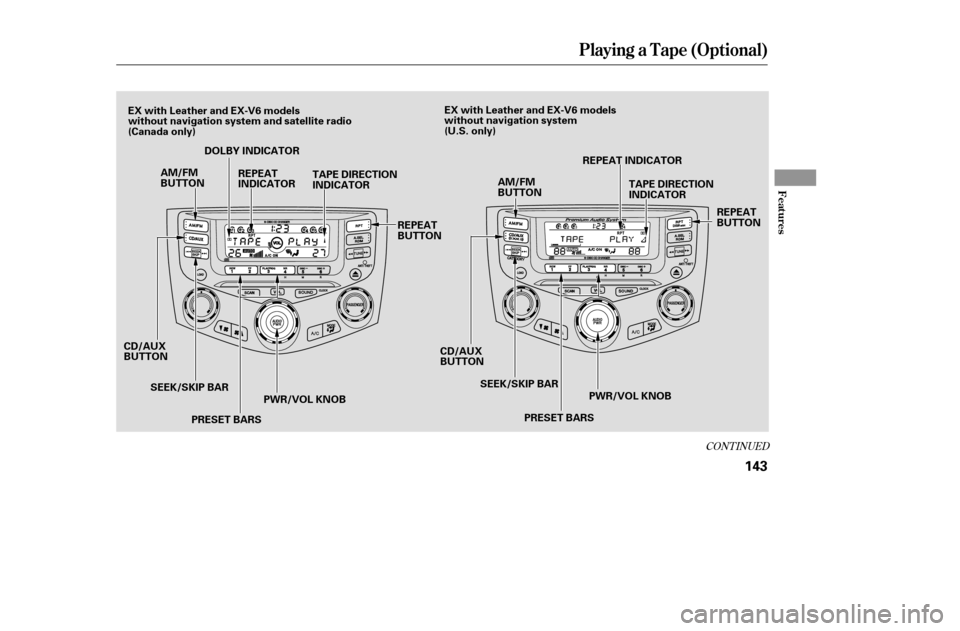

EX with Leather and EX-V6 models
without navigation system and sate
llite radio
(Canada only) EX with Leather and EX-V6 models
without navigation system
(U.S. only)
——y
y
(%y
y

Playing a T ape (Opt ional)
144
PWR/VOL KNOBAUDIO DISPLAY BUTTON
TUNE/SOUND KNOBUPPER DISPLAY
CD/DISC BAR
FF ICON
REW ICON SEEK/SKIP BAR TAPE DIRECTION INDICATOR
PLAY/PROG ICON NOISE REDUCTION (NR) ICON
REPEAT INDICATOR
CD/AUX (XM)
BUTTON REPEAT ICON
EX with Leather and EX-V6 models
with navigation system (U.S. only)
——y
y
(%y
y

ÛÎ
Î
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Thetapedirectionindicatorcomes
on to show you which side of the
tape is playing. The indicates the
sideyouinsertedupwardisnow
playing. If you want to play the other
side, press the preset 3 (PLAY/
PROG) side of the preset bar or
touch the PLAY/PROG icon on
models with navigation system.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side. On models with navigation system,
first push the AUDIO DISPLAY
button bef ore selecting any of the
audio icons on the audio screen.
Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
preset 4 (NR) side of the preset bar
or touching the NR icon. Dolby
remains of f until you press the
preset bar or the icon again. To remove the tape, press the eject
button on the tape player. If you
want to turn the player off, press the
PWR/VOL knob or turn of f the
ignition. The tape will remain in the
drive. When you turn the system
back on, the tape will be in pause
mode. Press the preset 3 (PLAY/
PROG) side of the preset bar or
touch the PLAY/PROG icon on
models with navigation system.
To switch to the AM/FM radio,
Satellite Radio (U.S. models), CD
player,orCDchangerwhileatapeis
playing, press the AM/FM or CD/
AUX button [CD/AUX (XM) button
on models with navigation system].
To change back to the tape player,
push the CD/AUX or CD/AUX
(XM) button.
Dolby noise reduction is manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Optional on all U.S. models
To Play a Tape To Stop Playing a Tape
Playing a T ape (Opt ional)
Features
145
——y

y
(%y
y

µÛ
Ý µ
µ
µ
To fast forward the
tape, push the upper side ( ) of the
CH/DISC bar. You will see FF in the
upper display. To rewind the tape,
push the lower side ( ) of the CH/
DISC bar. You will see REW
displayed. Press either side of the
CH/DISC bar or touch the FF, REW
or PLAY/PROG icon to take the
system out of rewind or f ast f orward. Press the side to f ind
the beginning of the current song or
passage. Press the side to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To rewind the tape,
push the preset 1 (REW) side of the
preset bar. You will see REW in the
display. To f ast f orward the tape,
push the preset 2 (FF) side of the
preset bar. You will see FF displayed.
Press the preset 1, 2, or 3 side of the
bars to take the system out of rewind
or fast forward. Press the RPT button
or touch the RPT icon to
continuously play a song or passage.
You will see RPT displayed (in the
upper display on models with
navigation system). The track will
repeat until you press the RPT
button or touch the RPT icon again. The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
On models without navigation system
On models with navigation system
Playing a T ape (Opt ional)
T ape Search Functions
FF/REW SK IP
FF/REW
REPEAT
146
NOTE:
——y

y
(%y
y

Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Never try to insert f oreign objects
into the tape player. If you see the error message
‘‘ ’’ on the display (on the
upper display on models with
navigation system), press the tape
eject button to remove the tape f rom
the unit. Make sure the tape is not
damaged. If the tape will not eject or
the error message stays on after the
tape ejects, take the vehicle to your
dealer.
Playing a T ape (Opt ional)
Caring f or the T ape Player
Features
147
——y

y
(%y
y

ÛÝ´
µ ´
µ
´ µ

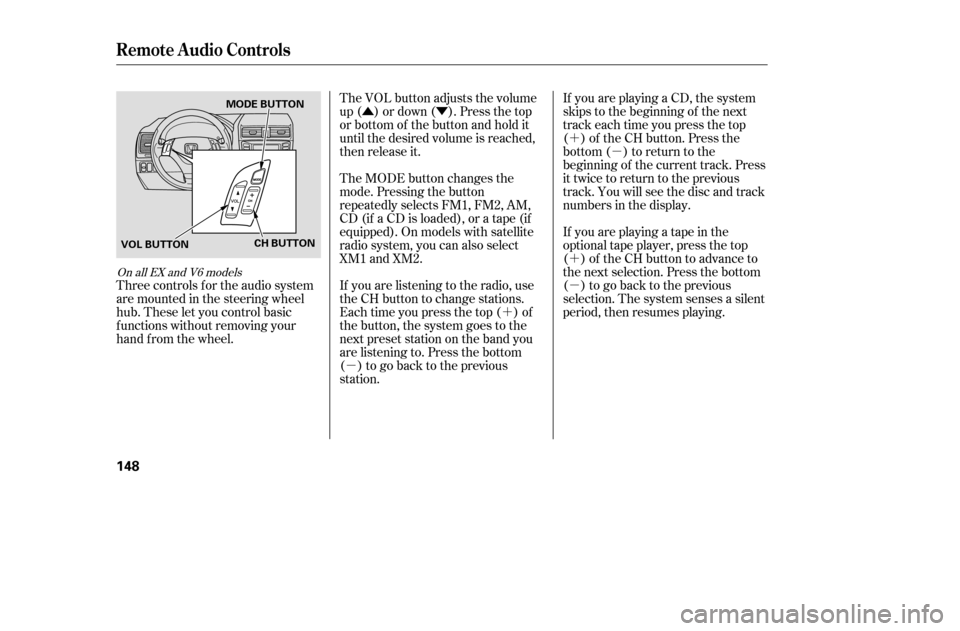

Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel. The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button and hold it
until the desired volume is reached,
then release it.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it twice to return to the previous
track. You will see the disc and track
numbers in the display.
If youareplayingatapeinthe
optional tape player, press the top
( ) of the CH button to advance to
the next selection. Press the bottom
( ) to go back to the previous
selection. The system senses a silent
period, then resumes playing.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
CD (if a CD is loaded), or a tape (if
equipped). On models with satellite
radio system, you can also select
XM1 and XM2.
On all EX and V6 models
Remote Audio Controls
148
CH BUTTON
VOL BUTTON MODE BUTTON
——y
y
(%y

y

µ
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic code using the preset
bars or the TUNE knob. Because
there are hundreds of number
combinations possible, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual. If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ ’’/
‘‘ ’’ in the f requency display
the next time you turn on the system.
Use the preset bars to enter the code.
Thecodeisontheradiocodecard
included in your Owner’s Manual kit.
When it is entered correctly, the
radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have ten tries to enter the
correct code. If you are unsuccessf ul
in ten attempts, you must then leave
the system on f or 1 hour bef ore
trying again.You will have to store your favorite
stations on each side of the preset
bars (1 6) or icons af ter the system
begins working. Your original
settings were lost when the power
was disconnected.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.
OnEX,EX-V6,andLX-V6models
Radio T hef t Prot ect ion
