2005 HONDA ACCORD Owners Manual

CONT INUED
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page . This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
(see page ).
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ). This indicator reminds you that it is
time to take your vehicle in for the
scheduled maintenance. The
indicator does not ref lect severe
maintenance intervals.
Ref er to the maintenance schedule
f or normal and severe driving
conditions on page (4-cylinder
models) or page (6-cylinder
models).
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ). 152
68 220
69 201
206
152
Canadian models only
Canadian models only
‘‘Daytime Running
Lights’’ Indicator
High Beam IndicatorCruise Main Indicator
Cruise Control Indicator
Washer Level IndicatorMaintenance Required
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
——y
y
(%yy

Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will light f or 2 seconds
when you first turn the ignition
switch to ON (II), and then flash for
10 seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.Turn of f the engine.
Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km), it will light
f or 2 seconds when you f irst turn the
ignition switch to ON (II), and then
f lash f or 10 seconds.
Press and hold the Select/Reset
knob on the instrument panel,
then turn the ignition switch to
ON (II).
Hold the knob f or about 10
seconds until the indicator goes
of f .
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as f ollows.
For the f irst 8,000 miles (12,800 km)
af ter the maintenance required
indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to ON (II).
For the f irst 6,000 miles (9,600 km)
af ter the maintenance required
indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to ON (II).
1. 2. 3.
4-cylinder models 6-cylinder models
Instrument Panel Indicators
62
SELECT/RESET KNOB
——y
y
(%yy

The gauges illuminate when you
turn the ignition switch to ON (II).
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The odometer and the outside
temperature indicator use the same
display. To switch the display
between the odometer and the
outside temperature, press the
Select/Reset knob. When you turn
the ignition switch to ON (II), what
you last selected is displayed.
Gauges
Odometer
Inst rument s and Cont rols
63
TACHOMETERSPEEDOMETER
FUEL GAUGE
SELECT/RESET KNOB MAINTENANCE
REQUIRED
INDICATOR
TEMPERATURE
GAUGE
U.S. model is shown. TRIP METER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR/CHECK
FUEL CAP INDICATOR
——y
y
(%yy

µµµµ
µµ µ
µ ¶¶
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
When you turn the ignition switch to
ON (II), what you last selected is
displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
When it reaches the desired value,
release the Select/Reset knob. You
should see the new outside
temperature displayed.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or ten seconds. The f ollowing
sequence will appear f or one second
each:0,1,2,3,4,5, 5, 4, 3, 2,
1,0(U.S.)or0,1,2,3, 3, 2,
1, 0 (Canada).
If the outside temperature is
incorrectly displayed, you can adjust
it 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
On 4-cylinder EX with Leather and 6-
cylinder EX models, and all EX modelsin Canada
Gauges
Outside Temperature Indicator Trip Meter
64
——y

y
(%yy

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upper half of the gauge. If it reaches
the red (Hot) mark, pull safely to the
side of the road. See page f or
instructions and precautions on
checking the engine’s cooling
system. Turn the engine of f and conf irm the
f uel f ill cap is installed. If it is, loosen
the cap, then retighten it at least 3
clicks. When you restart the engine,
the message appears again. To clear,
press and hold the Select/Reset
knob until the message is replaced
by the odometer/outside
temperature display.
If the system still detects a loose or
missing f uel f ill cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f and check or
retighten the f uel f ill cap at least 3
clicks. The MIL goes out af ter 3 days
of normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
messageappearsastextinthe
odometer/outside temperature
display af ter you start the engine.
The message appears f rom CHECK
to FUEL, then to CAP repeatedly.
258
261
Temperature Gauge Fuel Gauge
Check Fuel Cap Indicator
Gauges
Inst rument s and Cont rols
65
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y
y
(%yy

Î
Î
To use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
66

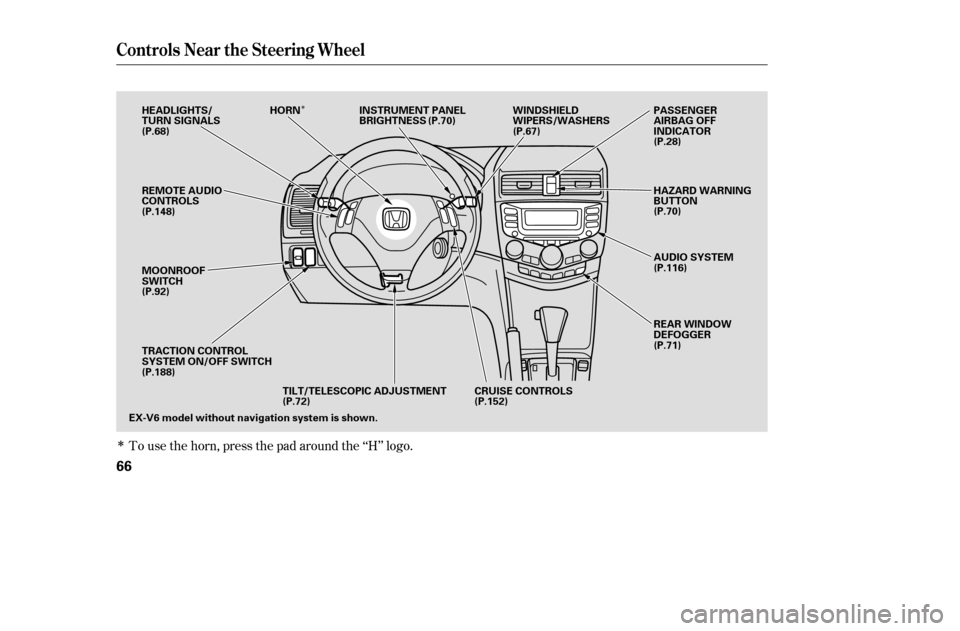

EX-V6 model without navigation system is shown.CRUISE CONTROLS
TILT/TELESCOPIC ADJUSTMENT
REMOTE AUDIO
CONTROLS
MOONROOF
SWITCH
TRACTION CONTROL
SYSTEM ON/OFF SWITCH
HEADLIGHTS/
TURN SIGNALS
HORN INSTRUMENT PANEL
BRIGHTNESS WINDSHIELD
WIPERS/WASHERS
REAR WINDOW
DEFOGGER
AUDIO SYSTEM
HAZARD WARNING
BUTTON
PASSENGER
AIRBAG OFF
INDICATOR
(P.68) (P.70)
(P.67)
(P.28)
(P.70)
(P.116)
(P.71)
(P.152)
(P.72)
(P.188)
(P.92)
(P.148)
——y
y
(%yy

µ
µ
µ µ
µ
µ µ
µ
µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers
Push the right lever up or down to
select a position. The wipers are not activated.
Vary the delay by turning the INT
TIME ring.
If youturnittotheshortestdelay,
the wipers will change to low
speed operation when the vehicle
speed exceeds 12 mph (20 km/h).
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your f oot f rom the brake pedal. The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The wipers run at high
speed until you release the lever.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
1.2.3.4.5.6
Windshield Wipers and Washers
Windshield Wipers OFF LO HIWindshield Washers
MIST INT
Inst rument s and Cont rols
67
——y
y
(%yy

µ
µ
µTurning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights, side-
marker lights, and rear license plate
lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed f rom the ignition switch,
you will hear a reminder chime when
you open the driver’s door.
Turn signal
Of f
Parking and indicator lights
Headlights on
High beams
Flashhighbeams Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
When the light switch is in the
‘‘ ’’ or the ‘‘ ’’ position, the
Lights On indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and turn the ignition switch to the
ACCESSORY (I) or LOCK (0)
position.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Push the lever
f orward until you hear a click to turn
on the high beams. The blue high
beam indicator will come on (see
page ). Pull the lever back to
return to the low beams.
1.2.3.4.5.6. 61
Turn Signal and Headlights
Headlights On
Turn Signal
High Beams
68
——y
y
(%y
y
