Page 57 of 286

The appropriate indicator comes on
in this monitor if the trunk or either
door is not closed tightly.
All the indicators in the monitor
come on f or a f ew seconds when you
turn the ignition switch to ON (II).
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the traction
control system (TCS).
It f lashes when the TCS is
regulating wheelspin.
If itcomesonandstaysonwhen
the TCS is on, it indicates that
there is a problem in the TCS. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on and stays on when the Traction
Control System (TCS) is on, there is
a problem with the TCS. For more
inf ormation on the TCS, see page
.
This indicator also comes on f or a
f ew seconds when you turn the
ignition switch to ON (II). If it comes
on and stays on at any other time, or
it does not come on when you turn
the ignition switch to ON (II), there
is a problem with the TCS. Take the
vehicle to your dealer to have it
checked. See page f or more
inf ormation on the TCS. 1.
2.
3. 180
180 Door and T runk Open Monitor
Traction Control System
(T CS) Indicator
T CS A ctivation Indicator
Instrument Panel Indicators
56
—
—y
y
('yy
Page 58 of 286

WhenyouturnontheHazard
Warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash.This indicator comes on as a
reminder that you must ref uel soon.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink,
or if they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to ACCESSORY (I)
or LOCK (0) without turning of f the
light switch, this indicator will
remain on. A reminder chime will
also sound when you open the driver’s
door.
217
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator Low Fuel Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
57
LOW FUEL INDICATOR
—
—y
y
('yy
Page 59 of 286
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This indicator comes on when the
security system is set. See page f or more inf ormation on the
security system. This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
141 73
74
Canadian model only On Canadian model
Security System Indicator ‘‘Daytime Running
Lights’’ IndicatorHigh Beam Indicator
Instrument Panel Indicators
58
SECURITY SYSTEM INDICATOR
—
—y
y
('y
y
Page 60 of 286
This indicator comes on when you
turn on the Cruise Control Master
Button. (see page .)
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will go of f if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
142
142 78 205Canadian model only
Cruise Control IndicatorImmobilizer System
Indicator
Washer Level Indicator
Cruise Control Main
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
—
—y
y
('yy
Page 61 of 286

If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/
outside temperature display af ter
you start the engine. Turn the
engine of f and conf irm the f uel cap is
installed. If it is, loosen the cap, then
retighten it at least 3 clicks. When
you restart the engine, the message
appears again. To clear, press and
hold the Trip/Reset button until the
message is replaced by the
odometer/outside temperature
display.
This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a saf e
place and turn of f the engine. Reset
the system by restarting the engine.
The indicator will not turn of f
immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be turned of f ,
making the vehicle harder to steer.
If the power steering system
overheats while driving, the assisting
power is reduced and steering may
f eel slightly harder.
If you drive with the system overheated continuously or
repeatedly, this can damage the
power steering system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. With the IMA
indicator on, the vehicle may not
accelerate as it normally does. Have
the vehicle checked by the dealer as
soon as possible.
See page .
174 Check Fuel Cap Display
Electric Power Steering
(EPS) Indicator
IMA System Indicator
A uto Idle Stop Indicator
Instrument Panel Indicators
60
—
—y
y
('yy
Page 62 of 286

µ
µ
µ
µIf the system still detects a loose or
missing f uel f ill cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f , and check or
retighten the f uel f ill cap at least3
clicks. The MIL goes out af ter3days
of normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
The indicator comes on f or 2
seconds each time you turn the
ignition switch to the ON (II)
position.Each time you turn the ignition
switch to the ON (II) position, the
indicator comes on f or 2 seconds,
and then f lashes f or 10 seconds.
The indicator is on when the ignition
switch is in the ON (II) position.
Ref er to the maintenance schedules
on pages and f or inf ormation
on vehicle maintenance.
247
194 195If the travel distance is 6,0007,500 miles (9,600 12,000 km) af terthe last reset
If the travel distance is 0 6,000 miles (0 9,600 km) af ter the last reset If the travel distance is over 7,500 miles
(12,000 km) af ter the last resetMaintenance Required Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
MAINTENANCE REQUIRED INDICATOR
—
—y
y
('yy
Page 63 of 286
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
After having your vehicle serviced,
ask your dealer if the system has
been reset. If it has not, reset it as
f ollows:
Turn of f the engine.
Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch to ON (II).
Hold the knob f or about 10
seconds until the indicator resets.
1.
2.
3. Fuel Economy Indicator
Instrument Panel Indicators
62
SELECT/RESET KNOB
—
—y
y
('yy
Page 64 of 286

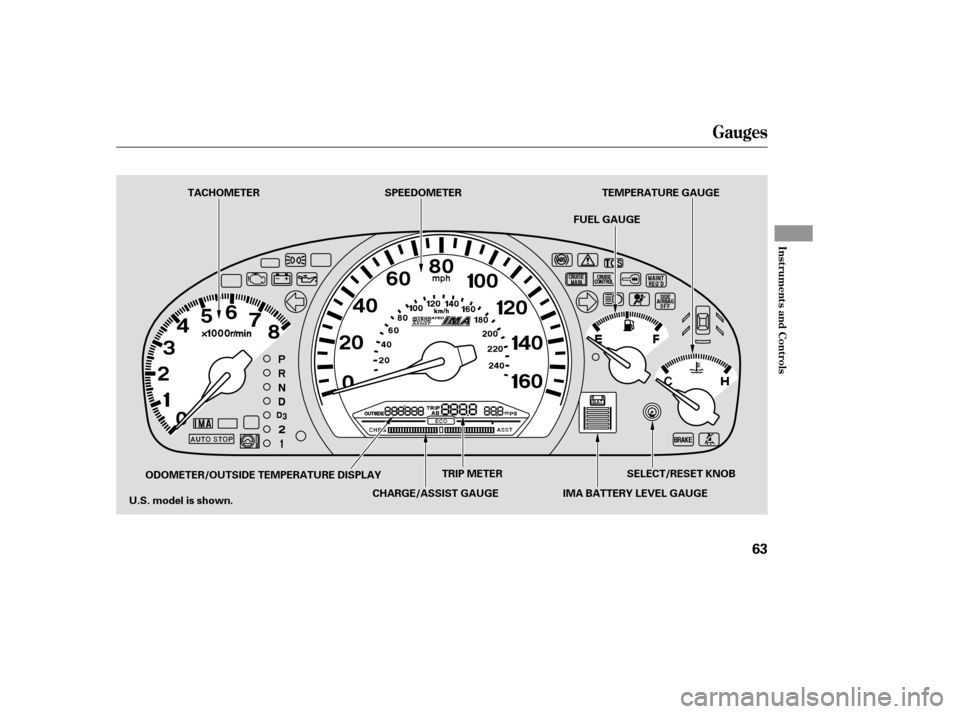

Gauges
Inst rument s and Cont rols
63
IMA BATTERY LEVEL GAUGESELECT/RESET KNOB
TRIP METER
U.S. model is shown. TEMPERATURE GAUGE
CHARGE/ASSIST GAUGE FUEL GAUGE
SPEEDOMETER
TACHOMETER
ODOMETER/OUTSIDE TEMPERATURE DISPLAY
—
