Page 65 of 286

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
Gauges
Odometer
Outside T emperature Display
64
—
—y
y
('yy
Page 66 of 286

¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
Trip Meter
Gauges
Inst rument s and Cont rols
65
—
—
yy
('yy
Page 67 of 286
When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once every ten
seconds.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.You can temporarily turn of f the Trip
Mileage display.
Turn the ignition switch to ON (II)
and make sure the transmission is
in Park and the parking brake is
set.
Use the Select/Reset button to
select the odometer display.
Press and hold the Select/Reset
button for about 5 to 10 seconds,
then release it. The Trip Mileage
display will turn of f . The display will turn back on when
you repeat the same procedure in
step 3.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
1.
2.
3.
Inst rument s and Cont rols
Gauges
T rip Mileage T urning Of f the T rip Mileage
Display
66
TRIP METER
—
—yy
('yy
Page 68 of 286

This gauge shows you the state of
charge of the battery for the
Integrated Motor Assist (IMA). This
battery is recharged by the engine,
anddischargedbytheIMAwhenit
is assisting the engine with powering
the vehicle.
The gauge reading may drop near
the bottom under driving conditions
that require assist f or a long time,
such as prolonged acceleration orclimbing a long hill. The engine will
recharge the battery as you continue
driving.
The battery level gauge does not
read the battery level directly. It
calculates the level by continuously
measuring the current f low, voltage,
and temperature.
Since the level is not read directly,
small sensing errors can, over time,
cause the gauge to read higher than
the actual battery level. The system
will then perf orm a correction, and
the battery level gauge reading will
drop suddenly. When this happens,
IMA assist and Auto Idle Stop are
disabled until the IMA battery is
suf f iciently recharged by normal
driving. This should take only a f ew
minutes.This correction of the battery level
gauge is normal and does not
indicate a problem. If the IMA
battery develops a problem or
becomes deteriorated, the IMA
system indicator will come on. If this
happens, have the vehicle checked
by your dealer as soon as possible.
If the battery is mostly discharged,
the Auto Idle Stop f unction is
disabled (see page ).
173
IMA Battery Level Gauge
Gauges
Inst rument s and Cont rols
67
IMA BATTERY LEVEL GAUGE
—
—
y
y
('yy
Page 69 of 286

If the IMA battery is too hot or too
cold, the IMA system shuts down to
protect the battery. This disables the
IMA assist and Auto Idle Stop, even
though the Battery Level Gauge may
show that the battery is well-charged.
Theref ore, those f unctions may not
operate when you f irst start driving
in very hot or cold weather.
The battery temperature will
normalize af ter a f ew minutes of
driving, and the IMA system will
work normally.
This gauge shows you the status of
the Integrated Motor Assist (IMA).
When the IMA battery is being
charged, the lef t side of the gauge
illuminates. When the IMA is
assisting the engine, the right side of
the gauge illuminates. This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system.
244
Charge/Assist Gauge Temperature Gauge
Gauges
68
CHARGE/ASSIST GAUGE
—
—
yy
('y
y
Page 70 of 286
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition. Fuel Gauge
Gauges
Inst rument s and Cont rols
69
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
—
—
yy
('yy
Page 71 of 286
Î
ÎOnly on vehicles equipped with navigation system. Ref er to the navigation system manual.
:

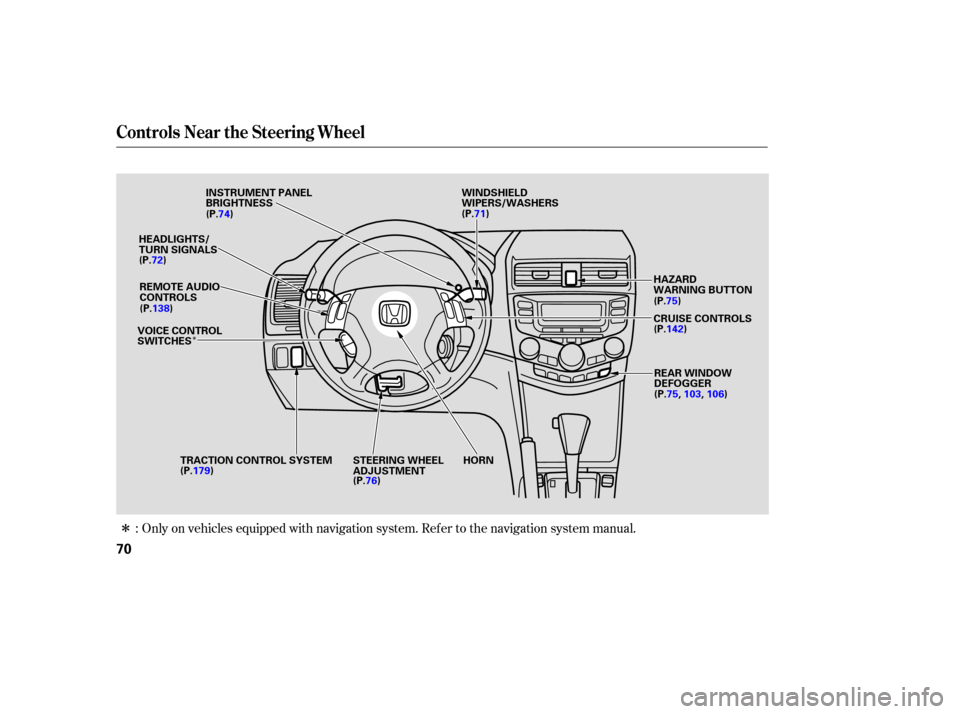

Controls Near the Steering Wheel
70
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
VOICE CONTROL
SWITCHES HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
TRACTION CONTROL SYSTEM HORN STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER
HAZARD
WARNING BUTTON
(P.74)
(P.71)
(P.142)
(P.76)
(P.179)
(P.138)
(P.72)
(P.75,103,106)
(P.75)
—
—y
y
('yy
Page 72 of 286
µ
µ
µ µ
µ µ
µ
µ µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation when
the vehicle speed exceeds 12 mph
(20 km/h). Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
1.
2.
3.
4.
5.
6. Windshield Wiper MIST
OFFLO
HI
INT Windshield Washer
Wipers and Washers
Inst rument s and Cont rols
71
—
