GENERAL
LIFTING AND SUPPORTING THE VEHICLE

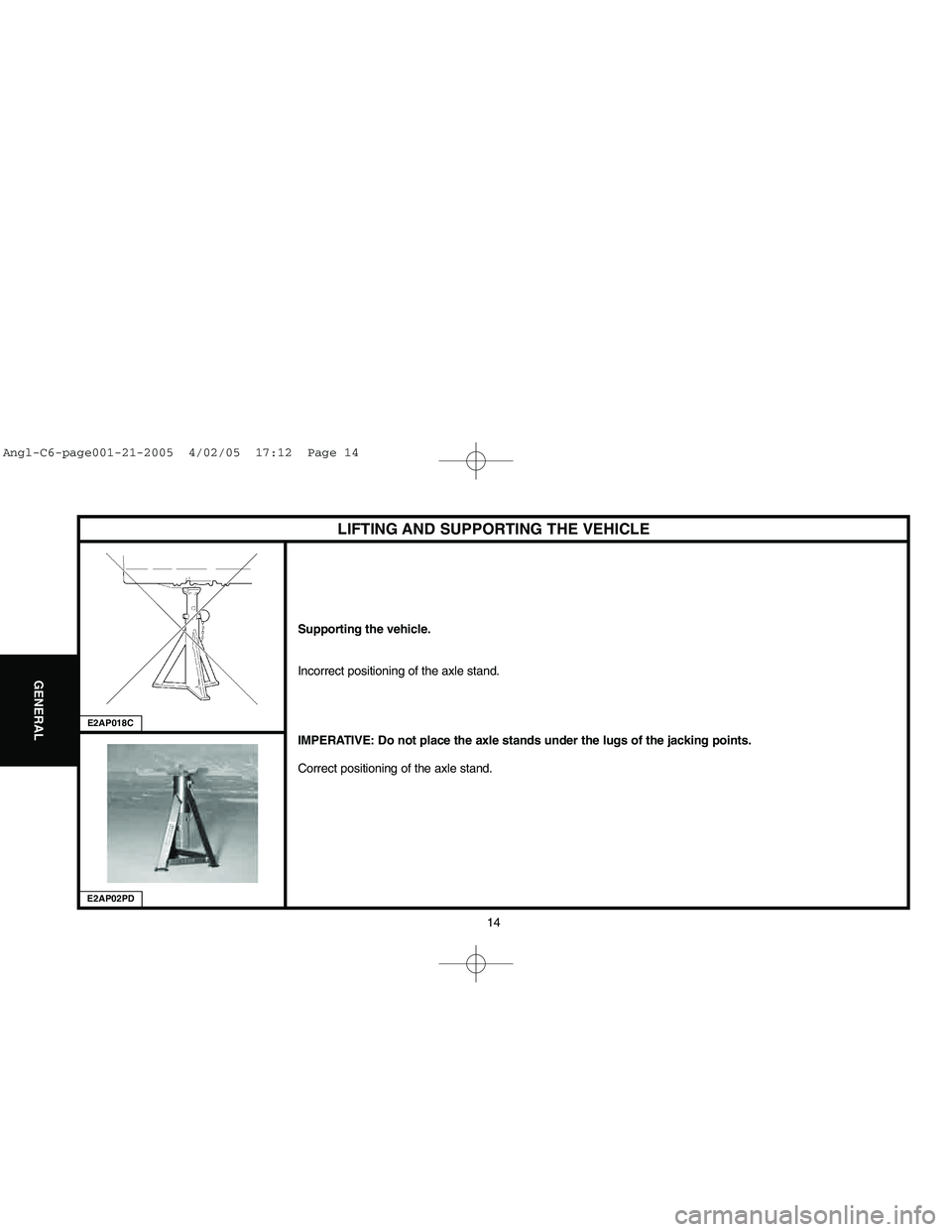

Supporting the vehicle.
Incorrect positioning of the axle stand.
IMPERATIVE: Do not place the axle stands under the lugs of the jacking points.
Correct positioning of the axle stand.
E2AP02PDE2AP018C
Angl-C6-page001-21-2005 4/02/05 17:12 Page 14
Downloaded from www.Manualslib.com manuals search engine 15
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Raising the vehicle on a lift, supported from the jacking points.
Equipment involved:
- Two-column lift.
- Auxiliary lift with blocks.
IMPERATIVE: Position the safety straps, if placing the vehicle on a lift supported from the jacking points
(risk of the vehicle overbalancing when a heavy component is removed).
Tooling required.
[1] Safety straps
Using the safety straps.
WARNING: Check the condition of the safety straps before using them, do not use worn safety straps.
WARNING: Do not use straps that show any signs of oil or grease (risk of soiling the carpets and/or
seats).
Place protections on the front seats and on the fragile parts of the vehicle.
Example:
- Two-column lift.
- Place the safety straps[1] under the arm of the lift and criss-crossing the vehicle.
