2005 CHEVROLET VENTURE tow

Removing the Stowable Seat
1. Remove the convenience center, if it is in the
vehicle. SeeConvenience Center on page 2-53
for more information.
2. Make sure all items are off of the stowable seat.
3. If the seatback is down, put the seatback in
its upright position before removing the seat.
See “Folding the Seatback” previously in
this section.
4. From behind the bench seat, push up the release
handles at the base of the seat to release the
latches from the oor pins.
5. While holding onto the crossbar at the bottom of the
seat, remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out.
This should be done in one motion.
Notice:If you use the release handles to remove
the seat, the handles could break, and the repairs
would not be covered by your warranty. Use the
crossbar located at the seat bottom to remove
the seat.
1-26

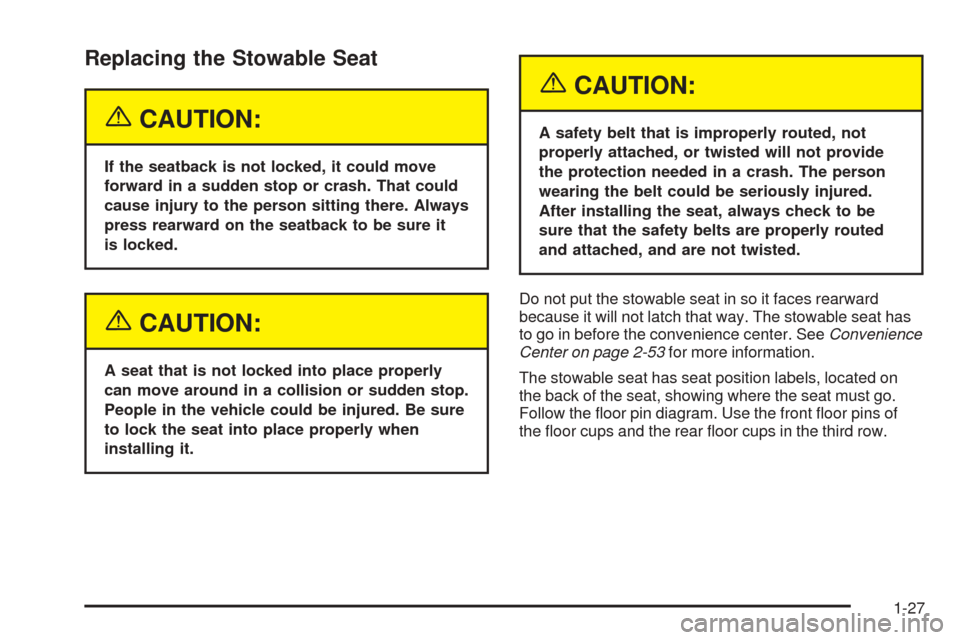

Replacing the Stowable Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the stowable seat in so it faces rearward
because it will not latch that way. The stowable seat has
to go in before the convenience center. SeeConvenience
Center on page 2-53for more information.
The stowable seat has seat position labels, located on
the back of the seat, showing where the seat must go.
Follow the oor pin diagram. Use the front oor pins of
the oor cups and the rear oor cups in the third row.
1-27

{CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can not properly spread the impact
forces. In a crash, the two children can be
crushed together and seriously injured. A belt
must be used by only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt
is very close to the child’s face or neck?
A:Move the child toward the center of the vehicle,
but be sure that the shoulder belt still is on the
child’s shoulder, so that in a crash the child’s
upper body would have the restraint that belts
provide. If the child is sitting in a second row
position, seeRear Safety Belt Comfort Guides for
Children and Small Adults on page 1-45.
1-49

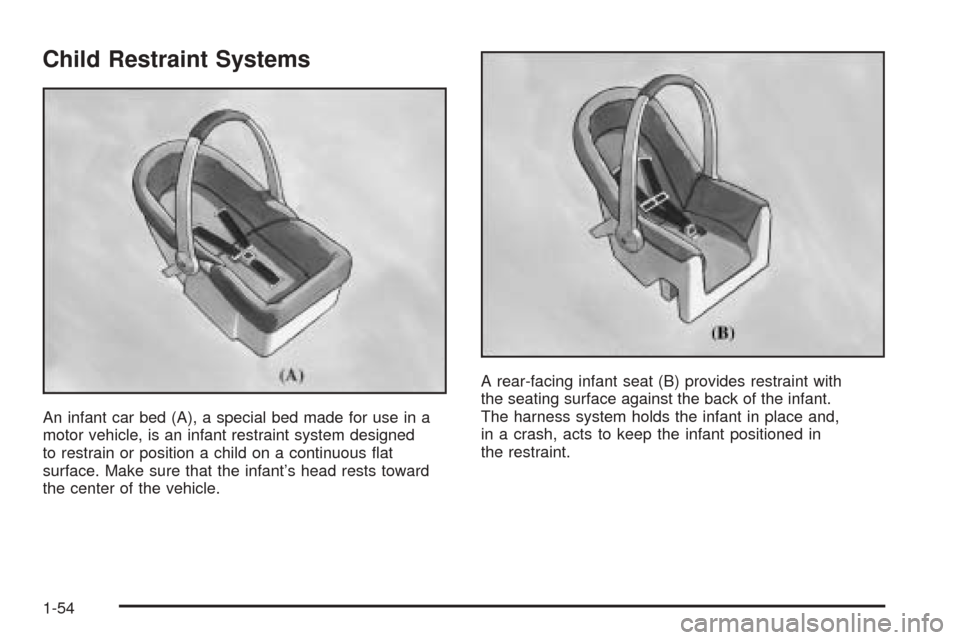

Child Restraint Systems
An infant car bed (A), a special bed made for use in a
motor vehicle, is an infant restraint system designed
to restrain or position a child on a continuous at
surface. Make sure that the infant’s head rests toward
the center of the vehicle.A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the infant.
The harness system holds the infant in place and,
in a crash, acts to keep the infant positioned in
the restraint.
1-54

An anchor bar for a top strap is located at the rear of
the seat cushion for each second and third row outboard
seating position, and for the center position of the
second row.The anchor bar for the stowable bench seat is located
on the passenger’s side of the crossbar. Use the center
seating position to use the anchor bar properly. If the
convenience center is in the vehicle, you must lift
the tray sill to use the anchor.
Do not secure a child restraint with a top strap in the
right front passenger’s position or at the third row
driver’s side position (vehicles with a full bench seat) if
a national or local law requires that the top strap be
anchored, or if the instructions that come with the child
restraint say that the top strap must be anchored.
There is no place to anchor the top strap in this position. Third RowThird Row (Stowable Seat)
1-59

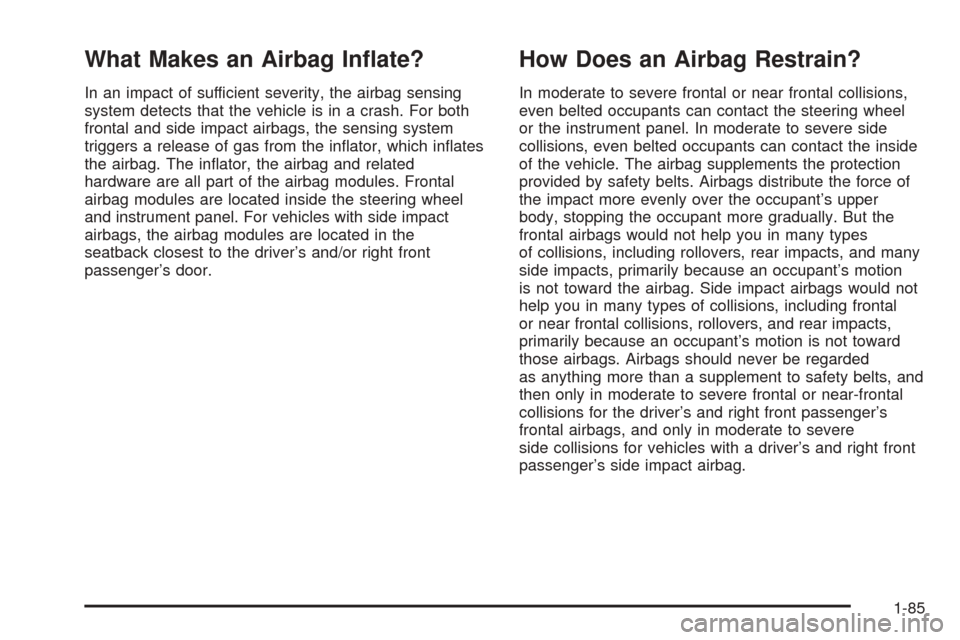

What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For both
frontal and side impact airbags, the sensing system
triggers a release of gas from the inator, which inates
the airbag. The inator, the airbag and related
hardware are all part of the airbag modules. Frontal
airbag modules are located inside the steering wheel
and instrument panel. For vehicles with side impact
airbags, the airbag modules are located in the
seatback closest to the driver’s and/or right front
passenger’s door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions for vehicles with a driver’s and right front
passenger’s side impact airbag.
1-85

There are several ways to lock and unlock your vehicle.
From the outside, use your key or the remote keyless
entry transmitter.
To unlock the driver’s door from the outside with the
key, insert the key and turn it toward the front of
the vehicle. If your vehicle has power door locks, you
may be able to unlock all of the doors and the liftgate by
inserting the key, turning it toward the front of the
vehicle, and holding it there for one second. To lock the
driver’s door from the outside with your key, insert
the key and turn it toward the rear of the vehicle. If your
vehicle has power door locks, you may be able to
lock all of the doors when you insert the key and turn it
toward the rear of the vehicle.
From the inside, use the manual or power door locks.
To unlock either front door from the inside, pull back on
the manual lever. To lock either front door from the
inside, push the manual lever forward.
2-9

Dual Sliding Doors
To open either sliding door from outside the vehicle, pull
the handle out and then pull the door toward the rear.
If you slide the door all the way back, the door will rest in
a detent position.
To move the door forward, you must rst pull the door
past the open detent position.
The driver’s side sliding door is designed to open only a
little if the fuel door is open. If this ever happens, don’t try
to force the sliding door. Just close the driver’s side
sliding door. Then when the fuel ller door is closed, the
driver’s side sliding door can be opened normally.
Sliding Door Lock
2-12
