2005 CHEVROLET VENTURE tow

Seats and Restraint Systems........................... 1-1
Front Seats ............................................... 1-3
Rear Seats ............................................... 1-6
Safety Belts ............................................. 1-28
Child Restraints ....................................... 1-48
Airbag System ......................................... 1-78
Restraint System Check ............................1-88
Features and Controls ..................................... 2-1
Keys ........................................................ 2-3
Doors and Locks ....................................... 2-8
Windows ................................................. 2-22
Theft-Deterrent Systems ............................2-25
Starting and Operating Your Vehicle ...........2-29
Mirrors .................................................... 2-41
OnStar
®System ...................................... 2-42
HomeLink®Transmitter ............................. 2-43
Storage Areas ......................................... 2-47
Vehicle Personalization .............................2-55
Instrument Panel ............................................. 3-1
Instrument Panel Overview .......................... 3-4
Climate Controls ...................................... 3-24
Warning Lights, Gages, and Indicators ........3-32
Message Center ....................................... 3-46
Driver Information Center (DIC) ..................3-53
Audio System(s) ....................................... 3-56Driving Your Vehicle
....................................... 4-1
Your Driving, the Road, and Your Vehicle ........ 4-2
Towing ................................................... 4-34
Service and Appearance Care .......................... 5-1
Service ..................................................... 5-3
Fuel ......................................................... 5-5
Checking Things Under the Hood ...............5-10
Bulb Replacement .................................... 5-45
Windshield Wiper Blade Replacement .........5-52
Tires ...................................................... 5-53
Appearance Care ..................................... 5-83
Vehicle Identication
................................. 5-91
Electrical System ...................................... 5-92
Capacities and Specications .....................5-99
Maintenance Schedule ..................................... 6-1
Maintenance Schedule ................................ 6-2
Customer Assistance and Information .............. 7-1
Customer Assistance and Information ........... 7-2
Reporting Safety Defects ...........................7-10
Index ................................................................ 1
2005 Chevrolet Venture Owner ManualM

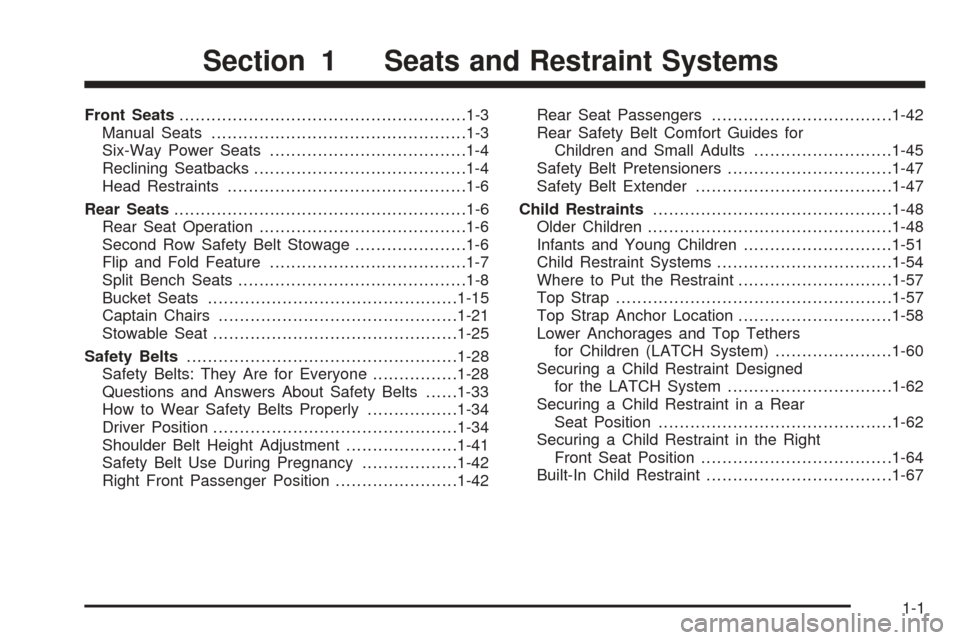

Front Seats......................................................1-3
Manual Seats................................................1-3
Six-Way Power Seats.....................................1-4
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-6
Rear Seats.......................................................1-6
Rear Seat Operation.......................................1-6
Second Row Safety Belt Stowage.....................1-6
Flip and Fold Feature.....................................1-7
Split Bench Seats...........................................1-8
Bucket Seats...............................................1-15
Captain Chairs.............................................1-21
Stowable Seat..............................................1-25
Safety Belts...................................................1-28
Safety Belts: They Are for Everyone................1-28
Questions and Answers About Safety Belts......1-33
How to Wear Safety Belts Properly.................1-34
Driver Position..............................................1-34
Shoulder Belt Height Adjustment.....................1-41
Safety Belt Use During Pregnancy..................1-42
Right Front Passenger Position.......................1-42Rear Seat Passengers..................................1-42
Rear Safety Belt Comfort Guides for
Children and Small Adults..........................1-45
Safety Belt Pretensioners...............................1-47
Safety Belt Extender.....................................1-47
Child Restraints.............................................1-48
Older Children..............................................1-48
Infants and Young Children............................1-51
Child Restraint Systems.................................1-54
Where to Put the Restraint.............................1-57
Top Strap....................................................1-57
Top Strap Anchor Location.............................1-58
Lower Anchorages and Top Tethers
for Children (LATCH System)......................1-60
Securing a Child Restraint Designed
for the LATCH System...............................1-62
Securing a Child Restraint in a Rear
Seat Position............................................1-62
Securing a Child Restraint in the Right
Front Seat Position....................................1-64
Built-In Child Restraint...................................1-67
Section 1 Seats and Restraint Systems
1-1

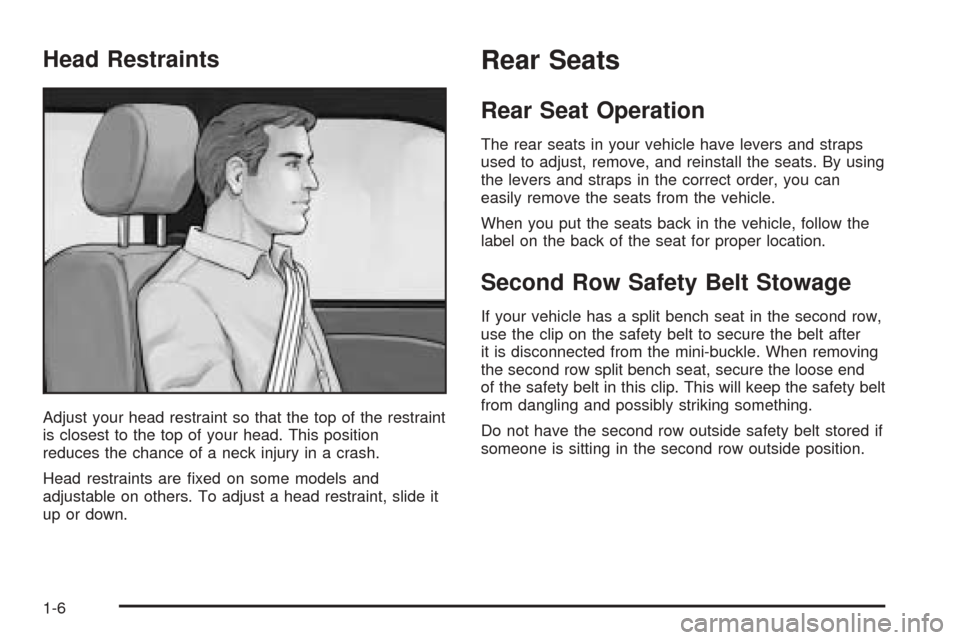

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
Head restraints are xed on some models and
adjustable on others. To adjust a head restraint, slide it
up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle.
When you put the seats back in the vehicle, follow the
label on the back of the seat for proper location.
Second Row Safety Belt Stowage
If your vehicle has a split bench seat in the second row,
use the clip on the safety belt to secure the belt after
it is disconnected from the mini-buckle. When removing
the second row split bench seat, secure the loose end
of the safety belt in this clip. This will keep the safety belt
from dangling and possibly striking something.
Do not have the second row outside safety belt stored if
someone is sitting in the second row outside position.
1-6

6. To unlatch the front latches, squeeze the angled
bar toward the straight crossbar.
7. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.
Replacing the Split Bench Seats
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
1-12

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure the seatback is in the upright position and
the safety belts are on the correct section of the seat.
Don’t put the sections of the bench seat in so they face
rearward because they won’t latch that way. If you
want more storage room behind the second row seat,
adjust each section by sliding it forward.
The split bench seats have seat position labels, located
on the back of each seat, showing where the seat
must go. Follow that diagram.The seat must be placed in the proper location for the
legs to attach correctly.
Make sure the seat is in the full rear position before
beginning this procedure.
1. Squeeze the angled bar toward the solid crossbar
while placing the front hooks of the bench seat onto
the front two oor pins.
1-13

You can also lift the lever on the side of the seat to
release the rear latches from the oor pins.
Do not let go of the strap or lever until the seat is
folded all the way forward.4. To unlatch the front latches, with the seat folded
forward, squeeze the angled bar toward the
straight crossbar.
5. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it
out. This should be done in one motion.
1-18

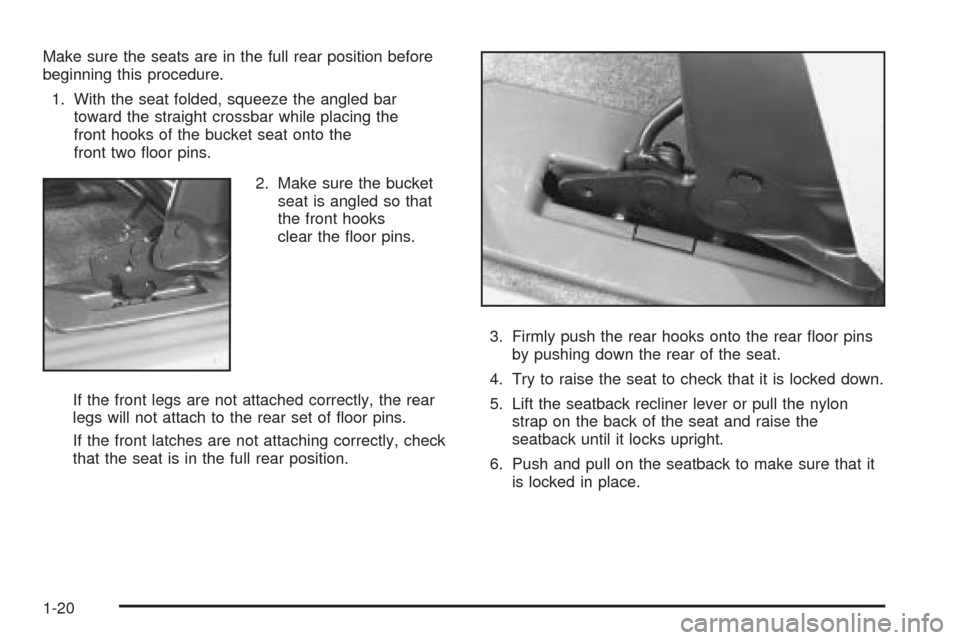

Make sure the seats are in the full rear position before
beginning this procedure.
1. With the seat folded, squeeze the angled bar
toward the straight crossbar while placing the
front hooks of the bucket seat onto the
front two oor pins.
2. Make sure the bucket
seat is angled so that
the front hooks
clear the oor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of oor pins.
If the front latches are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear oor pins
by pushing down the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to make sure that it
is locked in place.
1-20

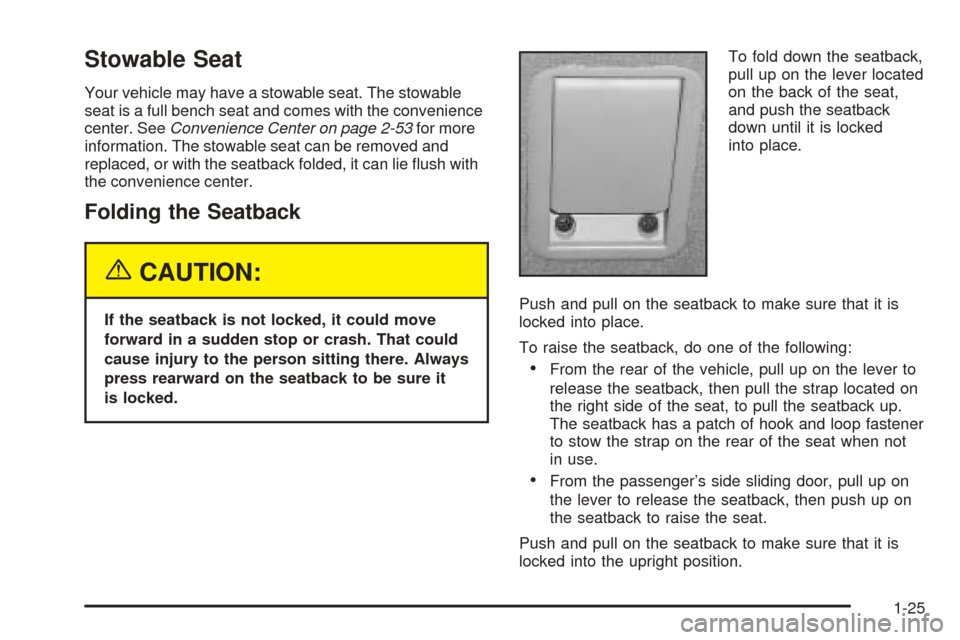

Stowable Seat
Your vehicle may have a stowable seat. The stowable
seat is a full bench seat and comes with the convenience
center. SeeConvenience Center on page 2-53for more
information. The stowable seat can be removed and
replaced, or with the seatback folded, it can lie ush with
the convenience center.
Folding the Seatback
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.To fold down the seatback,
pull up on the lever located
on the back of the seat,
and push the seatback
down until it is locked
into place.
Push and pull on the seatback to make sure that it is
locked into place.
To raise the seatback, do one of the following:
From the rear of the vehicle, pull up on the lever to
release the seatback, then pull the strap located on
the right side of the seat, to pull the seatback up.
The seatback has a patch of hook and loop fastener
to stow the strap on the rear of the seat when not
in use.
From the passenger’s side sliding door, pull up on
the lever to release the seatback, then push up on
the seatback to raise the seat.
Push and pull on the seatback to make sure that it is
locked into the upright position.
1-25
