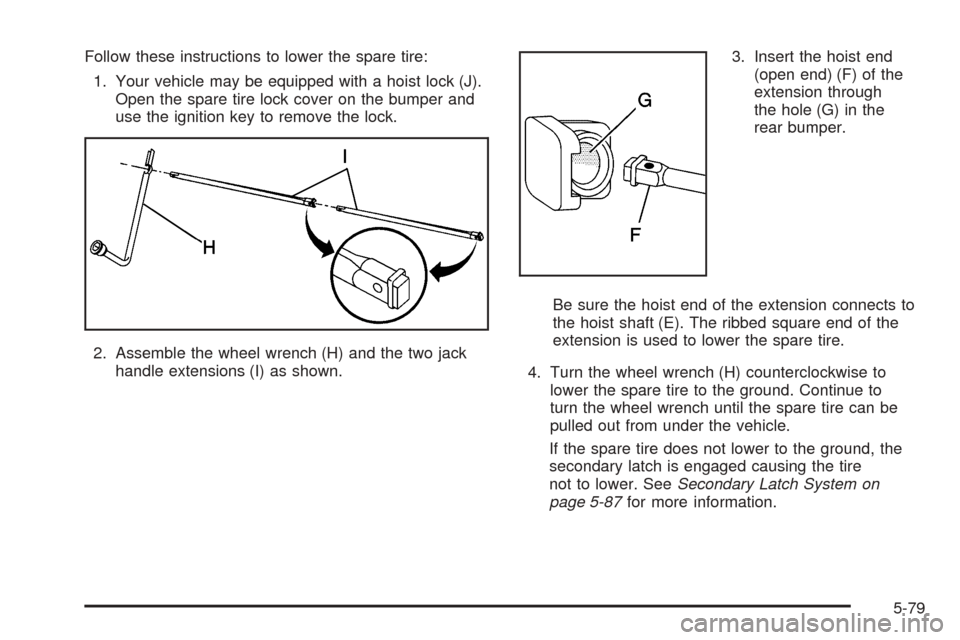

Follow these instructions to lower the spare tire:
1. Your vehicle may be equipped with a hoist lock (J).
Open the spare tire lock cover on the bumper and
use the ignition key to remove the lock.
2. Assemble the wheel wrench (H) and the two jack
handle extensions (I) as shown.3. Insert the hoist end
(open end) (F) of the
extension through
the hole (G) in the
rear bumper.
Be sure the hoist end of the extension connects to
the hoist shaft (E). The ribbed square end of the
extension is used to lower the spare tire.
4. Turn the wheel wrench (H) counterclockwise to
lower the spare tire to the ground. Continue to
turn the wheel wrench until the spare tire can be
pulled out from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire
not to lower. SeeSecondary Latch System on
page 5-87for more information.
5-79

5. Use the hook on the
wheel wrench to pull the
hoist cable towards you
to assist in reaching the
spare tire.
6. Tilt the retainer (D) at
the end of the cable
when the tire has been
lowered, so it can
be pulled up through
the wheel opening.
7. Put the spare tire near the at tire.Removing the Flat Tire and
Installing the Spare Tire
Use the following pictures and instructions to remove
the at tire and raise the vehicle.
The tools you will be using include the jack (A), the
wheel blocks (B), the jack handle (C), the jack handle
extensions (D), and the wheel wrench (E).
5-80

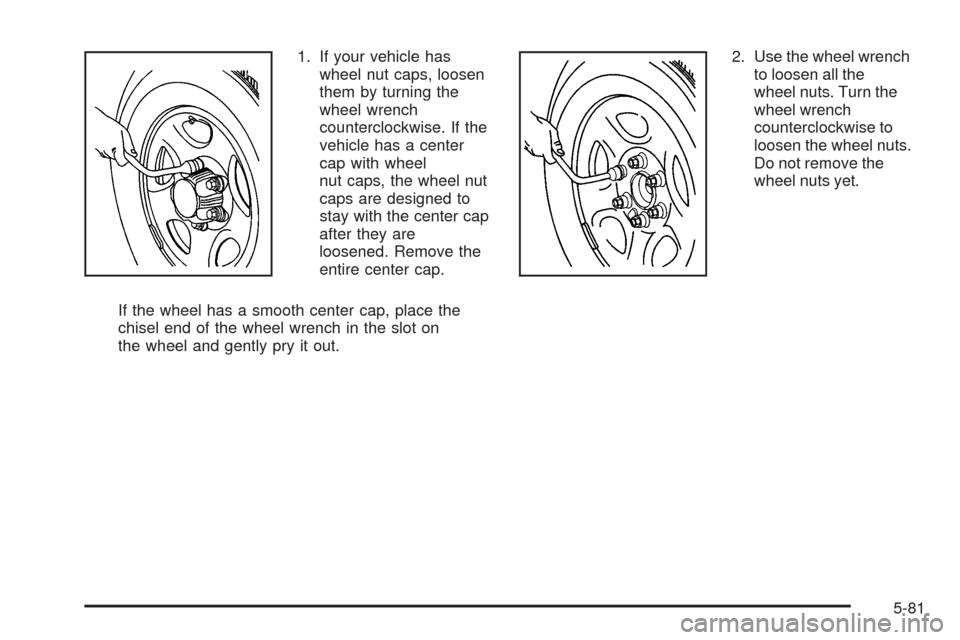

1. If your vehicle has
wheel nut caps, loosen
them by turning the
wheel wrench
counterclockwise. If the
vehicle has a center
cap with wheel
nut caps, the wheel nut
caps are designed to
stay with the center cap
after they are
loosened. Remove the
entire center cap.
If the wheel has a smooth center cap, place the
chisel end of the wheel wrench in the slot on
the wheel and gently pry it out.2. Use the wheel wrench
to loosen all the
wheel nuts. Turn the
wheel wrench
counterclockwise to
loosen the wheel nuts.
Do not remove the
wheel nuts yet.
5-81

Refer to the above graphic which shows the general
area of jack placement, front position (A), and
rear position (B). See the text and art following for
the exact jack placement.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get
under a vehicle when it is supported only
by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.
3. Position the jack under the vehicle. Jack Positions (Overall View)
5-82

Front Tire Flat:If the at tire is on a front tire of
the vehicle, you will need to use the jack handle and
only one jack handle extension. Attach the wheel
wrench to the jack handle extension. Attach the jack
handle to the jack. Position the jack on the frame
behind the at tire where the frame sections overlap.
Turn the wheel wrench clockwise to raise the
vehicle. Raise the vehicle far enough off the ground
so there is enough room for the spare tire to
clear the vehicle.Rear Tire Flat:If the at tire is on a rear tire of the
vehicle, you will need to use the jack handle and
both jack handle extensions. Attach the wheel
wrench to the jack handle extensions. Attach the
jack handle to the jack. On all 1500 Series vehicles,
use the jacking pad provided on the rear axle.
On 2500 series vehicles, use the axle between the
spring and shock bracket. Turn the wheel wrench
clockwise to raise the vehicle. Raise the vehicle far
enough off the ground so there is enough room
for the spare tire to clear the ground. Front Position
Rear Position — 1500
SeriesRear Position — 2500
Series
5-83

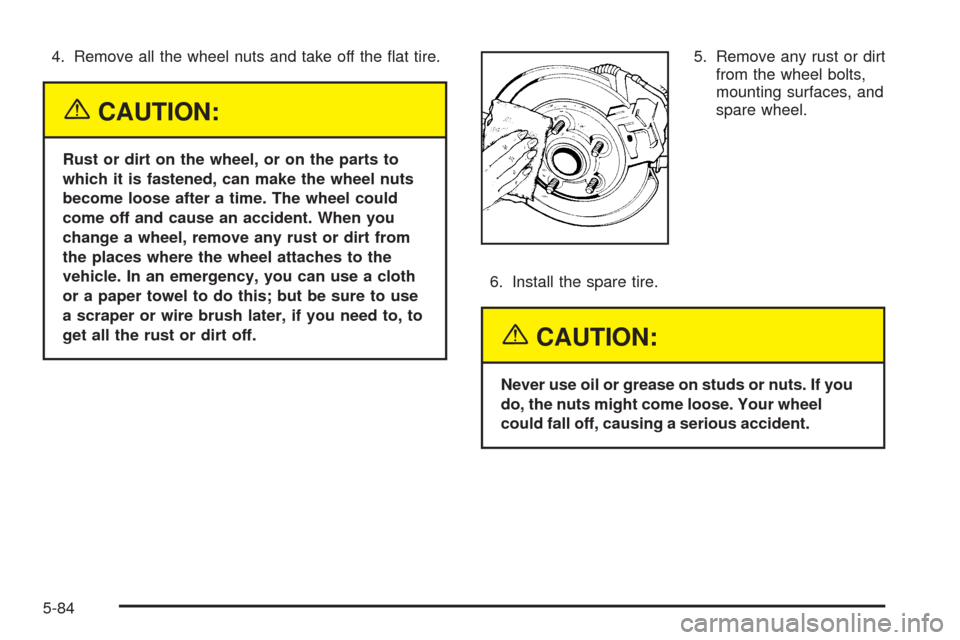

4. Remove all the wheel nuts and take off the at tire.
{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if you need to, to
get all the rust or dirt off.5. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
spare wheel.
6. Install the spare tire.
{CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel
could fall off, causing a serious accident.
5-84

7. Put the wheel nuts
back on with the
rounded end of the
nuts toward the wheel
after mounting the
spare.
8. Tighten each wheel nut by hand. Then use the
wheel wrench to tighten the wheel nuts until the
wheel is held against the hub.
Front Position
5-85

9. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-112for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-112for the wheel nut
torque specication. Rear Position — 1500
Series
Rear Position — 2500
Series
