2005 CHEVROLET AVALANCHE Owners Manual

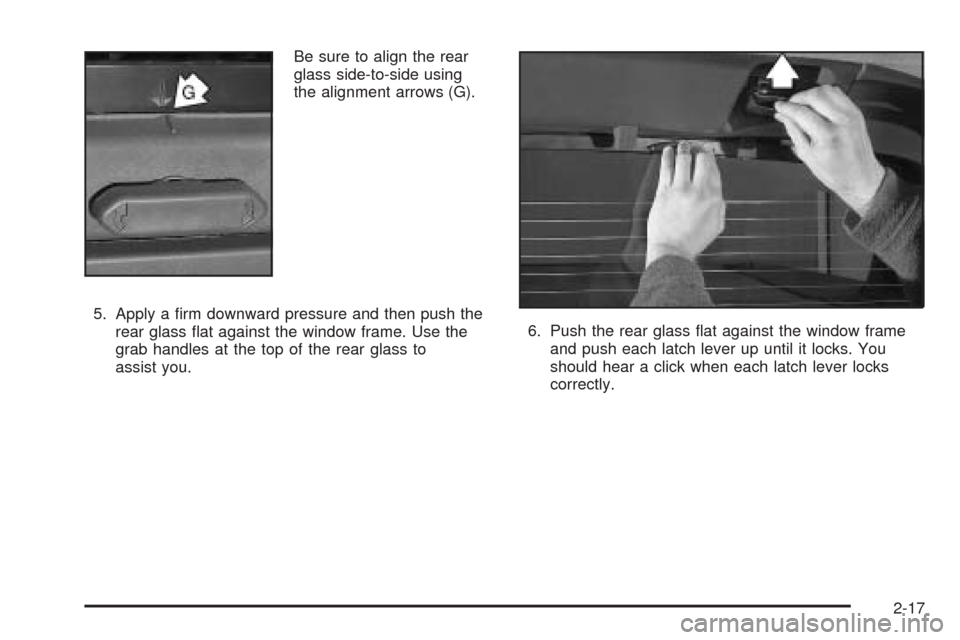

Be sure to align the rear
glass side-to-side using
the alignment arrows (G).
5. Apply a rm downward pressure and then push the
rear glass at against the window frame. Use the
grab handles at the top of the rear glass to
assist you.6. Push the rear glass at against the window frame
and push each latch lever up until it locks. You
should hear a click when each latch lever locks
correctly.
2-17

Lowering the Midgate with the Rear Glass
in Place
The midgate can be lowered to allow the cargo area of
your vehicle to extend into the cab. The rear glass
can be either installed in its normal position, or it can be
removed and stored in the rear glass storage pocket.
To lower the midgate, do the following:
1. Fold the rear seats. The front seats might have to
be moved forward slightly to allow the rear seats to
fold. SeeRear Seat Operation on page 1-7for
more information.
2. Standing outside of the vehicle, hold the midgate
securely so it does not fall forward. Turn the
midgate handle clockwise and pull the midgate
toward you.Rear Glass in Normal Position
2-18

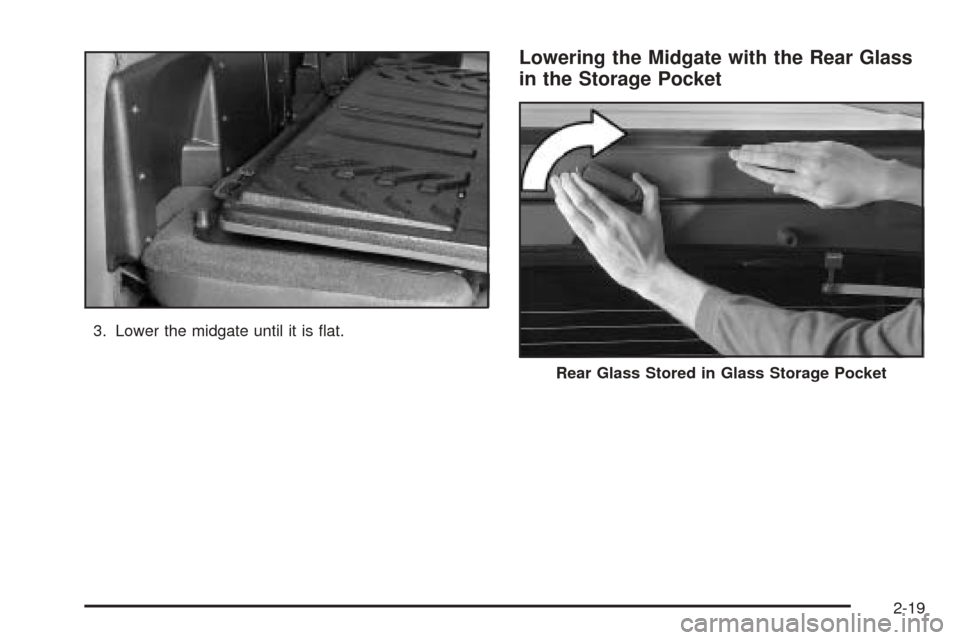

3. Lower the midgate until it is at.
Lowering the Midgate with the Rear Glass
in the Storage Pocket
Rear Glass Stored in Glass Storage Pocket
2-19

This procedure works the same as the procedure
described previously, but when you lower the midgate
with the rear glass in the stored position, you will notice
that the entire crossbar will lower with the midgate. This is
completely normal; however, since the crossbar lowers
with the midgate, it will be heavier. As you lower the
midgate be ready for the extra weight and do not let the
midgate fall as you lower it.
Raising the Midgate
To return the midgate to its normal position, raise the
midgate up with a rm swinging motion until it latches
into place securely. This will help to ensure that the
midgate closes with enough force to engage the latches.
If the rear glass is removed and you would like to put
it back, do so using the instructions given previously.
Tailgate
Use the ignition/door key to unlock/lock the tailgate.
Open the tailgate by lifting up on its handle while pulling
the tailgate toward you.
To shut the tailgate, rmly push it upward until it
latches. Push and pull on the tailgate to be sure it is
latched securely. Midgate Lowered with Crossbar Attached
2-20

Tailgate Removal
The tailgate can be removed to allow for different
loading situations. Although the tailgate can be removed
without assistance, you may want someone to assist
you with the removal to avoid possible damage to
the vehicle.
To remove the tailgate, do the following:
1. Hold the tailgate up, slightly raised.
2. Release the retaining
cable clip by lifting the
cable so it is level
with the ground and
then push the cable clip
toward the vehicle.
3. Raise the tailgate at a slight upward angle, pull
back on the tailgate at the right edge so it
releases from the block hinge and then move the
tailgate to the right to release the left edge.
Reverse the above procedure to reinstall. Make sure the
tailgate is secure.
2-21

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-22

Power Windows
The controls for the power windows are located on the
armrest on each of the side doors. The switches
operate the windows when the ignition is in RUN,
ACCESSORY or while Retained Accessory Power
(RAP) is active. SeeRetained Accessory Power (RAP)
on page 2-27.
The driver’s door also has a switch for each of the
passenger’s windows.
Press the top of the switch to lower the window. Pull up
the top of the switch to raise the window.
Express-Down Windows
The driver and front passenger windows also have an
express-down feature that allows the windows to
be lowered without holding the switch. Press down fully
on the window switch, then release, to activate the
express-down mode. This mode can be canceled at any
time by pulling up on the switch. To open the window
partway, press the switch to the rst position until
the window is at the desired position.
Window Lockout
o
(Window Lockout):Press the lockout switch to
prevent passengers from operating the power windows
from their switches. A light in the lockout switch will
come on to show that the switch has been activated.
Press the lockout switch again to return to normal
operation.
Sun Visors
Swing down the visors and slide them along the rod to
cover different areas of the front window. You can
also move them to cover the side windows.
Illuminated Visor Vanity Mirrors
Pull the sunvisor down and lift the mirror cover to turn
on the lamps.
2-23

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Content Theft-Deterrent
Your vehicle is equipped with a content theft-deterrent
alarm system.
With this system, the
security light in the
instrument panel cluster
will ash as you open
the door if your ignition
is off.
This light reminds you to activate the theft-deterrent
system. Here is how to do it:
1. Open the door.
2. Lock the door with the power door lock switch or
the remote keyless entry transmitter. The security
light will illuminate to inform the driver the system is
arming. If a door is open when the doors are
locked, the security light will ash.3. Close all doors. The security light should go off
after about 30 seconds. The alarm is not armed
until the security light goes off.
If the delayed locking feature is turned on, the
theft-deterrent system will not start the arming
process until the last door is closed and the delay
timer has expired. SeeDelayed Locking on page 2-9.
If a locked door is opened without the key or the remote
keyless entry transmitter, the alarm will go off. The
headlamps and parking lamps will ash for two minutes,
and the horn will sound for 30 seconds, then will turn
off to save the battery power. You can choose different
feedback options for the alarm. SeeDriver Information
Center (DIC) on page 3-45.
Remember, the theft-deterrent system will not activate if
you lock the doors with the vehicle’s key or use the
manual door lock. It activates only if you use a power
door lock switch with the door open, or with the remote
keyless entry transmitter. You should also remember
that you can start your vehicle with the correct ignition
key if the alarm has been set off.
2-24
