2005 BMW 325I TOURING Owner's Manual

161
Dimensions
OverviewControlsMaintenanceRepairsDataIndex

162

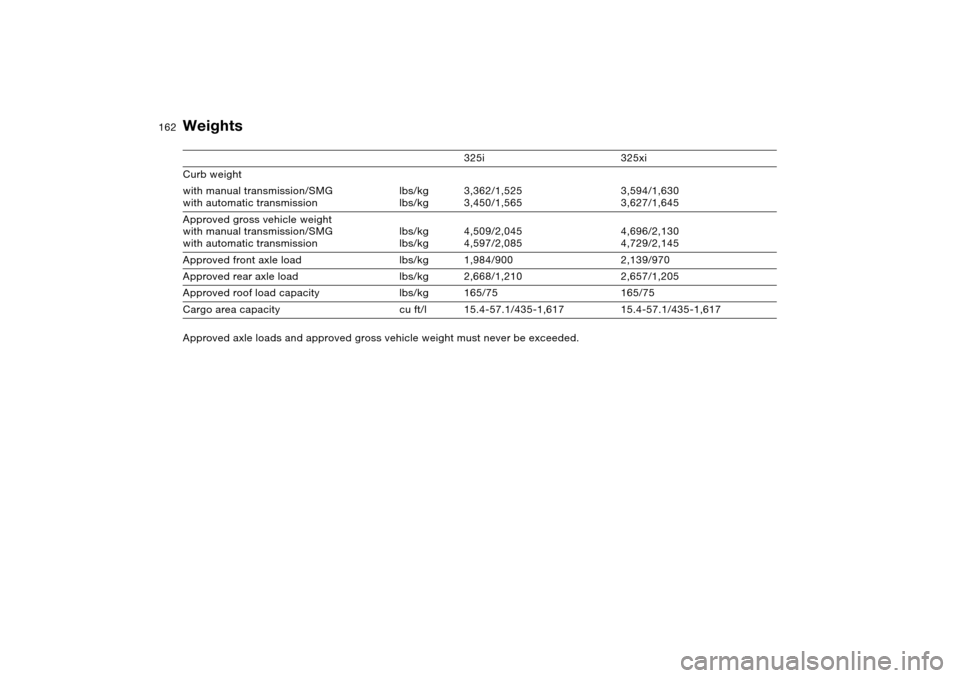

Weights
325i 325xi
Curb weight
with manual transmission/SMG
with automatic transmissionlbs/kg
lbs/kg3,362/1,525
3,450/1,5653,594/1,630
3,627/1,645
Approved gross vehicle weight
with manual transmission/SMG
with automatic transmissionlbs/kg
lbs/kg4,509/2,045
4,597/2,0854,696/2,130
4,729/2,145
Approved front axle load lbs/kg 1,984/900 2,139/970
Approved rear axle load lbs/kg 2,668/1,210 2,657/1,205
Approved roof load capacity lbs/kg 165/75 165/75
Cargo area capacity cu ft/l 15.4-57.1/435-1,617 15.4-57.1/435-1,617
Approved axle loads and approved gross vehicle weight must never be exceeded.

163
Capacities
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification, refer to
page 25
Windshield/
Headlamp washer reservoir front
Rear window washer reservoirquarts/liters
quarts/litersapprox. 5.6/5.3
approx. 2.4/2.3Specifications, refer to
page 132
Engine oil and filter change quarts/liters 325i: approx. 6.9/6.5
325xi: approx. 7.9/7.5BMW High Performance
Synthetic Oil
Oil specifications, refer to
page 132
Manual and automatic transmission,
transfer box and differential–Lifetime lubricant, no oil
change required
OverviewControlsMaintenanceRepairsDataIndex

164

165
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZA
ABS Antilock Brake
System 121
indicator lamp 18
Acceleration assistant 70
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 152
Activated-charcoal filter 104
ADB-X Automatic Differen-
tial Brake, all-wheel 88
Adding brake fluid 135
Additional sources of infor-
mation 4
Air conditioning 96
Air conditioning mode 98
automatic climate
control 102
Air distribution
air conditioning 98
automatic climate
control 102
Air distribution,
individual 102
Air outlets, refer to Ventila-
tion 96, 100
Air pressure, refer to Tire
inflation pressure 25, 124
Air recirculation, refer to
Recirculated-air mode
98, 103Air supply
air conditioning 98
automatic climate
control 102
Air, drying, refer to Air con-
ditioning mode 98, 102
Airbags 54
indicator lamp 18, 56
sitting safely 44
Airing out, refer to Ventila-
tion 96, 100
Alarm system 38
avoiding unintentional
alarms 39
All-season tires, refer to
Winter tires 127
Antifreeze 134
coolant 134
washer fluid 132
Antilock Brake System
(ABS) 121
indicator lamp 18
Anti-theft system 30
Anti-theft warning system,
refer to Alarm system 38
Approved axle loads, refer
to Weights 162
Approved gross weight,
refer to Weights 162
Armrest
front 106
rear 107Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 108
rear 108
AUC Automatic recircu-
lated-air control 103
AUTO program, refer
to Automatic air distribu-
tion 102
Automatic
air distribution 102
air supply 102
cruise control 77
headlamp control 93
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 100
Automatic curb monitor 51
Automatic Differential Brake,
all wheel ADB-X 88
Automatic dimming, interior
rearview mirror 53
Automatic recirculated-air
control (AUC) 103Automatic transmission with
Steptronic 71
indicator lamp 19, 73
interlock 63
selector lever lock 71
shiftlock 71
Automatic windshield
washer, refer to Rain sen-
sor 75
Average fuel
consumption 84
Average speed 84
Avoiding unintentional
alarms 39
Axle loads, refer to
Weights 162
B
Backrest, adjusting 46
Backrest, refer to Seat
adjustment 45, 47
Backup lamps 66
bulb replacement 145
Bandages, refer to First-aid
kit 23
Battery 151
charge 151
disposal 151
indicator lamp 18
jump-starting 153
remote control 30, 31
Battery charge current 18

Everything from A to Z
167
Belts, refer to Safety
belts 48
Beverage holders 106, 107
Blower
air conditioning 98
automatic climate
control 102
BMW High Performance
Synthetic Oils 133
BMW Maintenance
System 136
BMW sports seat 46
Bore, refer to Engine
data 160
Bottle holders, see Bever-
age holders 106, 107
Brake fluid 135
indicator lamp 18, 135
level 135
Brake force display 92
Brake hydraulic system 122
Brake lamps
bulb replacement 145
indicator lamp, defective
lamp 81
Brake lights
brake force display 92
Brake pads
brake fluid level
18, 122, 135
breaking in 120
disc brakes 122Brake rotors
brake system 122
breaking in 120
Brake system
brake pads, indicator
lamp 19
Brake wear warning
indicator lamp 19
Brakes
ABS 121
brake fluid 135
breaking in 120
indicator/warning lamp
18, 19
parking brake 65
Break-in procedures 120
Bulb replacement, refer to
Lamps and bulbs 143
Bulb, replacing 143
Buttons in steering wheel 22
C
California Proposition 65
warning 138
Can holders, see Beverage
holders 106, 107
Capacities 163
Car battery 151
Car care, refer to the Caring
for your vehicle brochure
Car keys, refer to Keys 30Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car telephone
preparation 107
Car telephone, refer to the
separate Owner's Manual
Car vacuum cleaner, con-
necting 108
Car wash, refer to the Caring
for your vehicle brochure
Cargo area 37, 111
cover 111
emergency release, refer
to Manual operation 36
floor panel 113
lamps 35
lid, refer to Tailgate 35
opening, remote
control 32
volume 162
Cargo, securing 115
Carpet care, refer to the
Caring for your vehicle
brochure
Cassette operation, refer to
the Owner's Manual for
Radio/Onboard Computer
CBC Cornering Brake Con-
trol 121
warning lamp 18CD changer, refer to the
Owner's Manual for
Radio/Onboard Computer
CD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Cellular phone 107
Center high-mount brake
lamp
bulb replacement 146
Central locking system 30
button 35
passenger
compartment 35
Charge indicator lamp 18
Check Control 81
Check Gas Cap
indicator lamp 19
Child safety locks 60
Child seats 57
Child-restraint mounting
system (LATCH) 59
Child-restraint systems 57
Chock 148
Cigarette lighter 108
Cigarette lighter socket 108
Clean rear window 76
Cleaning chrome parts, refer
to the Caring for your vehi-
cle brochure
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZCleaning light alloy wheels,
refer to the Caring for your
vehicle brochure
Cleaning the vehicle, refer to
the Caring for your vehicle
brochure
Cleaning windshield 76
Clock 82
12-/24-hour mode 82
setting, refer also to the
Owner's Manual for
Radio/Onboard Computer
Closing
from inside 35
from outside 31
Clothes hooks 121
Clutch
breaking in 120
Cockpit 14
Code, refer to the Owner's
Manual for Radio/Onboard
Computer
Coin box 106
Cold start, refer to Starting
the engine 63
Compact disc operation,
refer to the Owner's Man-
ual for Radio/Onboard
Computer
Compartments 106
Compartments in cargo
area 113Compression ratio, refer to
Engine data 160
Computer 83
Condensation, refer to Air
conditioning mode 98, 102
Configuring settings, refer to
Vehicle Memory, Key
Memory 61
Connecting a vacuum
cleaner, refer to Cigarette
lighter 108
Consumption
display 79
Consumption, refer to Aver-
age fuel consumption 84
Control elements, refer to
Cockpit 14
Convenience operation
from outside 34
glass sunroof 32
windows 32
Coolant 134
indicator lamp 19, 80
level 134
temperature gauge 80
Coolant water, refer to Cool-
ant 134
Cooling, refer to Tempera-
ture 98, 102
Copyright 4Cornering Brake Control
(CBC) 121
warning lamp 18
Correct tires 127
Cover, refer to Cargo area
cover 111
Cruise control 77
indicator lamp 20
Cup holders, see Beverage
holders 106, 107
Curb weight, refer to
Weights 162
Current consumption, refer
to Energy control 79
Cylinders, refer to Engine
data 160
D
Dashboard, refer to
Cockpit 14
Data
capacities 163
dimensions 161
engine 160
technical 160
weights 162
Daytime driving lamps 93
DBC Dynamic Brake Control
19, 121
Deep water, refer to Water
on roadways 121Defrost position, refer
to Defrosting windows
99, 102
Defrosting and demisting
windows
air conditioning 99
automatic climate
control 102
Defrosting windows 99, 102
Defrosting windshield,
refer to Defrosting win-
dows 99, 102
Demisting windows
air conditioning 99
automatic climate
control 102
Determining the maximum
load 114
Differential
breaking in 120
Digital clock 82
Dimensions 161
Dipstick, engine oil 132
Disc brakes 122
Displacement, refer to
Engine data 160
Display lighting, refer to
Instrument lighting 94
Displays, refer to Instrument
cluster 16
