2005.5 Peugeot 307 SW Owner's Manual

Comfort54 -
01-10-2005
55Comfort-
01-10-2005

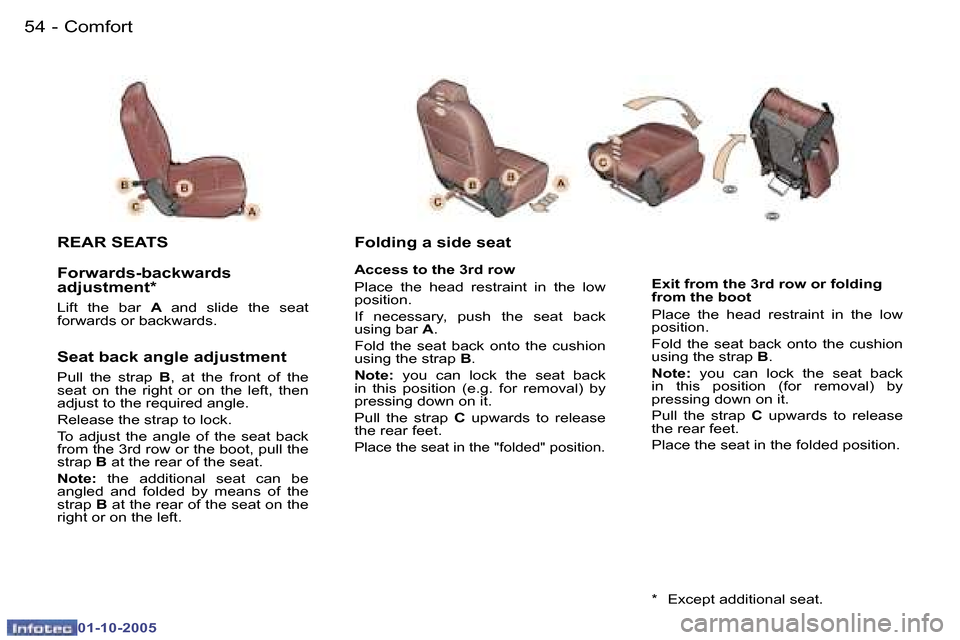

Exit from the 3rd row or folding
from the boot
Place the head restraint in the low
position.
Fold the seat back onto the cushion
using the strap B.
Note: you can lock the seat back
in this position (for removal) by
pressing down on it.
Pull the strap C upwards to release
the rear feet.
Place the seat in the folded position.
REAR SEATS
Forwards-backwards
adjustment*
Lift the bar A and slide the seat
forwards or backwards.
* Except additional seat.
Seat back angle adjustment
Pull the strap B, at the front of the
seat on the right or on the left, then
adjust to the required angle.
Release the strap to lock.
To adjust the angle of the seat back
from the 3rd row or the boot, pull the
strap B at the rear of the seat.
Note: the additional seat can be
angled and folded by means of the
strap B at the rear of the seat on the
right or on the left.
Folding a side seat
Access to the 3rd row
Place the head restraint in the low
position.
If necessary, push the seat back
using bar A.
Fold the seat back onto the cushion
using the strap B.
Note: you can lock the seat back
in this position (e.g. for removal) by
pressing down on it.
Pull the strap C upwards to release
the rear feet.
Place the seat in the "folded" position.

Comfort54 -
01-10-2005
55Comfort-
01-10-2005

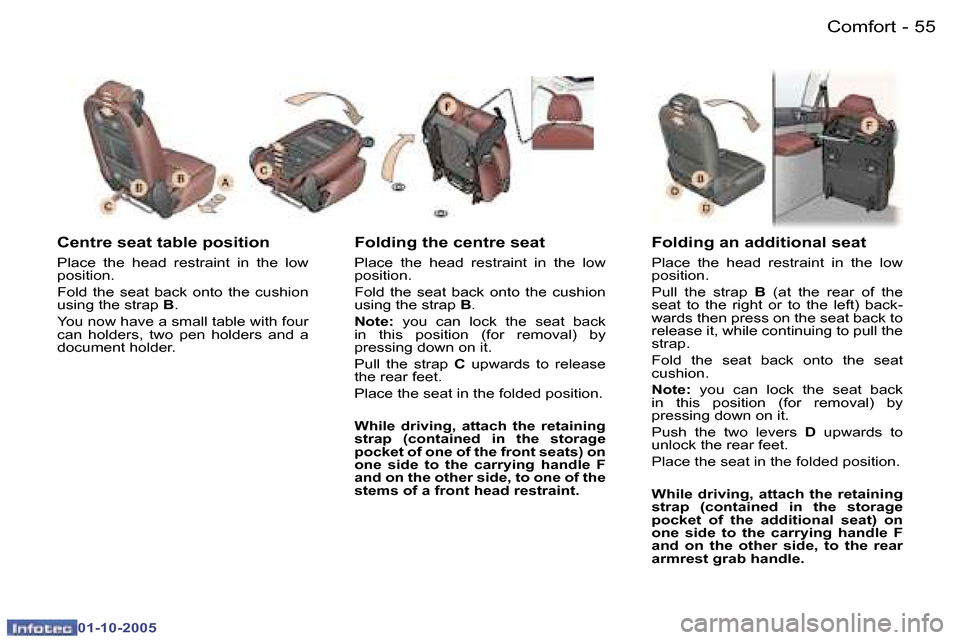

Centre seat table position
Place the head restraint in the low
position.
Fold the seat back onto the cushion
using the strap B.
You now have a small table with four
can holders, two pen holders and a
document holder.
Folding the centre seat
Place the head restraint in the low
position.
Fold the seat back onto the cushion
using the strap B.
Note: you can lock the seat back
in this position (for removal) by
pressing down on it.
Pull the strap C upwards to release
the rear feet.
Place the seat in the folded position.
While driving, attach the retaining
strap (contained in the storage
pocket of one of the front seats) on
one side to the carrying handle F
and on the other side, to one of the
stems of a front head restraint.
Folding an additional seat
Place the head restraint in the low
position.
Pull the strap B (at the rear of the
seat to the right or to the left) back-
wards then press on the seat back to
release it, while continuing to pull the
strap.
Fold the seat back onto the seat
cushion.
Note: you can lock the seat back
in this position (for removal) by
pressing down on it.
Push the two levers D upwards to
unlock the rear feet.
Place the seat in the folded position.
While driving, attach the retaining
strap (contained in the storage
pocket of the additional seat) on
one side to the carrying handle F
and on the other side, to the rear
armrest grab handle.

Comfort56 -
01-10-2005
57Comfort-
01-10-2005

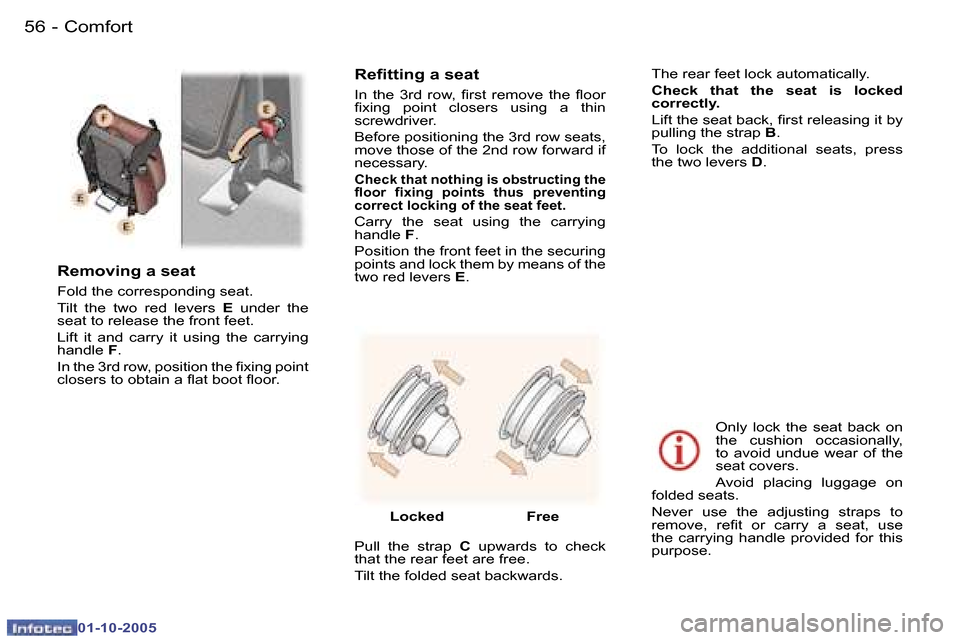

Removing a seat
Fold the corresponding seat.
Tilt the two red levers E under the
seat to release the front feet.
Lift it and carry it using the carrying
handle F.
In the 3rd row, position the ixing point
closers to obtain a lat boot loor.
Reitting a seat
In the 3rd row, irst remove the loor
ixing point closers using a thin
screwdriver.
Before positioning the 3rd row seats,
move those of the 2nd row forward if
necessary.
Check that nothing is obstructing the
loor ixing points thus preventing
correct locking of the seat feet.
Carry the seat using the carrying
handle F.
Position the front feet in the securing
points and lock them by means of the
two red levers E.
Locked
Pull the strap C upwards to check
that the rear feet are free.
Tilt the folded seat backwards. The rear feet lock automatically.
Check that the seat is locked
correctly.
Lift the seat back, irst releasing it by
pulling the strap
B.
To lock the additional seats, press
the two levers D.
Only lock the seat back on
the cushion occasionally,
to avoid undue wear of the
seat covers.
Avoid placing luggage on
folded seats.
Never use the adjusting straps to
remove, reit or carry a seat, use
the carrying handle provided for this
purpose.
Free

Comfort56 -
01-10-2005
57Comfort-
01-10-2005
SEAT MODULARITY AND DIFFERENT CONFIGURATIONS
The design of your vehicle and of its seats offers multiple
seat conigurations.
There are side seats which can be installed in the 2nd or
3rd row, on the right or on the left.
Once the centre seat has been removed from the 2nd row,
you can recentre the side seats for more comfort.
There is also a centre seat, itted in the central position of
the 2nd row, which can also be installed in the left posi tion
in the 3rd row.
In this case, you must use the 3rd row rear left seat belt
without passing it through the strap guide.
You can add up to two additional seats in the 3rd row, on
the right or on the left.
The various operations resulting in modiication
of the existing coniguration must be carried
out when the vehicle is stationary (see "Seats"
section). Examples of varied arrangements combining comfort
and practicality:
5 seats
4 seats with table position

Comfort58 -
01-10-2005
59Comfort-
01-10-2005

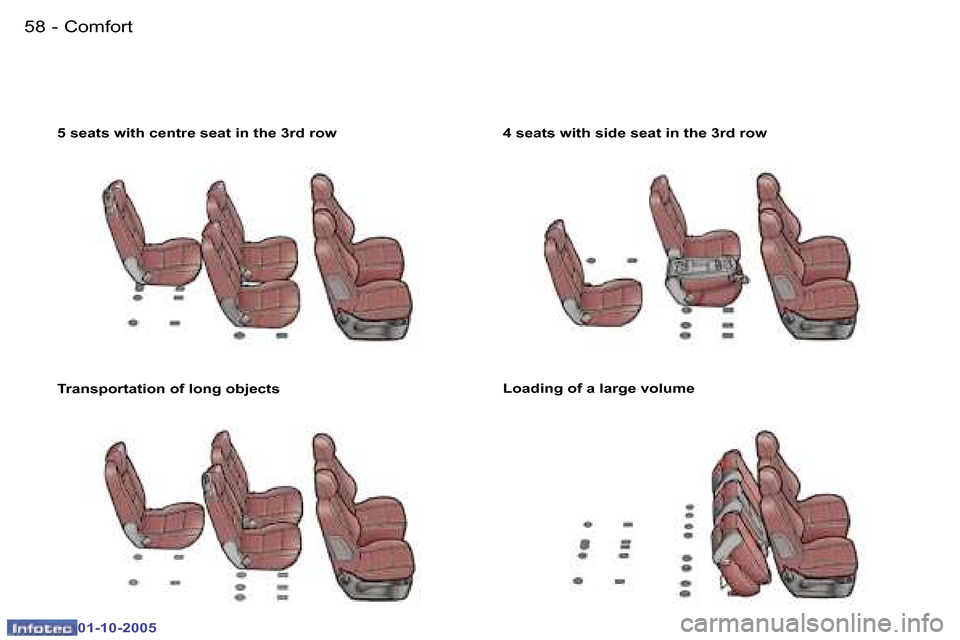

5 seats with centre seat in the 3rd row
Transportation of long objects4 seats with side seat in the 3rd row
Loading of a large volume

Comfort58 -
01-10-2005
59Comfort-
01-10-2005

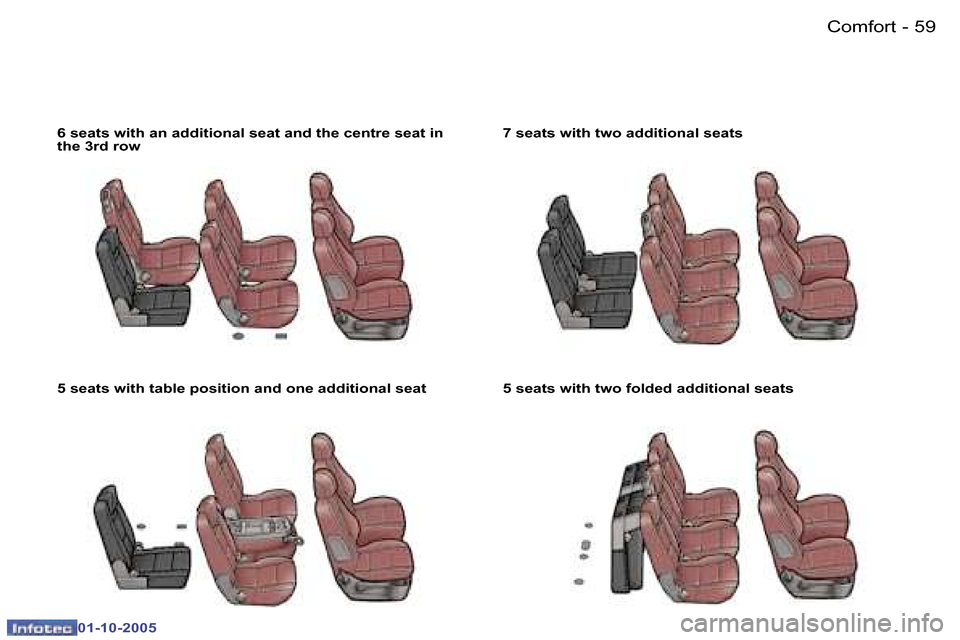

6 seats with an additional seat and the centre seat in
the 3rd row
5 seats with table position and one additional seat7 seats with two additional seats
5 seats with two folded additional seats

Comfort60 -
01-10-2005
61Comfort-
01-10-2005

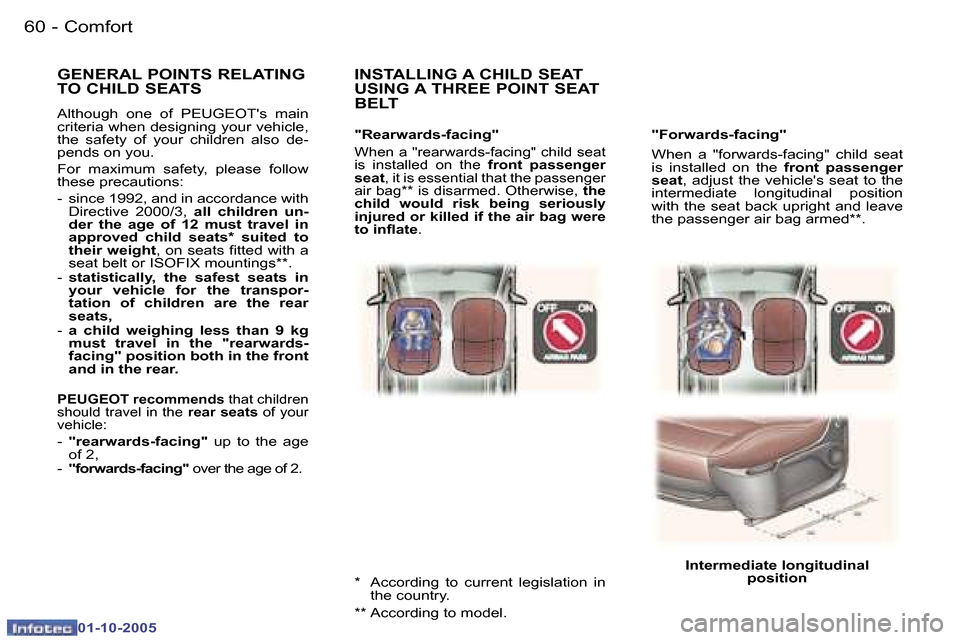

"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed**.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the front passenger
seat , it is essential that the passenger
air bag** is disarmed. Otherwise, the
child would risk being seriously
injured or killed if the air bag were
to inlate .
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:
- since 1992, and in accordance with
Directive 2000/3, all children un-
der the age of 12 must travel in
approved child seats* suited to
their weight , on seats itted with a
seat belt or ISOFIX mountings**.
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
- "rearwards-facing" up to the age
of 2,
- "forwards-facing" over the age of 2.
* According to current legislation in the country.
** According to model. Intermediate longitudinal
position

Comfort64 -
01-10-2005
65Comfort-
01-10-2005

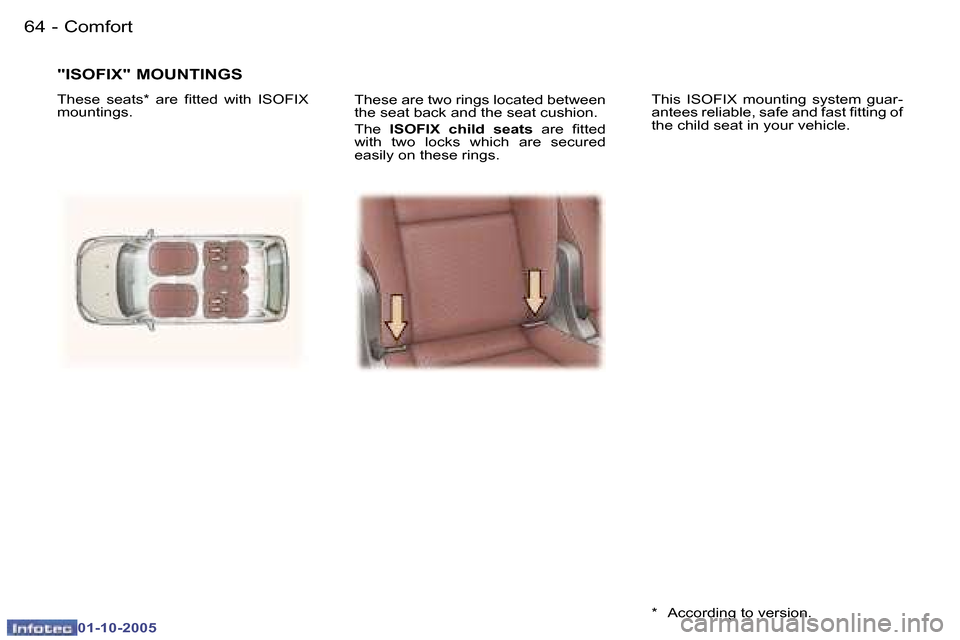

These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats are itted
with two locks which are secured
easily on these rings.
"ISOFIX" MOUNTINGS
These seats* are itted with ISOFIX
mountings. This ISOFIX mounting system guar-
antees reliable, safe and fast itting of
the child seat in your vehicle.
* According to version.
