WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle is limited to 60 mph (100 km/h )**.
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 45 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
** According to the legislation in force in the country. Petrol engines
1.6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes: 3H... NFUC NFUF RFJC RFJF
• Kerb weight 1 435 1 469 1 466 1 493
• Payload 505 511 504 492
• Gross vehicle weight (GVW) 1 940 1 980 1 970 1 985
• Gross train weight (GTW)
on a 12 % gradient 2 900 2 900 3 200 3 200
on an 8 % gradient 2 900 2 900 3 200 3 200
• Braked trailer (within GTW)
on a 12 % gradient 960 920 1 230 1 215
on an 8 % gradient 960 920 1 230 1 215
• Braked trailer* (with load transfer within GTW) 1 200 1 200 1 500 1 500
• Unbraked trailer 715 730 730 745
• Recommended nose weight 60 60 60 60

Technical data138 -
01-10-2005
139Technical data-
01-10-2005

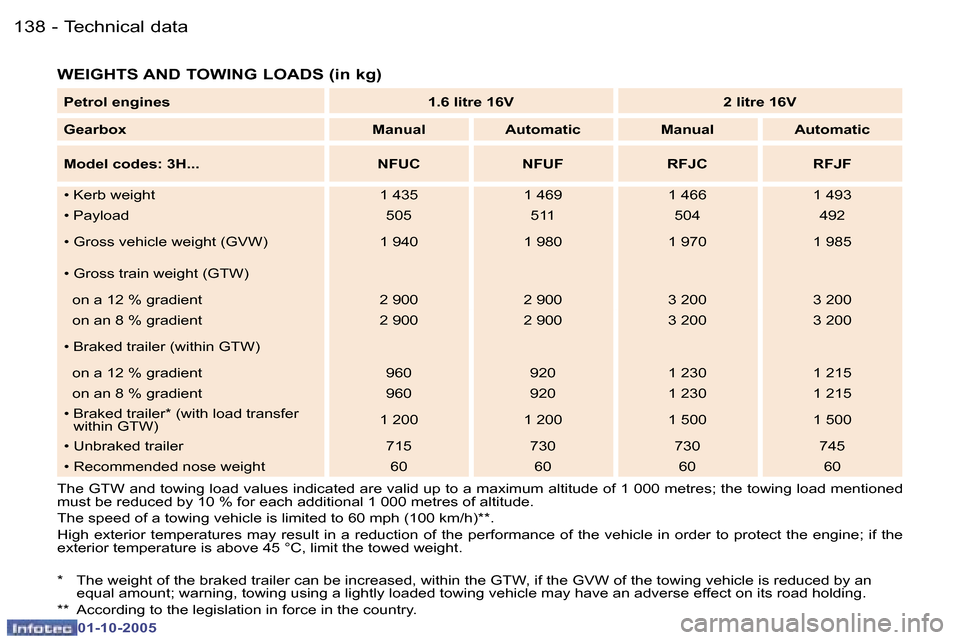

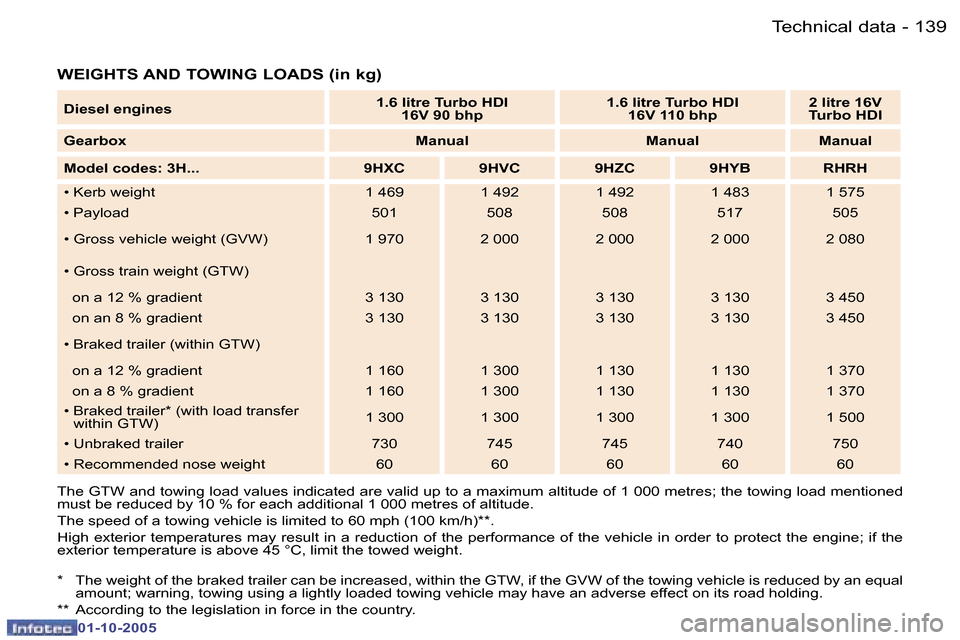

WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle is limited to 60 mph (100 km/h )**.
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 45 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
** According to the legislation in force in the country. Diesel engines
1.6 litre Turbo HDI
16V 90 bhp 1.6 litre Turbo HDI
16V 110 bhp 2 litre 16V
Turbo HDI
Gearbox Manual Manual Manual
Model codes: 3H... 9HXC 9HVC 9HZC 9HYB RHRH
• Kerb weight 1 469 1 492 1 492 1 483 1 575
• Payload 501 508 508 517 505
• Gross vehicle weight (GVW) 1 970 2 000 2 000 2 000 2 080
• Gross train weight (GTW)
on a 12 % gradient 3 130 3 130 3 130 3 130 3 450
on an 8 % gradient 3 130 3 130 3 130 3 130 3 450
• Braked trailer (within GTW)
on a 12 % gradient 1 160 1 300 1 130 1 130 1 370
on a 8 % gradient 1 160 1 300 1 130 1 130 1 370
• Braked trailer* (with load transfer within GTW) 1 300 1 300 1 300 1 300 1 500
• Unbraked trailer 730 745 745 740 750
• Recommended nose weight 60 60 60 60 60

Technical data140 -
01-10-2005
141Technical data-
01-10-2005

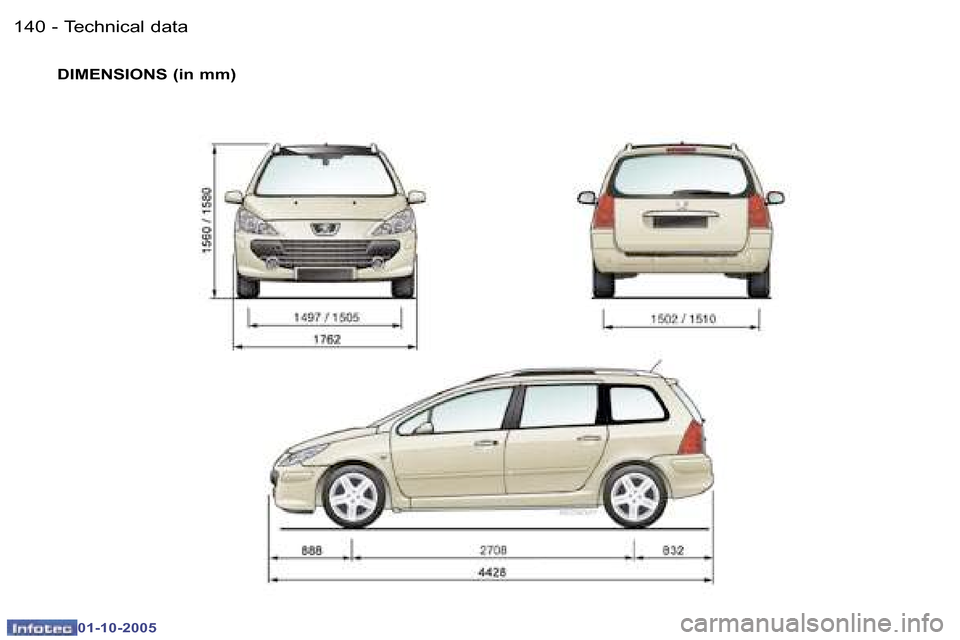

DIMENSIONS (in mm)

Technical data140 -
01-10-2005
141Technical data-
01-10-2005

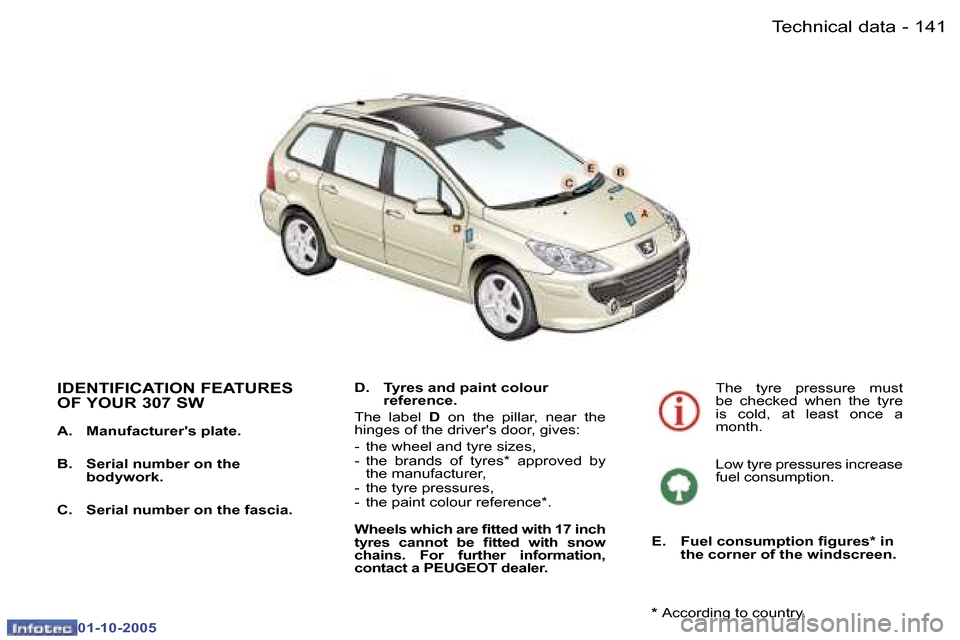

IDENTIFICATION FEATURES
OF YOUR 307 SW
A. Manufacturer's plate.
B. Serial number on thebodywork.
C. Serial number on the fascia. D. Tyres and paint colour
reference.
The label D on the pillar, near the
hinges of the driver's door, gives:
- the wheel and tyre sizes,
- the brands of tyres* approved by the manufacturer,
- the tyre pressures,- the paint colour reference*.
Wheels which are itted with 17 inch
tyres cannot be itted with snow
chains. For further information,
contact a PEUGEOT dealer. The tyre pressure must
be checked when the tyre
is cold, at least once a
month.
Low tyre pressures increase
fuel consumption.
E. Fuel consumption igures* in the corner of the windscreen.
* According to country.

101-10-200501-10-2005

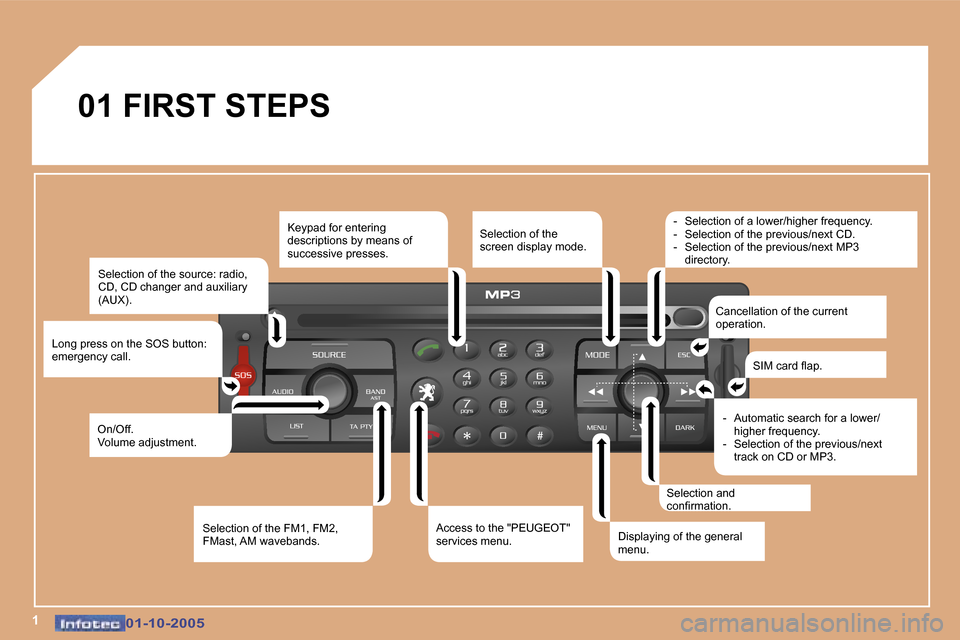

01 FIRST STEPSSelection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu. Displaying of the general
menu.SIM card lap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory.
- Automatic search for a lower/higher frequency.
- Selection of the previous/next track on CD or MP3.
Selection and
conirmation.
Selection of the
screen display mode.

201-10-200501-10-2005

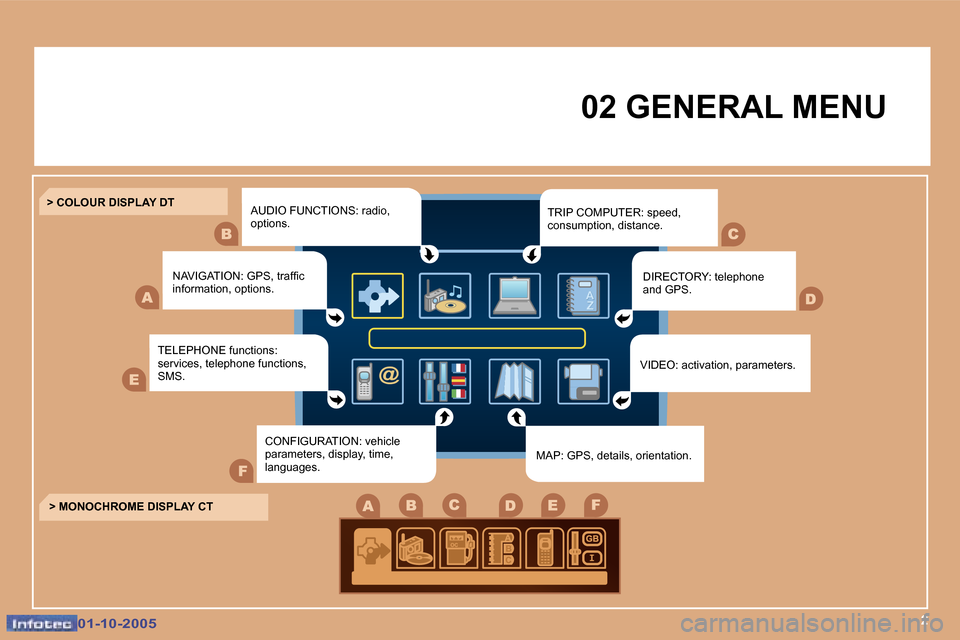

02 GENERAL MENU
AUDIO FUNCTIONS: radio,
options.
NAVIGATION: GPS, trafic
information, options.
> COLOUR DISPLAY DT
TRIP COMPUTER: speed,
consumption, distance.
DIRECTORY: telephone
and GPS.
VIDEO: activation, parameters.
MAP: GPS, details, orientation.
CONFIGURATION: vehicle
parameters, display, time,
languages.
TELEPHONE functions:
services, telephone functions,
SMS.
> MONOCHROME DISPLAY CT

3
1
2
35
7
4 6
8
01-10-200501-10-2005
03 GPS

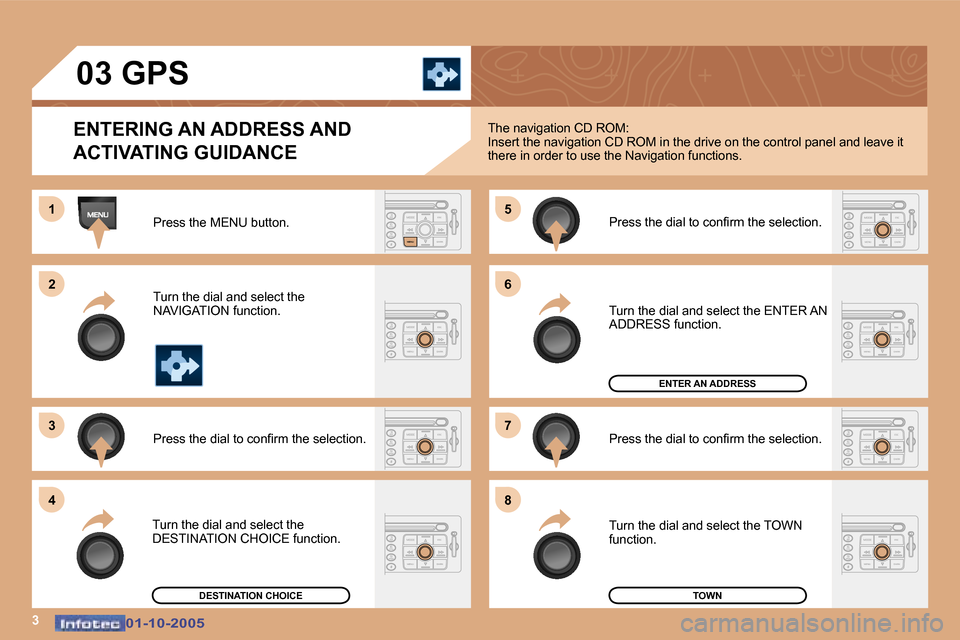

ENTERING AN ADDRESS AND
ACTIVATING GUIDANCE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the ENTER AN
ADDRESS function.
Turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
The navigation CD ROM:
Insert the navigation CD ROM in the drive on the co
ntrol panel and leave it
there in order to use the Navigation functions.
DESTINATION CHOICE

4
9
11
12 13
15
10
14
01-10-200501-10-2005

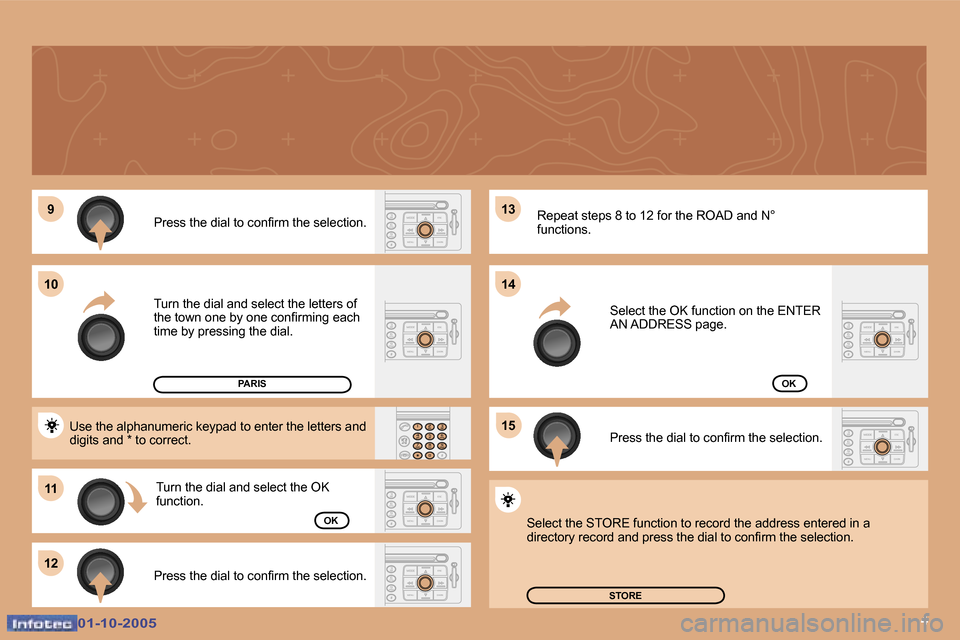

Press the dial to conirm the selection.
Turn the dial and select the letters of
the town one by one conirming each
time by pressing the dial.
Turn the dial and select the OK
function.
Press the dial to conirm the selection.
Use the alphanumeric keypad to enter the letters an
d
digits and * to correct. Press the dial to conirm the selection.Select the OK function on the ENTER
AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N°
functions.
PARIS
OK
OK Select the STORE function to record the address ent ered in a
directory record and press the dial to conirm the s election.
STORE
