2005.5 Peugeot 307 SW Owner's Manual

Accesses72 -
01-10-2005
73Accesses-
01-10-2005

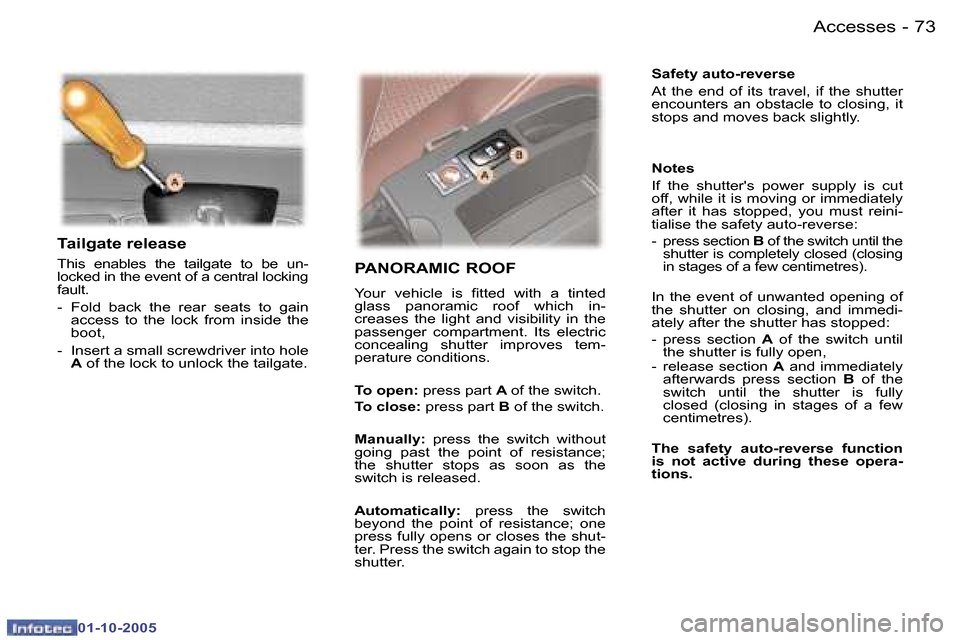

Tailgate release
This enables the tailgate to be un-
locked in the event of a central locking
fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it
stops and moves back slightly. PANORAMIC ROOF
Your vehicle is itted with a tinted
glass panoramic roof which in-
creases the light and visibility in the
passenger compartment. Its electric
concealing shutter improves tem-
perature conditions.
To open:
press part A of the switch.
To close: press part B of the switch.
Manually: press the switch without
going past the point of resistance;
the shutter stops as soon as the
switch is released.
Automatically: press the switch
beyond the point of resistance; one
press fully opens or closes the shut-
ter. Press the switch again to stop the
shutter. Notes
If the shutter's power supply is cut
off, while it is moving or immediately
after it has stopped, you must reini-
tialise the safety auto-reverse:
- press section
B of the switch until the
shutter is completely closed (closing
in stages of a few centimetres).
In the event of unwanted opening of
the shutter on closing, and immedi-
ately after the shutter has stopped:
- press section A of the switch until
the shutter is fully open,
- release section A and immediately
afterwards press section B of the
switch until the shutter is fully
closed (closing in stages of a few
centimetres).
The safety auto-reverse function
is not active during these opera-
tions.

Accesses74 -
01-10-2005

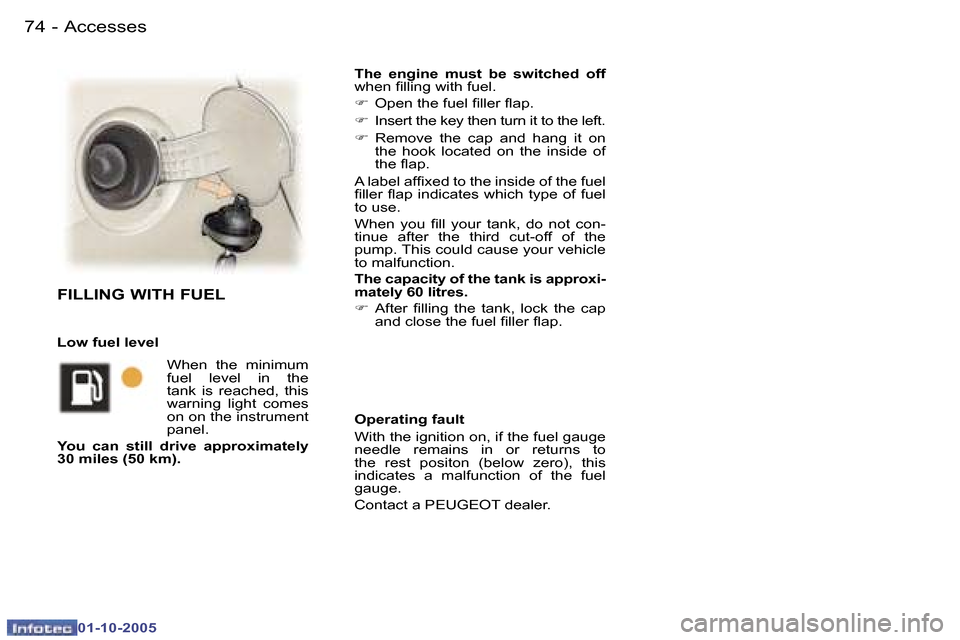

The engine must be switched off
when illing with fuel.
F Open the fuel iller lap.
F Insert the key then turn it to the left.
F Remove the cap and hang it on
the hook located on the inside of
the lap.
A label afixed to the inside of the fuel
iller lap indicates which type of fuel
to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is approxi-
mately 60 litres.
F After illing the tank, lock the cap
and close the fuel iller lap.
FILLING WITH FUEL
Low fuel level
When the minimum
fuel level in the
tank is reached, this
warning light comes
on on the instrument
panel.
You can still drive approximately
30 miles (50 km). Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to
the rest positon (below zero), this
indicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.

75Visibility-
01-10-2005

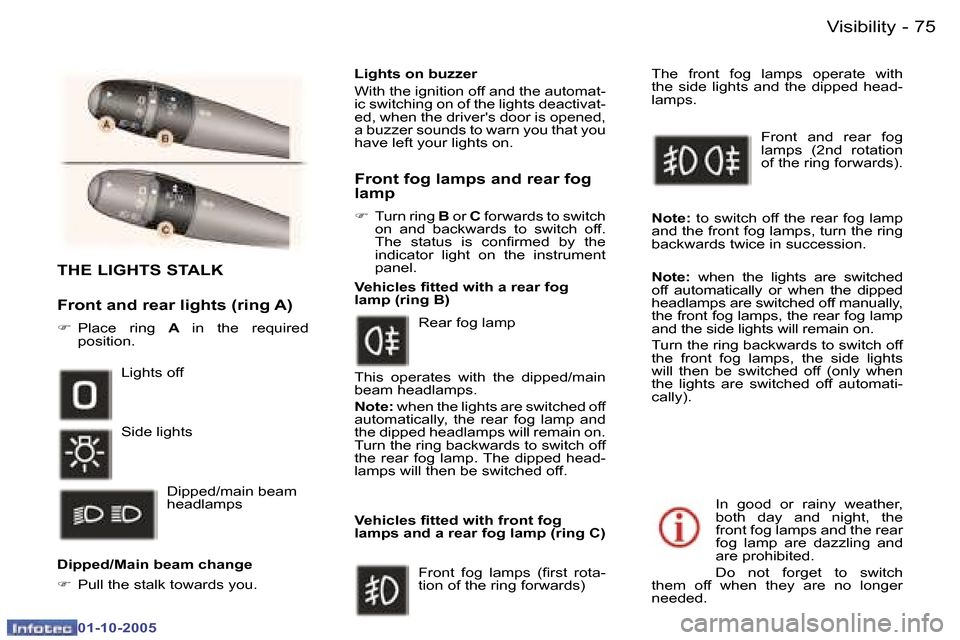

THE LIGHTS STALK
Front and rear lights (ring A)
F Place ring A in the required
position.
Dipped/Main beam change
F Pull the stalk towards you. Vehicles itted with front fog
lamps and a rear fog lamp (ring C)
Lights off
Side lights
Dipped/main beam
headlamps Rear fog lamp
Front fog lamps (irst rota-
tion of the ring forwards) Front and rear fog
lamps (2nd rotation
of the ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manually,
the front fog lamps, the rear fog lamp
and the side lights will remain on.
Turn the ring backwards to switch off
the front fog lamps, the side lights
will then be switched off (only when
the lights are switched off automati-
cally).
Vehicles itted with a rear fog
lamp (ring B)
This operates with the dipped/main
beam headlamps.
Note:
when the lights are switched off
automatically, the rear fog lamp and
the dipped headlamps will remain on.
Turn the ring backwards to switch off
the rear fog lamp. The dipped head-
lamps will then be switched off. The front fog lamps operate with
the side lights and the dipped head-
lamps.
Front fog lamps and rear fog
lamp
F
Turn ring B or C forwards to switch
on and backwards to switch off.
The status is conirmed by the
indicator light on the instrument
panel.
Lights on buzzer
With the ignition off and the automat-
ic switching on of the lights deactivat-
ed, when the driver's door is opened,
a buzzer sounds to warn you that you
have left your lights on.
In good or rainy weather,
both day and night, the
front fog lamps and the rear
fog lamp are dazzling and
are prohibited.
Do not forget to switch
them off when they are no longer
needed.

Visibility76 -
01-10-2005
77Visibility-
01-10-2005

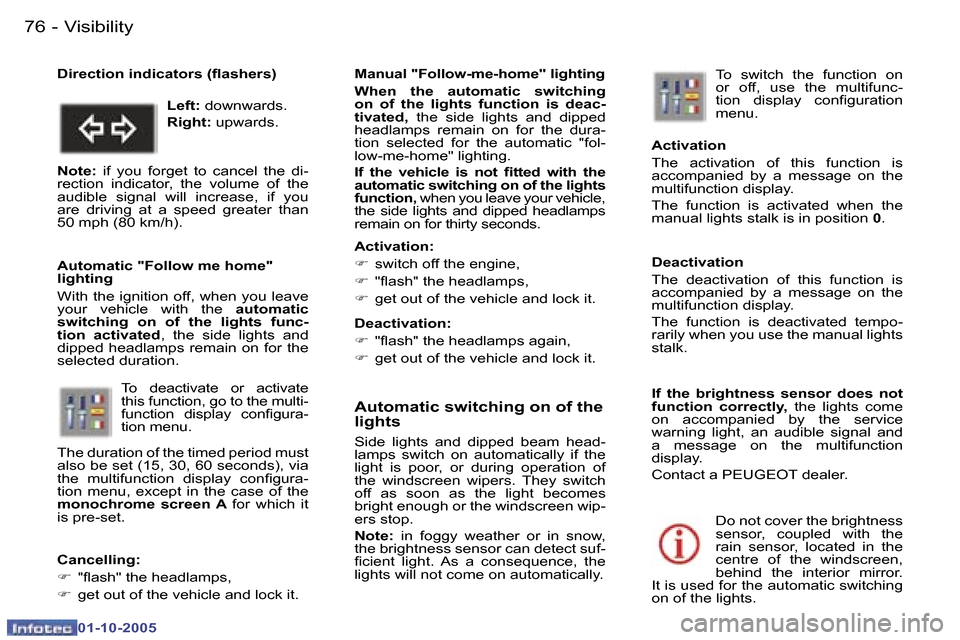

Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.
Note: in foggy weather or in snow,
the brightness sensor can detect suf-
icient light. As a consequence, the
lights will not come on automatically. Deactivation
The deactivation of this function is
accompanied by a message on the
multifunction display.
The function is deactivated tempo-
rarily when you use the manual lights
stalk.
Manual "Follow-me-home" lighting
When the automatic switching
on of the lights function is deac-
tivated,
the side lights and dipped
headlamps remain on for the dura-
tion selected for the automatic "fol-
low-me-home" lighting.
If the vehicle is not itted with the
automatic switching on of the lights
function, when you leave your vehicle,
the side lights and dipped headlamps
remain on for thirty seconds.
Direction indicators (lashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow me home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights func-
tion activated , the side lights and
dipped headlamps remain on for the
selected duration. Activation:
F
switch off the engine,
F "lash" the headlamps,
F get out of the vehicle and lock it.
Deactivation:
F "lash" the headlamps again,
F get out of the vehicle and lock it.
To deactivate or activate
this function, go to the multi-
function display conigura-
tion menu.
The duration of the timed period must
also be set (15, 30, 60 seconds), via
the multifunction display conigura-
tion menu, except in the case of the
monochrome screen A for which it
is pre-set.
Cancelling:
F "lash" the headlamps,
F get out of the vehicle and lock it. To switch the function on
or off, use the multifunc-
tion display coniguration
menu.
Activation
The activation of this function is
accompanied by a message on the
multifunction display.
The function is activated when the
manual lights stalk is in position 0.
If the brightness sensor does not
function correctly, the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction
display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the
rain sensor, located in the
centre of the windscreen,
behind the interior mirror.
It is used for the automatic switching
on of the lights.

Visibility76 -
01-10-2005
77Visibility-
01-10-2005
Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.
Note: in foggy weather or in snow,
the brightness sensor can detect suf-
icient light. As a consequence, the
lights will not come on automatically. Deactivation
The deactivation of this function is
accompanied by a message on the
multifunction display.
The function is deactivated tempo-
rarily when you use the manual lights
stalk.
Manual "Follow-me-home" lighting
When the automatic switching
on of the lights function is deac-
tivated,
the side lights and dipped
headlamps remain on for the dura-
tion selected for the automatic "fol-
low-me-home" lighting.
If the vehicle is not itted with the
automatic switching on of the lights
function, when you leave your vehicle,
the side lights and dipped headlamps
remain on for thirty seconds.
Direction indicators (lashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow me home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights func-
tion activated , the side lights and
dipped headlamps remain on for the
selected duration. Activation:
F
switch off the engine,
F "lash" the headlamps,
F get out of the vehicle and lock it.
Deactivation:
F "lash" the headlamps again,
F get out of the vehicle and lock it.
To deactivate or activate
this function, go to the multi-
function display conigura-
tion menu.
The duration of the timed period must
also be set (15, 30, 60 seconds), via
the multifunction display conigura-
tion menu, except in the case of the
monochrome screen A for which it
is pre-set.
Cancelling:
F "lash" the headlamps,
F get out of the vehicle and lock it. To switch the function on
or off, use the multifunc-
tion display coniguration
menu.
Activation
The activation of this function is
accompanied by a message on the
multifunction display.
The function is activated when the
manual lights stalk is in position 0.
If the brightness sensor does not
function correctly, the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction
display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the
rain sensor, located in the
centre of the windscreen,
behind the interior mirror.
It is used for the automatic switching
on of the lights.

Visibility76 -
01-10-2005
77Visibility-
01-10-2005

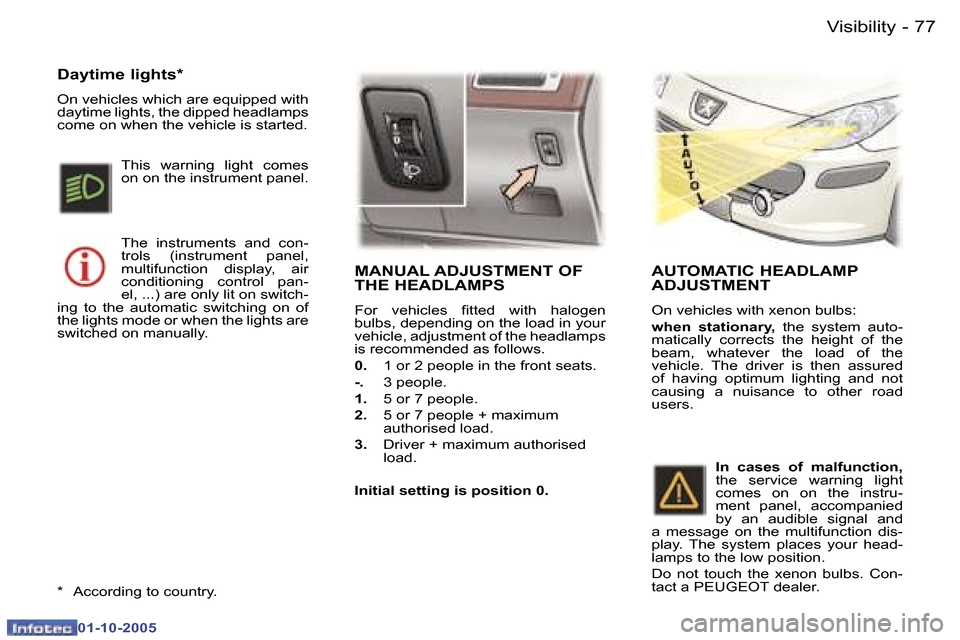

MANUAL ADJUSTMENT OF
THE HEADLAMPS
For vehicles itted with halogen
bulbs, depending on the load in your
vehicle, adjustment of the headlamps
is recommended as follows.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 or 7 people.
2. 5 or 7 people + maximum
authorised load.
3. Driver + maximum authorised
load.
Initial setting is position 0.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs:
when stationary, the system auto-
matically corrects the height of the
beam, whatever the load of the
vehicle. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In cases of malfunction,
the service warning light
comes on on the instru-
ment panel, accompanied
by an audible signal and
a message on the multifunction dis-
play. The system places your head-
lamps to the low position.
Do not touch the xenon bulbs. Con-
tact a PEUGEOT dealer.
Daytime lights*
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. The instruments and con-
trols (instrument panel,
multifunction display, air
conditioning control pan-
el, ...) are only lit on switch-
ing to the automatic switching on of
the lights mode or when the lights are
switched on manually. This warning light comes
on on the instrument panel.

Visibility78 -
01-10-2005
79Visibility-
01-10-2005

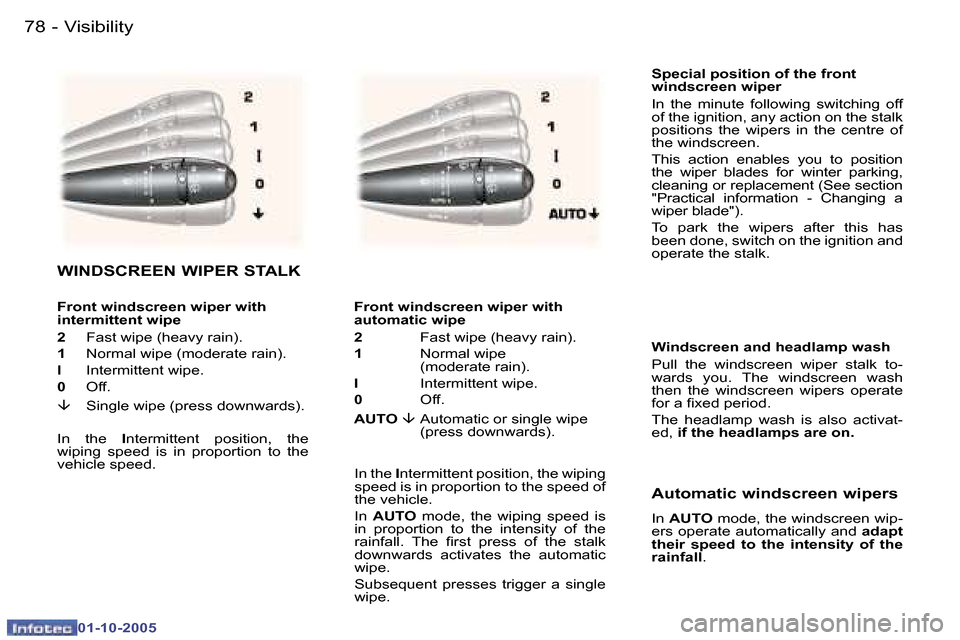

Special position of the front
windscreen wiper
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See section
"Practical information - Changing a
wiper blade").
To park the wipers after this has
been done, switch on the ignition and
operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a ixed period.
The headlamp wash is also activat-
ed, if the headlamps are on.
Automatic windscreen wipers
In AUTO mode, the windscreen wip-
ers operate automatically and adapt
their speed to the intensity of the
rainfall .
Front windscreen wiper with
automatic wipe
2
Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe.
0 Off.
AUTO â Automatic or single wipe
(press downwards).
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is
in proportion to the intensity of the
rainfall. The irst press of the stalk
downwards activates the automatic
wipe.
Subsequent presses trigger a single
wipe.
WINDSCREEN WIPER STALK
Front windscreen wiper with
intermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
â Single wipe (press downwards).
In the Intermittent position, the
wiping speed is in proportion to the
vehicle speed.

Visibility78 -
01-10-2005
79Visibility-
01-10-2005
Do not cover the rain sen-
sor located on the wind-
screen behind the interior
mirror.
When using an automatic
car wash, switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.

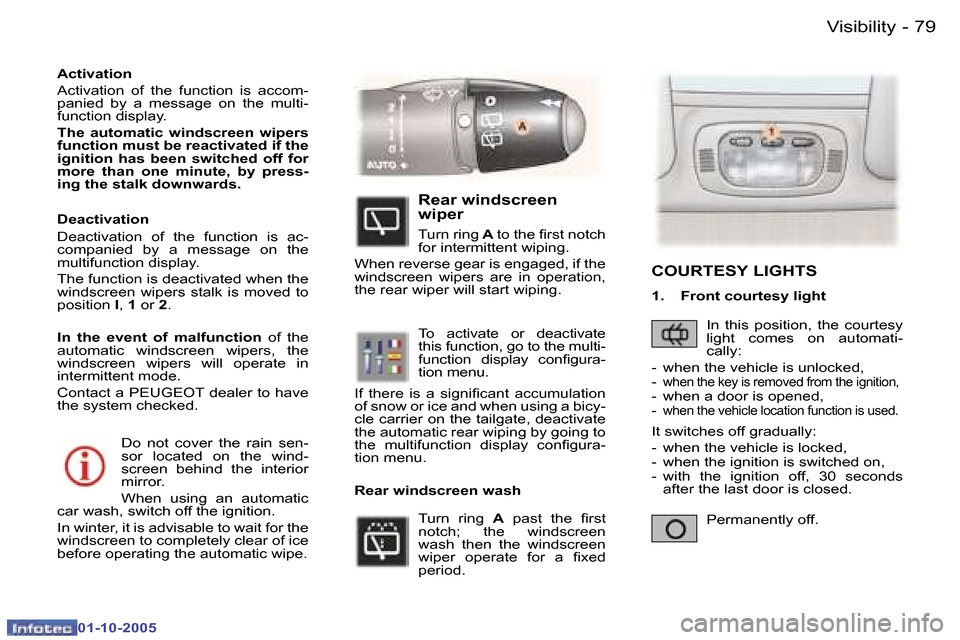

Activation
Activation of the function is accom-
panied by a message on the multi-
function display.
The automatic windscreen wipers
function must be reactivated if the
ignition has been switched off for
more than one minute, by press-
ing the stalk downwards.
Rear windscreen
wiper
Turn ring
A to the irst notch
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
To activate or deactivate
this function, go to the multi-
function display conigura-
tion menu.
If there is a signiicant accumulation
of snow or ice and when using a bicy-
cle carrier on the tailgate, deactivate
the automatic rear wiping by going to
the multifunction display conigura-
tion menu.
Turn ring A past the irst
notch; the windscreen
wash then the windscreen
wiper operate for a ixed
period.
Deactivation
Deactivation of the function is ac-
companied by a message on the
multifunction display.
The function is deactivated when the
windscreen wipers stalk is moved to
position
I, 1 or 2.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Rear windscreen wash
COURTESY LIGHTS
1. Front courtesy lightIn this position, the courtesy
light comes on automati-
cally:
- when the vehicle is unlocked,
-
when the key is removed from the ignition,- when a door is opened,
- when the vehicle location function is used.
Permanently off.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- with the ignition off, 30 seconds
after the last door is closed.
