CHANGING THE COOLANT
CHK
ADJ
CAUTION:
NOTE:
Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant check, and if nec-
essary, correct the antifreeze concentra-
tion of the coolant.

Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.

If coolant comes into contact with painted
surfaces, immediately wash them with wa-
ter.

Do not mix different types of antifreeze.
13. Install:

radiator cap
14. Fill:

coolant reservoir tank
(with the recommended coolant to the maxi-
mum level mark
a)
15. Install:

coolant reservoir cap
16. Start the engine, warm it up for several min-
utes, and then stop it.
17. Check:

coolant level
Refer to “CHECKING THE COOLANT LEV-
EL”.
Before checking the coolant level, wait a few
minutes until the coolant has settled.
18. Install:

rider seat
Refer to “SEATS”.

bottom cowlings

side cowlings
Refer to “COWLINGS”.
ProCarManuals.com

3-49

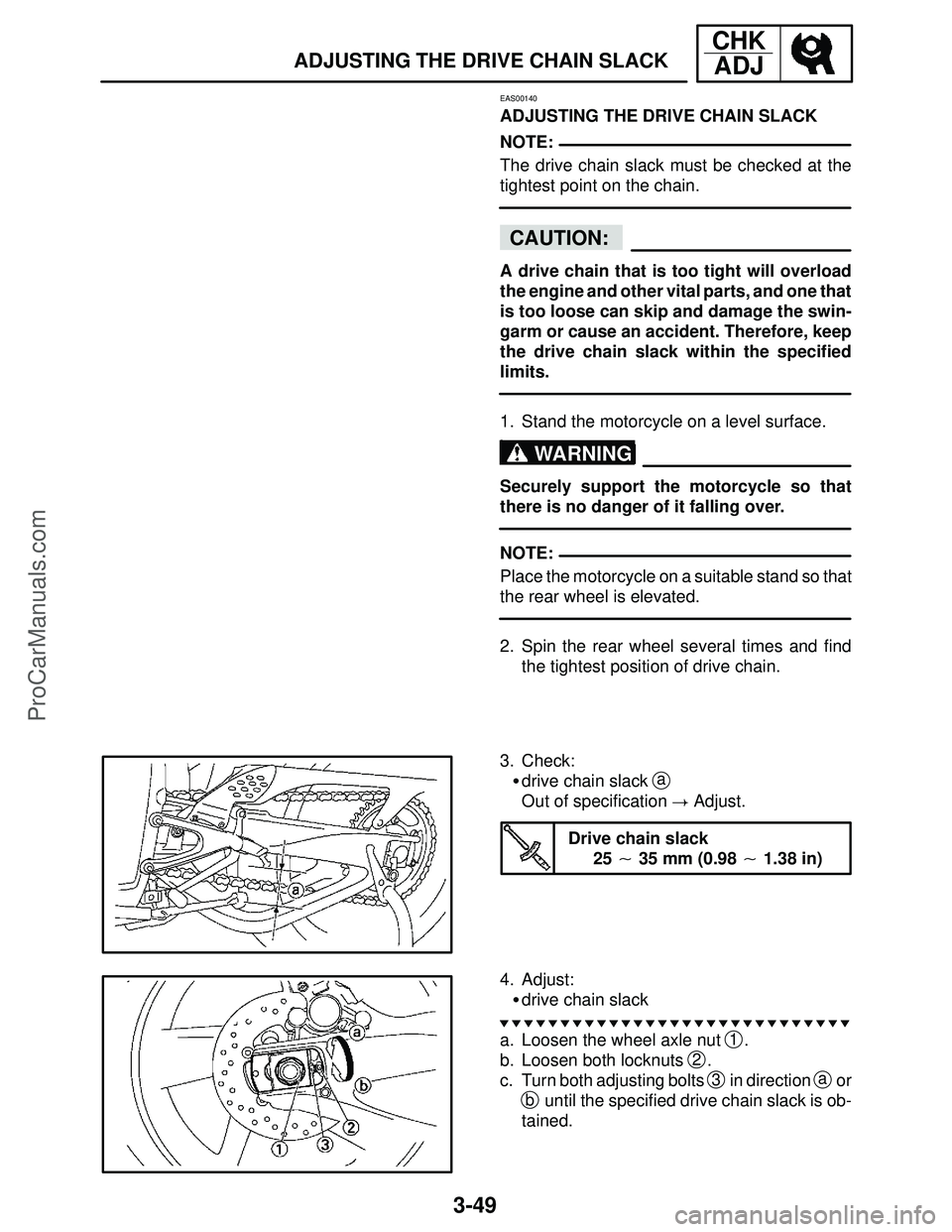

ADJUSTING THE DRIVE CHAIN SLACK
CHK
ADJ
NOTE:
CAUTION:
WARNING
NOTE:
EAS00140
ADJUSTING THE DRIVE CHAIN SLACK
The drive chain slack must be checked at the
tightest point on the chain.
A drive chain that is too tight will overload
the engine and other vital parts, and one that
is too loose can skip and damage the swin-
garm or cause an accident. Therefore, keep
the drive chain slack within the specified
limits.
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
2. Spin the rear wheel several times and find
the tightest position of drive chain.
3. Check:

drive chain slack
a
Out of specification
Adjust.
Drive chain slack
25
35 mm (0.98
1.38 in)
4. Adjust:

drive chain slack
a. Loosen the wheel axle nut
1.
b. Loosen both locknuts
2.
c. Turn both adjusting bolts
3 in direction a or
b until the specified drive chain slack is ob-
tained.
ProCarManuals.com

3-61
CHECKING AND LUBRICATING THE CABLES /
LUBRICATING THE LEVERS AND PEDALS /
LUBRICATING THE SIDESTAND / LUBRICATING THE REAR SUSPENSIONCHK
ADJ
WARNING
NOTE:
EAS00170
CHECKING AND LUBRICATING THE
CABLES
The following procedure applies to all of the in-
ner and outer cables.
Damaged outer cable may cause the cable to
corrode and interfere with its movement. Re-
place damaged outer cable and inner cables
as soon as possible.
1. Check:

outer cable
Damage
Replace.
2. Check:

cable operation
Rough movement
Lubricate.
Recommended lubricant
Engine oil or a suitable cable
lubricant
Hold the cable end upright and pour a few drops
of lubricant into the cable sheath or use a suit-
able lubricating device.
EAS00171
LUBRICATING THE LEVERS AND PEDALS
Lubricate the pivoting point and metal-to-metal
moving parts of the levers and pedals.
Recommended lubricant
Lithium-soap-based grease
EAS00172
LUBRICATING THE SIDESTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the sidestand.
Recommended lubricant
Lithium-soap-based grease
EAS00174
LUBRICATING THE REAR SUSPENSION
Lubricate the pivoting point and metal-to-metal
moving parts of the rear suspension.
Recommended lubricant
Molybdenum-disulfide grease
ProCarManuals.com

4-74
SWINGARM AND DRIVE CHAINCHAS
CAUTION:
2. Check:

drive chain
Stiffness
Clean and lubricate or replace.
3. Clean:

drive chain
a. Wipe the drive chain with a clean cloth.
b. Put the drive chain in kerosene and remove
any remaining dirt.
c. Remove the drive chain from the kerosene
and completely dry it.
This motorcycle has a drive chain with small
rubber O-rings
1 between the drive chain
side plates. Never use high-pressure water
or air, steam, gasoline, certain solvents
(e.g., benzine), or a coarse brush to clean the
drive chain. High-pressure methods could
force dirt or water into the drive chain’s in-
ternals, and solvents will deteriorate the O-
rings. A coarse brush can also damage the
O-rings. Therefore, use only kerosene to
clean the drive chain. Don’t soak drive chain
in kerosine more them ten minutes. O-ring is
damage by kerosine.
4. Check:

O-rings
1
Damage
Replace the drive chain.

drive chain rollers
2
Damage / wear
Replace the drive chain.

drive chain side plates
3
Damage / wear
Replace the drive chain.
Cracks
Replace the drive chain and make
sure the battery breather hose is properly
routed away from the drive chain and below
the swingarm.
5. Lubricate:

drive chain
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
