FUEL INJECTION SYSTEMFI
Tester positive prove blue
Tester negative prove yellow / green1
2
Fault code No.30SymptomThe motorcycle has overturned.
Used diagnostic code No. 08 (lean angle cut-off switch)
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method
1The motorcycle has overturned.Raise the motorcycle upright.Reinstated by
2Installed condition of the lean angle
cut-off switchCheck the installed area for looseness or
pinching.turning the
main switch
ON3Connected condition of connector
Inspect the coupler for any pins that
may have pulled out.
Check the locking condition of the
coupler.If there is a malfunction, repair it and connect it
securely.
Lean angle cut-off switch coupler
Main wiring harness ECU couplerON
(however, the
engine cannot
be restarted
unless the
main switch is
4Defective lean angle cut-off switchExecute the diagnostic mode (Code No.08).
Replace if defective.
1. Remove the lean angle cut-off switch from the
motorcycle.
2. Connect the lean angle cut-off switch coupler
to the wireharness.
3. Connect the pocket tester (DC 20 V) to the
emergency stop switch coupler as shown.
4. When turn the lean angle cut-off switch
approx. 65, the voltage reading is 0.4 V to 4.4
V.
5. Is the emergency stop switch OK?
main switch is
first turned
OFF).
ProCarManuals.com
Page 373 of 457
7-29
FUEL INJECTION SYSTEMFI
Speed sensor output voltage
When sensor is on
DC 4.8 V or more
When sensor is off
DC 0.6 V or less Tester positive probe white
Tester negative probe black / blue
1
2
Fault code No.42Symptom1 No normal signals are received from the speed sensor.
2 Open or short circuit is detected in the neutral switch.
Used diagnostic code No. 07 (speed sensor) A1 A4
No. 21 (neutral switch) B1 B4
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method
A1Connected condition of speed sensor
connector
Inspect the coupler for any pins that
may have pulled out.
Check the locking condition of the
coupler.If there is a malfunction, repair it and connect it
securely.
Speed sensor coupler
Main wiring harness ECU couplerReinstated by
starting the
engine, and
inputting the
vehicle speed
signals by
ti thA2Open or short circuit in speed sensor
lead.Repair or replace if there is an open or short circuit.
Between sensor coupler and ECU coupler.
Blue – Blue
White / Yellow – White / Yellow
Black / Blue – Black / Blueoperating the
motorcycle at a
low speed of
20 to 30 km / h.
A3Defective speed sensorExecute the diagnostic mode (Code No.07).
Replace if defective.
1. Measure the speed sensor output voltage.
2. Connect the pocket tester (DC 20 V) to the
speed sensor coupler terminal as shown.
3. Measure the speed sensor output voltage.
4. Is the speed sensor OK?
A4Gear for detecting vehicle speed has
broken.Replace if defective.
Refer to “TRANSMISSION” in chapter 5.
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method.
B1Connected condition of connector
Inspect the coupler for any pins that
may have pulled out.
Check the locking condition of the
coupler.If there is a malfunction, repair it and connect it
securely.
Neutral switch connector
Main wiring harness ECU couplerReinstated by
starting the
engine, and
inputting the
vehicle speed
ilbB2Open or short circuit in neutral switch
lead.Repair or replace if there is an open or short circuit.
Between switch connector and ECU coupler
Sky blue – Black / Yellowsignals by
operating the
motorcycle at a
low speed ofB3Defective neutral switchExecute the diagnostic mode (Code No.21).
Replace if defective.
Refer to “CHECKING THE SWITCHES” in
chapter 8.low s eed of20 to 30 km / h.
B4Faulty shift drum
(neutral detection area)Replace if defective.
Refer to “TRANSMISSION” in chapter 5.
ProCarManuals.com
Page 374 of 457
7-30
FUEL INJECTION SYSTEMFI
Battery positive terminal red / black
Battery positive terminal blue/ yellow1
2
Tester positive probe red
Tester negative probe red / blue
3
4 When the leads are disconnected, the voltage
check by the code No.09 is impossible.
NOTE:
Fault code No.43SymptomThe ECU is unable to monitor the battery voltage.
Used diagnostic code No. 09 (fuel system voltage)
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method
1Connected condition of connector
Inspect the coupler for any pins that
may have pulled out.
Check the locking condition of the
coupler.If there is a malfunction, repair it and connect it
securely.
Starting circuit cut-off relay coupler
(fuel injection system relay)
ECU couplerReinstated by
starting the
engine and
operating it at
idle.
2Malfunction in ECUFuel injection system relay is on.
3Open or short circuit in the wiring harness.Repair or replace if there is an open or short
circuit.
Between battery terminal and ECU coupler
Red / white – Red / white
Red – Blue / Yellow (Main switch and engine
stop switch are on.)
Red – Red / Blue (Fuel injection system
relay is on.)
4Malfunction or open circuit in fuel injection
system relayExecute the diagnostic mode (Code No.09).
Replace if defective.
1. Disconnect the starting circuit cut-off relay
from the wire harness.
2. Connect the pocket tester (Ω 1) and battery
(12 V) to the starting circuit cut-off relay termi-
nals as shown.
3. Does the starting circuit cut-off relay have con-
tinuity between blue / white and black?
ProCarManuals.com
Page 375 of 457
7-31
FUEL INJECTION SYSTEMFI
Fault code No.44SymptomError is detected while reading or writing on EEP-ROM
(CO adjustment value).
Used diagnostic No. 60 (EEP-ROM improper cylinder indication)
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method
1Malfunction in ECUExecute diagnostic code 60
1. Check the faulty cylinder. (If there are multiple
cylinders, the number of the faulty cylinders
appear alternately at 2-second intervals.)
2. Readjust the CO of the displayed cylinder.
Refer to “ADJUSTING THE EXHAUST GAS
VALUME” in chapter 3.
Replace ECU if defective.Reinstated by
turning the
main switch
ON.
Fault code No.46SymptomPower supply to the FI system relay is not normal.
Used diagnostic code No. – –
OrderInspection operation item and probable
causeOperation item and countermeasureReinstatement
method
1Connected condition of connector
Inspect the coupler for any pins that
may have pulled out.
Check the locking condition of the
coupler.If there is a malfunction, repair it and connect it
securely.
ECU coupler.Reinstated by
starting the
engine and
operating it at
idle.
2Faulty batteryReplace or change the battery
Refer to “CHECKING AND CHARGING THE
BATTERY” in chapter 3.
3The malfunction of the rectifier / regula-
tor.Replace if defective.
Refer to “CHARGING SYSTEM” in chapter 8.
4Open or short circuit in wiring harness.Repair or replace if there is an open or short
circuit.
Between battery and main switch
red – red
Between main switch and fuse (ignition)
brown/blue – brown/blue
Between fuse (ignition) and ECU
red/white – red/white
ProCarManuals.com
Page 384 of 457
7-40
THROTTLE BODIESFI

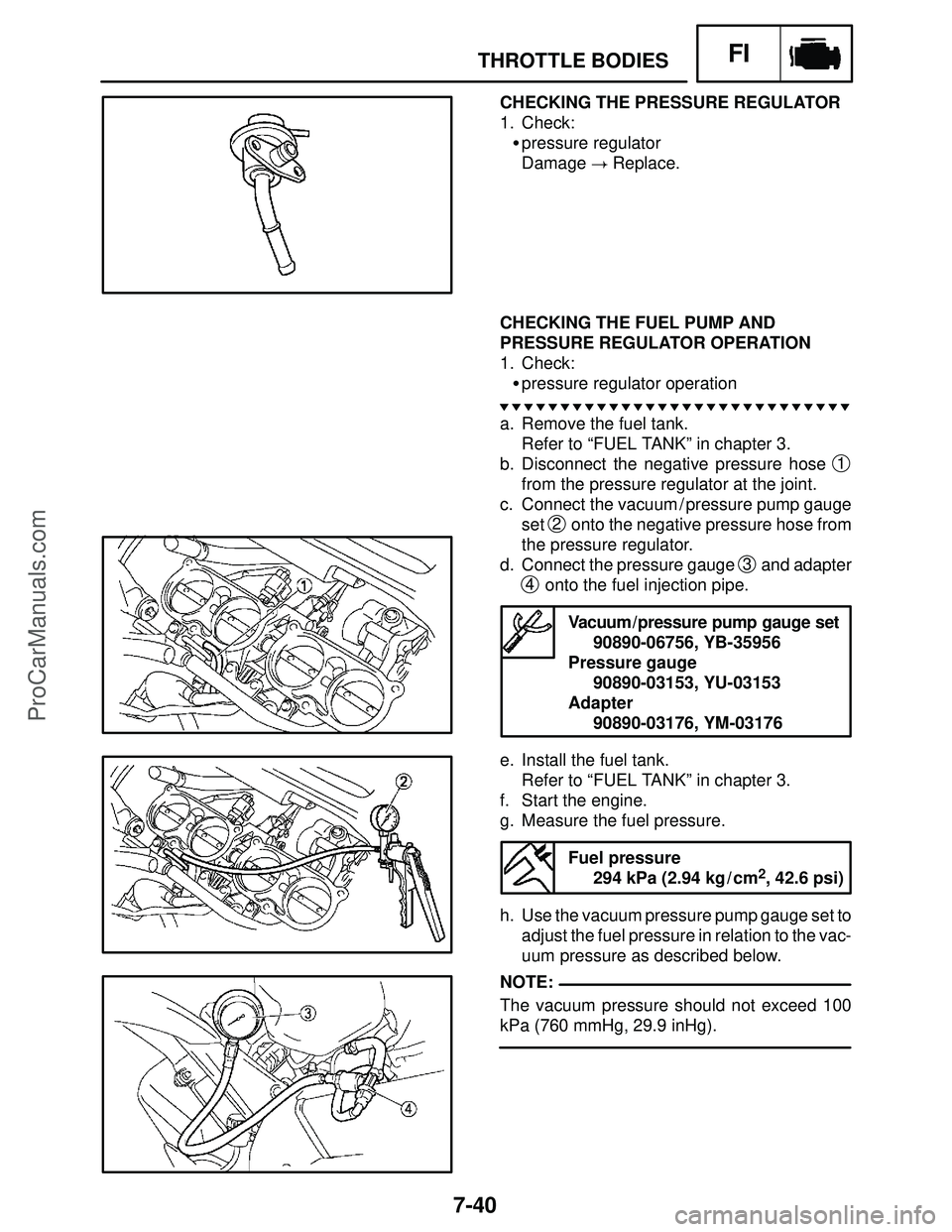

NOTE: CHECKING THE PRESSURE REGULATOR
