2004 YAMAHA T105 Owners Manual

EAA50000
DESCRIPTION
8
1. Tail/Brake light
2. Rear flasher light
3. Side cover
4. Fuel tank cap
5. Front flasher light
6. Kick starter
7. Rear brake pedal
8. Head light
9. Fuel tank
10. Seat lock11. Shift pedal
12. Handlebar switch
13. Speedometer
14. Fuel gauge
15. Main switch/steering lock
16. Throttle grip
17. Front brake lever
18. Indicator light
19. Helmet holder
20. Starter lever
5AV-F8199-E1-1 7/29/03 3:31 PM Page 8

1. KEY IDENTIFICATION NUMBER:
2. FRAME SERIAL NUMBER:
3. ENGINE SERIAL NUMBER:EAA61101
Identification numbers record
Record the key identification number,
frame serial number and engine serial
number in the spaces provided for assis-
tance when ordering spare parts from a
Yamaha dealer for reference in case the ve-
hicle is stolen.
9
EAA60000
MOTORCYCLE IDENTIFICATION
5AV-F8199-E1-1 7/29/03 3:31 PM Page 9

EAA61400
Key identification number
The key identification number is stamped
on the key.
Record this number in the space provided
and use it for reference when obtaining a
new key.
EAA60700
Frame serial number
The frame serial number is stamped into
the the frame.
EAA70001
Engine serial number
The engine serial number is stamped into
the crankcase.
10
5AV-F8199-E1-1 7/29/03 3:31 PM Page 10

Position Function Key removal
EAB00000
CONTROL FUNCTIONS
EAB00100
Main switch
The main switch controls the ignition and lighting systems. Its operation is described
below.
11
ON
Electrical circuits are switched on.
The engine can be started.Cannot be removed.
Can be removed.
Can be removed. All electrical circuits are switched off.
The steering is locked and all
electrical circuits are switched off. OFF
LOCK
5AV-F8199-E1-1 7/29/03 3:31 PM Page 11

EAB10000

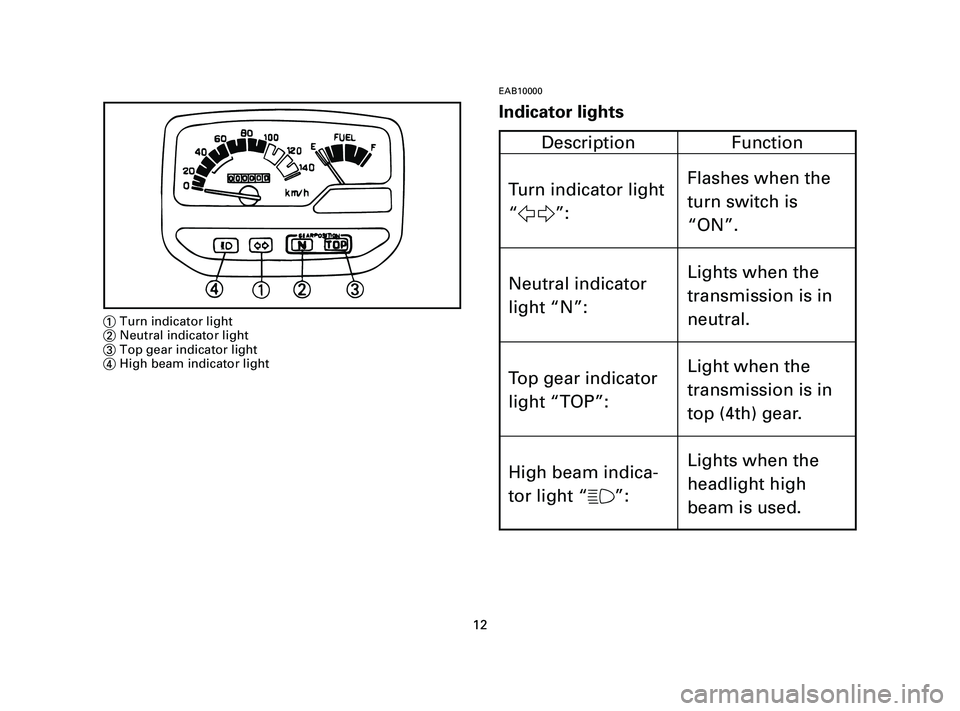

Indicator lights
12
1Turn indicator light
2Neutral indicator light
3Top gear indicator light
4High beam indicator light
Description Function
Turn indicator light
“5”:
Neutral indicator
light “N”:
Top gear indicator
light “TOP”:
High beam indica-
tor light “&”:Flashes when the
turn switch is
“ON”.
Lights when the
transmission is in
neutral.
Light when the
transmission is in
top (4th) gear.
Lights when the
headlight high
beam is used.
5AV-F8199-E1-1 7/29/03 3:32 PM Page 12

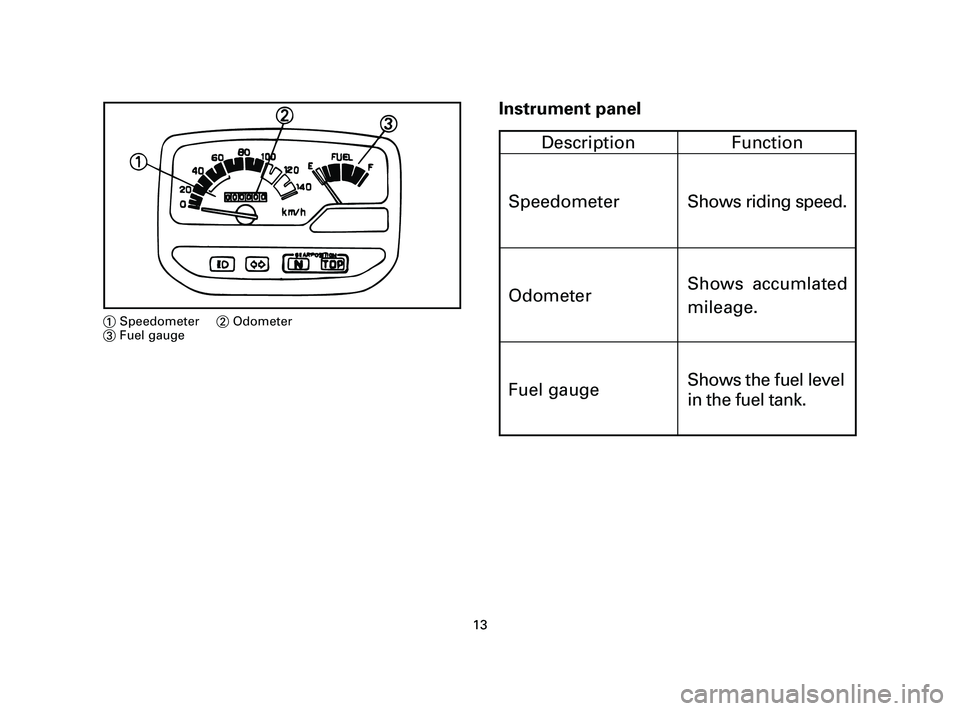

Fuel gauge Instrument panel
13
1Speedometer2Odometer
3Fuel gauge
Description Function
Speedometer
OdometerShows riding speed.
Shows accumlated
mileage.
Shows the fuel level
in the fuel tank.
5AV-F8199-E1-1 7/29/03 3:32 PM Page 13

Position Function Handlebar switches
Lights switch
Dimmer switch
Turn signal switch
14
1Lights switch
2Dimmer switch
3Turn signal switch
Position Function
ON
OFF
Headlight, taillight and meter lights
comes on when engine is running.
Headlight, taillight and meter lights
does not come on.
Position Function
&(HI)
% (LO)Turns on the headlight high
beam.
Turns on the headlight low
beam.
4
6
OFFTurns on the left flasher.
Turns on the right flasher.
Turns off the flasher.
Push the switch in after it has
returned to center position.
∇
5AV-F8199-E1-1 7/29/03 3:32 PM Page 14

Horn switch
Start switch
15
4Horn switch
5Start switch
Position Function
*
(HORN)The horn sounds when push-
ing the switch.
Position Function
START
The starter motor cranks the
engine when pushing the
switch.
5AV-F8199-E1-1 7/29/03 3:32 PM Page 15
