2004 YAMAHA T105 Owners Manual

EAE80300EAE80000
Fuel
Make sure there is sufficient fuel in the
tank.
EUU61000
w
Do not overfill the fuel tank. Avoid spilling
fuel on the hot engine. Do not fill the fuel
tank above the bottom of the filler tube as
shown in the illustration or it may over-
flow when the fuel heats up later and ex-
pands.
EUU39302
cC
Always wipe off spilled fuel immediately
with a dry and clean soft cloth. Fuel may
deteriorate painted surfaces or plastic
parts.
24
1. Filler tube 2. Fuel level
Recommended fuel:
Regular gasoline
Fuel tank capacity:
4.3 L
5AV-F8199-E1-2 8/1/03 1:47 PM Page 24

EAE40104*

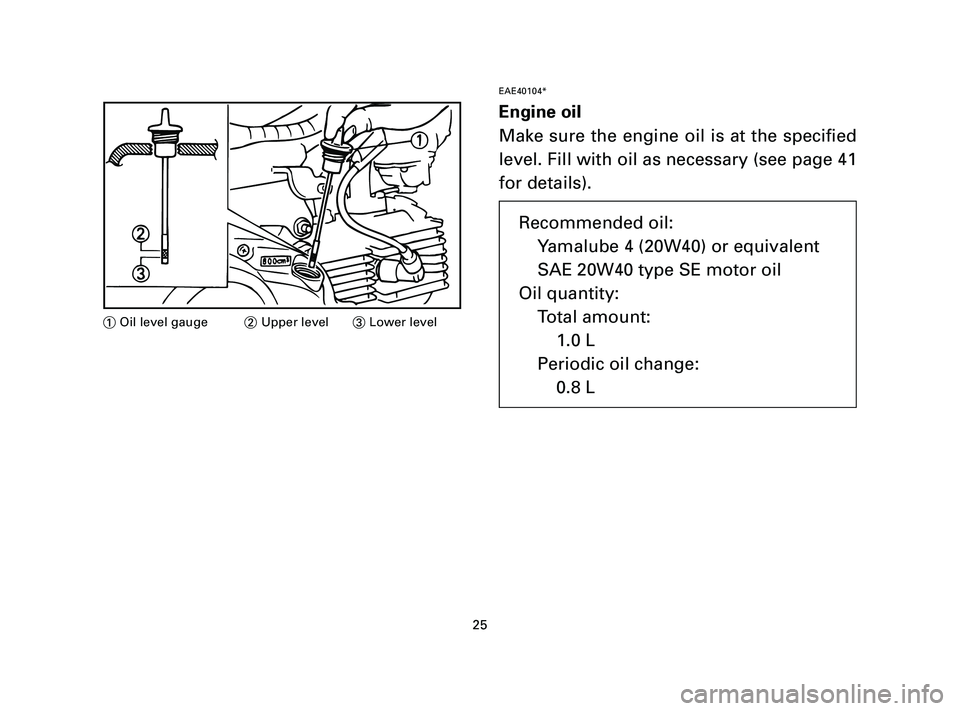

Engine oil
Make sure the engine oil is at the specified
level. Fill with oil as necessary (see page 41
for details).
25
1Oil level gauge2Upper level3Lower level
Recommended oil:
Yamalube 4 (20W40) or equivalent
SAE 20W40 type SE motor oil
Oil quantity:
Total amount:
1.0 L
Periodic oil change:
0.8 L
5AV-F8199-E1-2 8/1/03 1:47 PM Page 25

EAE96700
Tires
To ensure maximum performance, long
service, and safe operation, note the fol-
lowing:
1. Tire air pressure
Always check and adjust the tire pres-
sure before operating the motorcycle.
EUU67500
w
Tire inflation pressure should be checked
and adjusted when the temperature of the
tire equals the ambient air temperature.
Tire inflation pressure must be adjusted
according to total weight of cargo, rider,
and passenger.
26 Cold tire pressure: Front Rear
Solo rider175 kPa 200 kPa
(1.75 kgf/cm
2) (2.0 kgf/cm2)
With passenger200 kPa 225 kPa
(2.0 kgf/cm
2) (2.25 kgf/cm2)
5AV-F8199-E1-2 8/1/03 1:47 PM Page 26

2. Tire inspection
Always check the tires before operat-
ing the motorcycle. If center tread
depth reaches the limit as shown, if
the tire has a nail or glass fragments
in it, or if the side wall is cracked, con-
tact a Yamaha dealer immediately and
have the tire replaced.
w
It is dangerous to ride with a worn-out
tire. When a tire tread begins to show
lines, have a Yamaha dealer replace the
tire immediately. Brakes, tires, and related
wheel parts replacement should be left to
a Yamaha Service Technician.
27
1. Tread depth 2. Side wall 3. Wear indicator
SizeFRONT
2.25-17 33L
SizeREAR
2.50-17 38L
Minimum tire tread depth
1.0 mm
(front and rear)
5AV-F8199-E1-2 8/1/03 1:47 PM Page 27

EAF00000
OPERATION AND
IMPORTANT RIDING
POINTS
EAF18800*
Starting and warming up a cold engine
1. Turn the main switch to ON”.
2. Shift transmission into neutral.
EUU03000
NOTE:
When the transmission is in neutral, the
neutral indicator light (green) should be
on. If the light does not come on, ask a
Yamaha dealer to inspect it.
28
N. Neutral
5AV-F8199-E1-2 8/1/03 1:47 PM Page 28

3. Fully open the starter lever “1”, and
completely close the throttle grip.
4. Start the engine by pushing the starter
switch or by kicking the kick starter.
EUU03401
NOTE:
If the engine fails to start, release the
starter switch, wait a few seconds, then try
again. Each attempt should be as short as
possible to preserve the battery. Do not
crank the engine more than 10 seconds on
any one attempt. If the engine does not
start with the starter motor, kick the kick
starter to start the engine.
5. After starting the engine, move the
starter lever to warmming up position
(about halfway).
29
5AV-F8199-E1-2 8/1/03 1:47 PM Page 29

EUU02600
NOTE:
For maximum engine life, always warm up
the engine before starting off. Never accel-
erate hard with a cold engine!
6. After warming up the engine, turn off
the starter completely.
EUU02700
NOTE:
The engine is warm when it responds nor-
mally to the throttle with the starter turned
off.
EAF10802*
Starting a warm engine
The starter lever “1” is not required when
the engine is warm.
cC
Make sure the starter is turned off before
starting a warm engine.
30
5AV-F8199-E1-2 8/1/03 1:47 PM Page 30

Shifting
The transmission lets you control the
amount of power you have available at a
given speed for starting, accelerating,
climbing hills, etc. The use of the shift
pedal is shown in the illustration.
To start out and accelerate
1. Close the throttle completery.
cC
Always close the throttle while shifting
gears. Otherwise, damage to the engine
and drive train can result.
2. Shift into FIRST gear.
3. Open the throttle gradually.
31
1Shift pedal N. Neutral
5AV-F8199-E1-2 8/1/03 1:47 PM Page 31
