2004 TOYOTA PRIUS Owners Manual

169

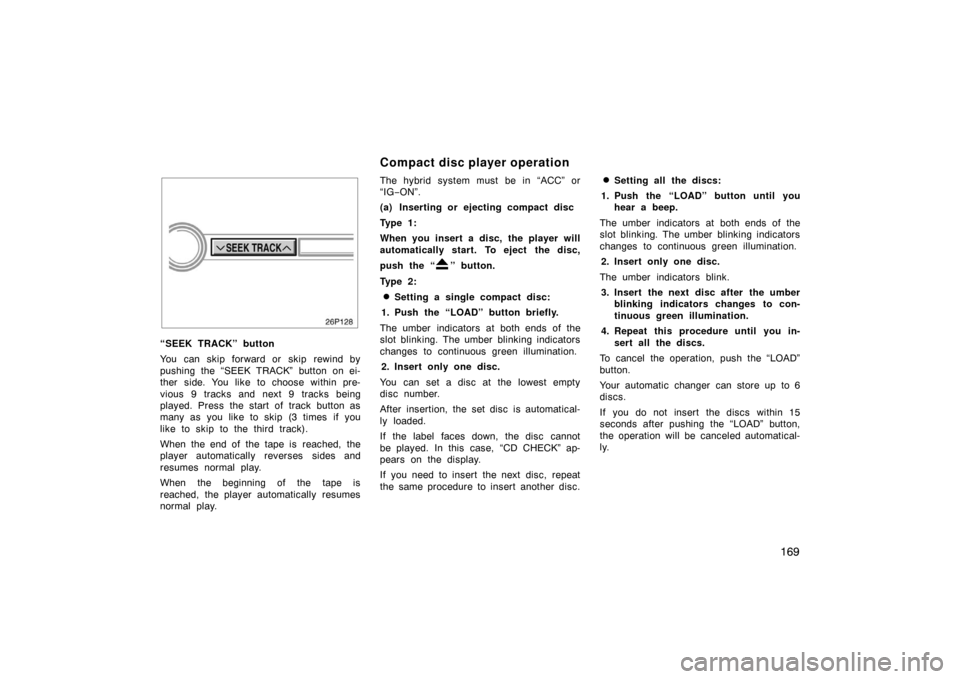

“SEEK TRACK” button
You can skip forward or skip rewind by
pushing the “SEEK TRACK” button on ei-
ther side. You like to choose within pre-
vious 9 tracks and next 9 tracks being
played. Press the start of track button as
many as you like to skip (3 times if you
like to skip to the third track).
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
When the beginning of the tape is
reached, the player automatically resumes
normal play.The hybrid system must be in “ACC” or
“IG
−ON”.
(a) Inserting or ejecting compact disc
Ty p e 1 :
When you insert a disc, the player will
automatically start. To eject the disc,
push the “
” button.
Ty p e 2 :
Setting a single compact disc:
1. Push the “LOAD” button briefly.
The umber indicators at both ends of the
slot blinking. The umber blinking indicators
changes to continuous green illumination. 2. Insert only one disc.
You can set a disc at the lowest empty
disc number.
After insertion, the set disc is automatical-
ly loaded.
If the label faces down, the disc cannot
be played. In this case, “CD CHECK” ap-
pears on the display.
If you need to insert the next disc, repeat
the same procedure to insert another disc.
Setting all the discs:
1. Push the “LOAD” button until you hear a beep.
The umber indicators at both ends of the
slot blinking. The umber blinking indicators
changes to continuous green illumination. 2. Insert only one disc.
The umber indicators blink. 3. Insert the next disc after the umber blinking indicators changes to con-
tinuous green illumination.
4. Repeat this procedure until you in- sert all the discs.
To cancel the operation, push the “LOAD”
button.
Your automatic changer can store up to 6
discs.
If you do not insert the discs within 15
seconds after pushing the “LOAD” button,
the operation will be canceled automatical-
ly.
Compact disc player operation

170
NOTICE
Do not insert one disc stacked on top
of another one or feed them in con-
tinuously, to prevent discs from get-
ting stuck in the player.
26p129a

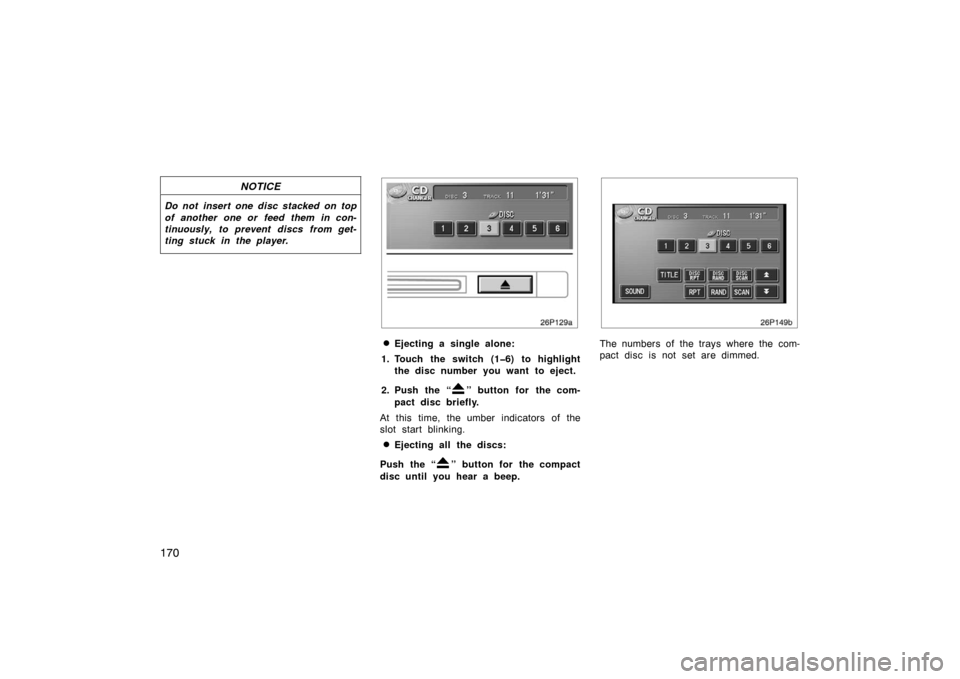

Ejecting a single alone:
1. Touch the switch (16) to highlight the disc number you want to eject.
2. Push the “
” button for the com-
pact disc briefly.
At this time, the umber indicators of the
slot start blinking.
Ejecting all the discs:
Push the “
” button for the compact
disc until you hear a beep.
26p149b
The numbers of the trays where the com-
pact disc is not set are dimmed.

171

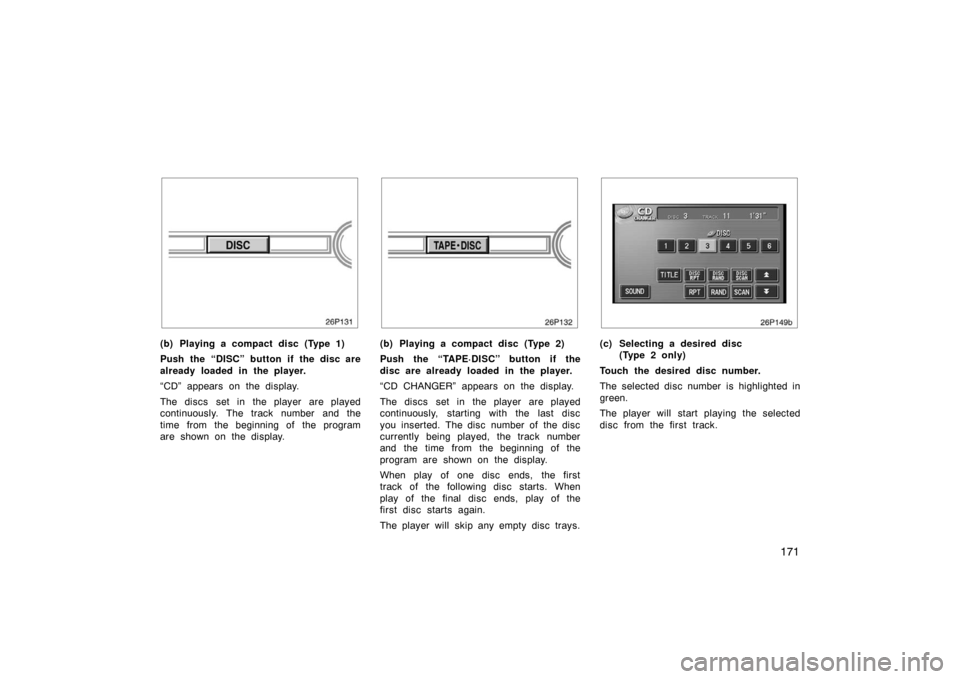

(b) Playing a compact disc (Type 1)
Push the “DISC” button if the disc are
already loaded in the player.
“CD” appears on the display.
The discs set in the player are played
continuously. The track number and the
time from the beginning of the program
are shown on the display.(b) Playing a compact disc (Type 2)
Push the “TAPE·DISC” button if the
disc are already loaded in the player.
“CD CHANGER” appears on the display.
The discs set in the player are played
continuously, starting with the last disc
you inserted. The disc number of the disc
currently being played, the track number
and the time from the beginning of the
program are shown on the display.
When play of one disc ends, the first
track of the following disc starts. When
play of the final disc ends, play of the
first disc starts again.
The player will skip any empty disc trays.
26p149b
(c) Selecting a desired disc (Type 2 only)
Touch the desired disc number.
The selected disc number is highlighted in
green.
The player will start playing the selected
disc from the first track.

172
26p151b
(d) Searching for a desired disc (Type 2 only)
Touch the “DISC SCAN” switch.
With “DISC SCAN” highlighted in green ,
the program at the beginning of each disc
will be played for 10 seconds. To continue
listening to the program of your choice,
touch the “DISC SCAN” switch a second
time.
After all the tracks are scanned in one
pass, normal play resumes.
26p130
(e) Selecting a desired track
“SEEK TRACK” button: Use for direct
access to a desired track.
Push either side of the “SEEK TRACK”
button. The player will start playing the
selected track from the beginning.
Fast forward: Touch the “
” switch and
hold it to fast forward the disc. When you
release the switch, the compact disc play-
er will resume playing from that position.
Reverse: Touch the “
” switch and hold
it to reverse the disc. When you release
the switch, the compact disc player will
resume playing.
26p152b
(f) Searching for a desired track
Touch the “SCAN” switch.
“Scan” will be highlighted in green. The
compact disc player will play the next
track for 10 seconds, then scan again.
To select a track, touch the “SCAN”
switch a second time. If the player reach-
es the end of the disc, it will continue
scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.

173
26p153c
(g) Other compact disc player functions
“RPT” switch: Use it for automatic repeat
of the track you are currently listening to.
Touch the switch while the track is play-
ing. When the track is finished, the player
will automatically go back to the beginning
of the track and play the track again. To
cancel it, touch the switch once again.
“ DISC RPT” switch (Type 2 only): Use
it for automatic repeat of the disc you are
currently listening to.
Touch the switch while the disc is playing.
When the disc is finished, the player will
automatically go back to the beginning of
the disc and play the disc again. To can-
cel it, touch the button once again. “
RAND” switch: Use it for automatic and
random selection of the disc which you
are currently listening to.
When the switch is touched, the system
selects a track in the disc you are cur-
rently listening to. To cancel it, touch the
switch once again.
“ DISC RAND” switch (Type 2 only): Use
it for automatic track selection for all the
discs and play by the system.
When the switch is touched, the system
selects a track in the discs of all the
trays which are set and plays it. To can-
cel it, touch the switch once again.
When a track is skipped or the system is
inoperative, touch the switch to reset.
“TITLE” switch: Use it for displaying the
disc and track title while the CD −TEXT
disc is playing.
The switch is not displayed on the screen
while the CD −TEXT disc is not playing.
Up to 29 letters can be displayed. To
cancel it, touch the “TITLE OFF” switch. (h) If the player malfunctions
If the player or another unit equipped with
the player malfunctions, our audio system
will display one of the following error mes-
sages.
If “CD CHECK” appears on the display,
it indicates that the disc is dirty, damaged
or it was inserted up side down. Clean the
disc or insert it correctly.
If “CD ERROR” appears on the display,
the following causes are possible.
There is trouble inside the system.
Eject the disc.
The inside of the player unit may be
too hot due to the very high ambient
temperature. Eject the disc and allow
the player to cool down.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.

17426p112
The switches are installed on the left side
of the steering pad.
“MODE” switch:
Use this switch to
change the mode. If a tape or compact
disc is not inserted, the “TAPE” or “CD”
mode is skipped. When you push the
switch with the audio system turned off,
the audio system turns on.
“
” switches: Use this switches to ad-
just the volume. Push “+” to increase the
volume and “–” to decrease the volume.
The volume continues to increase or de-
crease while the switch is being pressed. (a) When the radio mode is selected
“
” or “” switch:
Push this switch for
seek tuning or to select a station.
To select a preset station, push the
switch briefly. Do this again to select
the next preset station.
To seek a station, push and hold the
switch until you hear a beep. Do this
again to find the next station. If you
push the switch on either side of the
“  ” or “ ” during the seek mode,
seeking will be canceled.
To step up or down the frequency,
push and hold the switch even after
you hear a beep. When you release
from the switch, the radio will begin
seeking up or down for a station. Do
this again to find the next station.
(b) When the “TAPE” mode is selected
“
” or “” switch: Push this switch to
fast forward or rewind the tape or for
automatic program selection.
Push this switch until you hear a beep
to fast forward or rewind the tape. To
stop fast forwarding or rewinding, push
the same side on the switch until you
hear a beep.
Push this switch briefly for automatic
program selection. When automatically
selecting a program, you can skip up
to 9 programs at a time. For details,
see page 169 for details.
(c) When the “CD” mode is selected
“
” or “” switch: Use this switch to
select a desired track or disc.
Push this switch briefly to select a de-
sired track.
To select a desired disc, push and hold
this switch until the desired number of
the disc appears and you hear a beep.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.
Audio remote controls
(steering pad switches)

175
NOTICE
To ensure correct audio system op-
erations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape into the cassette tape
slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Car audio system operating
hints

176
Use high−quality cassettes:
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
The player is intended for use with
12cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.

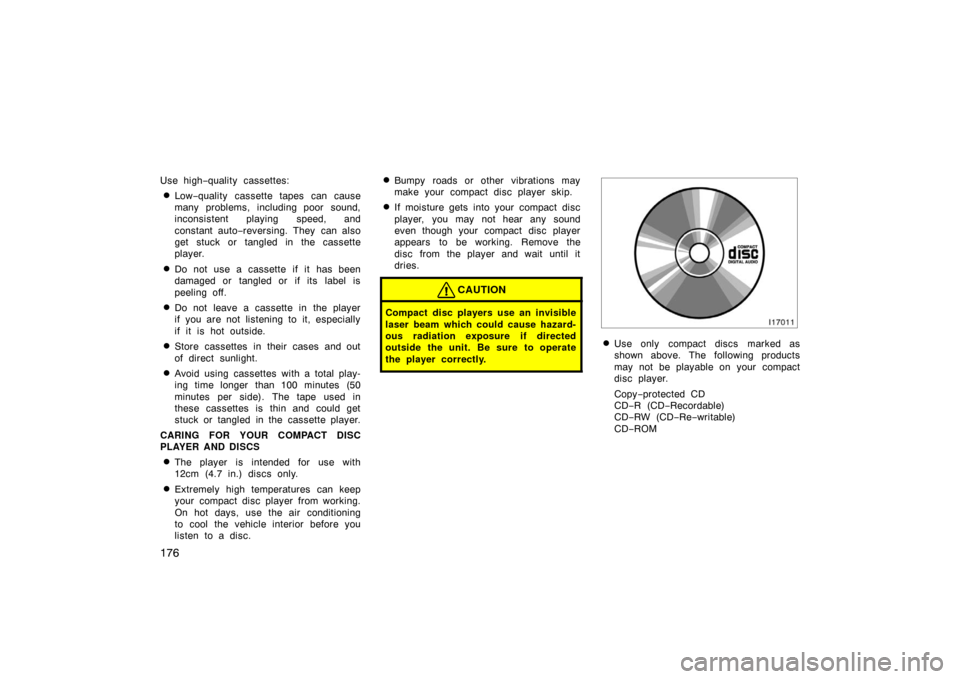

CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy −protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROM
