OPERATION OF INSTRUMENTS AND
CONTROLS
Multiinformation display
Reference146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Before using the multi −information displayy 147
. . . . . . . . . . . . . . . . . . .
Switch operation 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Functions 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Information 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Adjustment 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Outside temperature display 153
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2– 7

146
Reference
1. Multi−information display*
(See page 147 for details.)
2. “DISPLAY” button The display adjustment screen is
shown.
(See page 152 for details.)
3. “INFO” button The information menu screen is shown.
(See page 150 for details.)
4. “CLIMATE” button The air conditioning operation screen is
shown.
(See page 180 for details.)
5. “AUDIO” button The audio operation screen is shown.
(See page 156 for details.)
6. “INFO” button (on the steering pad) The trip information screen is shown.
(See page 151 for details.)
*: In this manual, English version screens are shown as an example.
26p045c
Type A (with Navigation system)
Type B (without Navigation system)

147
26p049b

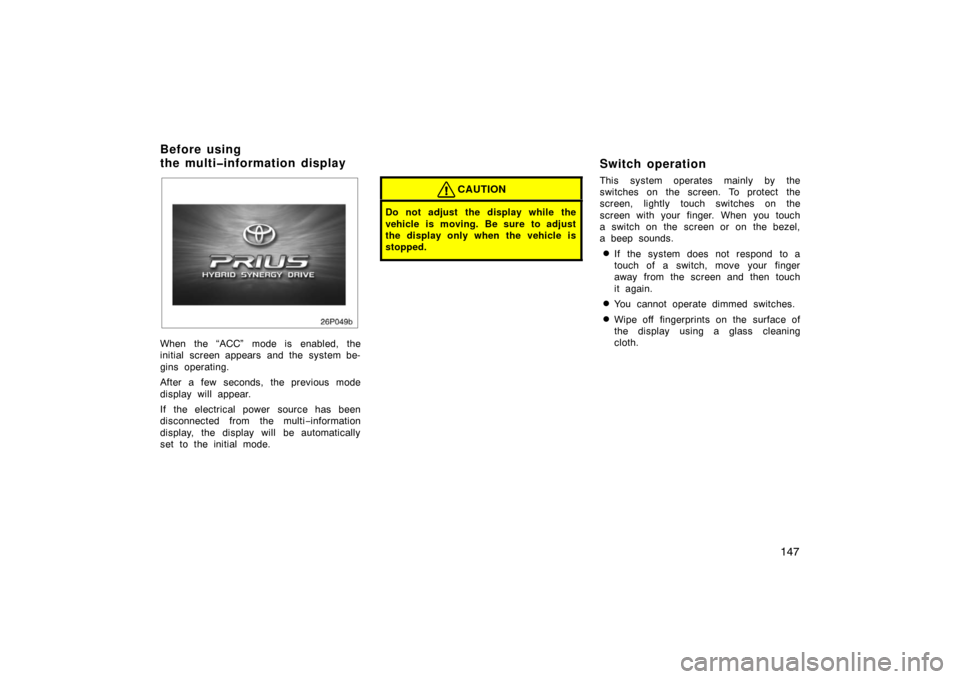

When the “ACC” mode is enabled, the
initial screen appears and the system be-
gins operating.
After a few seconds, the previous mode
display will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will be automatically
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or on the bezel,
a beep sounds.
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
Before using
the multiinformation display

148
Functions
26p170
With Navigation system*
26p027c
Without Navigation system
*: For other functions (Maintenance, Tele-phone and Calender), see “Navigation
System Owner ’s Manual”.
1. Trip information, Language and Screen setting
For details, see page 150.
26p026b
2. Adjustment
The contrast and brightness on the screen
are adjusted. For details, see page 152.

149
26p114a

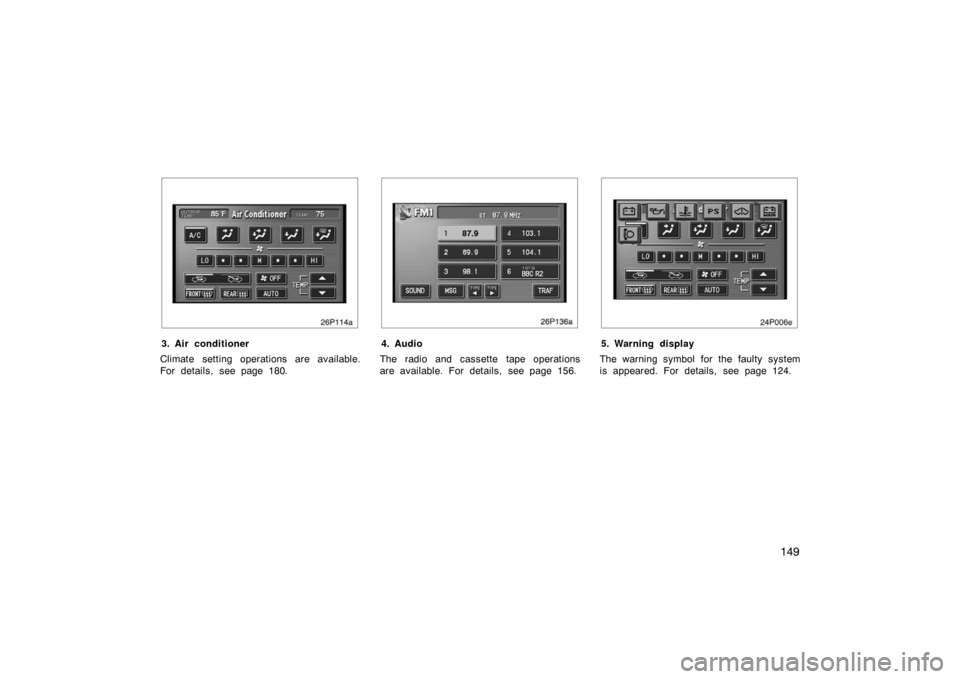

3. Air conditioner
Climate setting operations are available.
For details, see page 180.
26p136a
4. Audio
The radio and cassette tape operations
are available. For details, see page 156.
24p006e
5. Warning display
The warning symbol for the faulty system
is appeared. For details, see page 124.

150
Information
26p009b
Type AType B
Push the “INFO” button to display the
“Information Menu” screen.
26p027c
Trip information: The energy monitor and
fuel consumption screen are selected.
Language: Select language screen is
shown.
Screen setting: The screen setting screen
is shown.
—Trip information
26p038d
Energy monitor screen
Touch the “Energy” switch. Vehicle driving
condition, hybrid system operating condi-
tion and energy recovery condition are
shown.
1. Indicates the flow of energy by orange
and yellow arrows. While the energy is
recovered, the arrows change the
pointing direction and turn green.
2. Indicates the remaining capacity of the
hybrid vehicle battery.
The screen display updates every 3 sec-
onds, so it may not coincide with the
actual status.

151
26p039c

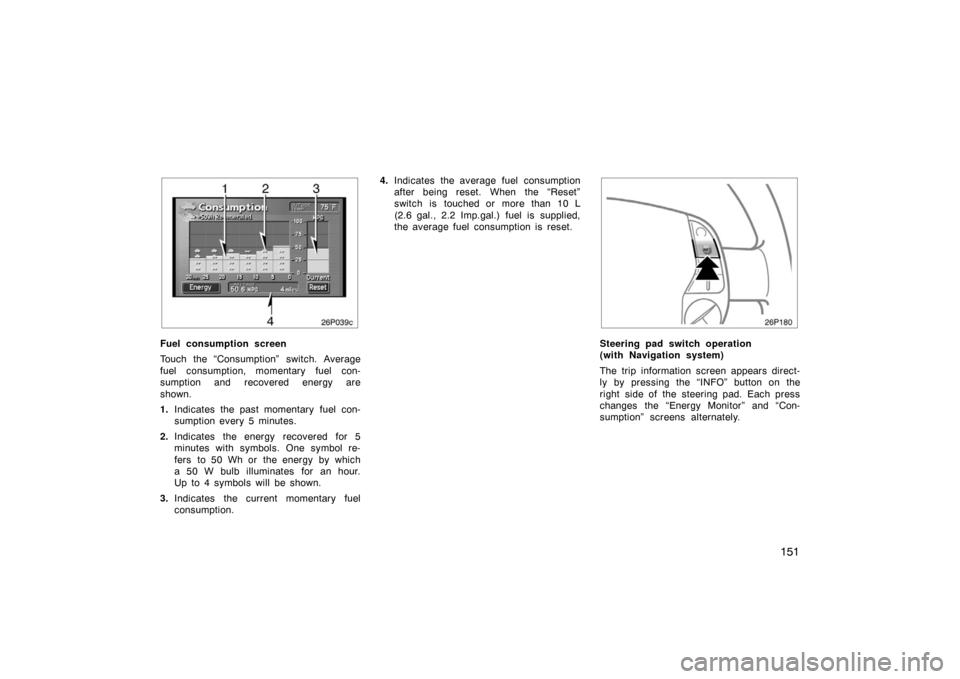

Fuel consumption screen
Touch the “Consumption” switch. Average
fuel consumption, momentary fuel con-
sumption and recovered energy are
shown.
1.Indicates the past momentary fuel con-
sumption every 5 minutes.
2. Indicates the energy recovered for 5
minutes with symbols. One symbol re-
fers to 50 Wh or the energy by which
a 50 W bulb illuminates for an hour.
Up to 4 symbols will be shown.
3. Indicates the current momentary fuel
consumption. 4.
Indicates the average fuel consumption
after being reset. When the “Reset”
switch is touched or more than 10 L
(2.6 gal., 2.2 Imp.gal.) fuel is supplied,
the average fuel consumption is reset.
26P180
Steering pad switch operation
(with Navigation system)
The trip information screen appears direct-
ly by pressing the “INFO” button on the
right side of the steering pad. Each press
changes the “Energy Monitor” and “Con-
sumption” screens alternately.

152
26p115
You can select the language shown on
the screen. Touch your desired switch
on the screen.
—Screen setting
26p030c
AUTOMATIC TRANSITION
The function returning to the previous
screen from the audio or air conditioner
screen is selectable. Select “ON” or
“OFF” and then touch “OK”.
ON:The previous screen automatically re-
turns from the audio or air condition-
er screen 20 seconds after the end
of audio or air conditioner screen op-
eration.
OFF: The audio or air conditioner screen
remains on.
BACKGROUND COLOR
Select the desired background color
and touch “OK”.
Adjustment
26p024a
Type A Type B
Push the “DISPLAY” button to display
the “Display” screen.
—Language
