2004 TOYOTA PRIUS Owners Manual

153
26p026b
Contrast and brightness adjustment
CONTRAST “+”:
Strengthens the contrast of the screen.
CONTRAST “–”:
Weakens the contrast of the screen.
BRIGHTNESS “+”: Brightens the screen.
BRIGHTNESS “–”: Darkens the screen.
The screen turns off when you touch the
“SCREEN OFF”. To turn the display
screen back on, push any bezel switch
such as “INFO”, etc. The selected screen
appears.
26P051b
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode
even with the headlight switch on, touch
“DAY MODE” on the adjustment screen for
brightness and contrast control.
However, if the km/h or MPH button is on,
mode switching cannot be done. It re-
mains in the day mode. In this case, “DAY
MODE” is not shown on the screen.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system even
with the hybrid system turned off.
Outside temperature display
26p046b
The outside temperature is shown rang-
ing from 30 C (22 F) up to 50 C
(122 F) at the upper right of the energy
consumption or energy monitor screen
or the upper left of the air conditioner
screen.

154

155
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio systemm 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio operation 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Cassette tape player operation 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compact disc player operation 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Car audio system operating hints 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2– 8

156
1. Multi−information display screen*
(See page 160 for details.)
2. Ejecting a compact disc (See page 170 for details.)
3. Compact disc slot (See page 169 for details.)
4. Frequency tuning (See page 163 for details.)
5. Scan tuning (See page 164 for details.)
6. Compact disc mode button (See page 169 for details.)
7. Radio mode button (See page 163 for details.)
8. Radio mode: Seek tuning (See page 164 for
details.)
Compact disc
mode: Direct access to a desired program
(See page 172 for
details.)
9. Adjusting the volume (See page 159 for details.)
10. Turning the system on (See page 159 for details.)
11. Audio operation screen display button (See page 160 for details.)
*: In this manual, English version screens are shown as an example.
Reference
Ty p e 1
26p014c
With
Navigation
System

157

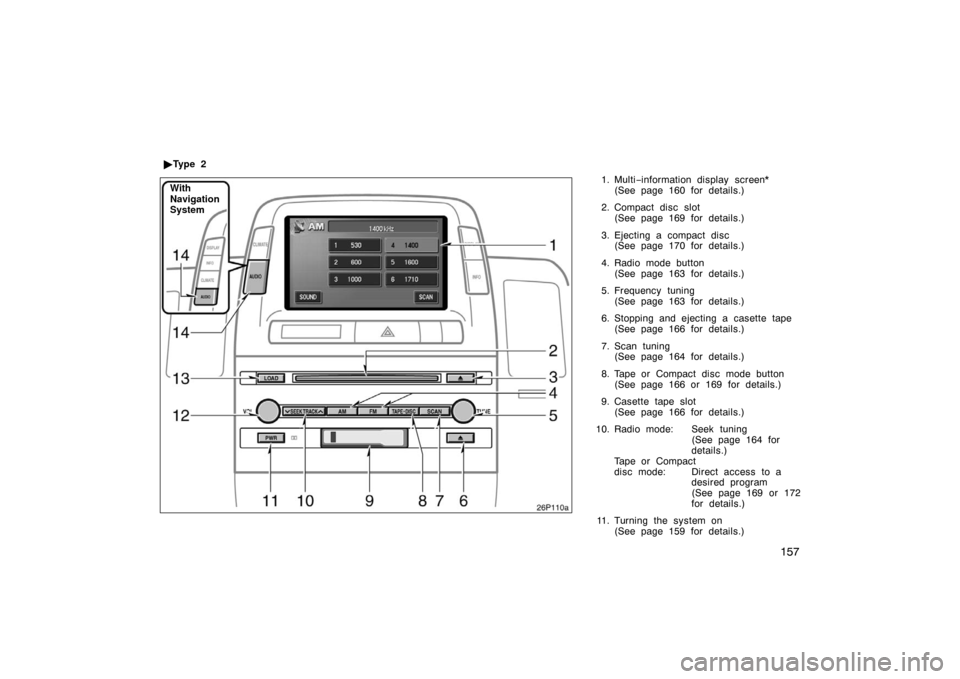

1. Multi−information display screen*
(See page 160 for details.)
2. Compact disc slot (See page 169 for details.)
3. Ejecting a compact disc (See page 170 for details.)
4. Radio mode button (See page 163 for details.)
5. Frequency tuning (See page 163 for details.)
6. Stopping and ejecting a casette tape (See page 166 for details.)
7. Scan tuning (See page 164 for details.)
8. Tape or Compact disc mode button (See page 166 or 169 for details.)
9. Casette tape slot (See page 166 for details.)
10. Radio mode: Seek tuning (See page 164 for
details.)
Tape or Compact
disc mode: Direct access to a desired program
(See page 169 or 172
for details.)
11. Turning the system on (See page 159 for details.)

Ty p e 2
26p110a
With
Navigation
System

158
12. Adjusting the volume(See page 159 for details.)
13. Compact disc load button (See page 169 for details.)
14. Audio operation screen display button (See page 160 for details.)
*: In this manual, English version screens are shown as an example. This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
Your audio system works when the hybrid
system is in “ACC” or “IG
−ON”.
NOTICE
To prevent the battery from being
discharged, do not leave the car
audio on longer than necessary when
the hybrid system is not running.
TURNING THE SYSTEM ON AND OFF
Push “PWR” button to turn the audio sys-
tem on and off. The system turns on in
the last mode used.
Using your audio system—
—Some basics

159

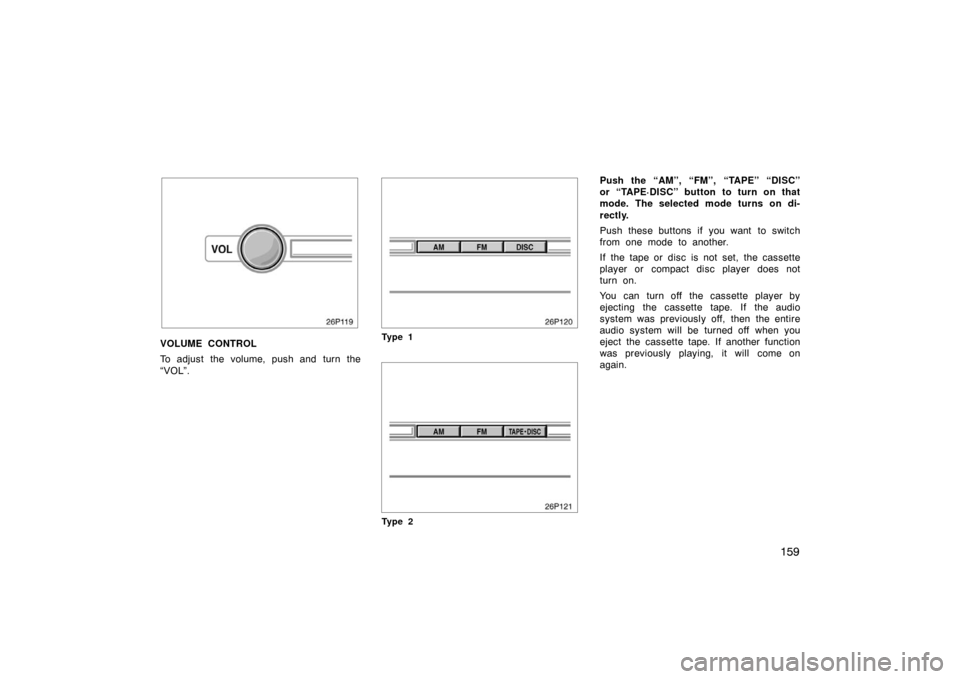

VOLUME CONTROL
To adjust the volume, push and turn the
“VOL”.Ty p e 1
Ty p e 2
Push the “AM”, “FM”, “TAPE” “DISC”
or “TAPE·DISC” button to turn on that
mode. The selected mode turns on di-
rectly.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
player or compact disc player does not
turn on.
You can turn off the cassette player by
ejecting the cassette tape. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the cassette tape. If another function
was previously playing, it will come on
again.

160

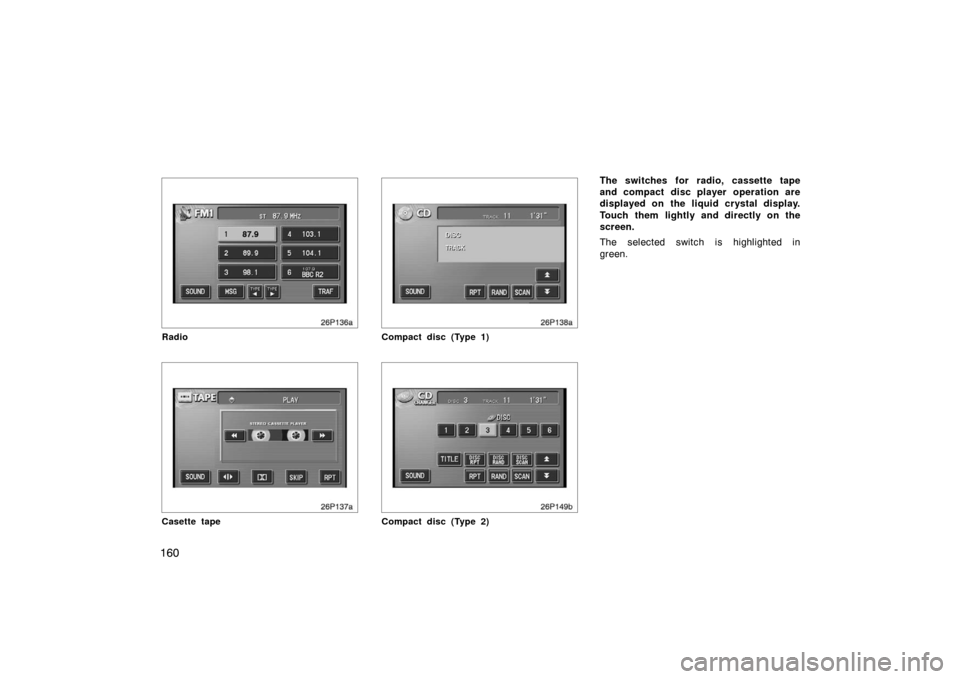

26p136a
Radio
26p137a
Casette tape
26p138a
Compact disc (Type 1)
26p149b
Compact disc (Type 2)
The switches for radio, cassette tape
and compact disc player operation are
displayed on the liquid crystal display.
Touch them lightly and directly on the
screen.
The selected switch is highlighted in
green.
