Electronic engine immobiliser
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code.
When the ignition is switched on, the
code must be recognised for starting
to be possible.
If the system does not function
correctly, the electronic immobiliser
key indicator light, situated on the
instrument panel, lashes rapidly
when the ignition is switched on (2nd
notch).In this case your vehicle will
not start.
Contact a PEUGEOT dealer as soon
as possible.
If the electronic immobiliser
key indicator light comes on
continuously after switching on
the ignition (2nd notch), check the
identiication of your key. It may also
indicate an operating anomaly.
Contact a PEUGEOT dealer as soon
as possible.
Confidential card
The conidential card is necessary for
any work carried out by a PEUGEOT
dealer on the system.
It contains:
- a ive digit identiication code 1
necessary for the emergency
starting procedure,
- a code 2 for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a ilm,
which should be removed only if
necessary.
Keep your card in a safe place,
never inside the vehicle.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left
in the ignition.
Changing the battery of the
remote control
If the indicator light on the key lights
only once, or does not light at all
when the button is pressed, change
the battery.
To do this, unclip the casing using
a coin at the ring (CR2032/3 volt
battery).
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
Programming the remote
control
F Switch off the ignition.
F Switch the ignition on again.
F Immediately press button A.
F Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.

16-02-200416-02-2004
5455YOUR BOXER IN DETAIL
Make a careful note of the
number on each key. The
key number is coded on
the label attached to the
key. If the key is lost, your
PEUGEOT dealer can rapidly
supply you with new keys.
The high-frequency remote
control is a sensitive system; do
not operate it while it is in your
pocket as there is a possibility that
it may unlock your vehicle without
your knowledge.
The remote control cannot operate
if the key is in the ignition, even if
the ignition is switched off, except
for reprogramming.
As a safety measure (when there
are children on board), remove
the ignition key when leaving the
vehicle, even for a short time.
Do not handle the buttons of your
remote control when out of range
of your vehicle. You run the risk of
stopping it from working. It would then be necessary to
reprogramme the remote control.
When buying a second-hand car:
- Ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to
ensure that the keys in your
possession are the only ones
that can start your vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

16-02-200416-02-2004
5455
sounds and the direction indicator
lights lash for thirty seconds.
After triggering, the alarm remains
set.
Warning: if the alarm has been
triggered ten times in succession,
on the eleventh time it becomes
inactive.
Note : if the red warning light, located
on the fascia, lashes rapidly, the
alarm has been triggered while you
were away from your vehicle. To stop
it lashing, insert the remote control
key and switch on the ignition.
Disarming
Unlock the vehicle with the remote
control key (the red indicator light,
located on the fascia, goes out).
To set the alarm with exterior
protection only
If, while you are away from the
vehicle, you wish to leave a window
partially open or a pet inside the
vehicle, you should choose exterior
protection only.
F Switch off the ignition placing the
key in the STOP position.
F Place the key in the ON position.
F Switch off the ignition placing the
key in the STOP position.
F Remove the key.
The interior protection is disarmed
when the red indicator light located
on the fascia comes on for two
seconds.
YOUR BOXER IN DETAIL

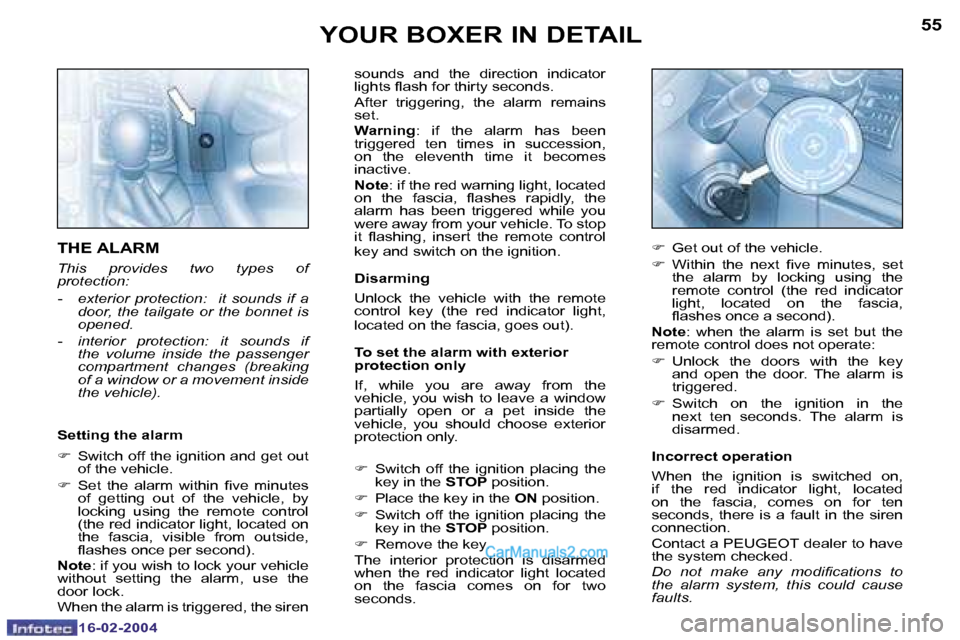

THE ALARM
This provides two types of
protection:
- exterior protection:
it sounds if a
door, the tailgate or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger
compartment changes (breaking
of a window or a movement inside
the vehicle).
Setting the alarm
F Switch off the ignition and get out
of the vehicle.
F Set the alarm within ive minutes
of getting out of the vehicle, by
locking using the remote control
(the red indicator light, located on
the fascia, visible from outside,
lashes once per second).
Note : if you wish to lock your vehicle
without setting the alarm, use the
door lock.
When the alarm is triggered, the siren F
Get out of the vehicle.
F Within the next ive minutes, set
the alarm by locking using the
remote control (the red indicator
light, located on the fascia,
lashes once a second).
Note : when the alarm is set but the
remote control does not operate:
F Unlock the doors with the key
and open the door. The alarm is
triggered.
F Switch on the ignition in the
next ten seconds. The alarm is
disarmed.
Incorrect operation
When the ignition is switched on,
if the red indicator light, located
on the fascia, comes on for ten
seconds, there is a fault in the siren
connection.
Contact a PEUGEOT dealer to have
the system checked.
Do not make any modiications to
the alarm system, this could cause
faults.

16-02-200416-02-2004
5657

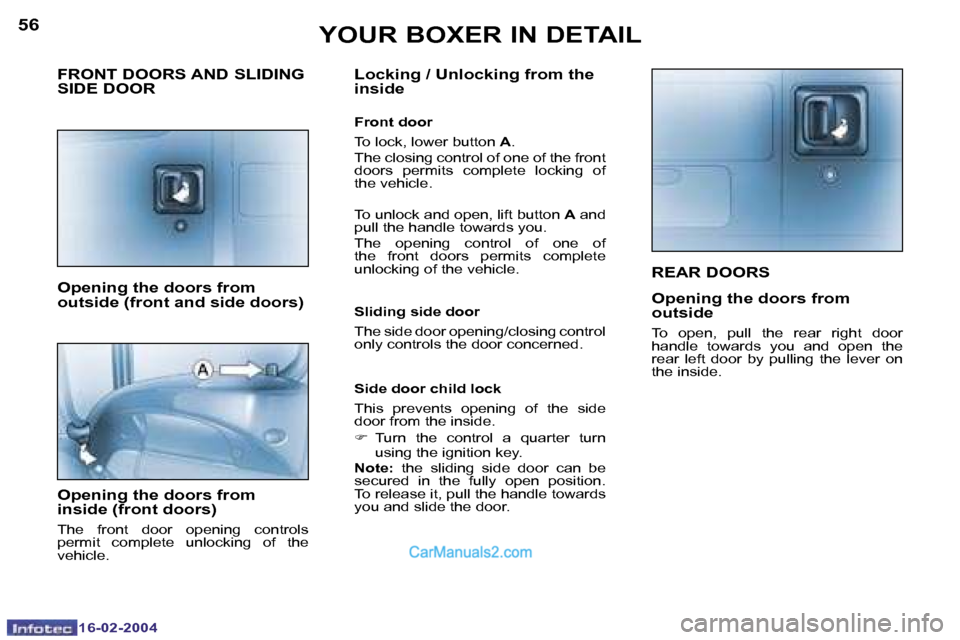

REAR DOORS
Opening the doors from
outside
To open, pull the rear right door
handle towards you and open the
rear left door by pulling the lever on
the inside.
Locking / Unlocking from the
inside
Front door
To lock, lower button A.
The closing control of one of the front
doors permits complete locking of
the vehicle.
To unlock and open, lift button A and
pull the handle towards you.
The opening control of one of
the front doors permits complete
unlocking of the vehicle.
Sliding side door
The side door opening/closing control
only controls the door concerned.
Side door child lock
This prevents opening of the side
door from the inside.
F Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position.
To release it, pull the handle towards
you and slide the door.
YOUR BOXER IN DETAIL
FRONT DOORS AND SLIDING
SIDE DOOR
Opening the doors from
outside (front and side doors)
Opening the doors from
inside (front doors)
The front door opening controls
permit complete unlocking of the
vehicle.

16-02-200416-02-2004
5657
REAR DOORS
Opening the doors from
outside
To open, pull the rear right door
handle towards you and open the
rear left door by pulling the lever on
the inside.
Locking / Unlocking from the
inside
Front door
To lock, lower button A.
The closing control of one of the front
doors permits complete locking of
the vehicle.
To unlock and open, lift button A and
pull the handle towards you.
The opening control of one of
the front doors permits complete
unlocking of the vehicle.
Sliding side door
The side door opening/closing control
only controls the door concerned.
Side door child lock
This prevents opening of the side
door from the inside.
F Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position.
To release it, pull the handle towards
you and slide the door.
YOUR BOXER IN DETAIL
FRONT DOORS AND SLIDING
SIDE DOOR
Opening the doors from
outside (front and side doors)
Opening the doors from
inside (front doors)
The front door opening controls
permit complete unlocking of the
vehicle.

16-02-200416-02-2004
5657YOUR BOXER IN DETAIL
Opening the rear doors to
180° / 270°
To open the rear doors to 180°,
release the check strap C towards
you when the door is partially open.
When closing the door, the check
strap hooks itself in place again
automatically.
Note: when opening to 270°, a
magnet retains the door in the open
position.
Opening the doors from
inside
The rear door opening controls only
unlock the door concerned.
Locking / Unlocking from
inside
To lock, lower button A.
The rear door closing control only
locks the door concerned.
To unlock and open, lift button A and
pull the handle towards you.
To open the other door, push lever
B .
Note: when closing from the inside,
close the right-hand door irst
ensuring that lever B is in the vertical
position then close the left-hand
door.

16-02-200416-02-2004
5859
F Open the fuel iller lap by press-
ing the front of it.
F Insert the key then turn it to the
left.
F Remove the cap and hang it on
the hook located on the inside of
the lap.
An indication on the cap reminds you
which type of fuel to use.
When you ill your tank, do not
continue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is
approximately 70 litres.
F After illing the tank, lock the cap
and close the fuel iller lap.
The key cannot be removed from the
lock until the cap has been replaced
on the fuel tank.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is properly locked.
From inside: pull the handle on the
right-hand side under the fascia.
YOUR BOXER IN DETAIL
OPENING THE BONNET
From outside: lift the catch A and
raise the bonnet.
FILLING WITH FUEL
Low fuel level
When the minimum fuel level
in the tank is reached, this
warning light comes on.
You have approximately
8 litres of fuel left.
The engine must be switched off
when illing with fuel.

16-02-200416-02-2004
5859YOUR BOXER IN DETAIL

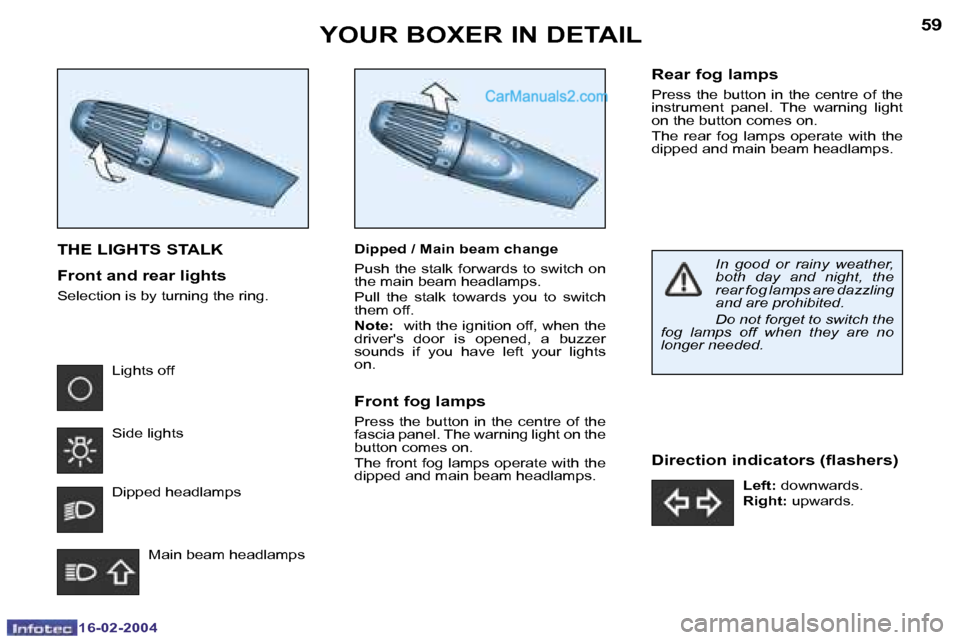

THE LIGHTS STALK
Front and rear lights
Selection is by turning the ring. Lights off
Side lights
Dipped headlampsMain beam headlamps Dipped / Main beam change
Push the stalk forwards to switch on
the main beam headlamps.
Pull the stalk towards you to switch
them off.
Note:
with the ignition off, when the
driver's door is opened, a buzzer
sounds if you have left your lights
on.
Front fog lamps
Press the button in the centre of the
fascia panel. The warning light on the
button comes on.
The front fog lamps operate with the
dipped and main beam headlamps.
Rear fog lamps
Press the button in the centre of the
instrument panel. The warning light
on the button comes on.
The rear fog lamps operate with the
dipped and main beam headlamps.
Direction indicators (lashers)
Left: downwards.
Right: upwards .
In good or rainy weather,
both day and night, the
rear fog lamps are dazzling
and are prohibited.
Do not forget to switch the
fog lamps off when they are no
longer needed.
