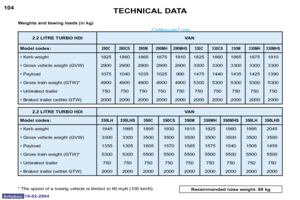

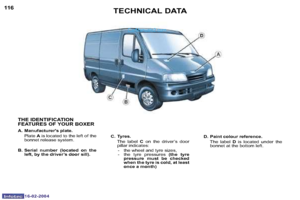

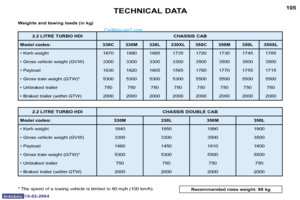

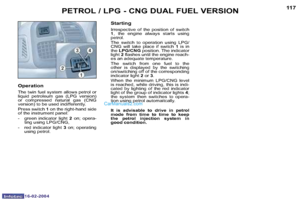

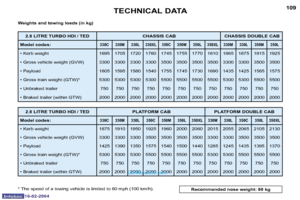

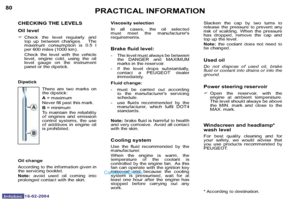

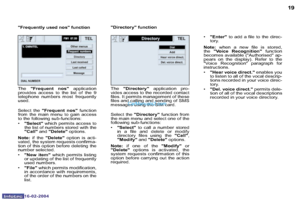

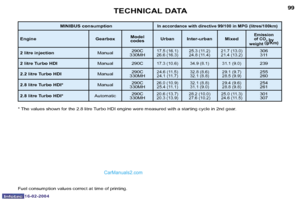

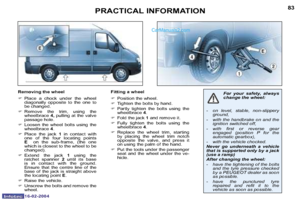

2004 Peugeot Boxer Owner's Manual

16-02-200416-02-2004
23YOUR BOXER AT A GLANCE

16-02-200416-02-2004
23

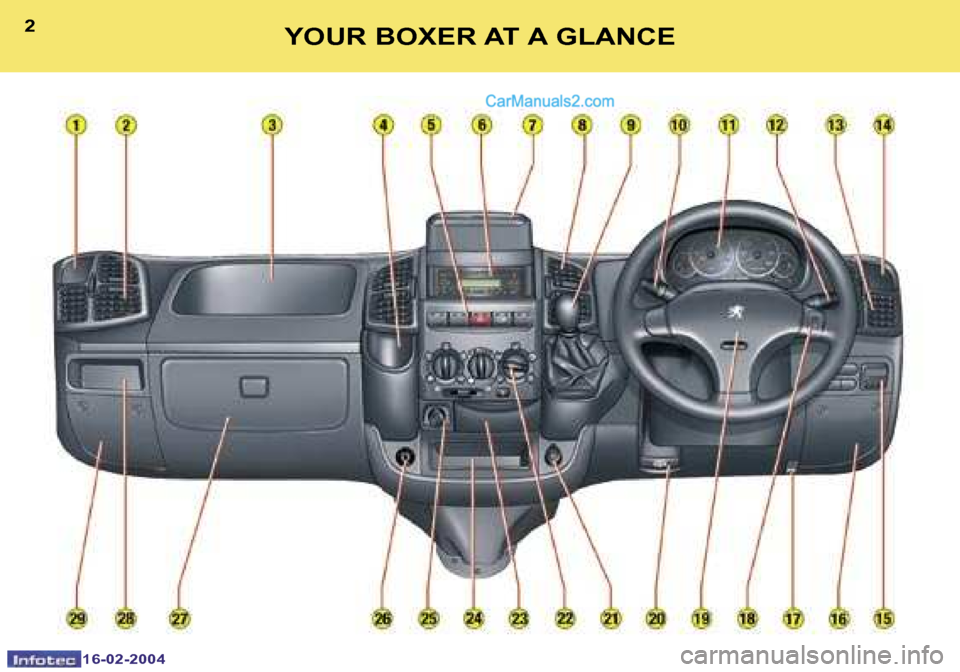

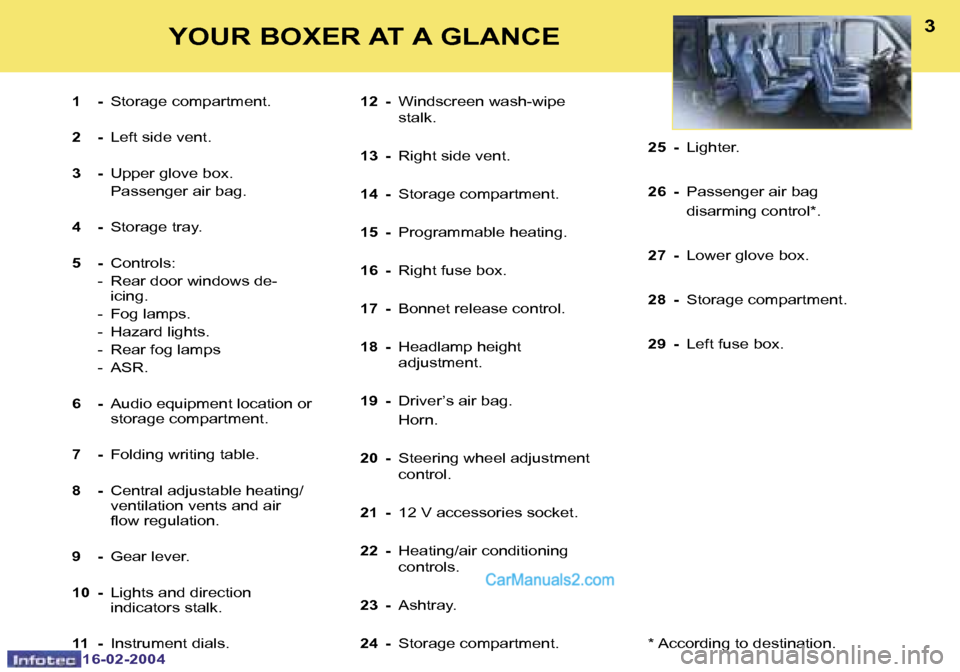

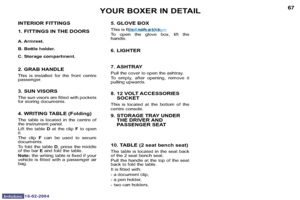

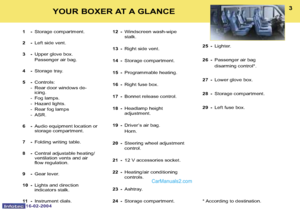

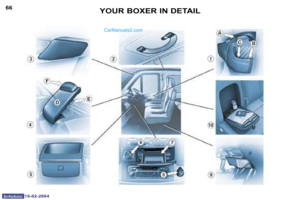

1 - Storage compartment.
2 - Left side vent.
3 - Upper glove box.
Passenger air bag.
4 - Storage tray.
5 - Controls:
- Rear door windows de- icing.
- Fog lamps.
- Hazard lights.
- Rear fog lamps
- ASR.

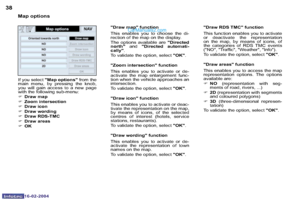

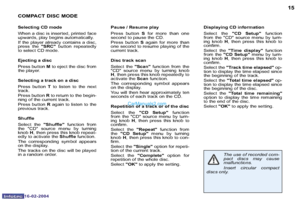

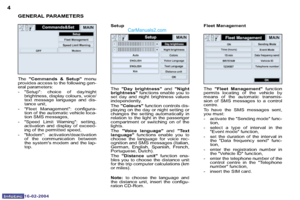

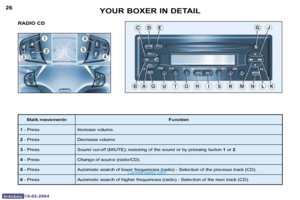

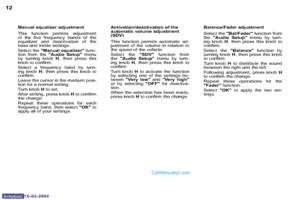

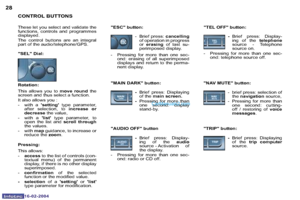

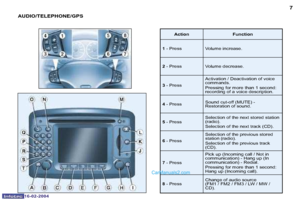

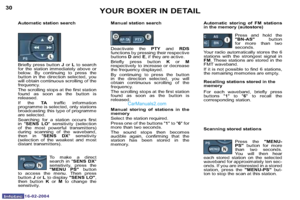

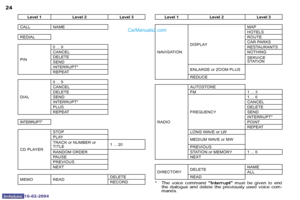

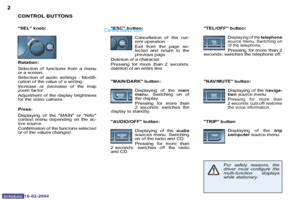

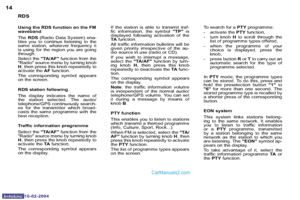

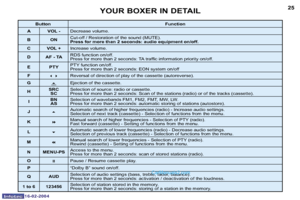

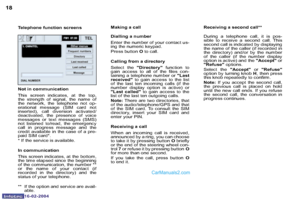

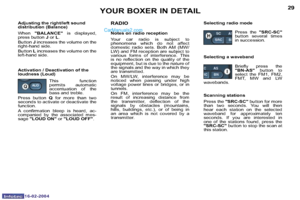

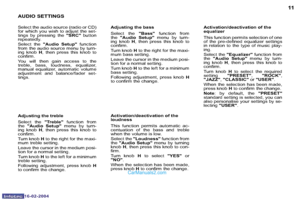

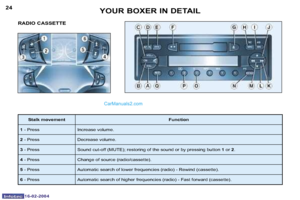

6 - Audio equipment location or
storage compartment.

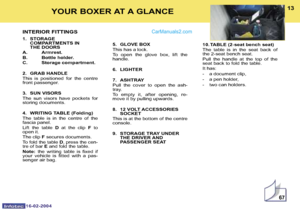

7 - Folding writing table.

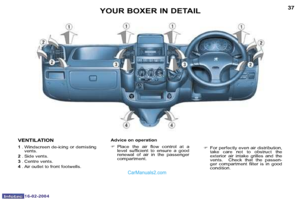

8 - Central adjustable heating/
ventilation vents and air
low regulation.

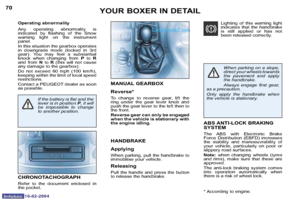

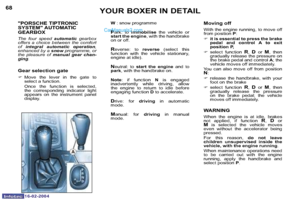

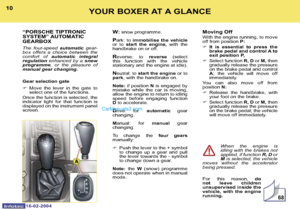

9 - Gear lever.
10 - Lights and direction
indicators stalk.

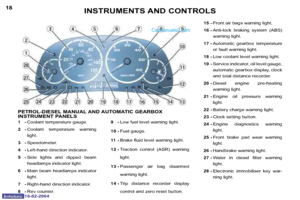

11 - Instrument dials. 12 -
Windscreen wash-wipe
stalk.
13 - Right side vent.
14 - Storage compartment.

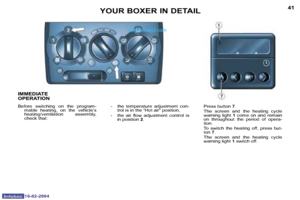

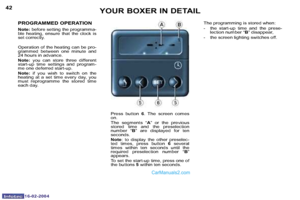

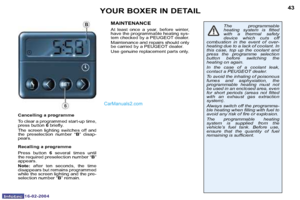

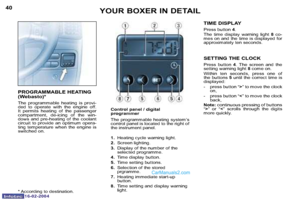

15 - Programmable heating.

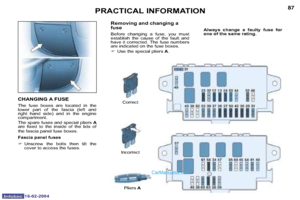

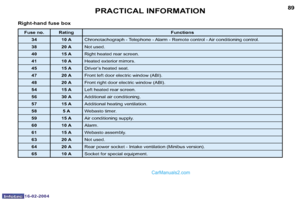

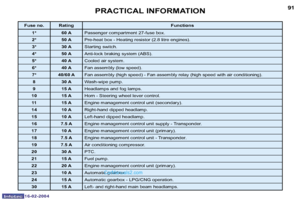

16 - Right fuse box.

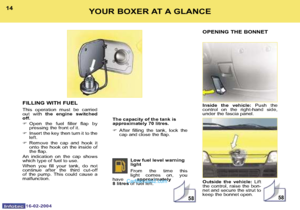

17 - Bonnet release control.
18 - Headlamp height
adjustment.
19 - Driver’s air bag.
Horn.
20 - Steering wheel adjustment
control.
21 - 12 V accessories socket.

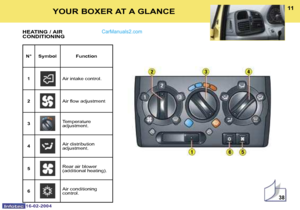

22 - Heating/air conditioning
controls.
23 - Ashtray.
24 - Storage compartment. 25 -
Lighter.
26 - Passenger air bag
disarming control*.
27 - Lower glove box.
28 - Storage compartment.

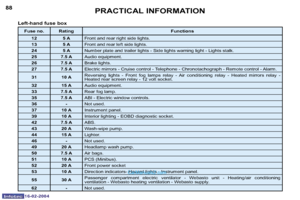

29 - Left fuse box.
YOUR BOXER AT A GLANCE
* According to destination.

16-02-200416-02-2004
52
45YOUR BOXER AT A GLANCE

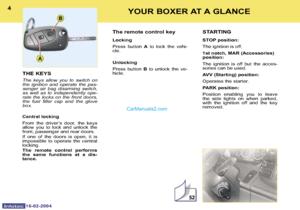

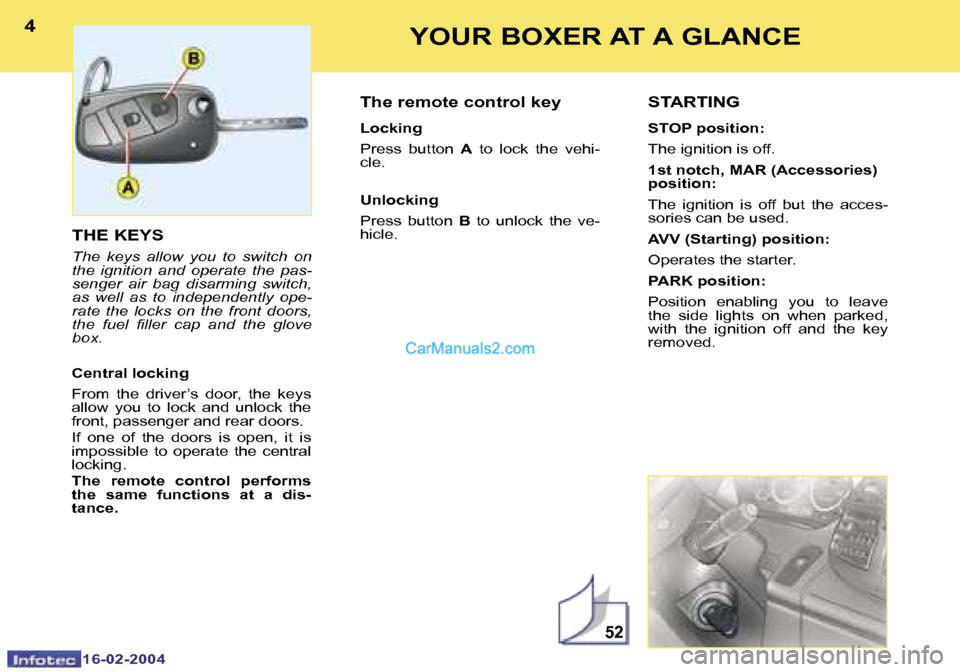

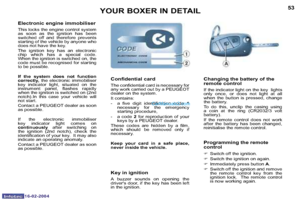

THE KEYS
The keys allow you to switch on
the ignition and operate the pas-
senger air bag disarming switch,
as well as to independently ope-
rate the locks on the front doors,
the fuel iller cap and the glove
box.
STARTING
STOP position:
The ignition is off.
1st notch, MAR (Accessories)
position:
The ignition is off but the acces-
sories can be used.
AVV (Starting) position:
Operates the starter.
PARK position:
Position enabling you to leave
the side lights on when parked,
with the ignition off and the key
removed.

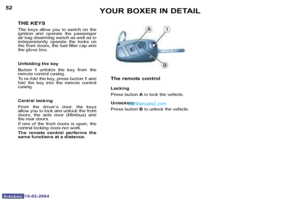

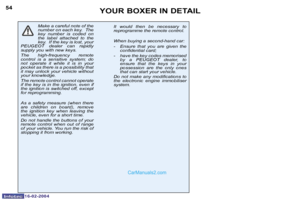

The remote control key
Locking
Press button A to lock the vehi-
cle.
Unlocking
Press button B to unlock the ve-
hicle.

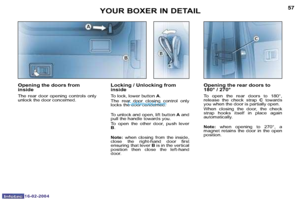

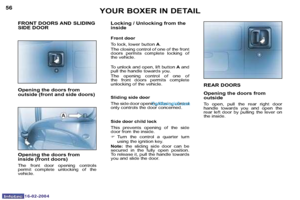

Central locking
From the driver’s door, the keys
allow you to lock and unlock the
front, passenger and rear doors.
If one of the doors is open, it is
impossible to operate the central
locking.
The remote control performs
the same functions at a dis-
tance.

16-02-200416-02-2004
5960

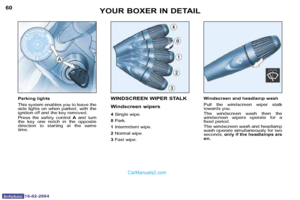

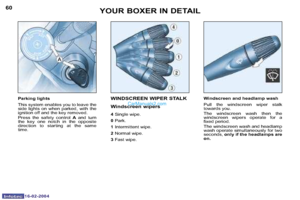

45YOUR BOXER AT A GLANCEWINDSCREEN WIPERS
4 Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rain).
3 Rapid wipe (heavy rain).
Windscreen wash-wipe: pull the
stalk towards you.

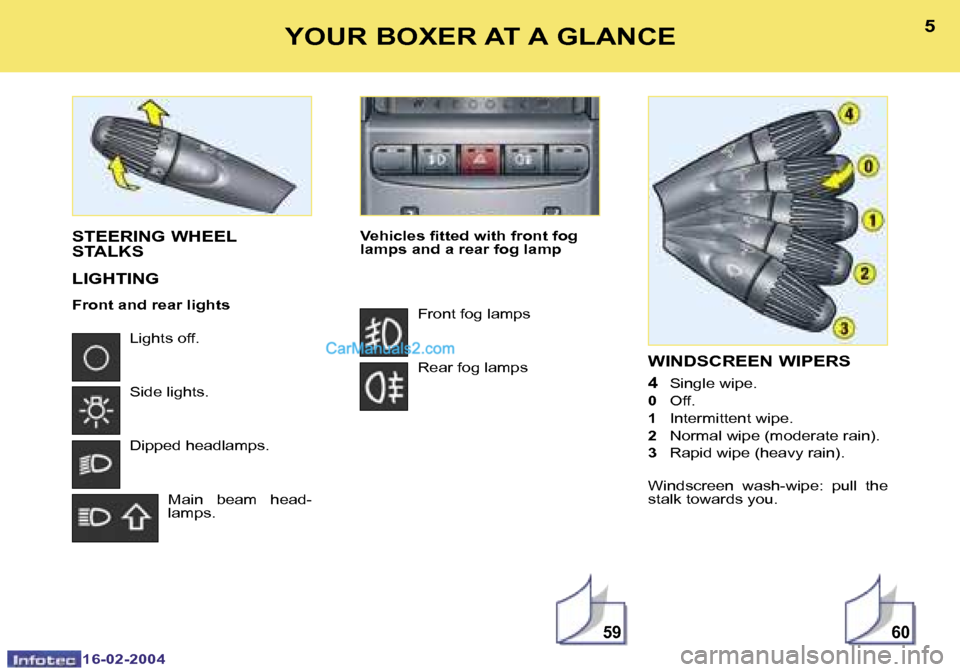

STEERING WHEEL
STALKS

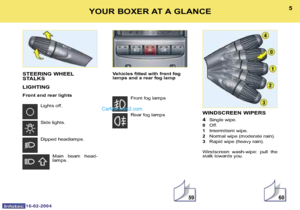

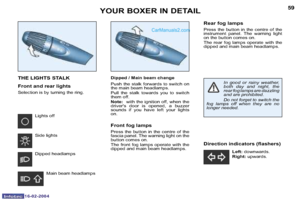

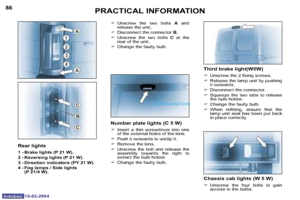

LIGHTING
Front and rear lights
Lights off.
Side lights.
Dipped headlamps.
Main beam head-
lamps. Front fog lamps
Rear fog lamps
Vehicles itted with front fog
lamps and a rear fog lamp

16-02-200416-02-2004
44

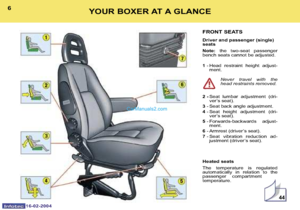

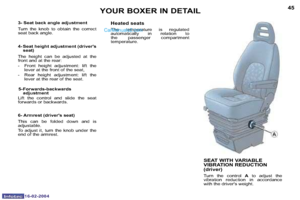

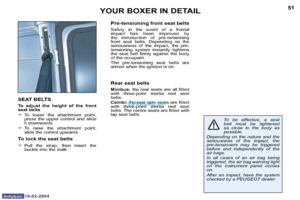

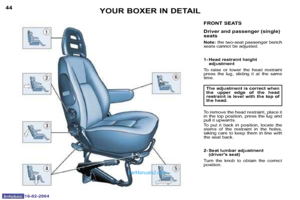

67YOUR BOXER AT A GLANCEFRONT SEATS
Driver and passenger (single)
seats
Note: the two-seat passenger
bench seats cannot be adjusted.
1 - Head restraint height adjust-
ment.
Never travel with the
head restraints removed.
2 - Seat lumbar adjustment (dri-
ver’s seat).
3 - Seat back angle adjustment.
4 - Seat height adjustment (dri-
ver’s seat).
5 - Forwards-backwards adjust-
ment.
6 - Armrest (driver’s seat).
7 - Seat vibration reduction ad-
justment (driver’s seat).
Heated seats
The temperature is regulated
automatically in relation to the
passenger compartment
temperature.

16-02-200416-02-2004
7475
67

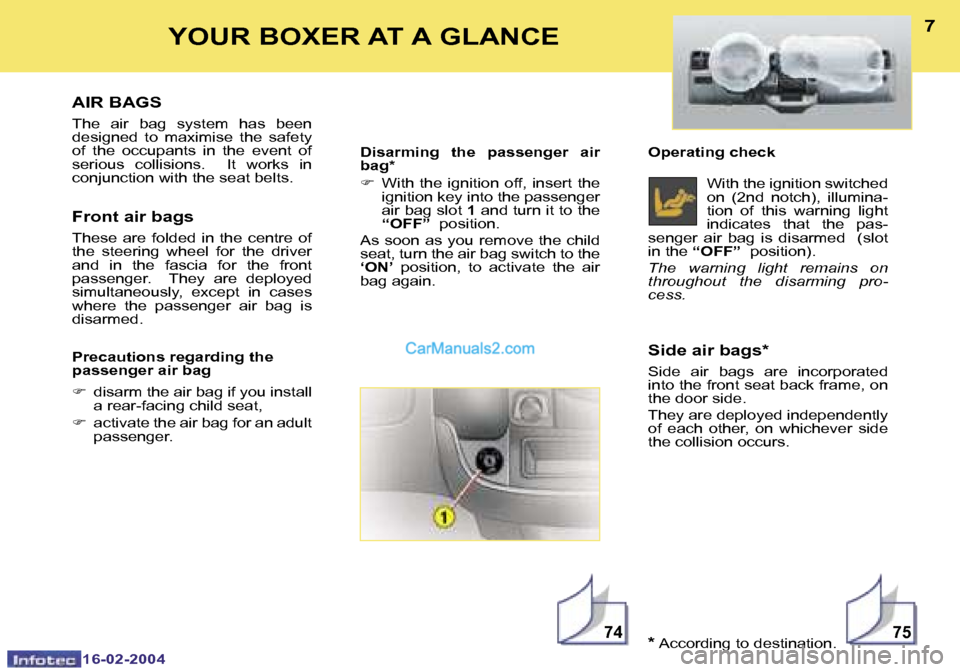

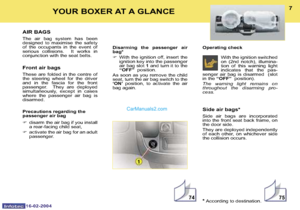

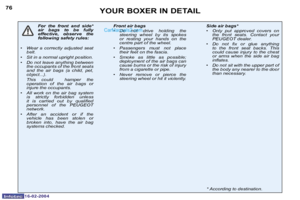

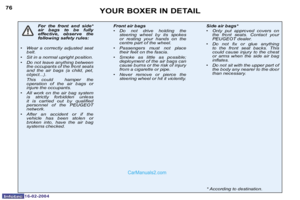

AIR BAGS
The air bag system has been
designed to maximise the safety
of the occupants in the event of
serious collisions. It works in
conjunction with the seat belts.
Front air bags
These are folded in the centre of
the steering wheel for the driver
and in the fascia for the front
passenger. They are deployed
simultaneously, except in cases
where the passenger air bag is
disarmed.
Precautions regarding the
passenger air bag
F disarm the air bag if you install
a rear-facing child seat,
F activate the air bag for an adult
passenger.
YOUR BOXER AT A GLANCE
Disarming the passenger air
bag*
F With the ignition off, insert the
ignition key into the passenger
air bag slot 1 and turn it to the
“OFF” position.
As soon as you remove the child
seat, turn the air bag switch to the
‘ON’ position, to activate the air
bag again.

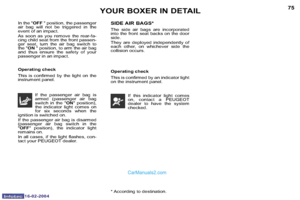

Side air bags*
Side air bags are incorporated
into the front seat back frame, on
the door side.
They are deployed independently
of each other, on whichever side
the collision occurs.
* According to destination.
Operating check
With the ignition switched
on (2nd notch), illumina-
tion of this warning light
indicates that the pas-
senger air bag is disarmed (slot
in the “OFF” position).
The warning light remains on
throughout the disarming pro-
cess.

16-02-200416-02-2004
616263
89YOUR BOXER AT A GLANCE

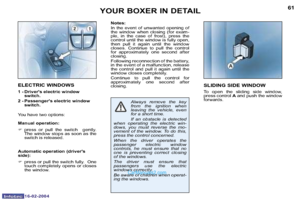

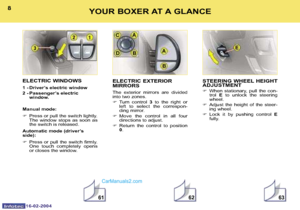

ELECTRIC WINDOWS
1 - Driver’s electric window
2 - Passenger’s electric window.
Manual mode:
F Press or pull the switch lightly.
The window stops as soon as
the switch is released.
Automatic mode (driver’s
side):
F Press or pull the switch irmly.
One touch completely opens
or closes the window.

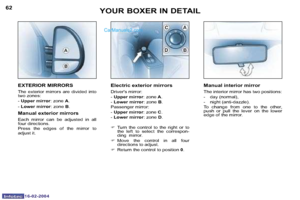

ELECTRIC EXTERIOR
MIRRORS
The exterior mirrors are divided
into two zones.
F Turn control 3 to the right or
left to select the correspon-
ding mirror.
F Move the control in all four
directions to adjust.
F Return the control to position
0 .

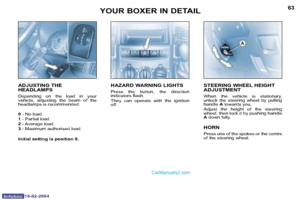

STEERING WHEEL HEIGHT
ADJUSTMENT
F When stationary, pull the con-
trol E to unlock the steering
wheel.
F Adjust the height of the steer-
ing wheel.
F Lock it by pushing control E
fully.

16-02-200416-02-2004
7273

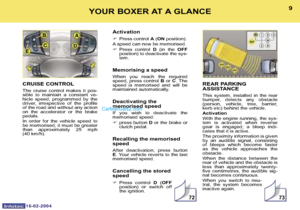

89YOUR BOXER AT A GLANCEREAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,
kerb etc) behind the vehicle.
Activation
With the engine running, the sys-
tem is activated when reverse
gear is engaged; a bleep indi-
cates that it is active.
The proximity information is given
by an audible signal, consisting
of bleeps which become faster
as the vehicle approaches the
obstacle.
When the distance between the
rear of vehicle and the obstacle is
less than approximately twenty-
ive centimetres, the audible sig-
nal becomes continuous.
When you switch to neu-
tral, the system becomes
inactive again.
Activation
F Press control A (ON position).
A speed can now be memorised.
F Press control D (in the OFF
position) to deactivate the sys-
tem.
Memorising a speed
When you reach the required
speed, press control B or C. The
speed is memorised and will be
maintained automatically.
Deactivating the
memorised speed
If you wish to deactivate the
memorised speed:
F press button D or the brake or
clutch pedal.
Recalling the memorised
speed
After deactivation, press button E . Your vehicle reverts to the last
memorised speed.
Cancelling the stored
speed
F Press control D (OFF
position) or switch off
the ignition.

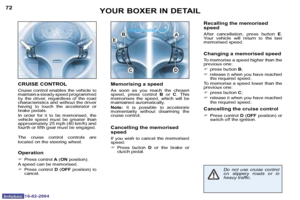

CRUISE CONTROL
The cruise control makes it pos-
sible to maintain a constant ve-
hicle speed, programmed by the
driver, irrespective of the proile
of the road and without any action
on the accelerator or the brake
pedals.
In order for the vehicle speed to
be memorised, it must be greater
than approximately 25 mph
(40 km/h).
