2004 PEUGEOT 607 gearbox

02-02-2004
PRACTICAL INFORMATION
144
CHANGING A WHEEL
 Park the vehicle on level, stable and non-slippery ground.
 Apply the handbrake, switch offthe ignition and engage first orreverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack in the boot  Detach the luggage net.
 Lift the boot carpet using the liftinghook. Secure this hook behindthe boot seal. Tools available The following tools are located in the polystyrene holder in the centre ofthe spare wheel: 1 -
Wheelbrace.
2 - Centralising tool.
3 - Wheelbrace extension.
4 - Jack fitted with a system which enables it to be folded or unfol-
ded rapidly.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cover tool. Removal
 For vehicles with alloy wheels fit-ted with wheel trims, pull thecentre trim by using tool 6in one
of the holes.
 Loosen the wheel bolts.
 Take the jack from the tool kit andfold it by pressing the ends A.

02-02-2004
PRACTICAL INFORMATION145

Fold the jack by pressing at the ends Aand place it in one of the
four locations Eunderneath the
vehicle (the nearest one to thewheel to be changed).
 Extend the jack, first by hand, pul-ling the ends Athen using wheel-
brace 1and the extension 3.
 Remove a wheel bolt at the topand fit the centralising tool 2 in its
place.
 Unscrew the other bolts andremove the wheel.
Fitting a wheel  Position the wheel using the cen-tralising tool to assist you.
 Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace.
 Fold the jack and remove it.
 Fully tighten the bolts using thewheelbrace.
 Replace the wheel trim.
 Put the tool holder back in posi-
tion. This helps to keep the bootfloor in its correct position, to pre-vent any deformation of the floorwhen loaded.
 Tighten the spare wheel securingstrap to prevent noise and for yoursafety in the event of impact.
For your safety, alwayschange the wheel:
- on level, stable, non-slippery
ground,
- with the handbrake applied,
- with first or reverse gear enga- ged (position Pfor the automatic
gearbox),
- never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel:
- have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
- have the punctured wheel repai- red and refit it to the vehicle assoon as possible.
Tyres fitted with the Tyre Under-Inflation Detection System. These wheels have a pressure
sensor. Have them repaired by a
PEUGEOT dealer.

02-02-2004
Fuse N¡ RatingFunctions
10* 20 AAutomatic headlamp lighting control unit.
11* 70 A Built-in systems interface.
12* 70 A Ignition supply (+ve accessories / ignition controlled +ve).
13* 20 A Automatic headlamp lighting control unit.
14 15 A Double injection relay supply.
15* - Not used.
16* - -
17* 30 A ESP hydraulic unit.
18 30 A Ignition supply (+ starter).
19 20 A Variable suspension control unit.
20 10 A Fan unit relay - Cruise control safety switch - Manual gearbox clutch switch - Manual gearbox reversing lights switch or automatic gearbox multi-function switch -
Automatic headlamp lighting control unit - Vehicle speed sensor -
Coolant level sensor - Water in diesel sensor - Power switch control unit relay.
21 5 A Automatic gearbox control unit - Automatic gearbox multi-function switch.
22 25 A ESP control unit.
23 15 A Diesel heating.
24 5 A Engine management control unit - Dual control control unit.
25 10 A Fuel pump.
26 30 A Driver's seat memory control unit.
27 25 A Double injection relay supply.
28 10 A Throttle housing de-icing resistor, Intake pilot solenoid valve - Flow meter - Piston de-activator injection pump -Oil heating.
29 30 A Air pump, diesel additive control unit - Diesel additive injector.
30 - Cannot be used.
31 5 A Automatic gearbox shift lock.
32 10 A ESP or ABS control unit.
33 15 A Automatic gearbox control unit - Automatic gearbox multi-function switch (except reversing lights) - Automatic gearbox sequential control.
34 5 A Oxygen sensors - Exhaust gas recirculation solenoid valve, Exhaust gas recirculation butterfly solenoid valve -
Turbo pressure regulation solenoid valve.
PRACTICAL INFORMATION 153

02-02-2004
PRACTICAL INFORMATION
156
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar.The towing eye is inside the spare wheel.From the front:
 Unclip the bottom of the cover, using the flat part of the towing eye,
 Screw in the towing eye until it locks.
From the rear:  Unclip the top of the cover using the flat part of the towing eye,
 Screw in the towing eye until it locks.
Lifting (2 wheels only on the road )It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
Ð lever in position
N,
Ð tow the vehicle at less than 30 mph (50 km/h) over a maximum distance of 30 miles (50 km).
Ð do not add oil to the gearbox.
When towing with theengine switched off,there is no brakingassistance

02-02-2004
TECHNICAL DATA159
* According to country.
MODELS: Model codes
PETROL ENGINES
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power: EU standard (KW)Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm) FuelCatalytic converterElectronic injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement) Gearbox - Final drive 2 litre 16V 2.2 litre 16V 24V V6 Injection
1997 2230 2946
85x88 86x96 87x82.6 16 16 24
100 116 152
6000 5650 6000
190 217 285
4100 3900 3750
Unleaded* Unleaded Unleaded Ye s * Ye s Ye sYe s Ye s Ye s
Manual Manual Automatic Manual Automatic
(5-speed) (5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.751.9 1.85 8 1.85 8

TECHNICAL DATA
160
Turbo diesel Turbo diesel2 litre HDI 2.2 litre 16V HDI 1997 2179
85x88 85x96
81 6
80 79 98 4000 4000
250 314
1750 2000
Diesel Diesel Yes* Yes
No Yes Yes Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.75 4.75
1.85 1.85 8
DIESEL ENGINES
MODELS: Model codes 9DRHZB 9DRHSB 9D4HXB 9D4HXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power : EU standard (KW) Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm)FuelCatalytic converterParticulate emission filter (PEF)Electronic Injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive
* According to country.
02-02-2004

02-02-2004

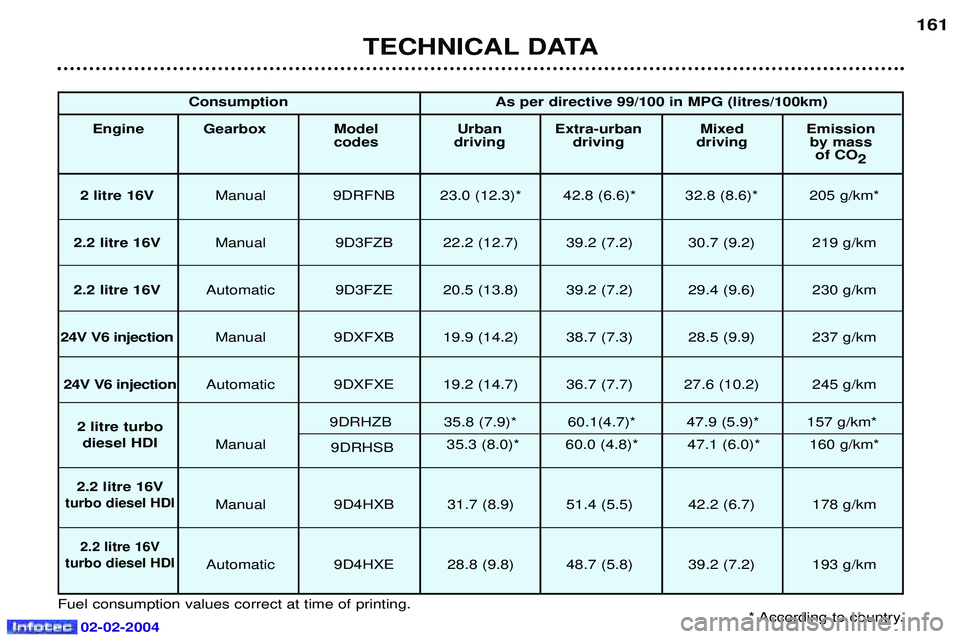

TECHNICAL DATA161
2 litre 16V
Manual 9DRFNB 23.0 (12.3)* 42.8 (6.6)* 32.8 (8.6)* 205 g/km*
2.2 litre 16V Manual 9D3FZB 22.2 (12.7) 39.2 (7.2) 30.7 (9.2) 219 g/km
2.2 litre 16V Automatic 9D3FZE 20.5 (13.8) 39.2 (7.2) 29.4 (9.6) 230 g/km
24V V6 injection Manual 9DXFXB 19.9 (14.2) 38.7 (7.3) 28.5 (9.9) 237 g/km
24V V6 injection Automatic 9DXFXE 19.2 (14.7) 36.7 (7.7) 27.6 (10.2) 245 g/km
2 litre turbo diesel HDI Manual 35.3 (8.0)* 60.0 (4.8)* 47.1 (6.0)* 160 g/km*
2.2 litre 16V
turbo diesel HDIManual 9D4HXB 31.7 (8.9) 51.4 (5.5) 42.2 (6.7) 178 g/km
2.2 litre 16V
turbo diesel HDI
Automatic 9D4HXE 28.8 (9.8) 48.7 (5.8) 39.2 (7.2) 193 g/km
Fuel consumption values correct at time of printing. * According to country.
Consumption As per directive 99/100 in MPG (litres/100km)
Engine Gearbox Model Urban Extra-urban Mixed Emission codes driving driving driving by mass of CO2
9DRHZB 35.8 (7.9)* 60.1(4.7)* 47.9 (5.9)* 157 g/km*
9DRHSB

TECHNICAL DATA
162
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre 24V 24V
16V 16V 16V V6 injection V6 injection
Manual Manual Auto. Manual Auto.
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE 1436 1 455 1 475 1 560 1 580Ð 2 035 2 055 2 140 2 160
3 635 (1) - 3 835 (2) 3 555 (1) - 3 855 (2) 3 940 (1) - 3 940 (2) 3 660 (1) - 3 960 (2)
ÐÐÐÐÐÐÐÐÐÐ
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre
HDI 16V HDI 16V HDI
Manual Manual Auto.
9DRHZB/HSB9D4HXB 9D4HXE
1490 1 535 1 550 Ð 2 115 2 130
Ð 3 715 (1) - 3 865 (2) 3 330 (1) - 3 630 (2)
ÐÐ Ð
* The speed of a towing vehicle is limited to 60 mph (100 km/h). (1) 12 % gradient. (2) 8 % gradient. Note: When the external temperature is higher than 45¡C, for vehicles with a 2.2 litre 16V HDI engine with automatic
gearbox, towing is not possible. For other vehicles, restrict the gross train weight.
WEIGHTS AND TOWING LOADS (in kg)
