Press switch 1, the indicator
light comes on and the SPORT
warning light comes on.
Manual selection of the SPORT
position
F Press switch 1 again. The
indicator light is switched
off and the AUTO indica-
tor light comes on.
To return to automatic operation
In this position, the suspension is
maintained in the
SPORT position. In the event of a fault
, it
comes on, accompanied by
an audible signal and a mes-
sage on the multifunction
display.
Select automatic operation and
contact a PEUGEOT dealer as soon
as possible.
Operating check
This is conirmed by the switch light
and the indicator lights.
ELECTRONICALLY
CONTROLLED SUSPENSION
The suspension adapts automatically
and instantly to different driving styles
and road characteristics, improving
the comfort of the occupants and
the vehicle's road holding capabili-
ties. The suspension favours smooth
shock absorption, ensuring a comfort-
able ride, but as soon as conditions
demand a change (sporty driving,
tight bends, avoidance action, etc.)
it automatically selects irmer shock
absorption, guaranteeing optimum
road holding.
407 saloon and 407 SW comfort

130 -
11-10-2004
131
-
11-10-2004
REAR PARKING ASSISTANCE
This system consists of four prox-
imity sensors, located in the rear
bumper.
This detects any obstacle (person,
cyclist, vehicle, tree, gate, etc.) be-
hind the vehicle. Nevertheless, it
cannot detect obstacles located just
below the bumper.
Warning:
an object, such as a stake,
a roadworks cone or any other simi-
lar object detected at the beginning
of the manoeuvre may no longer be
detected during the manoeuvre.
To make manoeuvres in reverse gear
easier, adjust your mirrors in accord-
ance with the "Automatic tilting of the
mirrors in reverse gear" function.
Maintenance: ensure that the sen-
sors are not covered with mud, frost
or snow.
Deactivation
F Press the switch on the centre
console.
The indicator light on the switch
comes on and the system becomes
completely inactive.
If there is an operating fault,
on changing to reverse gear
a warning light on the instru-
ment panel, an audible signal
and a message on the multifunction
display indicate that there is a sys-
tem malfunction.
Contact a PEUGEOT dealer.
Your vehicle's rear speakers emit an
audible signal:
- on the right if an obstacle is
detected on the right,
- on the left if an obstacle is detected on the left,
- on the right and left if an obstacle is detected in the centre.
When the distance between the rear
of the vehicle and the obstacle is less
than approximately twenty-ive centi-
metres, the audible signal becomes
continuous.
Activation
The system is activated as soon as
reverse gear is engaged; an audible
bleep shows that it is active.
The proximity information is given by
an audible signal, which becomes
more rapid as the vehicle approach-
es the obstacle.
Switching the system off
F Change to neutral, the system is
again inactive.
407 saloon and 407 SW comfort

132 -
11-10-2004
133
-
11-10-2004
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure
during driving and trigger a warning
in the event of malfunction.
Flat tyre
Instrument panel
warning light.
This is accompa-
nied by the message on the multi-
function display locating the wheel
concerned.
Instrument panel
display warning
light.
This is accompanied by the audible
signal and the message on the multi-
function display locating the wheel
concerned.
If this warning light comes on, have
the tyre pressure checked as soon
as possible.
Puncture
This warning light, accompanied by
the audible signal and the message
on the multi-function display locating
the wheel concerned, is followed by
illumination of the 'STOP' warning
light. Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very delated tyre), and have
the tyre pressure checked as soon
as possible.
Sensor(s) not detected or faulty
Instrument panel
warning light.
This is accompanied
by the mesage on the multifunction display
which indicates that under-inlation detec-
tion is absent from one (or several) wheel(s)
or that there is a fault in the system.
Instrument panel
display warning
light.
This is accom-
panied by the audible signal and
the message on the multi-function
display which indicates that under-
inlation detection is absent from one
(or several) wheel(s) or that there is
a fault in the system.
Contact a PEUGEOT dealer to re-
place the faulty sensor(s).
Note: this message is also displayed
when one of the wheels is away from
the vehicle (being repaired) or when
a wheel without a sensor is itted. All repairs and changing of
tyres on a wheel itted with
this system must be carried
out by a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
The tyre under-inlation detection
system is an aid to driving which
does not replace the need for the
driver to be vigilant or to drive re-
sponsibly.
This system does not eliminate
the need to have the tyre pressure
checked regularly (see manufactur-
er's label on the door pillar) to ensure
that the optimum dynamic perform-
ance of the vehicle is maintained and
prevent premature wear of the tyres,
particularly in arduous driving condi-
tions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month.
Remember to check the pressure of
the spare wheel.
The tyre under-inlation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
407 saloon and 407 SW comfort

132 -
11-10-2004
133
-
11-10-2004
CHANGING A WHEEL
F
Park the vehicle on level, stable
and non-slippery ground.
F Apply the handbrake, switch off
the ignition and engage irst or
reverse gear (position P for the
automatic gearbox).
F Never go underneath a vehicle
which is supported only by a jack. Tools available
The following tools are located in
the holder in the centre of the spare
wheel:
1 -
Wheelbrace.
2 - Centralising tool (for alloy
wheels only).
3 - Wheelbrace extension.
4 - Jack.
5 - Removable towing eye.
6 - Alloy wheel trim cover tool. Removal
F
For vehicles with steel wheels,
detach the trim using extension 3
pulling at the valve passage hole.
F For vehicles with alloy wheels, re-
move the trim covers using tool 6.

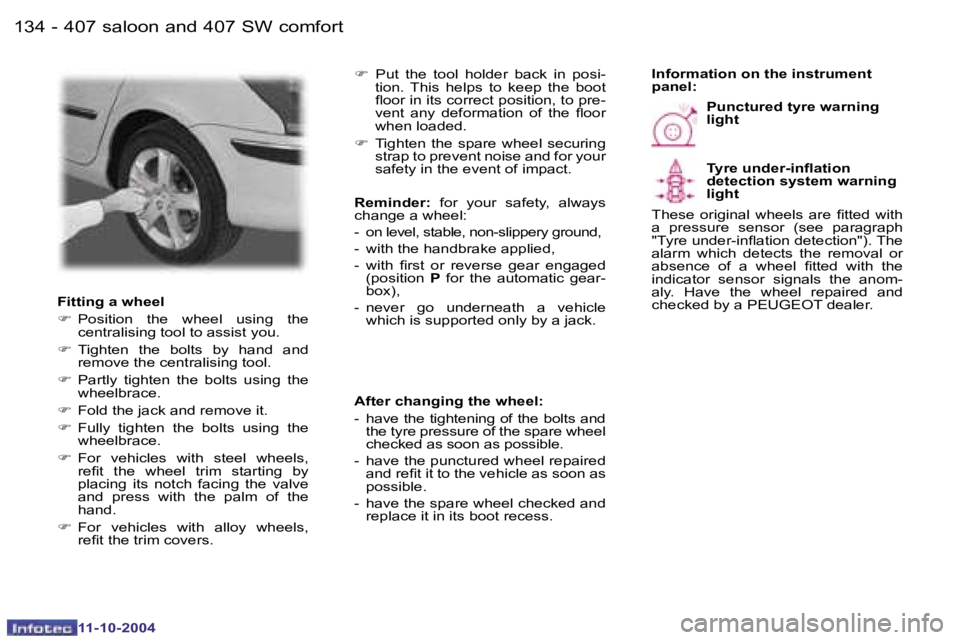

F Loosen the wheel bolts.
F Take the jack from the tool kit.
F Place the jack 4 in one of the four
locations underneath the vehicle
(the nearest one to the wheel to
be changed).
F Extend the jack using wheelbrace
1 and the extension 3.
F Remove a wheel bolt at the top
and it the centralising tool 2 in its
place.
F Unscrew the other bolts and re-
move the wheel.
Access to the spare wheel and
the jack in the boot
F
Lift the loor using the lifting
handle. Secure the handle behind
the boot seal.
407 saloon and 407 SW comfort

134 -
11-10-2004
135
-
11-10-2004
Fitting a wheel
F
Position the wheel using the
centralising tool to assist you.
F Tighten the bolts by hand and
remove the centralising tool.
F Partly tighten the bolts using the
wheelbrace.
F Fold the jack and remove it.
F Fully tighten the bolts using the
wheelbrace.
F For vehicles with steel wheels,
reit the wheel trim starting by
placing its notch facing the valve
and press with the palm of the
hand.
F For vehicles with alloy wheels,
reit the trim covers. Punctured tyre warning
light
Information on the instrument
panel:
F
Put the tool holder back in posi-
tion. This helps to keep the boot
loor in its correct position, to pre-
vent any deformation of the loor
when loaded.
F Tighten the spare wheel securing
strap to prevent noise and for your
safety in the event of impact.
Reminder: for your safety, always
change a wheel:
- on level, stable, non-slippery ground,
- with the handbrake applied,
- with irst or reverse gear engaged (position P for the automatic gear-
box),
- never go underneath a vehicle which is supported only by a jack. Tyre under-inlation
detection system warning
light
These original wheels are itted with
a pressure sensor (see paragraph
"Tyre under-inlation detection"). The
alarm which detects the removal or
absence of a wheel itted with the
indicator sensor signals the anom-
aly. Have the wheel repaired and
checked by a PEUGEOT dealer.
After changing the wheel:
- have the tightening of the bolts and the tyre pressure of the spare wheel
checked as soon as possible.
- have the punctured wheel repaired and reit it to the vehicle as soon as
possible.
- have the spare wheel checked and replace it in its boot recess.
407 saloon and 407 SW comfort

134 -
11-10-2004
135
-
11-10-2004
Bolt covers
Alloy wheel bolts are covered by
chrome trims.

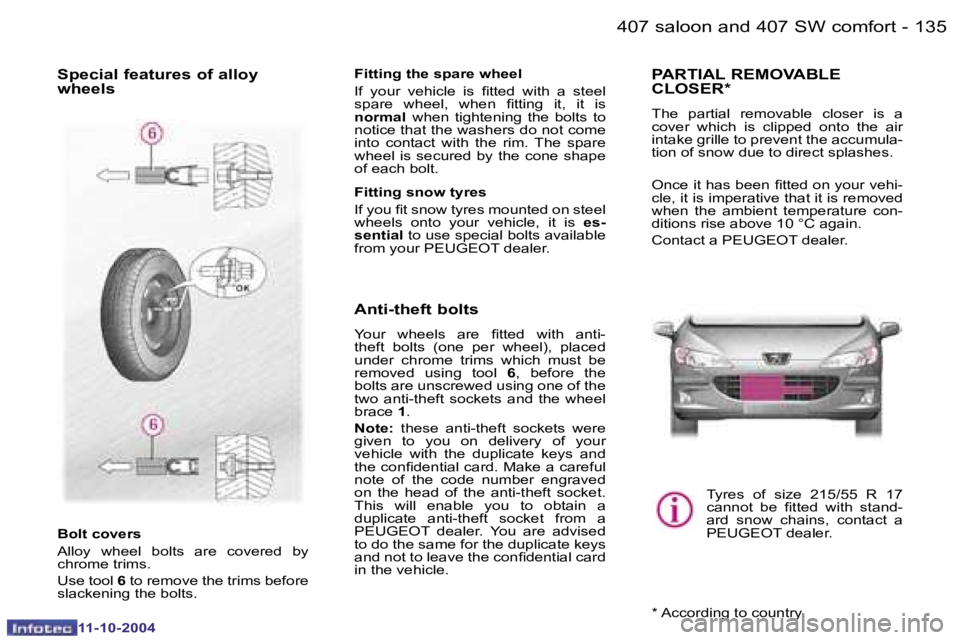

Use tool
6 to remove the trims before
slackening the bolts. Fitting the spare wheel
If your vehicle is itted with a steel
spare wheel, when itting it, it is
normal
when tightening the bolts to
notice that the washers do not come
into contact with the rim. The spare
wheel is secured by the cone shape
of each bolt.
Fitting snow tyres
If you it snow tyres mounted on steel
wheels onto your vehicle, it is es-
sential to use special bolts available
from your PEUGEOT dealer.
PARTIAL REMOVABLE
CLOSER*
The partial removable closer is a
cover which is clipped onto the air
intake grille to prevent the accumula-
tion of snow due to direct splashes.
Once it has been itted on your vehi-
cle, it is imperative that it is removed
when the ambient temperature con-
ditions rise above 10 °C again.
Contact a PEUGEOT dealer.
Tyres of size 215/55 R 17
cannot be itted with stand-
ard snow chains, contact a
PEUGEOT dealer.
* According to country.
Special features of alloy
wheels
Anti-theft bolts
Your wheels are itted with anti-
theft bolts (one per wheel), placed
under chrome trims which must be
removed using tool 6, before the
bolts are unscrewed using one of the
two anti-theft sockets and the wheel
brace 1.
Note: these anti-theft sockets were
given to you on delivery of your
vehicle with the duplicate keys and
the conidential card. Make a careful
note of the code number engraved
on the head of the anti-theft socket.
This will enable you to obtain a
duplicate anti-theft socket from a
PEUGEOT dealer. You are advised
to do the same for the duplicate keys
and not to leave the conidential card
in the vehicle.
407 saloon and 407 SW comfort

134 -
11-10-2004
135
-
11-10-2004
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use tool
6 to remove the trims before
slackening the bolts. Fitting the spare wheel
If your vehicle is itted with a steel
spare wheel, when itting it, it is
normal
when tightening the bolts to
notice that the washers do not come
into contact with the rim. The spare
wheel is secured by the cone shape
of each bolt.
Fitting snow tyres
If you it snow tyres mounted on steel
wheels onto your vehicle, it is es-
sential to use special bolts available
from your PEUGEOT dealer.
PARTIAL REMOVABLE
CLOSER*
The partial removable closer is a
cover which is clipped onto the air
intake grille to prevent the accumula-
tion of snow due to direct splashes.
Once it has been itted on your vehi-
cle, it is imperative that it is removed
when the ambient temperature con-
ditions rise above 10 °C again.
Contact a PEUGEOT dealer.
Tyres of size 215/55 R 17
cannot be itted with stand-
ard snow chains, contact a
PEUGEOT dealer.
* According to country.
Special features of alloy
wheels
Anti-theft bolts
Your wheels are itted with anti-
theft bolts (one per wheel), placed
under chrome trims which must be
removed using tool 6, before the
bolts are unscrewed using one of the
two anti-theft sockets and the wheel
brace 1.
Note: these anti-theft sockets were
given to you on delivery of your
vehicle with the duplicate keys and
the conidential card. Make a careful
note of the code number engraved
on the head of the anti-theft socket.
This will enable you to obtain a
duplicate anti-theft socket from a
PEUGEOT dealer. You are advised
to do the same for the duplicate keys
and not to leave the conidential card
in the vehicle.
407 saloon and 407 SW comfort

136 -
11-10-2004
137
-
11-10-2004

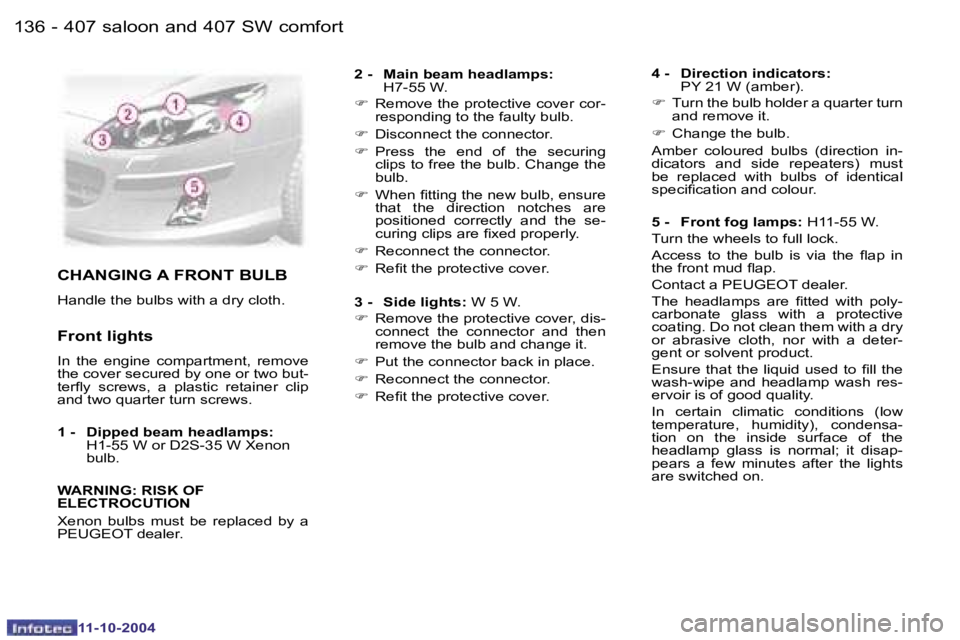

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
Front lights
In the engine compartment, remove
the cover secured by one or two but-
terly screws, a plastic retainer clip
and two quarter turn screws.
1 - Dipped beam headlamps:
H1-55 W or D2S-35 W Xenon
bulb.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer. 2 - Main beam headlamps:
H7-55 W.
F Remove the protective cover cor-
responding to the faulty bulb.
F Disconnect the connector.
F Press the end of the securing
clips to free the bulb. Change the
bulb.
F When itting the new bulb, ensure
that the direction notches are
positioned correctly and the se-
curing clips are ixed properly.
F Reconnect the connector.
F Reit the protective cover.
3 - Side lights: W 5 W.
F Remove the protective cover, dis-
connect the connector and then
remove the bulb and change it.
F Put the connector back in place.
F Reconnect the connector.
F Reit the protective cover. 4 - Direction indicators:

PY 21 W (amber).
F Turn the bulb holder a quarter turn
and remove it.
F Change the bulb.
Amber coloured bulbs (direction in-
dicators and side repeaters) must
be replaced with bulbs of identical
speciication and colour.
5 - Front fog lamps: H11-55 W.
Turn the wheels to full lock.
Access to the bulb is via the lap in
the front mud lap.
Contact a PEUGEOT dealer.
The headlamps are itted with poly-
carbonate glass with a protective
coating. Do not clean them with a dry
or abrasive cloth, nor with a deter-
gent or solvent product.
Ensure that the liquid used to ill the
wash-wipe and headlamp wash res-
ervoir is of good quality.
In certain climatic conditions (low
temperature, humidity), condensa-
tion on the inside surface of the
headlamp glass is normal; it disap-
pears a few minutes after the lights
are switched on.
407 saloon and 407 SW comfort
