Manual station storing
Select the station required.
Press one of the buttons "1" to "6"
for
more than two seconds.
The sound is cut off and then returns,
conirming that the station has been
stored in the memory.
Automatic storing of FM stations
in the memory (Autostore)
Press the "BAND" but-
ton for more than two
seconds.
Your audio/telephone
automatically stores
the 6 stations with the strongest sig-
nal in FM. These stations are stored
in the FMast waveband.
If it is not possible to ind 6 stations,
the remaining memories are empty.
Displaying the stations available
You can display the list
of stations received lo-
cally by pressing the
"LIST" button. This
list can include up to
30 stations.
To update this list during your jour-
ney, press the "LIST" button for more
than two seconds.
Note: stations which permit the
broadcasting of trafic information
are indicated by the display TA. Trafic information priority (TA)
Press the "TA/PTY"
button to switch the
function on or off.
The multifunction dis-
play will show:
- TA if the function is active,
- TA crossed out if the function is ac- tive but not available.
Any trafic information lash will be
given priority, whatever source you
are listening to (radio, CD or CD
changer).
If you wish to interrupt the broad-
casting of a message, press the
"SOURCE" button to return to the
source which was in use prior to the
interruption.
The trafic information volume is
independent of the normal audio/
telephone volume. You can set it
using the volume dial or the steer-
ing wheel control. The setting will
be stored and will be used when the
next messages are broadcast. Search by type of program (PTY)

This is a search by type of program, if
the coding is activated by the broad-
casting stations.
It allows you to listen to stations
broadcasting a speciic type of pro-
gram (news, culture, sport, rock,
weather, etc.)
When FM is selected, press the "TA/
PTY" button for more than two sec-
onds to switch the function or or off.
If the function is active, to ind a PTY
program:
- press the "TA/PTY" button for more than
two seconds,
- press button 5 or 6 or turn the dial
to scroll down the different types of
programs offered, then conirm the
choice.
The irst station broadcasting the
theme selected is tuned to.
In PTY mode, the different types of
program can be stored in the memo-
ry. To do this, press the preselection
buttons "1" to "6" for more than two
seconds. To recall the type of pro-
gram stored in the memory, briely
press the corresponding button.
407 saloon and 407 SW comfort

82 -
11-10-2004
83
-
11-10-2004
EON system
This system connects stations which
are part of the same network. It per-
mits the broadcasting of
TA trafic
information or a PTY program by a
station that is part of the same net-
work as the station to which you are
listening.
The service is available when you
have selected the TA trafic infor-
mation program or the PTY search
program. Select the "Audio Func-
tions" menu from the
general menu:
- To activate/deactivate the RDS frequency fol-
lowing,
- To activate/deactivate the REG re- gional following mode,
- For the TMC trafic information. In the permanent audio application,
press the navigator briely to display
the "RADIO" contextual menu.
Activate or deactivate the RDS fre-
quency following.
The multifunction display will show:
- RDS if the function is active,
- RDS crossed out or greyed out if
the function is active but not avail-
able.
"Radio" menu
By pressing the navigator dial, in the
permanent radio application, you can:
- Enter the frequency,
- Activate/Deactivate the RDS fre- quency following,
- Activate/Deactivate the REG re- gional following mode,
- Display Radio Text to display infor- mation connected with the station
being listened to, if "RT" is dis-
played permanently. "Audio Functions" menu
407 saloon and 407 SW comfort
RDS
Using the RDS (Radio Data
System) function on FM
The RDS allows you to continue lis-
tening to the same station whatever
frequency it is using in the region
you are going through. The display
indicates the name of the station
selected.
However, poor coverage of the net-
work or particular environmental
conditions may interfere with the
transmission.
The radio is continually searching
for the transmitter which is transmit-
ting the same program with the best
reception.
Regional following mode (REG)
When they are part of a network,
certain stations broadcast regional
programs in the various areas they
serve. Regional following mode ena-
bles you to continue listening to the
same program.
In the permanenet audio application,
press the navigator briely to display
the "RADIO" contextual menu.
Activate or deactivate regional fol-
lowing mode.
The multifunction display will show:
- REG if the function is active,
- REG crossed out or greyed out if
the function is active but not avail-
able.

84 -
11-10-2004
85407 saloon and 407 SW comfort-
11-10-2004
Example: to recall the radio station
stored on button 3, the key words
are:
"Radio" "Memory" "3".
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.
Notes:
- between saying one key word and the next, a screen indicates the
time remaining and the key word
recognised,
- if no voice commands are uttered, this function will be deactivated af-
ter approximately ive seconds,
- if a word is not recognised, the system says "Pardon" and dis-
plays "Word not recognised" on the
screen.
Voice commands
The voice commands enable you to
control a certain number of functions
of the RT3 GPS audio/telephone us-
ing pre-recorded words or phrases.
Activation of the voice commands
Press the end of the lights stalk to
activate or deactivate this function.
407 saloon and 407 SW comfort
Description of a directory entry
When a description is associated
with a directory entry, you can record
the description vocally so that it can
be used later for direct access by
means of voice commands (e.g.:
"Call"
"[Name of vocal descrip-
tion]" or "Guide to" "[Name of vo-
cal description]" ).
Select "Consult or modify the entry"
on the "Management of directory
entries" menu to gain access to the
description inputting and recording
screen.
Press the record button at the end of
the lights stalk and follow the instruc-
tions.

84 -
11-10-2004
85407 saloon and 407 SW comfort-
11-10-2004
Level 1 Level 2 Level 3
RADIO PREVIOUS
NEXT
MEMORY 1 ... 6
AUTOSTORE
LIST
CD PLAYER PREVIOUS
TRACK
NEXT TRACK
TRACK
NUMBER
1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGER PREVIOUS
TRACK
NEXT TRACK
TRACK
NUMBER
1 ... 20
PREVIOUS DISC
NEXT DISC
DISC NUMBER 1 ... 6
RANDOM
SCAN
REPEAT
LIST Level 1 Level 2 Level 3
TELEPHONE LAST NUMBER
DIRECTORY
DESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS
MESSAGE DISPLAY
READ
TRAFFIC
INFO DISPLAY
READ
NAVIGATION
GUIDANCE STOP
RESUME
DIRECTORY
DESCRIPTION
ZOOM IN
ZOOM OUT
SHOW
DESTINATION
SHOWVEHICLE
DISPLAY
AUDIO
TELEPHONE
NAVIGATION
TRIP
COMPUTER
GUIDANCE
AIR CONDITIONING
CALL DESCRIPTION
GUIDE TO DESCRIPTION

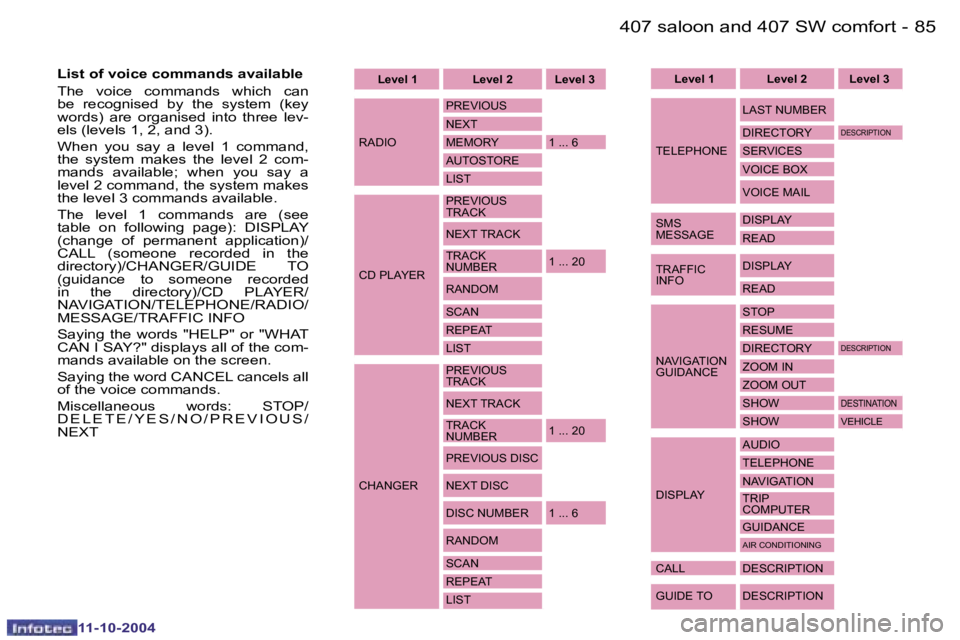

List of voice commands available
The voice commands which can
be recognised by the system (key
words) are organised into three lev-
els (levels 1, 2, and 3).
When you say a level 1 command,
the system makes the level 2 com-
mands available; when you say a
level 2 command, the system makes
the level 3 commands available.
The level 1 commands are (see
table on following page): DISPLAY
(change of permanent application)/
CALL (someone recorded in the
directory)/CHANGER/GUIDE TO
(guidance to someone recorded
in the directory)/CD PLAYER/
NAVIGATION/TELEPHONE/RADIO/
MESSAGE/TRAFFIC INFO
Saying the words "HELP" or "WHAT
CAN I SAY?" displays all of the com-
mands available on the screen.
Saying the word CANCEL cancels all
of the voice commands.
Miscellaneous words: STOP/
D E L E T E / Y E S / N O / P R E V I O U S /
NEXT

86 -
11-10-2004
87
-
11-10-2004
By pressing the navigator, you can
activate/deactivate the following
functions:
- random play with "Activate Ran-
dom",
- playing of the start of the track with "Activate Introscan",
- programming of tracks with "Pro- gram tracks",
- list the tracks with "List of tracks".
You can also select a track directly
via the list of tracks on the CD:
- press the "LIST" button to display
the list,
- press button 5 or 6 or turn the dial
to select the track,
- press the navigator to start playing the track.
Compact disc source
The use of copied compact discs
may cause faults.
Insert circular compact discs only.
Selecting CD mode
After inserting a disc,
printed face upwards,
the CD player starts
automatically.
If a disc has already
been inserted, press
the "SOURCE" button to select CD
mode.
Ejecting a disc
Press the button to eject
the disc from the player. Selecting a track
Press button 8 to
select the following
track.
Press button 7 to re-
turn to the start of the
current track or to se-
lect the previous track. "CD" menu
407 saloon and 407 SW comfort
Accelerated play
Press and hold button
7 or 8 for
backwards or forwards accelerated
play.
Accelerated play stops as soon as
the button is released.

86 -
11-10-2004
87
-
11-10-2004
"CHANGER" menu
Selecting a track
Press button 8 to select the next
track.
Press button 7 to return to the start
of the current track or to select the
previous track.
You can also select a track directly
via the list of tracks on the CD:
- press the "LIST" button to display the list,
- press the 5 or 6 down button or
turn the dial to select the track,
- press the navigator to start paying the track.
Compact disc changer source
The CD changer is located in the
boot on the right-hand side and can
hold 6 discs.
Press the navigator to activate/
deactivate the following functions:
- random play with "Activate Ran-dom",
- playing of the start of the track with "Activate Introscan",
- repeating of the CD with "Activate repeat",
- listing of the tracks of the CD with "List of tracks".
Insert circular compact discs
only.
Compact discs of the irst
generation of laser technol-
ogy are no longer detected.
Some anti-pirating systems, on origi-
nal discs or CDs copied by a personal
writer may cause faults, irrespective
of the quality of the original player.
Selecting the CD changer source
Press the "SOURCE"
button several times.
Selecting a disc Press one of the but-
tons "1" to "6" to se-
lect the correspond-
ing disc.
Buttons 5 and 6
permit the selec-
tion of the previous/next disc in the
changer.
To insert a disc in the changer:
- open the sliding lap A,
- press button B to eject the cartridge
C ,
- open one of the six drawers of the cartridge by pulling the tab D,
- insert the disc in the cartridge,
printed face upwards, and close
the drawer ,
- insert the cartridge in the changer following the direction of the arrow,
- close the sliding lap A.
407 saloon and 407 SW comfort

89
-
11-10-2004
Using the menus
Press the "MENU"
button to dis-
play the general menu. Select the
telematics application, then validate
"Telephone functions" to access the
principal telephone functions, then
the various menus, in order to reach
the one required.
RT3 TELEPHONE
This function is a GSM dual-band
telephone (900 and 1 800 MHz)
incorporated in the RT3 GPS audio/
telephone.
It is a "hands-free" telephone. This
function is provided by a microphone
located next to the front courtesy
light, the audio equipment speak-
ers, a steering column control and
voice commands which allow access
to most of the functions (the audio/
telephone control panel buttons al-
low access to all of the functions).
Display of the principal "mobile" type
functions, as well as consultation of
the directories, is provided by the
multi-function display.
This function is active whatever
position the ignition key is in, even
after thirty minutes, when the mes-
sage appears on the multi-function
display.
When the ignition has been switched
off, the audio/telephone can be
switched on again by pressing the
"TEL" (green), "LION" or "SOS"
button or by inserting a CD in the
player.
For safety reasons, the driver must
carry out the operations while the
vehicle is stationary. Within each menu:
Move around by
pressing the 5 or 6
buttons or by turning
the navigator, then
validate by pressing
the navigator to se-
lect a function.
Cancel an operation by means of the
"ESC" button.
- Network: allows you to select the network search mode and to see
the networks available.
- Duration of calls: allows you to con- sult the duration recorder of calls
made and zero re-set.
- Security: allows you to use or modi- fy the PIN code and to erase the list
of calls and text messages (SMS).
- Telephone options: allows you to conigure the calls with entering of
my number, automatic answering
after X rings, speciication of ring
options and allows you to conigure
the call diversion number. This menu allows you
to access the following
functions:
Using the alphanumeric
keypad
For a given button, to input a charac-
ter in the second or subsequent rows
press until you obtain the character
required.
Buttons Associated characters
[1] 1 or space
[2] 2 or A B C 2 or a b c 2
[3] 3 or D E F 3 or d e f 3
[4] 4 or G H I 4 or g h i 4
[5] 5 or J K L 5 or j k l 5
[6] 6 or M N O 6 or m n o 6
[7] 7 or P Q R S 7 or p q r s 7
[8] 8 or T U V 8 or t u v 8
[9] 9 or W X Y Z 9 or w x y z 9
[0] 0 or + (long press)
[#] # or conirmation
[*] * or erasing of last
character input (long
press)
407 saloon and 407 SW comfort

90 -
11-10-2004
91
-
11-10-2004
Cancelling of PIN code request
In the menu "Telephone functions"

select "Security", then "Process the
PIN code", then validate the "Cancel"
function.
Recommendation: do not lose your
SIM card. Losing it would mean
anyone who inds it would be able to
make unlimited calls.
Open the lap
by pressing
the point of a pencil on the
circular opening above the
lap.
Insert your SIM card
(available from a mobile
telephone operator) in the
holder as indicated in the graphics,
then re-insert the holder.
Note: removal or insertion of the SIM
card must only be carried out after
the RT3 GPS audio/telephone has
been switched off.
Handle the SIM card with care.Installing the SIM card
(not supplied)
The PIN code is required each time
the ignition is switched on, unless the
PIN code has been stored or protec-
tion by PIN is not activated on the
SIM card.
Input your PIN code using the al-
phanumeric keypad and validate by
pressing the navigator or button # to
access the network. Connection to
the network is validated by the ap-
pearance of a symbol on the screen.
If you make three errors in succes-
sion when inputting your PIN code,
your SIM card will be blocked. To
unblock it, you will need to input the
PUK code. The PUK code will be
supplied to you by the person sell-
ing your SIM card (input of the PUK
code allows for 10 errors in succes-
sion; after this the SIM card becomes
permanently unusable).
Inputting the PIN code
407 saloon and 407 SW comfort
