2004 PEUGEOT 206 Owners Manual

64 -
31-01-2005
65
-
31-01-2005
The control keypad
This lets you select and validate the
functions, controls and programs
displayed. Rotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you:
- with a "setting" type parameter,
after selection, to increase or de-
crease the value,
- with a "list" type parameter, to
open the list and scroll through
the values,
- with map guidance, to increase the
zoom . "MODE" button:
- brief press: modiication of per-
manent display (audio system,
navigation/guidance...),
- press for more than two seconds: display of general information .
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a "setting" or "list"
type parameter for modiication. "ESC" button:
- brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
"MENU" button:
- brief press: access to the general
menu .
- press for more than two seconds: access to the help menu and to
the list of voice commands .
Tip:
You can access the general menu
by pressing the dial of the RT3 GPS
audio/telephone .
Audio equipment and telematics

64 -
31-01-2005
65
-
31-01-2005

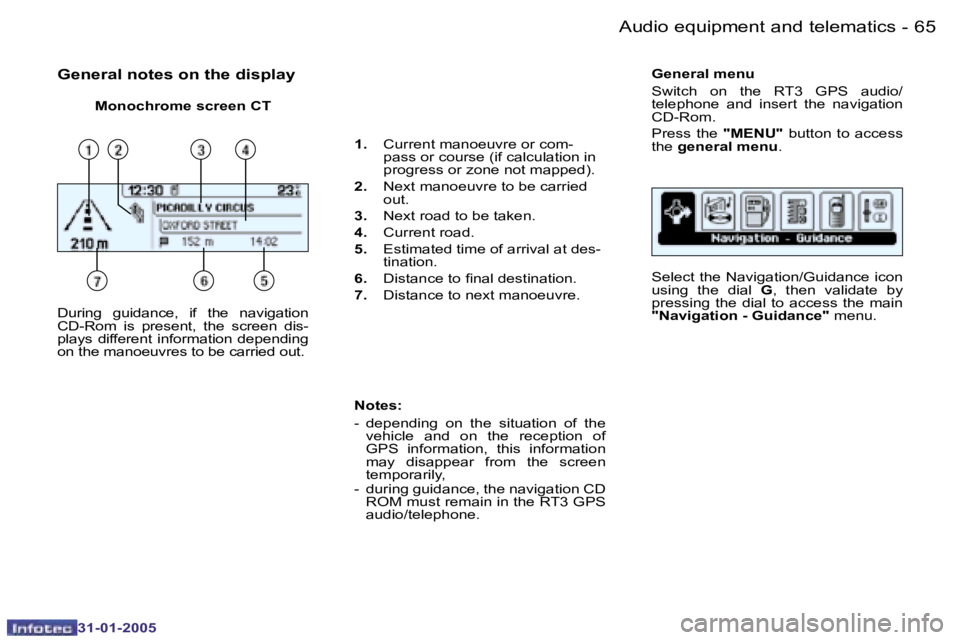

General notes on the display
Monochrome screen CT General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the
"MENU" button to access
the general menu .
Select the Navigation/Guidance icon
using the dial G, then validate by
pressing the dial to access the main
"Navigation - Guidance" menu.
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depending
on the manoeuvres to be carried out.
Notes:
- depending on the situation of the vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3 GPS
audio/telephone.
1. Current manoeuvre or com-
pass or course (if calculation in
progress or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at des-
tination.
6. Distance to inal destination.
7. Distance to next manoeuvre.
Audio equipment and telematics

66 -
31-01-2005
67
-
31-01-2005

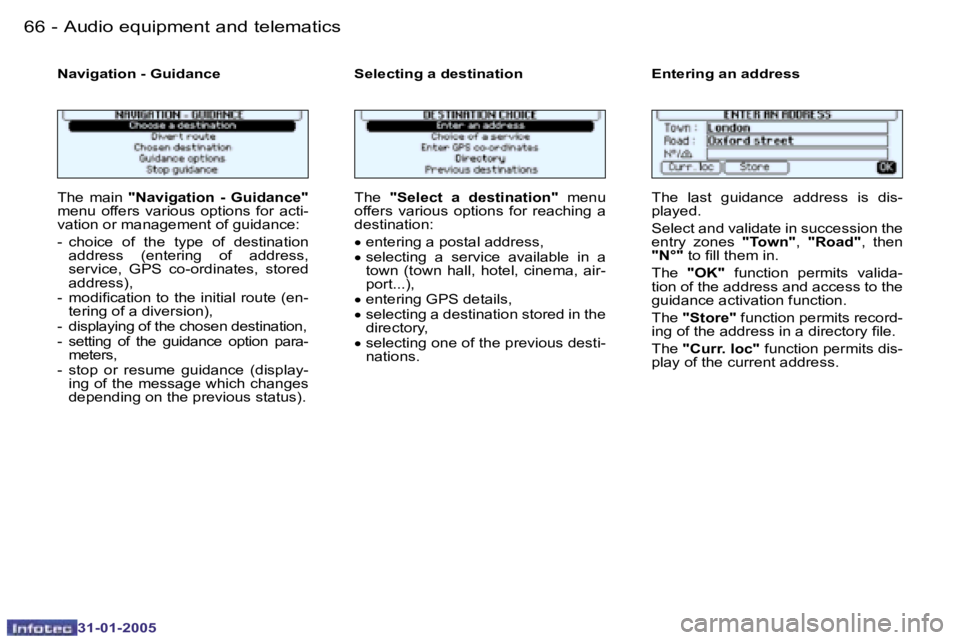

Navigation - Guidance Selecting a destination Entering an add ress
The main "Navigation - Guidance"
menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination
address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (en- tering of a diversion),
- displaying of the chosen destination,
- setting of the guidance option para- meters,
- stop or resume guidance (display- ing of the message which changes
depending on the previous status). The
"Select a destination" menu
offers various options for reaching a
destination: • entering a postal address,
• selecting a service available in a
town (town hall, hotel, cinema, air-
port...),
• entering GPS details,
• selecting a destination stored in the
directory,
• selecting one of the previous desti-
nations. The last guidance address is dis-
played.
Select and validate in succession the
entry zones
"Town", "Road" , then
"N°" to ill them in.
The "OK" function permits valida-
tion of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
Audio equipment and telematics

66 -
31-01-2005
67
-
31-01-2005

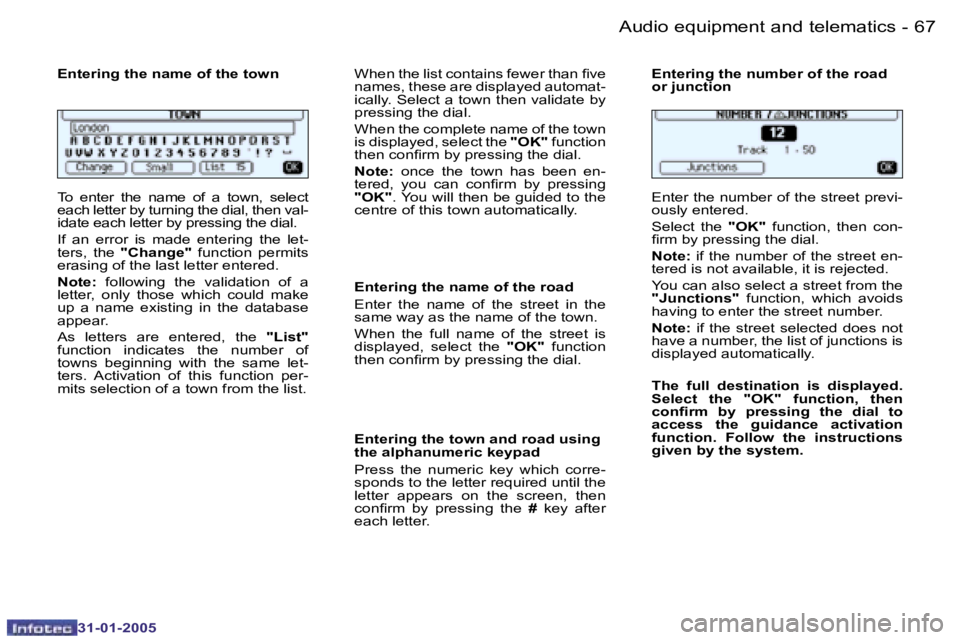

Entering the name of the town
To enter the name of a town, select
each letter by turning the dial, then val-
idate each letter by pressing the dial.
If an error is made entering the let-
ters, the "Change" function permits
erasing of the last letter entered.
Note: following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List"
function indicates the number of
towns beginning with the same let-
ters. Activation of this function per-
mits selection of a town from the list. When the list contains fewer than ive
names, these are displayed automat-
ically. Select a town then validate by
pressing the dial.
When the complete name of the town
is displayed, select the
"OK" function
then conirm by pressing the dial.
Note: once the town has been en-
tered, you can conirm by pressing
"OK" . You will then be guided to the
centre of this town automatically. Entering the number of the road
or junction
Enter the number of the street previ-
ously entered.
Select the
"OK" function, then con-
irm by pressing the dial.
Note: if the number of the street en-
tered is not available, it is rejected.
You can also select a street from the
"Junctions" function, which avoids
having to enter the street number.
Note: if the street selected does not
have a number, the list of junctions is
displayed automatically.
The full destination is displayed.
Select the "OK" function, then
conirm by pressing the dial to
access the guidance activation
function. Follow the instructions
given by the system.
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is
displayed, select the "OK" function
then conirm by pressing the dial.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corre-
sponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.
Audio equipment and telematics

68 -
31-01-2005
69
-
31-01-2005

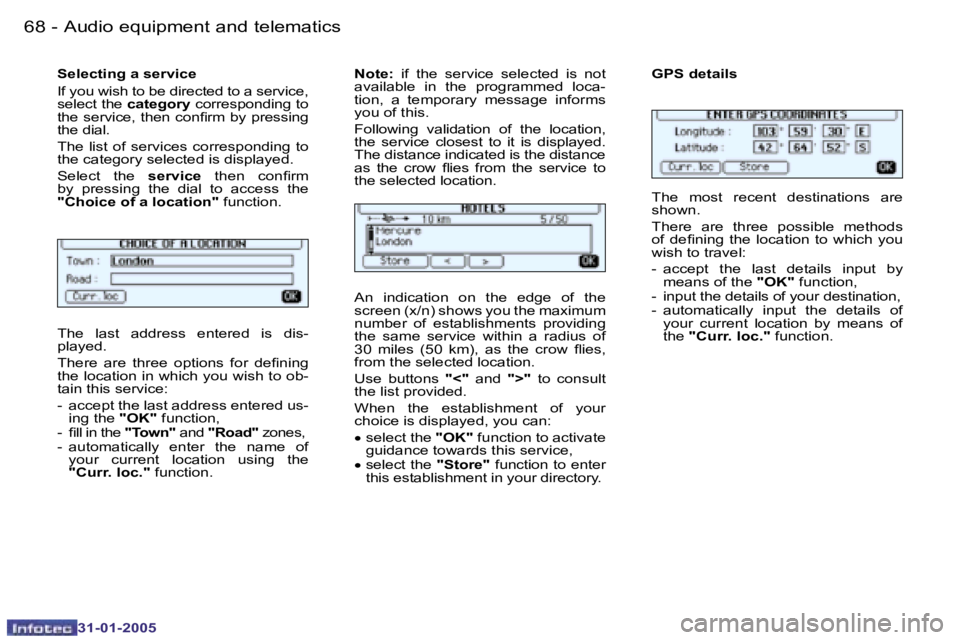

Selecting a service
If you wish to be directed to a service,
select the category corresponding to
the service, then conirm by pressing
the dial.
The list of services corresponding to
the category selected is displayed.
Select the service then conirm
by pressing the dial to access the
"Choice of a location" function.
The last address entered is dis-
played.
There are three options for deining
the location in which you wish to ob-
tain this service:
- accept the last address entered us- ing the "OK" function,
- ill in the "Town" and "Road" zones,
- automatically enter the name of your current location using the
"Curr. loc." function. Note:
if the service selected is not
available in the programmed loca-
tion, a temporary message informs
you of this.
Following validation of the location,
the service closest to it is displayed.
The distance indicated is the distance
as the crow lies from the service to
the selected location.
An indication on the edge of the
screen (x/n) shows you the maximum
number of establishments providing
the same service within a radius of
30 miles (50 km), as the crow lies,
from the selected location.
Use buttons "<" and ">" to consult
the list provided.
When the establishment of your
choice is displayed, you can: • select the "OK" function to activate
guidance towards this service,
• select the "Store" function to enter
this establishment in your directory. GPS details
The most recent destinations are
shown.
There are three possible methods
of deining the location to which you
wish to travel:
- accept the last details input by
means of the "OK" function,
- input the details of your destination,
- automatically input the details of your current location by means of
the "Curr. loc." function.
Audio equipment and telematics

68 -
31-01-2005
69
-
31-01-2005

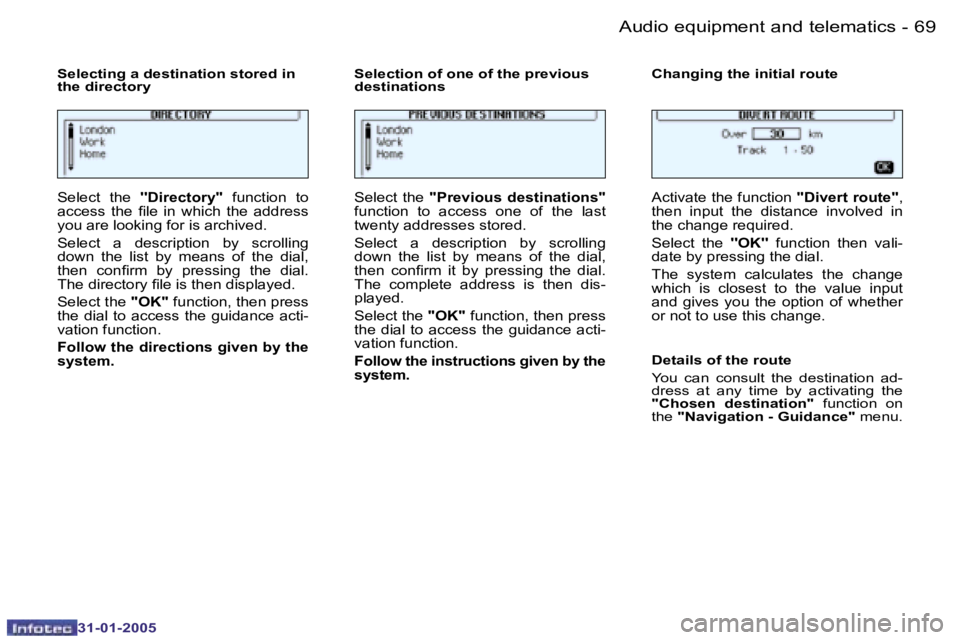

Selecting a destination stored in
the directory Selection of one of the previous
destinationsChanging the initial route
Select the
''Directory'' function to
access the ile in which the address
you are looking for is archived.
Select a description by scrolling
down the list by means of the dial,
then conirm by pressing the dial.
The directory ile is then displayed.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the directions given by the
system. Select the
"Previous destinations"
function to access one of the last
twenty addresses stored.
Select a description by scrolling
down the list by means of the dial,
then conirm it by pressing the dial.
The complete address is then dis-
played.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the instructions given by the

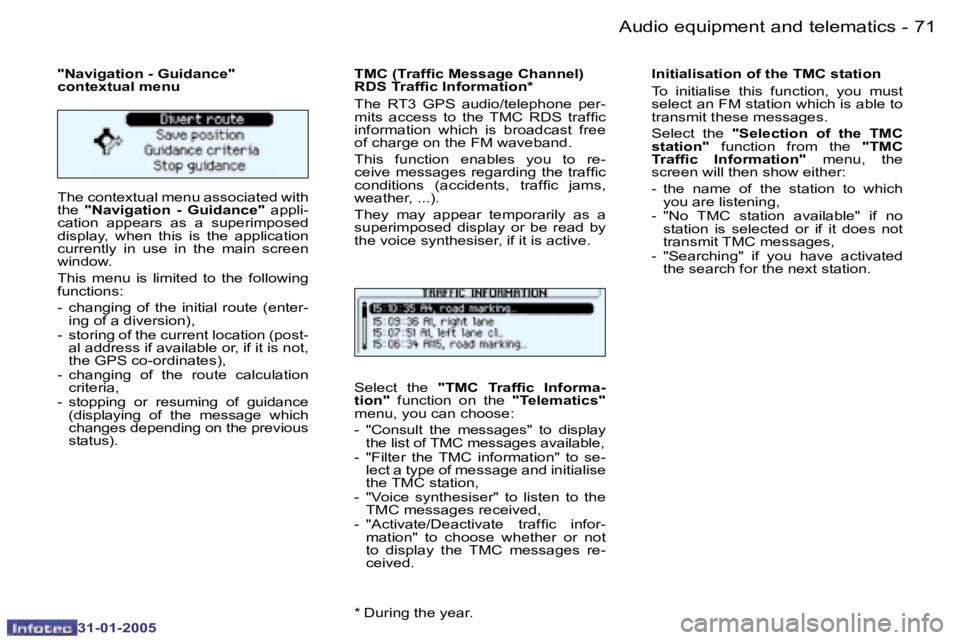

system. Activate the function
''Divert route'',
then input the distance involved in
the change required.
Select the ''OK'' function then vali-
date by pressing the dial.
The system calculates the change
which is closest to the value input
and gives you the option of whether
or not to use this change.
Details of the route
You can consult the destination ad-
dress at any time by activating the
"Chosen destination" function on
the "Navigation - Guidance" menu.
Audio equipment and telematics

70 -
31-01-2005
71
-
31-01-2005

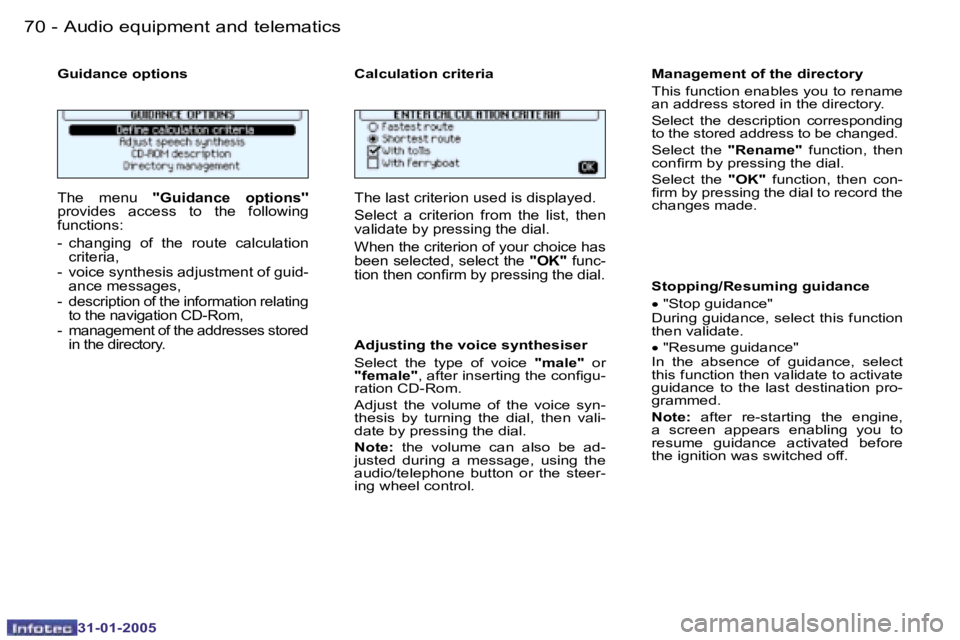

Guidance options Calculation criteria
The menu ''Guidance options''
provides access to the following
functions:
- changing of the route calculation criteria,
- voice synthesis adjustment of guid- ance messages,
- description of the information relating to the navigation CD-Rom,
- management of the addresses stored in the directory. The last criterion used is displayed.
Select a criterion from the list, then
validate by pressing the dial.
When the criterion of your choice has
been selected, select the
"OK" func-
tion then conirm by pressing the dial.
Management of the directory
This function enables you to rename
an address stored in the directory.
Select the description corresponding
to the stored address to be changed.
Select the "Rename" function, then
conirm by pressing the dial.
Select the "OK" function, then con-
irm by pressing the dial to record the
changes made.
Adjusting the voice synthesiser
Select the type of voice "male" or
"female" , after inserting the conigu-
ration CD-Rom.
Adjust the volume of the voice syn-
thesis by turning the dial, then vali-
date by pressing the dial.
Note: the volume can also be ad-
justed during a message, using the
audio/telephone button or the steer-
ing wheel control. Stopping/Resuming guidance •
"Stop guidance"
During guidance, select this function
then validate. • "Resume guidance"
In the absence of guidance, select
this function then validate to activate
guidance to the last destination pro-
grammed.
Note: after re-starting the engine,
a screen appears enabling you to
resume guidance activated before
the ignition was switched off.
Audio equipment and telematics

70 -
31-01-2005
71
-
31-01-2005
"Navigation - Guidance"
contextual menu
The contextual menu associated with
the "Navigation - Guidance" appli-
cation appears as a superimposed
display, when this is the application
currently in use in the main screen
window.
This menu is limited to the following
functions:
- changing of the initial route (enter- ing of a diversion),
- storing of the current location (post- al address if available or, if it is not,
the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status). TMC (Trafic Message Channel)
RDS Trafic Information*
The RT3 GPS audio/telephone per-
mits access to the TMC RDS trafic
information which is broadcast free
of charge on the FM waveband.
This function enables you to re-
ceive messages regarding the trafic
conditions (accidents, trafic jams,
weather, ...).
They may appear temporarily as a
superimposed display or be read by
the voice synthesiser, if it is active.
Select the
"TMC Trafic Informa-
tion" function on the "Telematics"
menu, you can choose:
- "Consult the messages" to display the list of TMC messages available,
- "Filter the TMC information" to se- lect a type of message and initialise
the TMC station,
- "Voice synthesiser" to listen to the TMC messages received,
- "Activate/Deactivate trafic infor- mation" to choose whether or not
to display the TMC messages re-
ceived.
* During the year. Initialisation of the TMC station
To initialise this function, you must
select an FM station which is able to
transmit these messages.
Select the
"Selection of the TMC
station" function from the "TMC
Trafic Information" menu, the
screen will then show either:
- the name of the station to which you are listening,
- "No TMC station available" if no station is selected or if it does not
transmit TMC messages,
- "Searching" if you have activated the search for the next station.
Audio equipment and telematics
