2004 NISSAN PICK-UP Repair Manual

PROPELLER SHAFT &
DIFFERENTIAL CARRIER
SECTION
PD
MODIFICATION NOTICE:
+Service data and specifications (SDS) have been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 6002Propeller Shaft ................................................. 6002
Final Drive ........................................................ 6004

PD

Propeller Shaft
GENERAL SPECIFICATIONS
4WD models (For Europe)
Location Front Rear
Applied modelKA24DE YD25DDTi KA24DE YD25DDTi
Long wheelbase
M/T
Propeller shaft model 2F63H 2F71H 3S71H 3S80B
Number of joints 2 3
Coupling type with transmission Flange type Sleeve type
Type of journal bearing Solid type (disassembly type)
Type length (Spider
to spider) mm (in)1st 546 (21.50) 565 (22.24) 392 (15.43) 372 (14.65)
2nd Ð 870 (34.25)872 (34.33)*1
847 (33.35)*2
Shaft outer diameter
mm (in)1st 50.8 (2.00) 75 (2.95) 65 (2.56)
2nd Ð 65 (2.56)
*1: With C200 final drive
*2: With H233B final drive
2WD models (For Europe)
Applied modelKA24DE YD25DDTi
Long wheelbase
M/T
Propeller shaft modelWithout ABS With ABS Without ABS With ABS
4WD appearance
Standard Option Standard Option
3S71H 3S80B
Number of joints3
Coupling type with transmission Sleeve type
Type of journal bearing Solid type (disassembly type)
Type length (Spider
to spider) mm (in)1st 641 (25.24) 642 (25.28) 667 (26.26)
2nd 1,004 (39.53) 978 (38.50) 1,005 (39.57) 979 (38.54) 984 (38.74)
Shaft outer diameter
mm (in)1st 75 (2.95) 65 (2.56) 75 (2.95)
2nd 65 (2.56)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-6002

4WD models (For the Middle East)
Location Front Rear
Applied modelKA24DE
Long wheelbase
M/T
Propeller shaft model 2F63H 3S71H
Number of joints 2 3
Coupling type with transmission Flange type Sleeve type
Type of journal bearing Solid type (disassembly type)
Type length (Spider
to spider) mm (in)1st shaft 546 (21.50) 392 (15.43)
2nd
shaftÐ 870 (34.25)
Shaft outer diameter
mm (in)1st shaft 50.8 (2.00) 75 (2.95)
2nd
shaftÐ 65 (2.56)
2WD models (For the Middle East)
Applied modelKA24DE TD27
Single cab
Short wheelbase Long wheelbase Short wheelbase Long wheelbase
M/T A/T M/T
Propeller shaft modelWithout
ABSWith ABSWithout
ABSWith ABSWithout
ABSWith ABSWithout
ABSWith ABSWithout
ABSWith ABS
Standard Option Standard Option Standard Option Standard Option Standard Option
3S71H
Number of joints3
Coupling type with transmission Sleeve type
Type of journal bearing Solid type (disassembly type)
Type length (Spider
to spider) mm (in)1st shaft 641 (25.24) 541 (21.30) 641 (25.24)
2nd
shaft704
(27.72)678
(26.69)1,004
(39.53)978
(38.50)1,004
(39.53)978
(38.50)704
(27.72)678
(26.69)1,004
(39.53)978
(38.50)
Shaft outer diameter
mm (in)1st shaft 75 (2.95)
2nd
shaft65 (2.56)
SERVICE DATA AND SPECIFICATIONS (SDS)
Propeller Shaft (Cont'd)
PD-6003

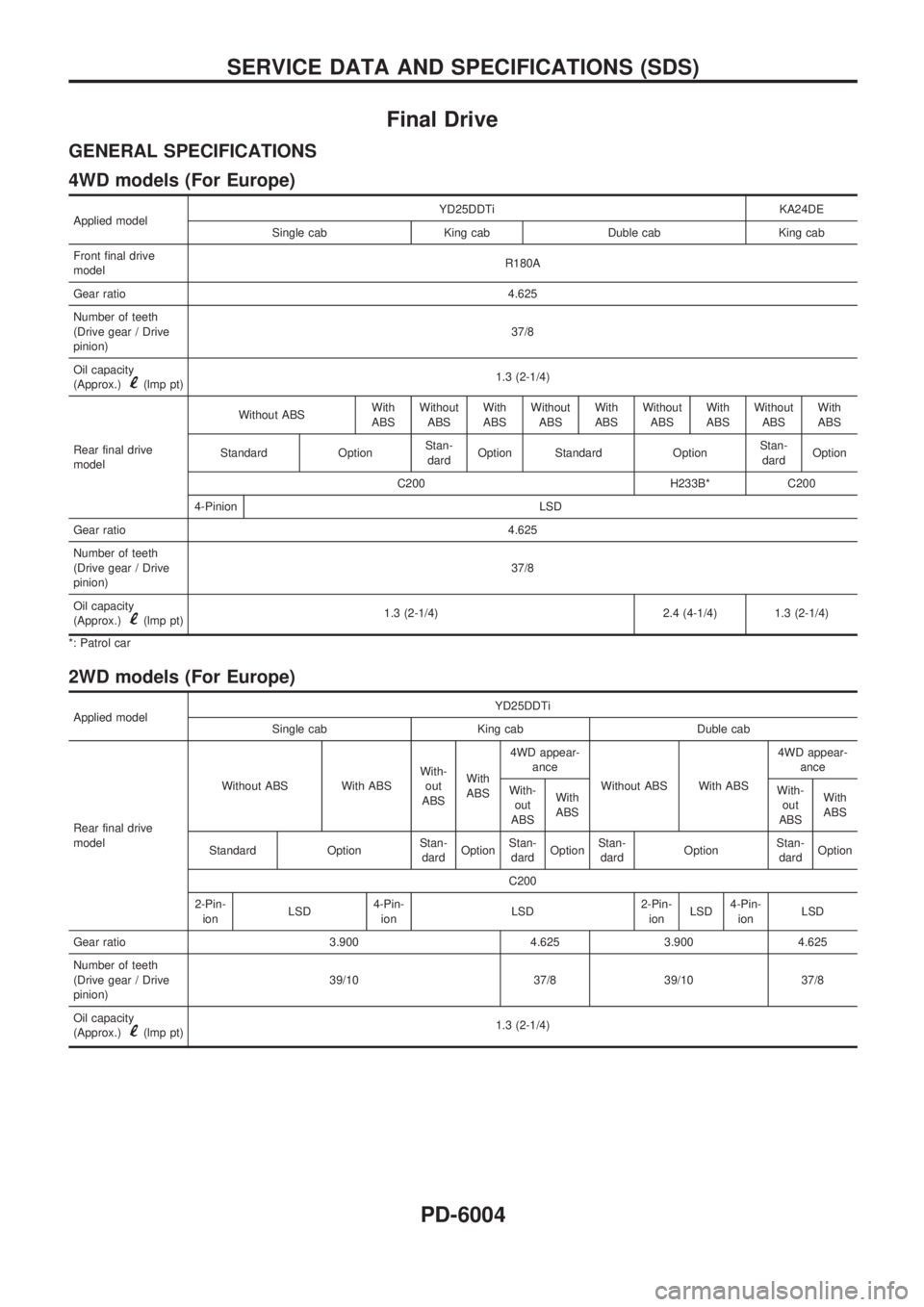

Final Drive
GENERAL SPECIFICATIONS
4WD models (For Europe)
Applied modelYD25DDTi KA24DE
Single cab King cab Duble cab King cab
Front final drive
modelR180A
Gear ratio4.625
Number of teeth
(Drive gear / Drive
pinion)37/8
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
Rear final drive
modelWithout ABSWith
ABSWithout
ABSWith
ABSWithout
ABSWith
ABSWithout
ABSWith
ABSWithout
ABSWith
ABS
Standard OptionStan-
dardOption Standard OptionStan-
dardOption
C200 H233B* C200
4-Pinion LSD
Gear ratio4.625
Number of teeth
(Drive gear / Drive
pinion)37/8
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4) 2.4 (4-1/4) 1.3 (2-1/4)
*: Patrol car
2WD models (For Europe)
Applied modelYD25DDTi
Single cab King cab Duble cab
Rear final drive
modelWithout ABS With ABSWith-
out
ABSWith
ABS4WD appear-
ance
Without ABS With ABS4WD appear-
ance
With-
out
ABSWith
ABSWith-
out
ABSWith
ABS
Standard OptionStan-
dardOptionStan-
dardOptionStan-
dardOptionStan-
dardOption
C200
2-Pin-
ionLSD4-Pin-
ionLSD2-Pin-
ionLSD4-Pin-
ionLSD
Gear ratio 3.900 4.625 3.900 4.625
Number of teeth
(Drive gear / Drive
pinion)39/10 37/8 39/10 37/8
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-6004

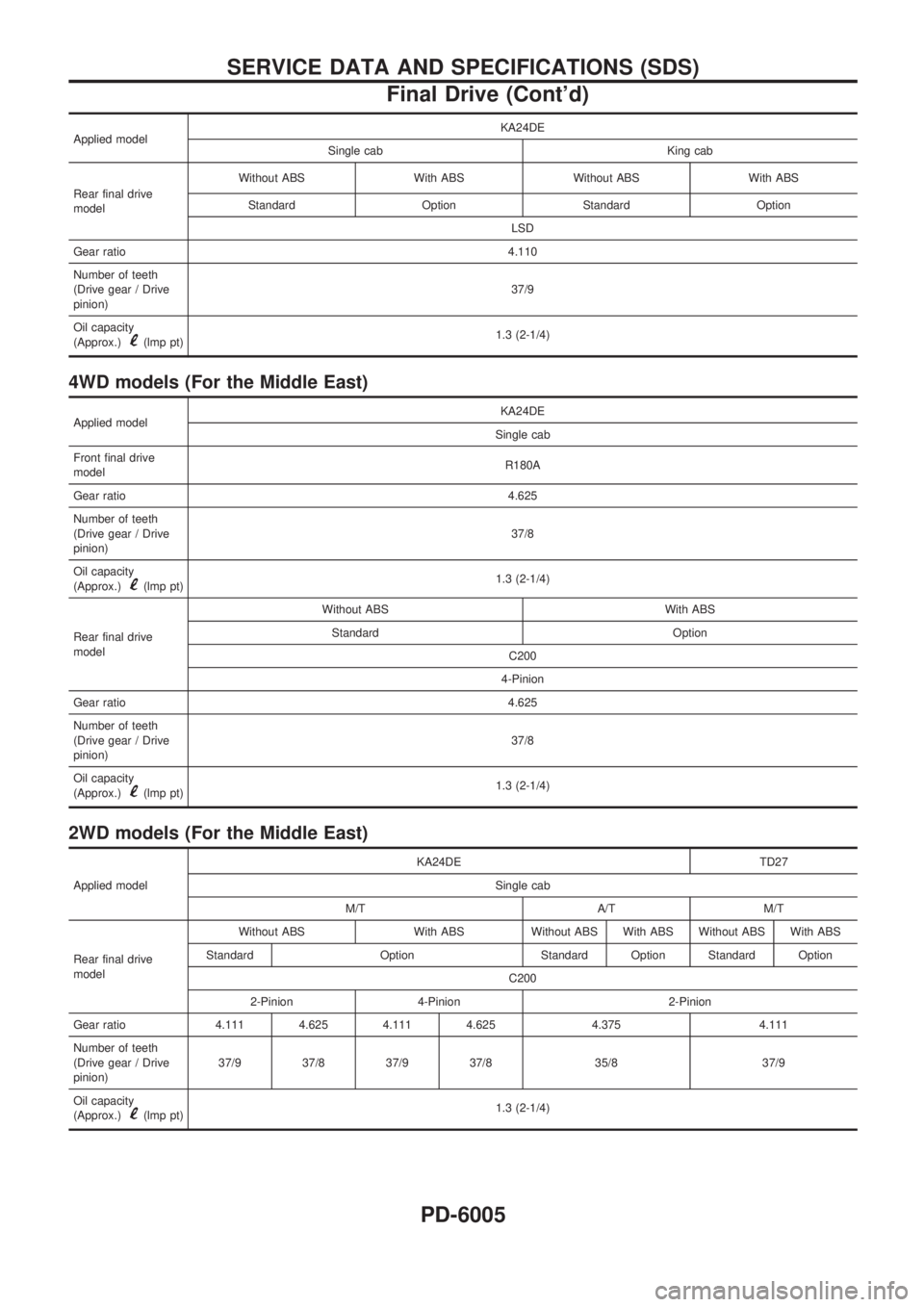

Applied modelKA24DE
Single cab King cab
Rear final drive
modelWithout ABS With ABS Without ABS With ABS
Standard Option Standard Option
LSD
Gear ratio4.110
Number of teeth
(Drive gear / Drive
pinion)37/9
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
4WD models (For the Middle East)
Applied modelKA24DE
Single cab
Front final drive
modelR180A
Gear ratio4.625
Number of teeth
(Drive gear / Drive
pinion)37/8
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
Rear final drive
modelWithout ABS With ABS
Standard Option
C200
4-Pinion
Gear ratio4.625
Number of teeth
(Drive gear / Drive
pinion)37/8
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
2WD models (For the Middle East)
Applied modelKA24DE TD27
Single cab
M/T A/T M/T
Rear final drive
modelWithout ABS With ABS Without ABS With ABS Without ABS With ABS
Standard Option Standard Option Standard Option
C200
2-Pinion 4-Pinion 2-Pinion
Gear ratio 4.111 4.625 4.111 4.625 4.375 4.111
Number of teeth
(Drive gear / Drive
pinion)37/9 37/8 37/9 37/8 35/8 37/9
Oil capacity
(Approx.)
(lmp pt)1.3 (2-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
Final Drive (Cont'd)
PD-6005
