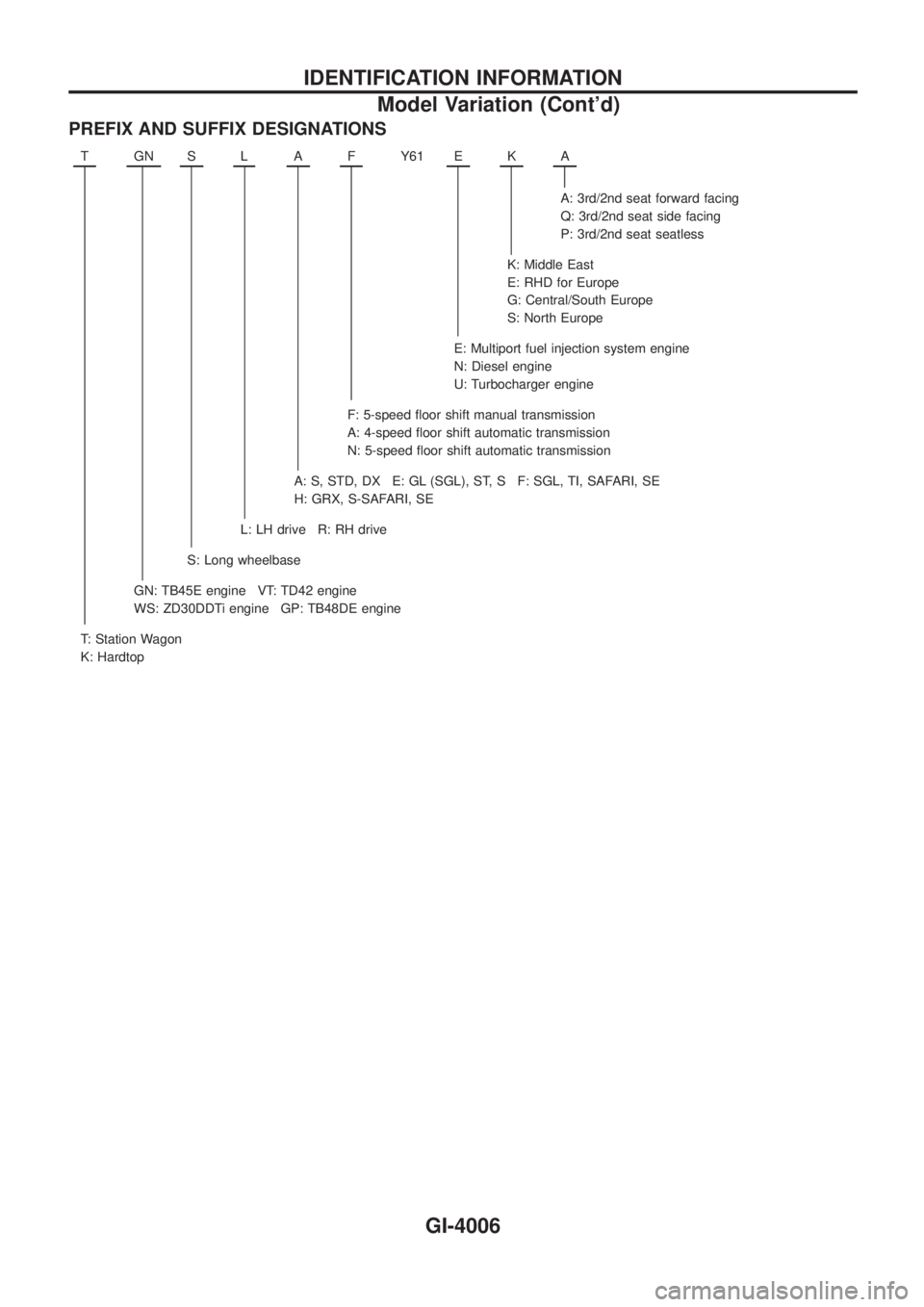

PREFIX AND SUFFIX DESIGNATIONS
TGNSLAFY61 EKA
A: 3rd/2nd seat forward facing
Q: 3rd/2nd seat side facing
P: 3rd/2nd seat seatless
K: Middle East
E: RHD for Europe
G: Central/South Europe
S: North Europe
E: Multiport fuel injection system engine
N: Diesel engine
U: Turbocharger engine
F: 5-speed ¯oor shift manual transmission
A: 4-speed ¯oor shift automatic transmission
N: 5-speed ¯oor shift automatic transmission
A: S, STD, DX E: GL (SGL), ST, S F: SGL, TI, SAFARI, SE
H: GRX, S-SAFARI, SE
L: LH drive R: RH drive
S: Long wheelbase
GN: TB45E engine VT: TD42 engine
WS: ZD30DDTi engine GP: TB48DE engine
T: Station Wagon
K: Hardtop

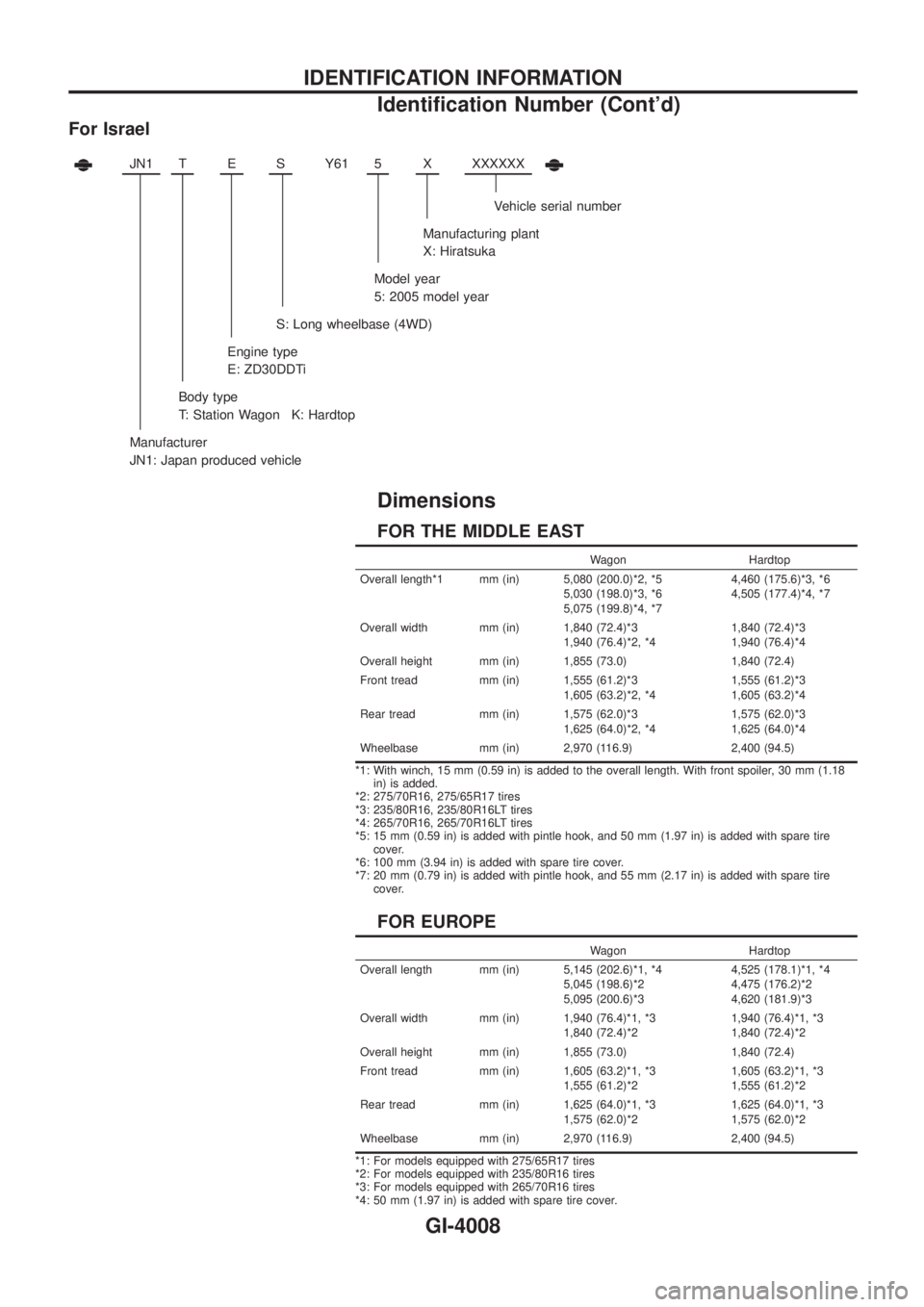

IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-4006
For Israel

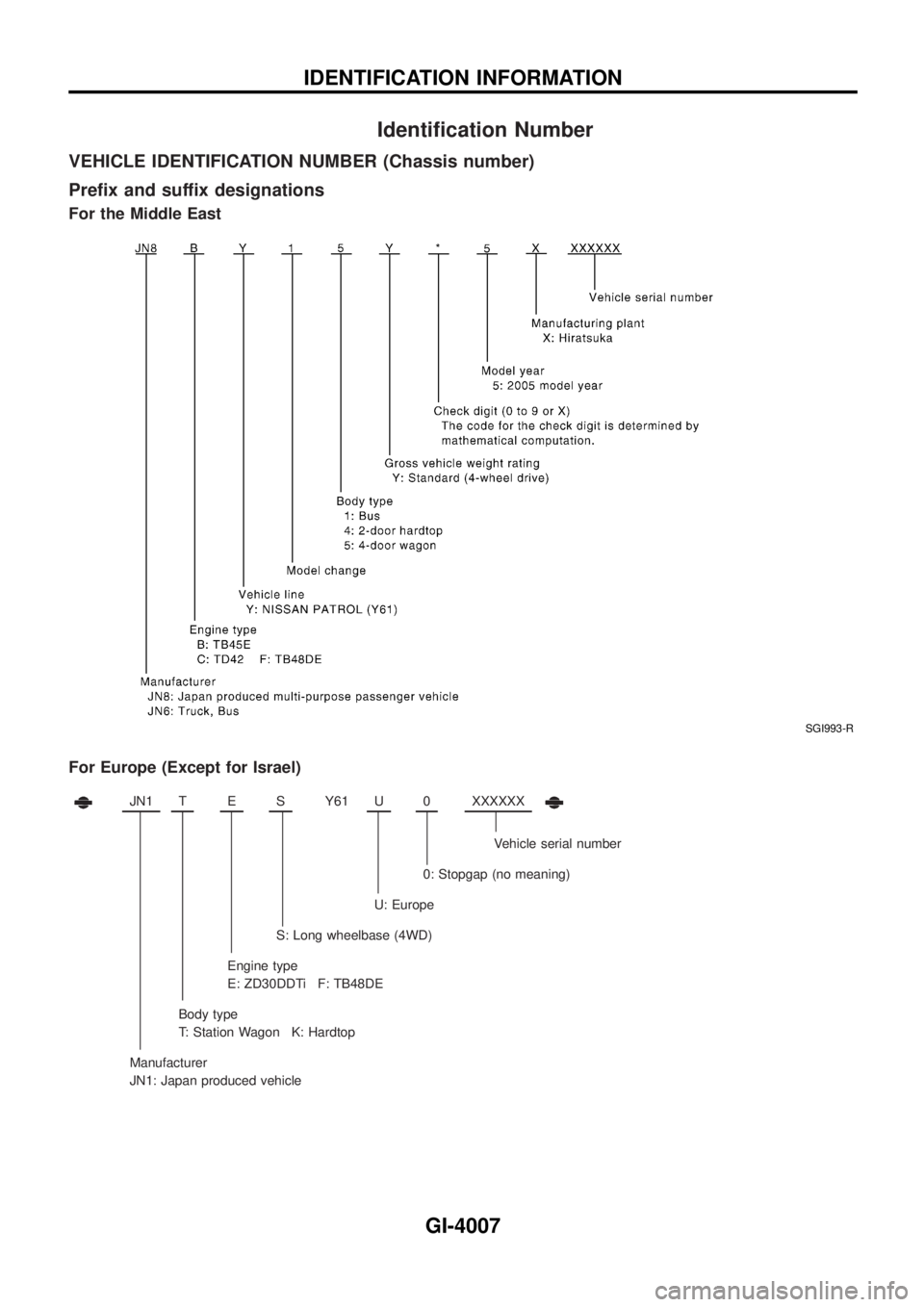

JN1TESY61 5XXXXXXX
Vehicle serial number
Manufacturing plant
X: Hiratsuka
Model year
5: 2005 model year
S: Long wheelbase (4WD)
Engine type
E: ZD30DDTi
Body type
T: Station Wagon K: Hardtop
Manufacturer
JN1: Japan produced vehicle
Dimensions
FOR THE MIDDLE EAST
Wagon Hardtop
Overall length*1 mm (in) 5,080 (200.0)*2, *5
5,030 (198.0)*3, *6
5,075 (199.8)*4, *74,460 (175.6)*3, *6
4,505 (177.4)*4, *7
Overall width mm (in) 1,840 (72.4)*3
1,940 (76.4)*2, *41,840 (72.4)*3
1,940 (76.4)*4
Overall height mm (in) 1,855 (73.0) 1,840 (72.4)
Front tread mm (in) 1,555 (61.2)*3
1,605 (63.2)*2, *41,555 (61.2)*3
1,605 (63.2)*4
Rear tread mm (in) 1,575 (62.0)*3
1,625 (64.0)*2, *41,575 (62.0)*3
1,625 (64.0)*4
Wheelbase mm (in) 2,970 (116.9) 2,400 (94.5)
*1: With winch, 15 mm (0.59 in) is added to the overall length. With front spoiler, 30 mm (1.18
in) is added.
*2: 275/70R16, 275/65R17 tires
*3: 235/80R16, 235/80R16LT tires
*4: 265/70R16, 265/70R16LT tires
*5: 15 mm (0.59 in) is added with pintle hook, and 50 mm (1.97 in) is added with spare tire
cover.
*6: 100 mm (3.94 in) is added with spare tire cover.
*7: 20 mm (0.79 in) is added with pintle hook, and 55 mm (2.17 in) is added with spare tire
cover.
FOR EUROPE
Wagon Hardtop
Overall length mm (in) 5,145 (202.6)*1, *4
5,045 (198.6)*2
5,095 (200.6)*34,525 (178.1)*1, *4
4,475 (176.2)*2
4,620 (181.9)*3
Overall width mm (in) 1,940 (76.4)*1, *3
1,840 (72.4)*21,940 (76.4)*1, *3
1,840 (72.4)*2
Overall height mm (in) 1,855 (73.0) 1,840 (72.4)
Front tread mm (in) 1,605 (63.2)*1, *3
1,555 (61.2)*21,605 (63.2)*1, *3
1,555 (61.2)*2
Rear tread mm (in) 1,625 (64.0)*1, *3
1,575 (62.0)*21,625 (64.0)*1, *3
1,575 (62.0)*2
Wheelbase mm (in) 2,970 (116.9) 2,400 (94.5)
*1: For models equipped with 275/65R17 tires
*2: For models equipped with 235/80R16 tires
*3: For models equipped with 265/70R16 tires
*4: 50 mm (1.97 in) is added with spare tire cover.
IDENTIFICATION INFORMATION
Identi®cation Number (Cont'd)
GI-4008
Tire size .......................................................GI-4009
Tread-FR&RR (Dimensions)........................GI-4008
TRQ/SG - Wiring diagram................EC-4015, 4024
TURN - Wiring diagram ..............................EL-4068
Turn signal lamp .........................................EL-4067
U
UNIFIED METER CONTROL UNIT
(TIME CONTROL SYSTEM) ...................EL-4292
V
Valve clearance..........................................EM-4005
Valve lifter ..................................................EM-4003
Vehicle identi®cation number.......................GI-4007
Vehicle speed sensor (VSS) ...........EC-4004, 4007,
4053, 4060
Viscosity number (SAE) .............................MA-4002VSS - Wiring diagram ............EC-4004, 4053, 4060
W
WARN - Wiring diagram .............................EL-4102
Warning chime ............................................EL-4113
Warning lamps ............................................EL-4100
Washer, front ...............................................EL-4117
Water temperature gauge ...........................EL-4095
Wheel size ...................................................GI-4009
Wheelbase (Dimensions) ............................GI-4008
Width (Dimensions) .....................................GI-4008
WINDOW - Wiring diagram ........................EL-4239
WIP/R - Wiring diagram ..............................EL-4118
WIPER - Wiring diagram.............................EL-4117
Wiper deicer ................................................EL-4125
Wiper, front ..................................................EL-4117
Wiring Diagram (Cell code) list ...................EL-4347
