Fig. 80: Inserting Drive Pinion Front Bearing Inner Race
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Install the drive pinion assembly and companion flange with the mating marks
properly aligned. Tighten the companion flange self-locking nut to the
specified torque while holding the companion flange with special tool
MB990850.
Tightening torque: 186 +/- 29 N.m (137 +/- 21 ft-lb)
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3019 of 3870
Fig. 81: Tightening Companion Flange Self Locking Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Use special tools MB990685 and MB990326 to measure the drive pinion
turning torque (with drive pinion oil seal) to verify that the drive pinion turning
torque complies with the standard value.
Standard value:
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3020 of 3870
Fig. 82: Measuring Drive Pinion Turning Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3021 of 3870
Fig. 83: Turning Torque Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. If the turning torque is not within the standard value, check the tightening
torque of the companion flange self-locking nut, and the installation of the oil
seal.
>>F<< DIFFERENTIAL GEAR BACKLASH ADJUSTMENT Adjust the differential gear backlash by the following procedure:
1. Assemble the side gears, side gear spacers, pinion gears, and pinion washers
into the differential case.
Fig. 84: Assembling Side Gears, Spacers, Pinion Gears & Washers Into
Differential Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3022 of 3870
2. Temporarily install the pinion shaft.
3. Insert a wedge between the side gear and the pinion shaft to lock the side gear.
4. While locking the side gear with the wedge, measure the differential gear
backlash with a dial indicator on the pinion gear.
Measure by the same procedure for the other pinion gear.
Standard value: 0.01 - 0.250 mm (0.0004 - 0.0098 inch)
Limit: 0.2 mm (0.01 inch)

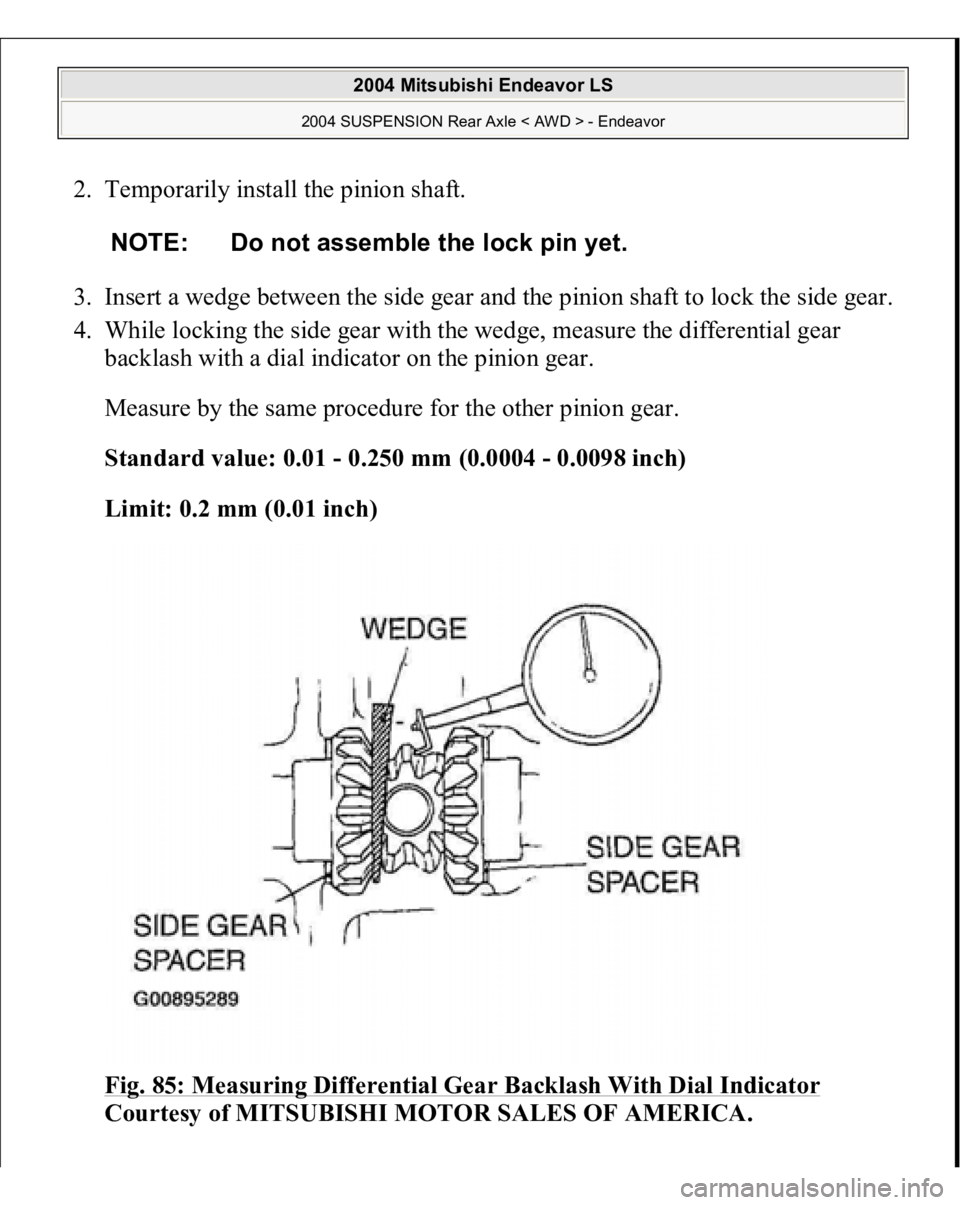

Fig. 85: Measuring Differential Gear Backlash With Dial Indicator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Do not assemble the lock pin yet.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3023 of 3870

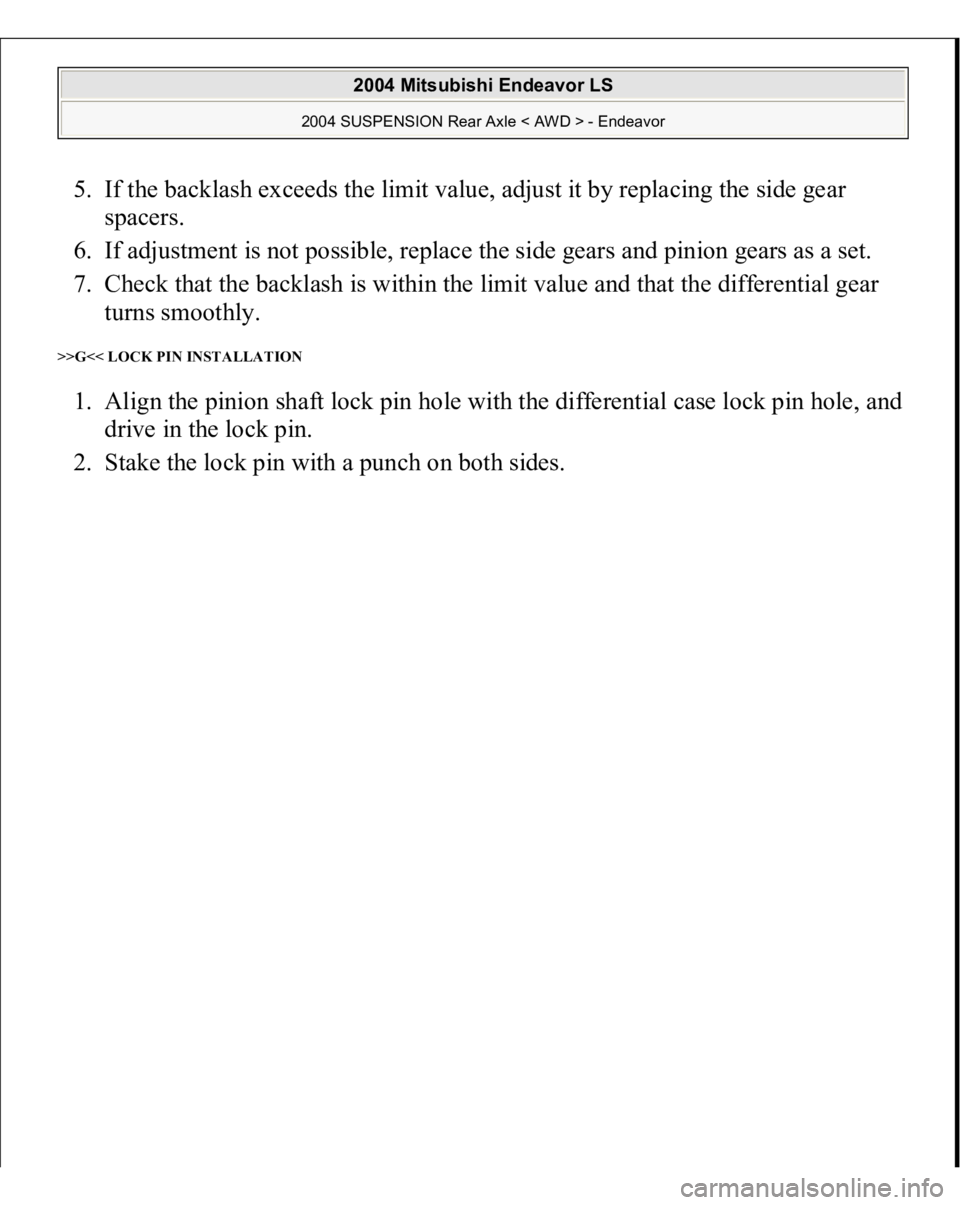

5. If the backlash exceeds the limit value, adjust it by replacing the side gear
spacers.
6. If adjustment is not possible, replace the side gears and pinion gears as a set.
7. Check that the backlash is within the limit value and that the differential gear
turns smoothly. >>G<< LOCK PIN INSTALLATION 1. Align the pinion shaft lock pin hole with the differential case lock pin hole, and
drive in the lock pin.
2. Stake the lock pin with a punch on both sides.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3024 of 3870

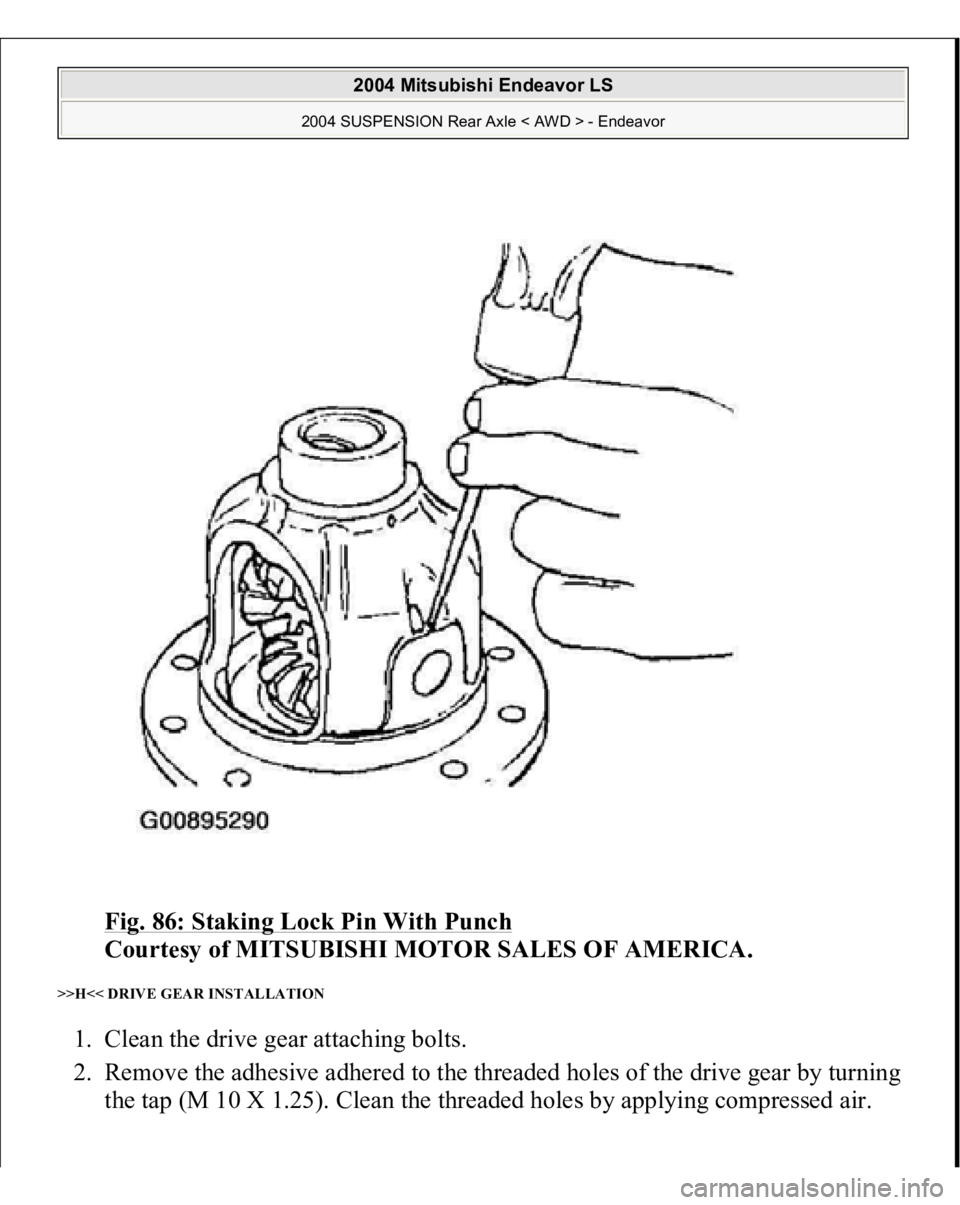

Fig. 86: Staking Lock Pin With Punch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>H<< DRIVE GEAR INSTALLATION 1. Clean the drive gear attaching bolts.
2. Remove the adhesive adhered to the threaded holes of the drive gear by turning
the tap (M 10 X 1.25). Clean the threaded holes by applying compressed air.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3025 of 3870

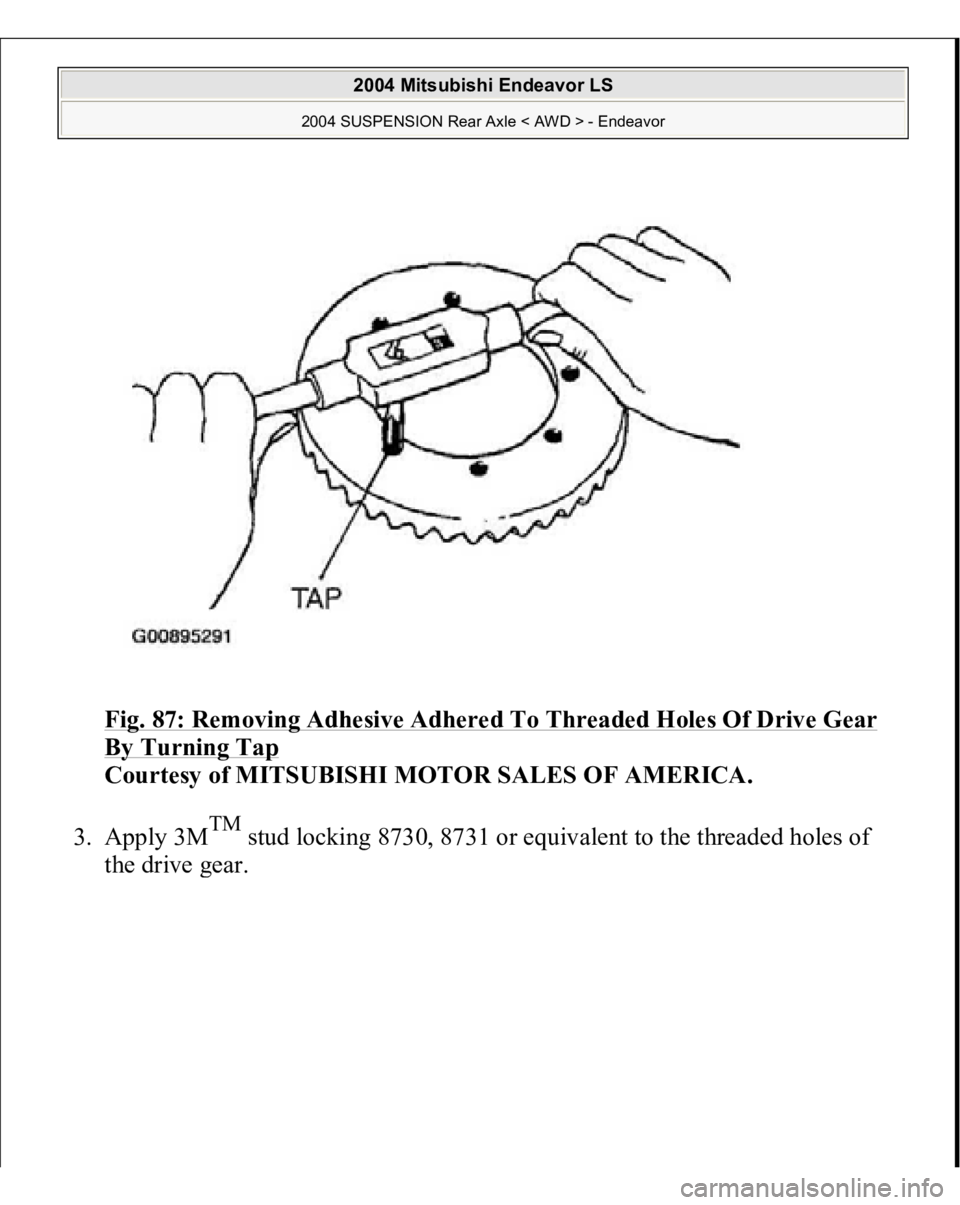

Fig. 87: Removing Adhesive Adhered To Threaded Holes Of Drive Gear By Turning Tap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Apply 3M
TM
stud locking 8730, 8731 or equivalent to the threaded holes of
the drive
gear.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
