MITSUBISHI ENDEAVOR 2004  Service Repair Manual SPARK PLUG TEST 1. Remove the spark plug and connect to the ignition coil.
Fig. 5: Removing Spark Plug

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Ground the spark plug outer electrode (body

Page 2688 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 6: Checking Spark Plug

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPARK PLUG CHECK AND CLEANING Check the plug gap and replace if the limit is exceeded.
Standard value: 0.7 - 0.8 mm (0.02

Page 2689 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 7: Locating Iridium Tip

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAMSHAFT POSITION SENSOR CHECK Refer to DTC P0340: CAMSHAFT POSITION SENSOR CIRCUIT
 .
CRANKSHAFT POSITION SENSOR CHECK

Page 2707 of 3870

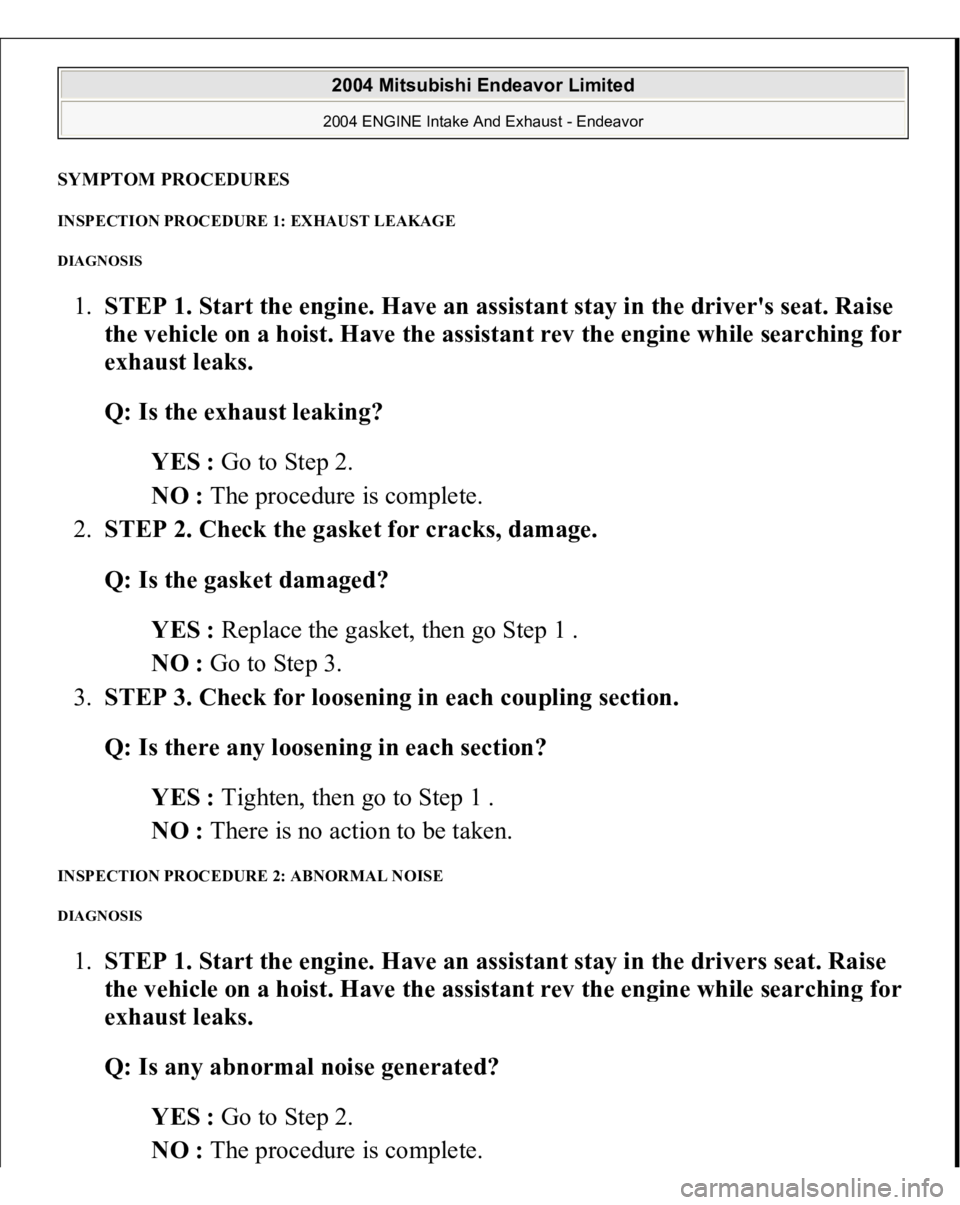

MITSUBISHI ENDEAVOR 2004  Service Repair Manual SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: EXHAUST LEAKAGE DIAGNOSIS 1.STEP 1. Start the engine. Have an assistant stay in the driver's seat. Raise
the vehicle on a hoist. Have the assistant rev

Page 2708 of 3870

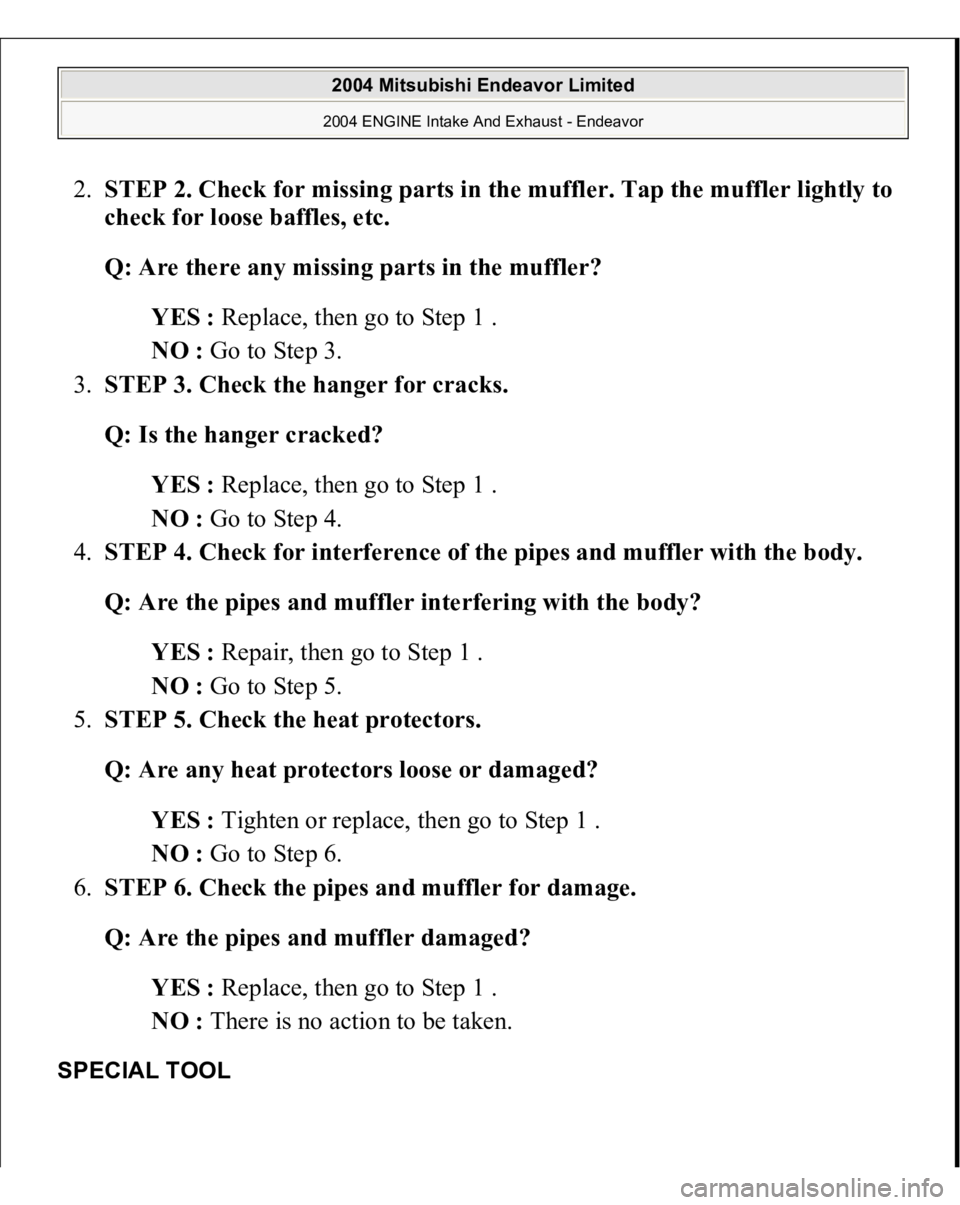

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2.STEP 2. Check for missing parts in the muffler. Tap the muffler lightly to
check for loose baffles, etc.
Q: Are there any missing parts in the muffler?
YES : Replace, then go to Step 1 .
NO :

Page 2716 of 3870

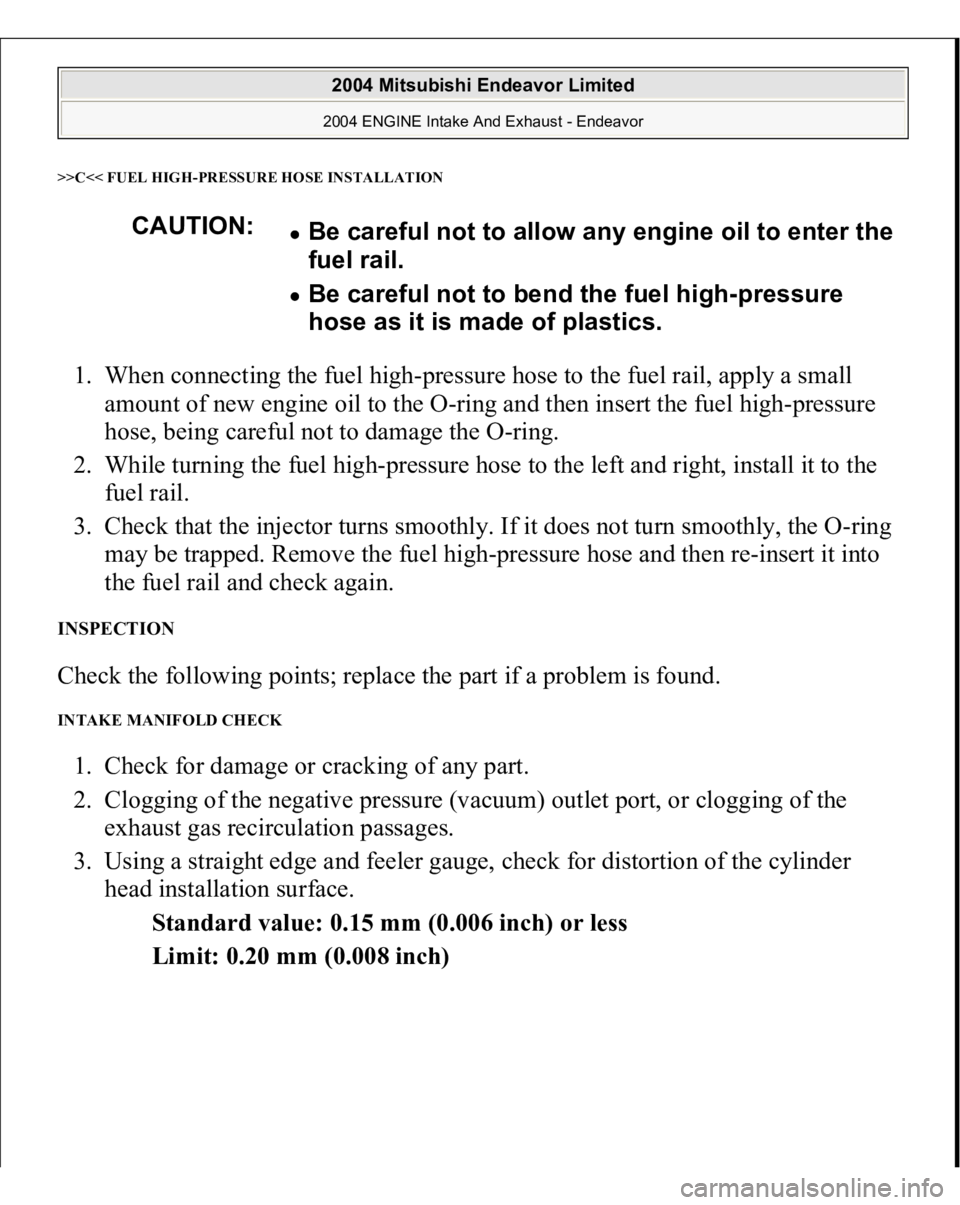

MITSUBISHI ENDEAVOR 2004  Service Repair Manual >>C<< FUEL HIG
H-PRESSURE HOSE INSTALLATION
1. When connecting the fuel high-pressure hose to the fuel rail, apply a small
amount of new engine oil to the O-ring and then insert the fuel high-pressur

Page 2722 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual >>A<< HEATED OXYGEN SENSOR INSTALLATIONUse special tool MD998770 to install the oxygen sensor.
Fig. 12: Using Special Tool (MD998770) To Install Oxygen Sensor

Courtesy of MITSUBISHI MOTOR SALES OF

Page 2723 of 3870

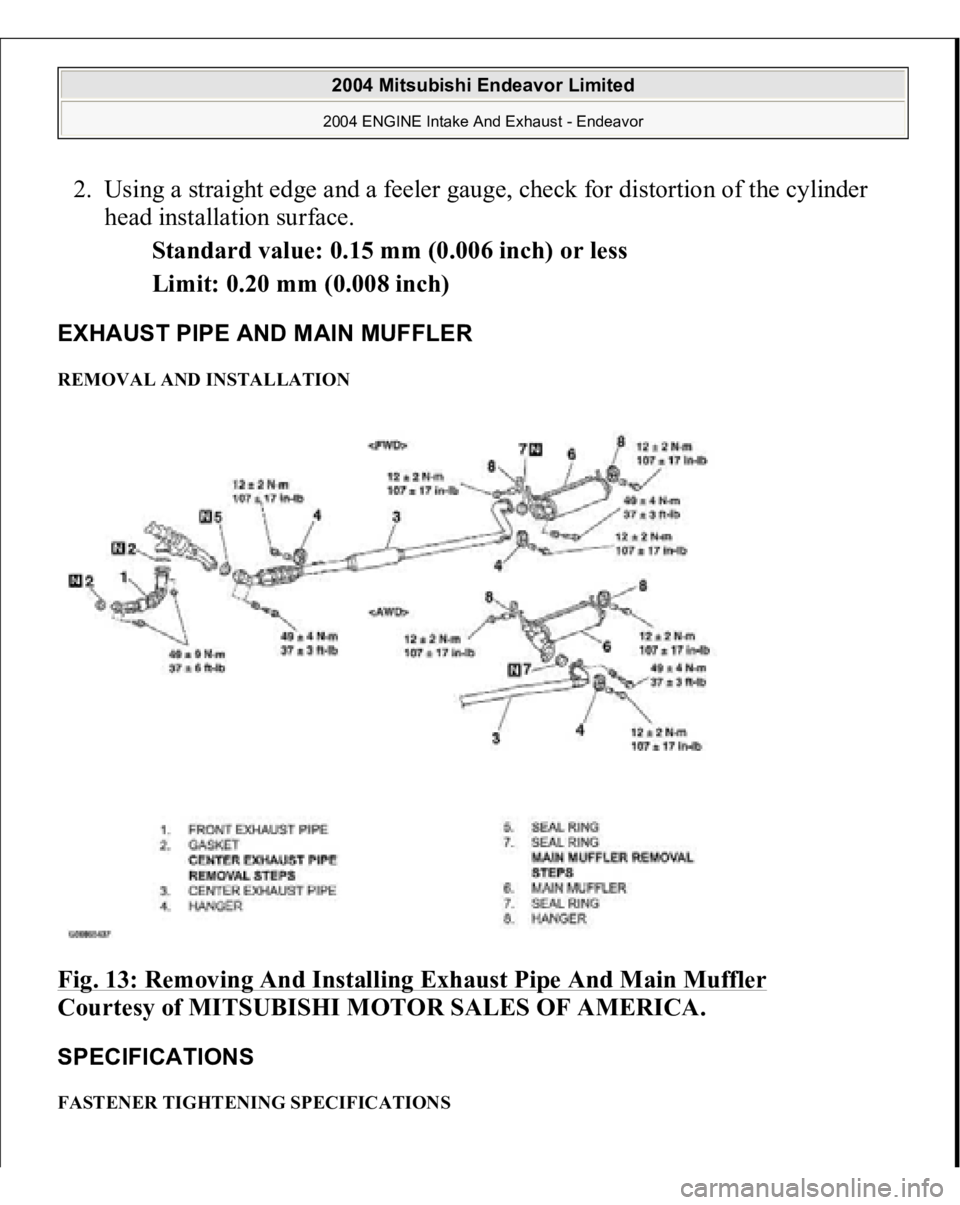

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2. Using a straight edge and a feeler gauge, check for distortion of the cylinder
head installation surface.
Standard value: 0.15 mm (0.006 inch) or less
Limit: 0.20 mm (0.008 inch)  EXHAUST PIPE
