Page 38 of 3870

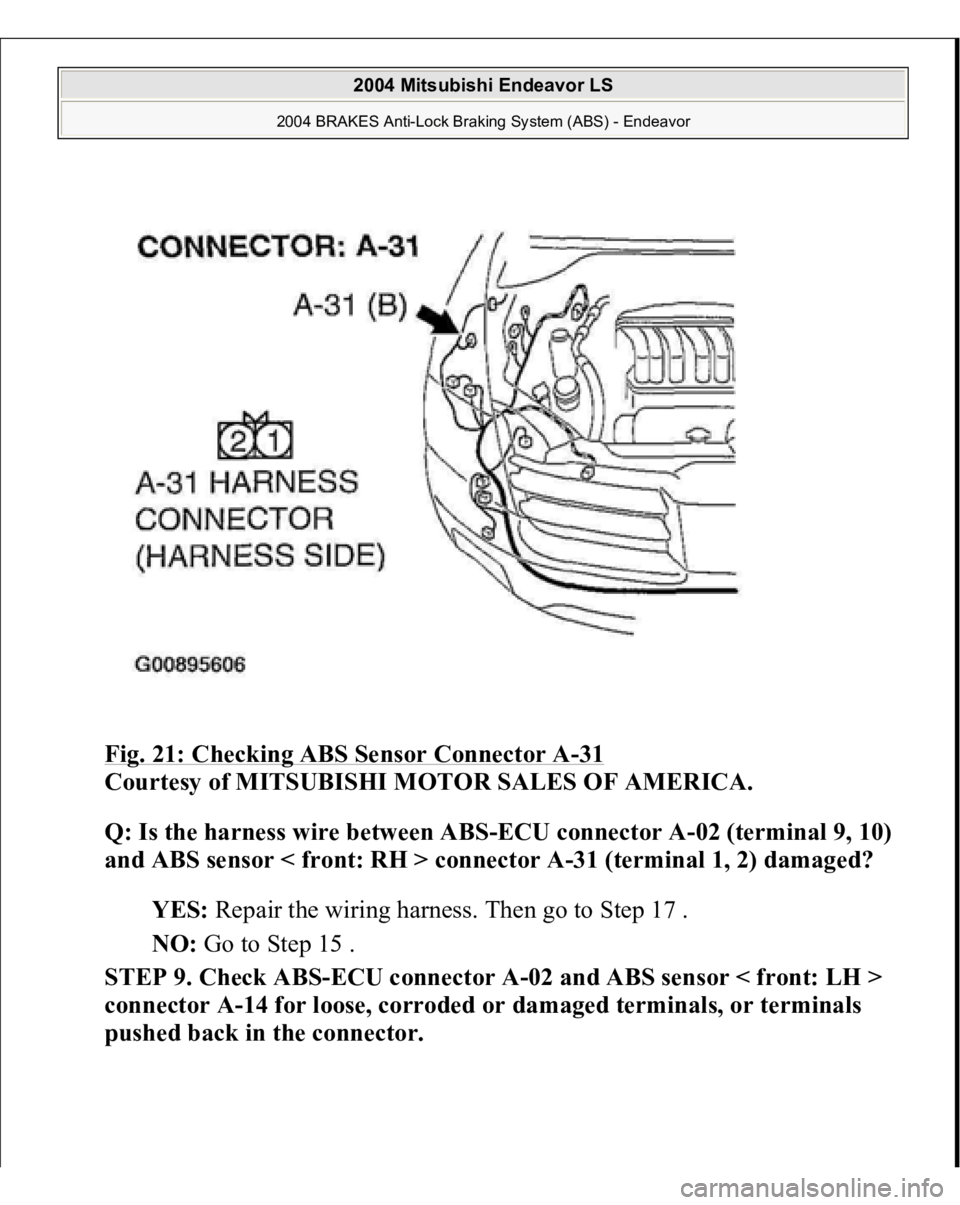

Fig. 21: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between ABS-ECU connector A-02 (terminal 9, 10)
and ABS sensor < front: RH > connector A-31 (terminal 1, 2) damaged?
YES: Repair the wiring harness. Then go to Step 17 .
NO: Go to Step 15 .
STEP 9. Check ABS-ECU connector A-02 and ABS sensor < front: LH >
connector A-14 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 40 of 3870

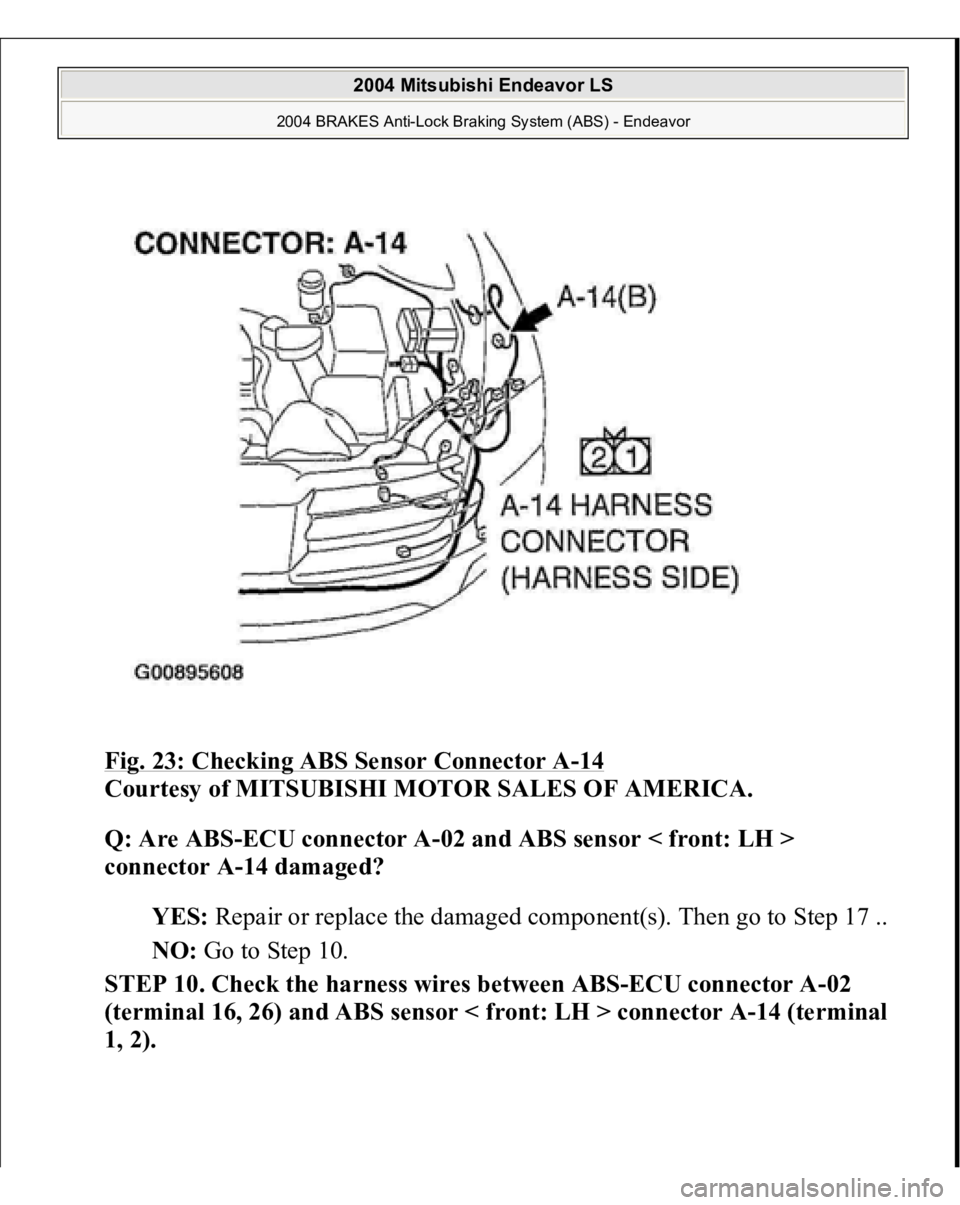

Fig. 23: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are ABS-ECU connector A-02 and ABS sensor < front: LH >
connector A-14 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17 ..
NO: Go to Step 10.
STEP 10. Check the harness wires between ABS-ECU connector A-02
(terminal 16, 26) and ABS sensor < front: LH > connector A-14 (terminal
1, 2).
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 42 of 3870

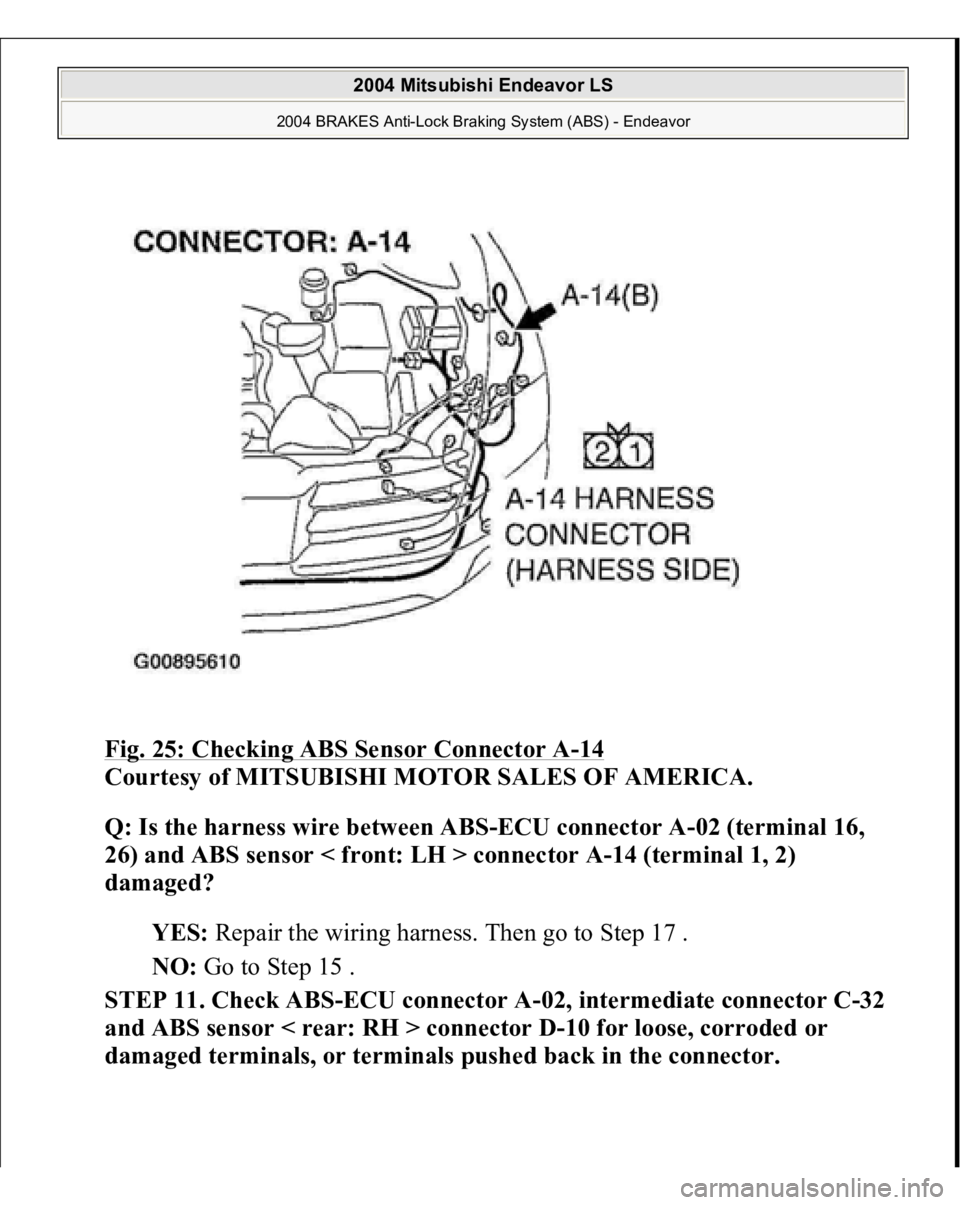

Fig. 25: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between ABS-ECU connector A-02 (terminal 16,
26) and ABS sensor < front: LH > connector A-14 (terminal 1, 2)
damaged?
YES: Repair the wiring harness. Then go to Step 17 .
NO: Go to Step 15 .
STEP 11. Check ABS-ECU connector A-02, intermediate connector C-32
and ABS sensor < rear: RH > connector D-10 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 44 of 3870

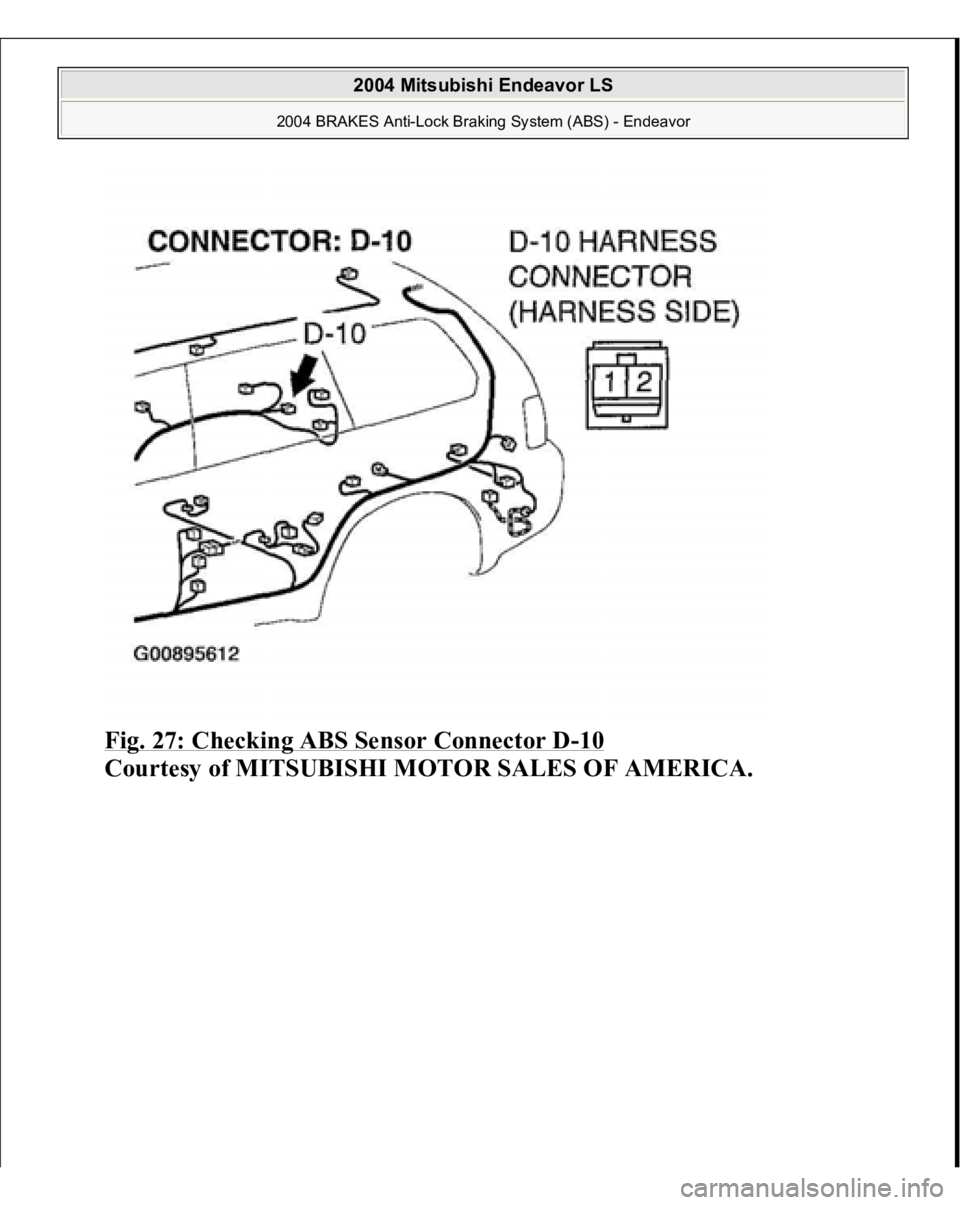

Fig. 27: Checking ABS Sensor Connector D
-10
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 45 of 3870
Fig. 28: Checking Intermediate Connector C
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are ABS-ECU connector A-02, intermediate connector C-32 and ABS
sensor < rear: RH > connector D-10 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17 .
NO: Go to Step 12.
STEP 12. Check the harness wires between ABS-ECU connector A-02
(terminal 11, 17) and ABS sensor < rear: RH > connector D-10 (terminal
1, 2).
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 47 of 3870

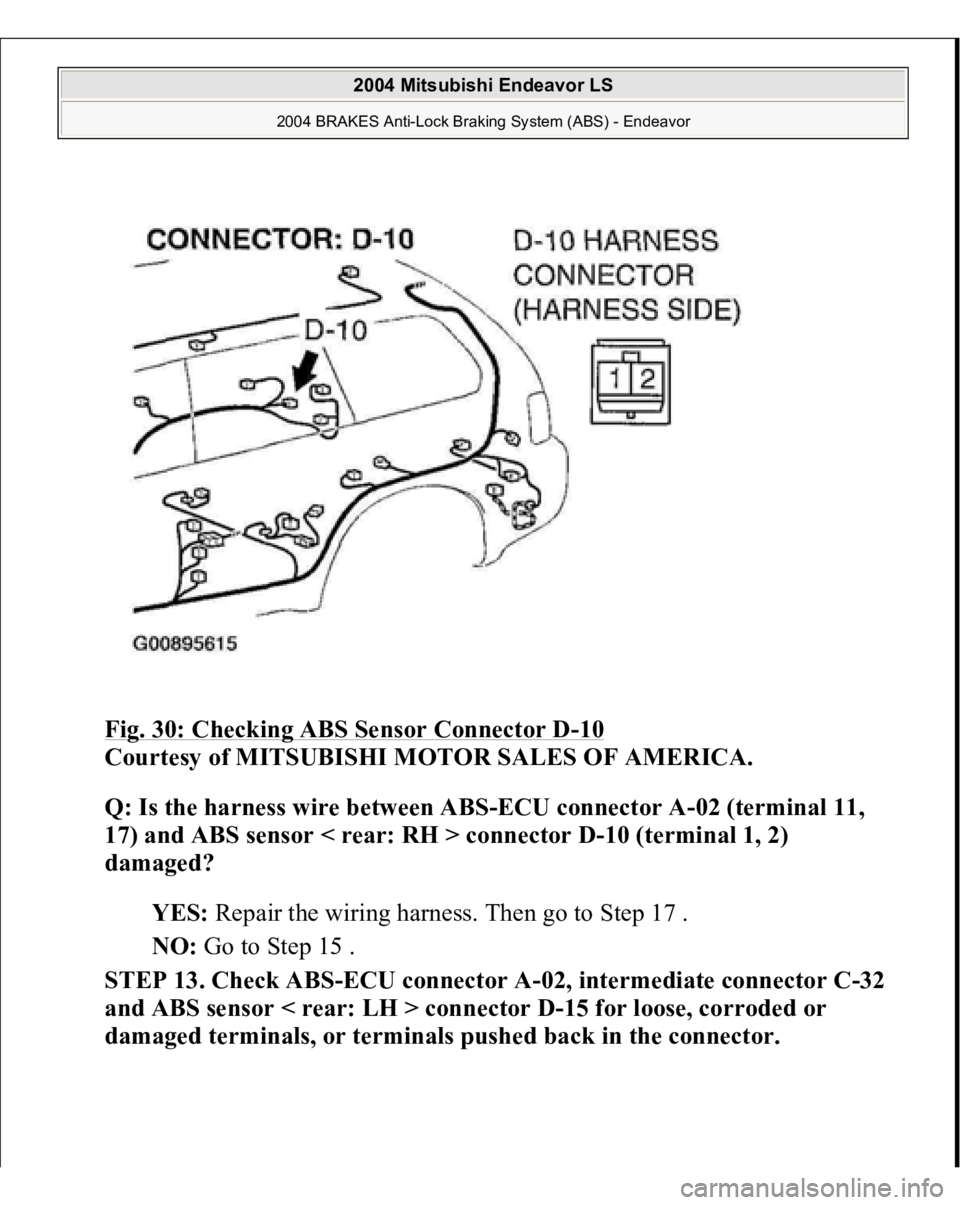

Fig. 30: Checking ABS Sensor Connector D
-10
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between ABS-ECU connector A-02 (terminal 11,
17) and ABS sensor < rear: RH > connector D-10 (terminal 1, 2)
damaged?
YES: Repair the wiring harness. Then go to Step 17 .
NO: Go to Step 15 .
STEP 13. Check ABS-ECU connector A-02, intermediate connector C-32
and ABS sensor < rear: LH > connector D-15 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 49 of 3870

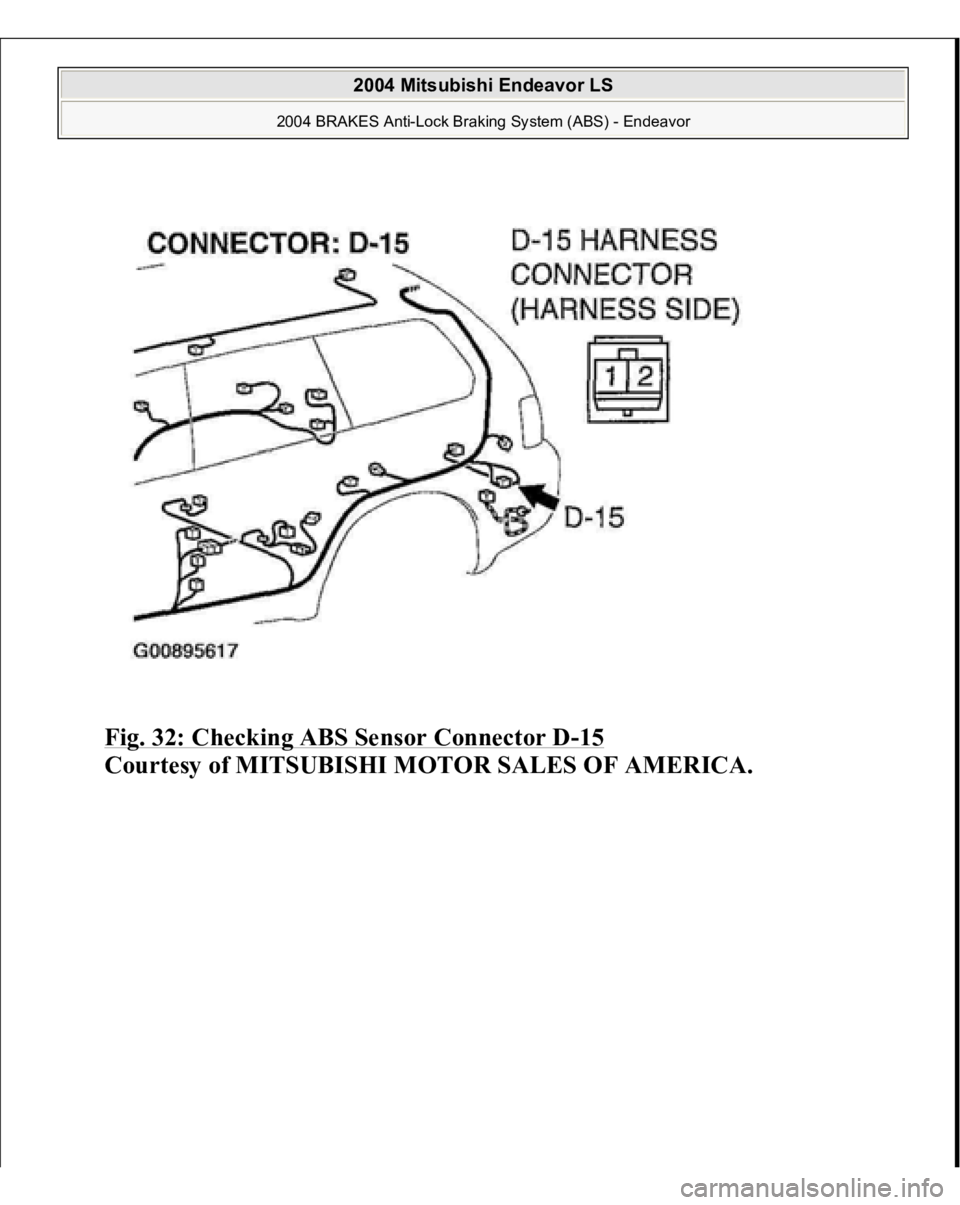

Fig. 32: Checking ABS Sensor Connector D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 50 of 3870

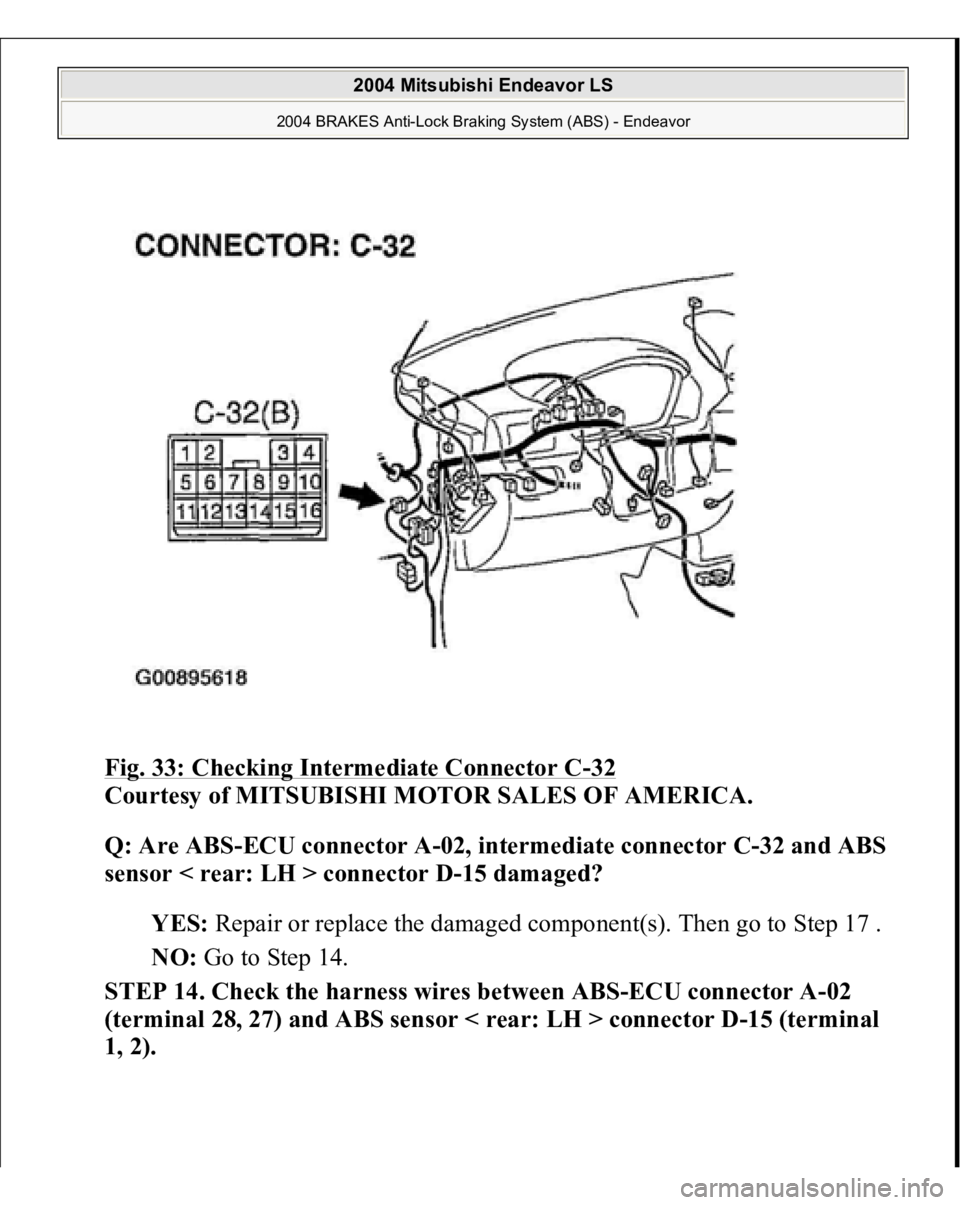

Fig. 33: Checking Intermediate Connector C
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are ABS-ECU connector A-02, intermediate connector C-32 and ABS
sensor < rear: LH > connector D-15 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17 .
NO: Go to Step 14.
STEP 14. Check the harness wires between ABS-ECU connector A-02
(terminal 28, 27) and ABS sensor < rear: LH > connector D-15 (terminal
1, 2).
