2004 MERCEDES-BENZ SLK32AMG Owner's Manual

265 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New vehicle limited warranty


Emission system warranty


Emission performance warranty


California, Maine, Massachusetts, and
Vermont emission control systems
warrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

266 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)
3Engine number (engraved on engine)4Emission control label
5Information label, California version
Vacuum line routing for emission con-
trol system
6VIN, visible (lower edge of windshield)
When ordering spare parts, please specify
vehicle identification and engine numbers.

267 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
SLK 230 KompressorThe SLK 230 Kompressor has two
poly-V-belts (belt one shown in purple/belt
two shown in black).1Coolant pump
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Automatic belt tensioner
7Generator (alternator)
8Supercharger
SLK 320
1Automatic belt tensioner
2Power steering pump
3Air conditioner compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
SLK 32 AMG
1Idler pulley
2Idler pulley
3Supercharger
4Automatic belt tensioner
5Power steering pump
6Air conditioner compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

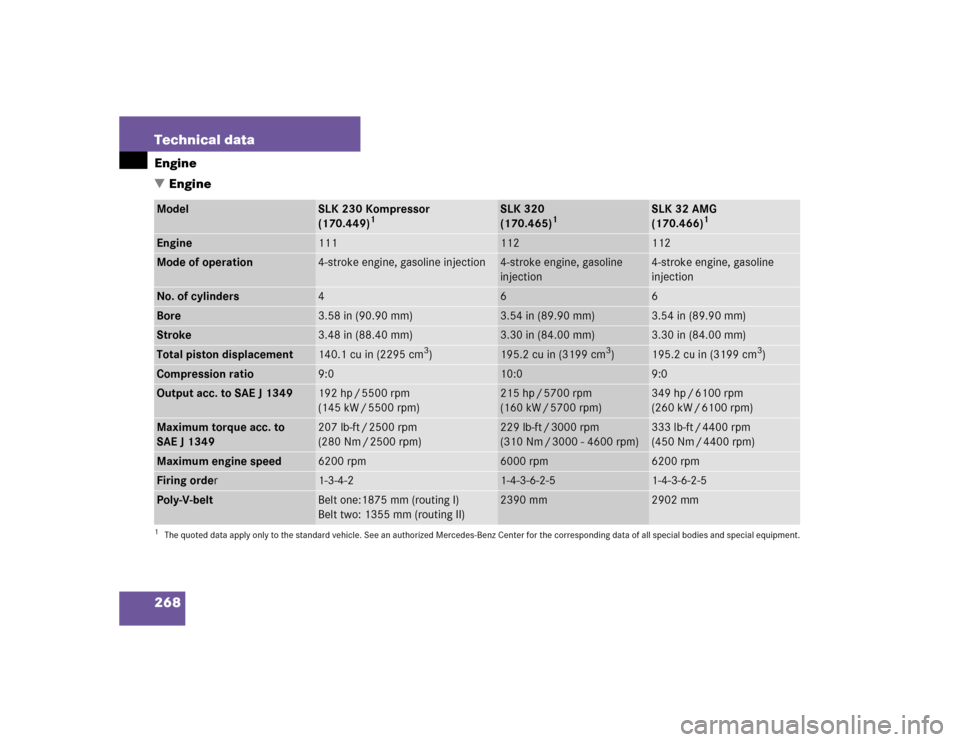

268 Technical dataEngine
EngineModel
SLK 230 Kompressor
(170.449)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SLK 320
(170.465)
1
SLK 32 AMG
(170.466)
1
Engine
111
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline
injection
4-stroke engine, gasoline
injection
No. of cylinders
4
6
6
Bore
3.58 in (90.90 mm)
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
3.48 in (88.40 mm)
3.30 in (84.00 mm)
3.30 in (84.00 mm)
Total piston displacement
140.1 cu in (2295 cm
3)
195.2 cu in (3199 cm
3)
195.2 cu in (3199 cm
3)
Compression ratio
9:0
10:0
9:0
Output acc. to SAE J 1349
192 hp / 5500 rpm
(145 kW / 5500 rpm)
215 hp / 5700 rpm
(160 kW / 5700 rpm)
349 hp / 6100 rpm
(260 kW / 6100 rpm)
Maximum torque acc. to
SAE J 1349
207 lb-ft / 2500 rpm
(280 Nm / 2500 rpm)
229 lb-ft / 3000 rpm
(310 Nm / 3000 - 4600 rpm)
333 lb-ft / 4400 rpm
(450 Nm / 4400 rpm)
Maximum engine speed
6200 rpm
6000 rpm
6200 rpm
Firing order
1-3-4-2
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
Belt one:1875 mm (routing I)
Belt two: 1355 mm (routing II)
2390 mm
2902 mm

269 Technical data
Rims and Tires
Rims and Tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

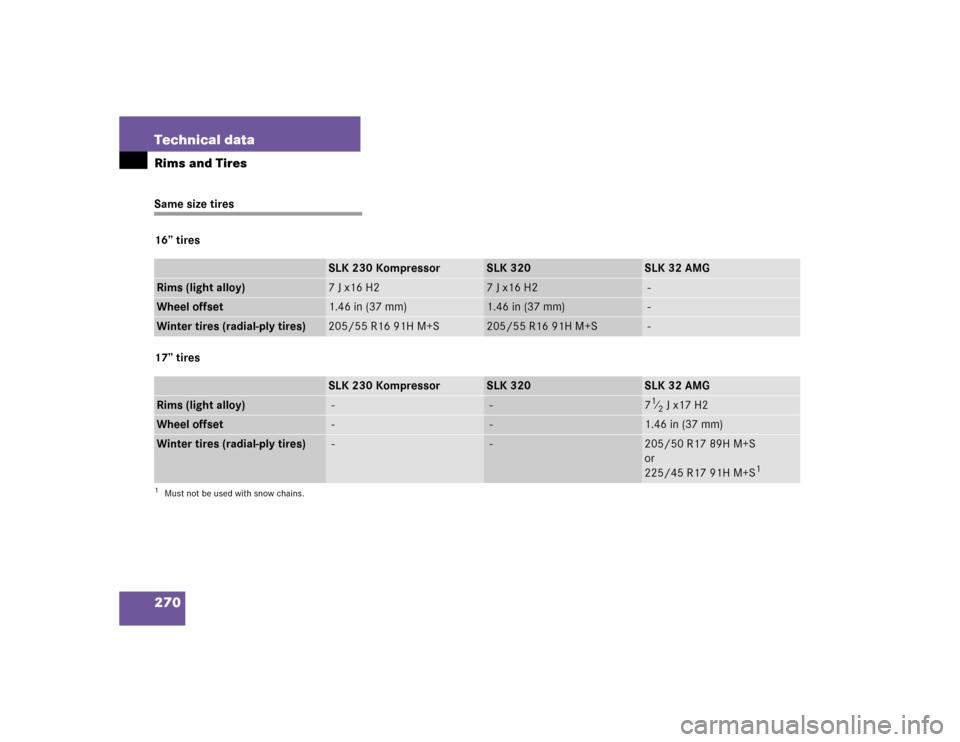

270 Technical dataRims and TiresSame size tires
16’’ tires
17’’ tires
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Rims (light alloy)
7 J x16 H2
7 J x16 H2
-
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
-
Winter tires (radial-ply tires)
205/55 R16 91H M+S
205/55 R16 91H M+S
-
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Rims (light alloy)
-
-
71⁄2 J x17 H2
Wheel offset
-
-
1.46 in (37 mm)
Winter tires (radial-ply tires)
-
-
205/50 R17 89H M+S
or
225/45 R17 91H M+S
1
1Must not be used with snow chains.

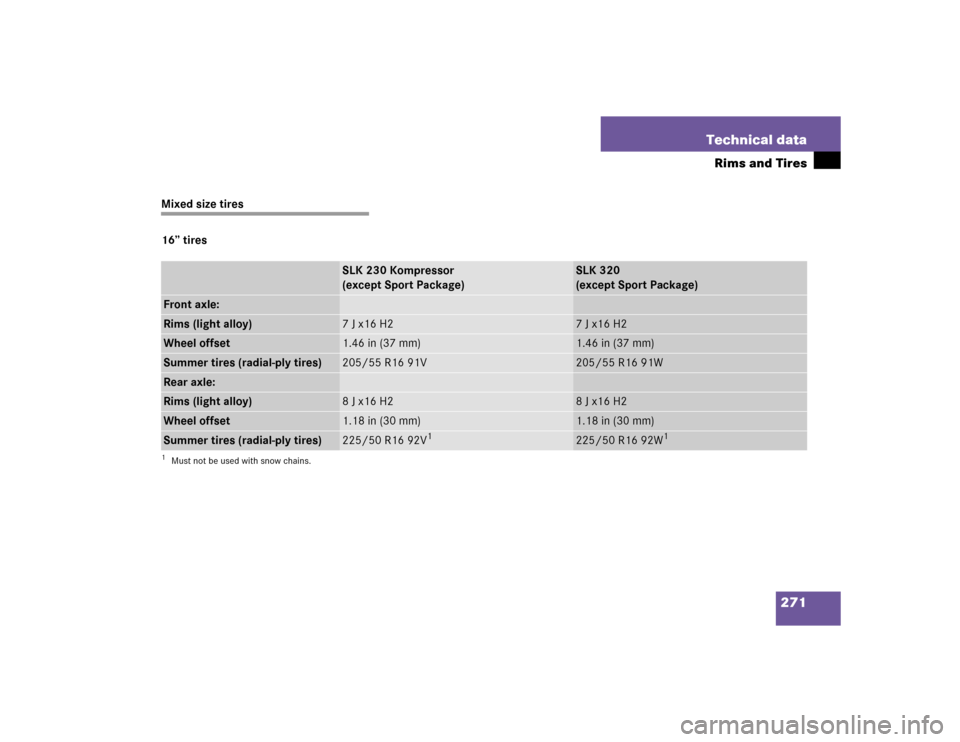

271 Technical data
Rims and Tires
Mixed size tires
16’’ tires
SLK 230 Kompressor
(except Sport Package)
SLK 320
(except Sport Package)
Front axle:Rims (light alloy)
7 J x16 H2
7 J x16 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires (radial-ply tires)
205/55 R16 91V
205/55 R16 91W
Rear axle:Rims (light alloy)
8 J x16 H2
8 J x16 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply tires)
225/50 R16 92V
1
225/50 R16 92W
1
1Must not be used with snow chains.

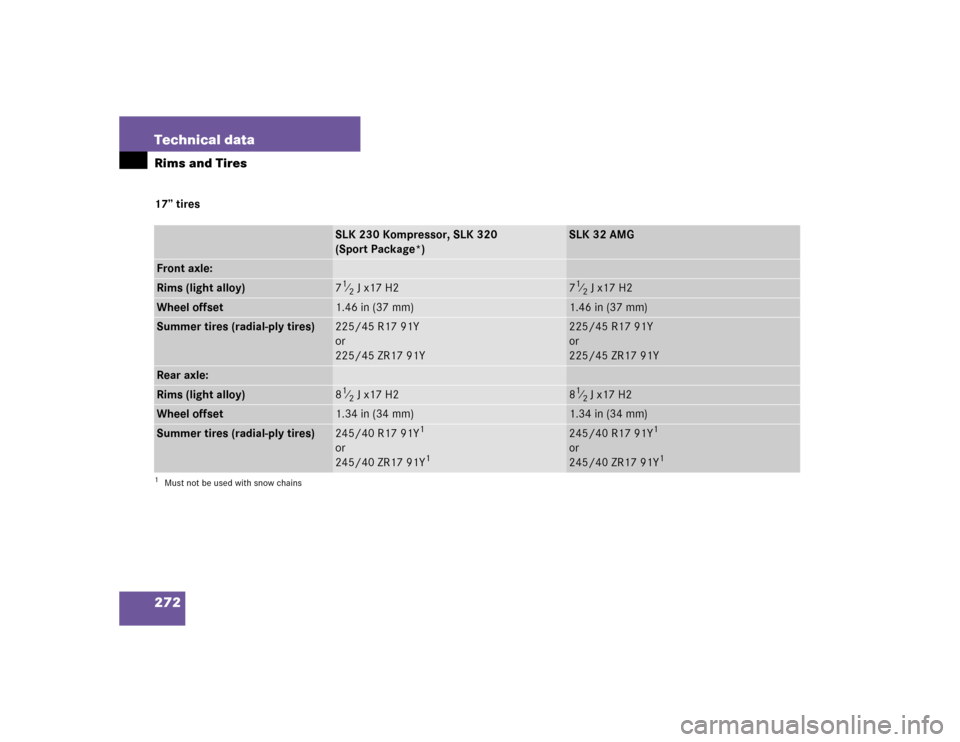

272 Technical dataRims and Tires17’’ tires
SLK 230 Kompressor, SLK 320
(Sport Package*)
SLK 32 AMG
Front axle:Rims (light alloy)
71⁄2 J x17 H2
71⁄2 J x17 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires (radial-ply tires)
225/45 R17 91Y
or
225/45 ZR17 91Y
225/45 R17 91Y
or
225/45 ZR17 91Y
Rear axle:Rims (light alloy)
81⁄2 J x17 H2
81⁄2 J x17 H2
Wheel offset
1.34 in (34 mm)
1.34 in (34 mm)
Summer tires (radial-ply tires)
245/40 R17 91Y
1
or
245/40 ZR17 91Y
1
245/40 R17 91Y
1
or
245/40 ZR17 91Y
1
1Must not be used with snow chains
