2004 MERCEDES-BENZ SLK32AMG Owner's Manual

17 At a glance
Cockpit
Instrument cluster
Center console
Overhead control panel

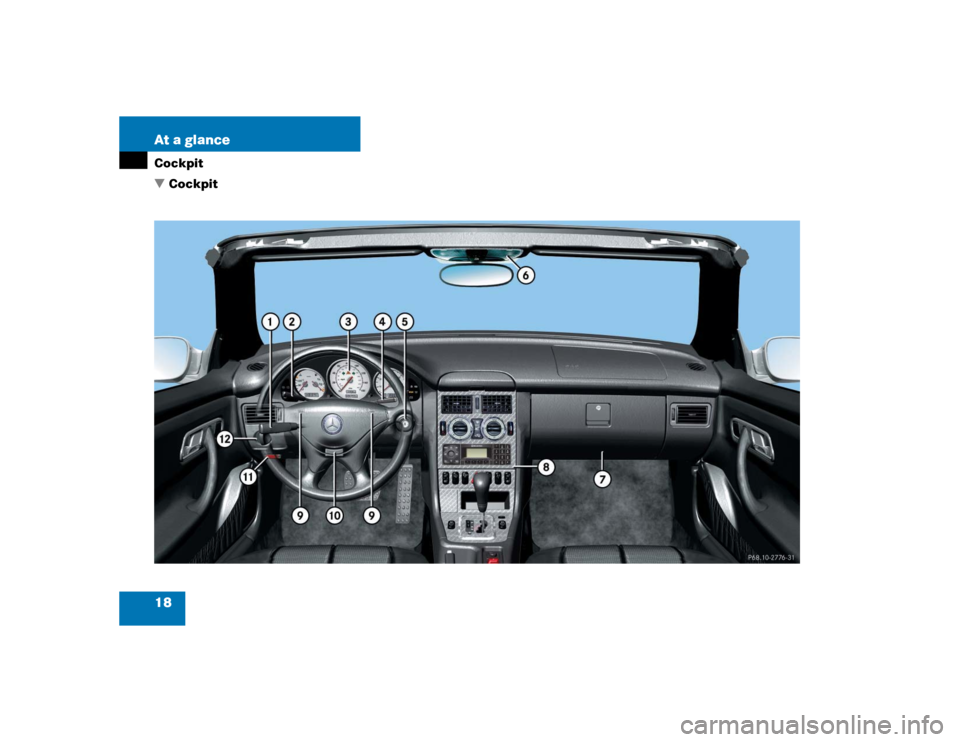

18 At a glanceCockpit
Cockpit

19 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
43


Windshield wipers
44


High beam
43
2
Cruise control lever
136
3
Instrument cluster
20, 89
4
Voice control system* le-
ver (see separate operat-
ing instructions)
5
Steering lock with ignition
29
6
Overhead control panel
25
7
Glove box
139
8
Center console
23, 24
9
Horn
a
Steering wheel adjustment
handle*
34
b
Hood lock release
174
c
Exterior lamp switch
43

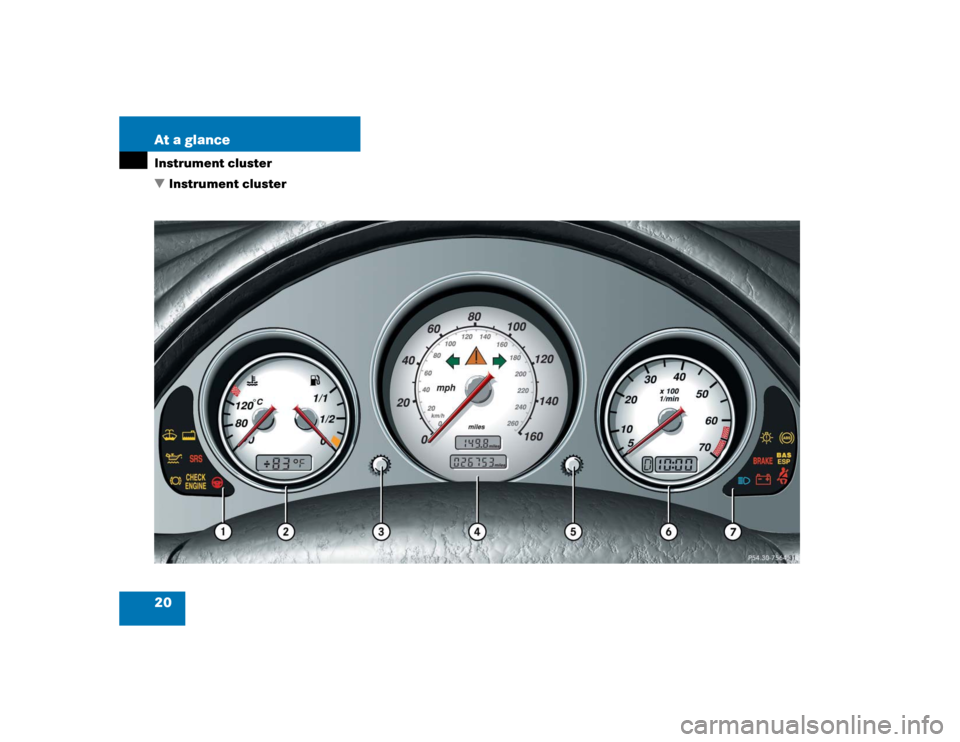

20 At a glanceInstrument cluster
Instrument cluster

21 At a glance
Instrument cluster
Item
Page
1
Left indicator lamps
with:W
Low windshield
washer and head
lamp washer* sys-
tem fluid level warn-
ing lamp
206
/
Low engine coolant
level warning lamp
207
N
Low engine oil level
warning lamp
206
1
Supplemental Re-
straint System
(SRS) indicator
lamp
52,
203
2
Brake pad wear in-
dicator lamp
209
?
Engine malfunction
indicator lamp
205
_
Telescoping steer-
ing column warning
lamp
206
Item
Page
2
Display with:D
Coolant tempera-
ture gauge
89
A
Fuel gauge
207
Outside temperature
indicator
91
3
Knob for:

Instrument cluster illu-
mination
89


Resetting trip odome-
ter
90


Activating Flexible Ser-
vice System (FSS) indi-
cator
190
Item
Page
4
Speedometer with:L
Left turn signal indi-
cator lamp
K
Right turn signal in-
dicator lamp
v
Electronic Stability
Program (ESP)
warning lamp
68,
200
Trip odometer
90
Main odometer
5
Knob for:

Setting clock
91
6
Tachometer with:Selector lever position
41, 90
Clock
91

22 At a glanceInstrument cluster
Item
Page
7
Right indicator lamps
with:$
Exterior lamp failure
indicator lamp
209
A
High beam head-
lamp indicator
43, 85
#
Charge indicator
lamp
208
;
Brake warning
lamp, except Cana-
da
47,
204
3
Brake warning
lamp, Canada only
¿
Brake Assist Sys-
tem (BAS)/Elec-
tronic Stability
Program (ESP) mal-
function indicator
lamp
67,
200
-
Antilock Brake Sys-
tem (ABS) warning
lamp
66,
201
<
Seat belt non-usage
warning lamp
57,
205
Item
Page

23 At a glance
Center console
Center console
Upper part
Item
Page
1
Cup holder
140
2
Center air vent adjustment
98
Side air vent adjustment
98
3
Climate control
102
Rear window defroster
102
4
Audio system
111
5
Seat heater* passenger
side
82
6
Anti-theft alarm system in-
dicator lamp
71
Tow-away alarm switch
72
7
Central locking switch
79
8
Hazard warning flasher
switch – switching on/off
86
9
ESP control switch
68
a
Headlamp washer* switch
99
b
Seat heater* driver’s side
82

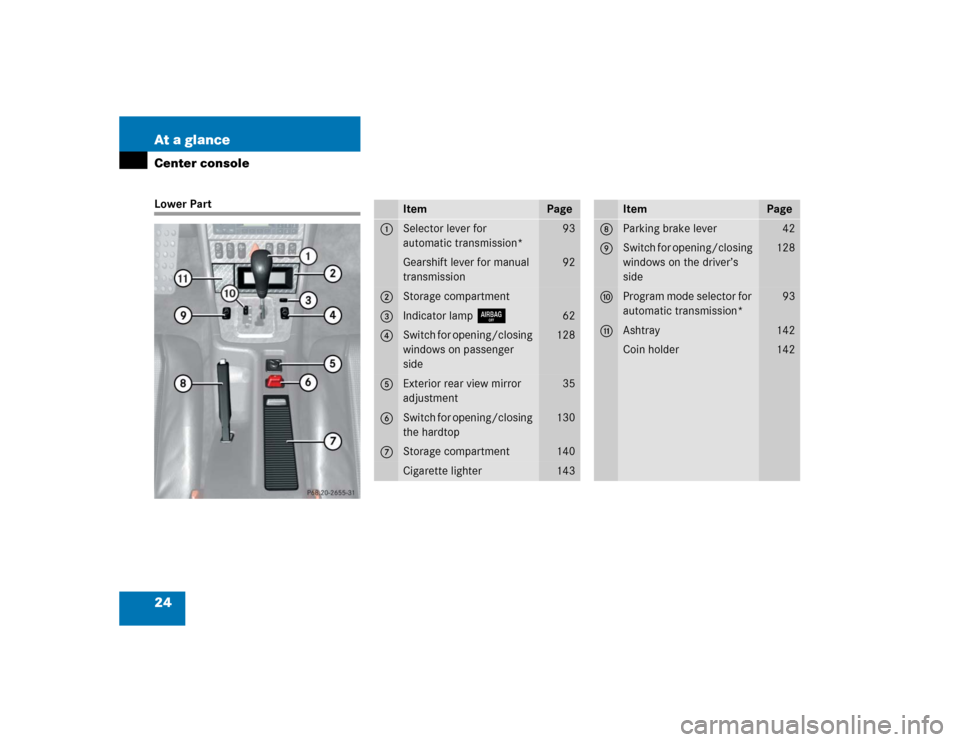

24 At a glanceCenter consoleLower Part
Item
Page
1
Selector lever for
automatic transmission*
93
Gearshift lever for manual
transmission
92
2
Storage compartment
3
Indicator lamp
7
62
4
Switch for opening/closing
windows on passenger
side
128
5
Exterior rear view mirror
adjustment
35
6
Switch for opening/closing
the hardtop
130
7
Storage compartment
140
Cigarette lighter
143
Item
Page
8
Parking brake lever
42
9
Switch for opening/closing
windows on the driver’s
side
128
a
Program mode selector for
automatic transmission*
93
b
Ashtray
142
Coin holder
142
