2004 MERCEDES-BENZ SLK32AMG Owner's Manual

25 At a glance

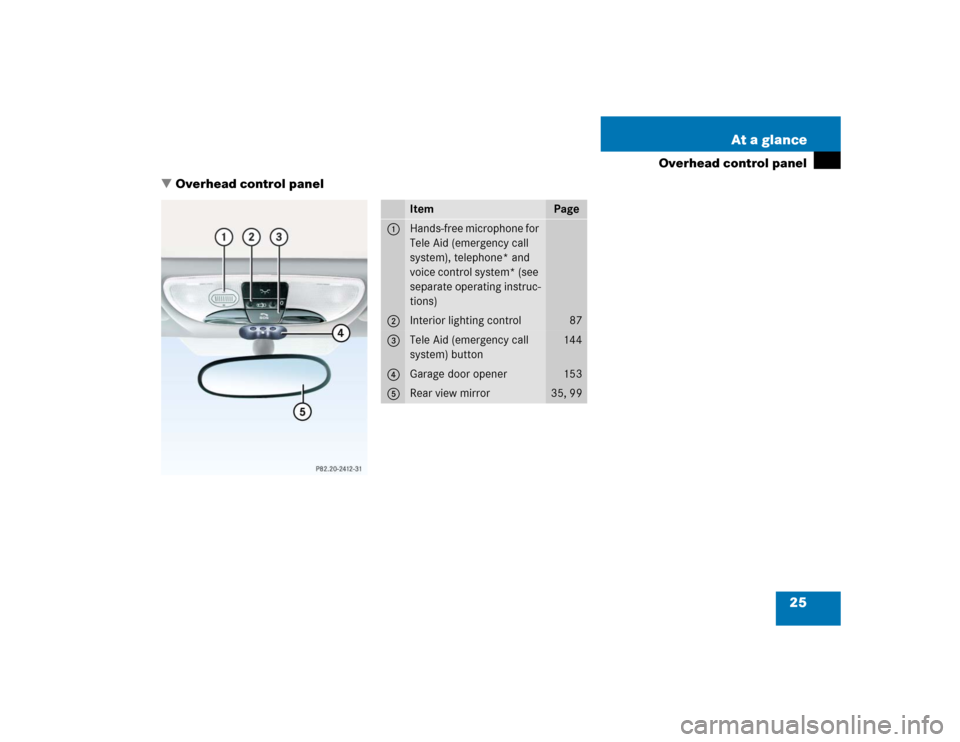

Overhead control panel
Overhead control panel
Item
Page
1
Hands-free microphone for
Tele Aid (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
2
Interior lighting control
87
3
Tele Aid (emergency call
system) button
144
4
Garage door opener
153
5
Rear view mirror
35, 99

26

27 Getting started
Unlocking
Adjusting
Driving
Parking and locking

28 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
Unlocking
Unlocking with the remote controlRemote control with folding key1Release button for key
2‹Lock button
3ŒUnlock button
4ÂPanic button (
page 65)

Press unlock buttonΠon the re-
mote control.
All turn signal lamps blink once. The
locking knobs in the doors move up.

Press release button1 on the remote
control.
The key folds out.

Get in the vehicle and insert the key in
the steering lock (
page 29).
More information can be found in the
“Controls in detail” section (
page 74).

29 Getting started
Unlocking
Steering lock positionsSteering lock0For removing key
The steering is locked when the key is
removed from the steering lock. If nec-
essary, move steering wheel slightly to
allow the locking mechanism to en-
gage.
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and/or serious per-
sonal injury.iThe key can only be withdrawn in
position0.
If necessary, move steering wheel
slightly to allow the key to be turned
clockwise to position1.
Vehicles with automatic transmission:
The key can only be removed from the
steering lock with the gear selector
lever in positionP.
!To prevent accelerated battery dis-
charge and a possible dead battery,
always remove the key from the
steering lock when the engine is not in
operation.

30 Getting startedAdjusting
AdjustingSeats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat back and seat
belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 37).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock your ve-
hicle.
The power seats* can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

31 Getting started
Adjusting

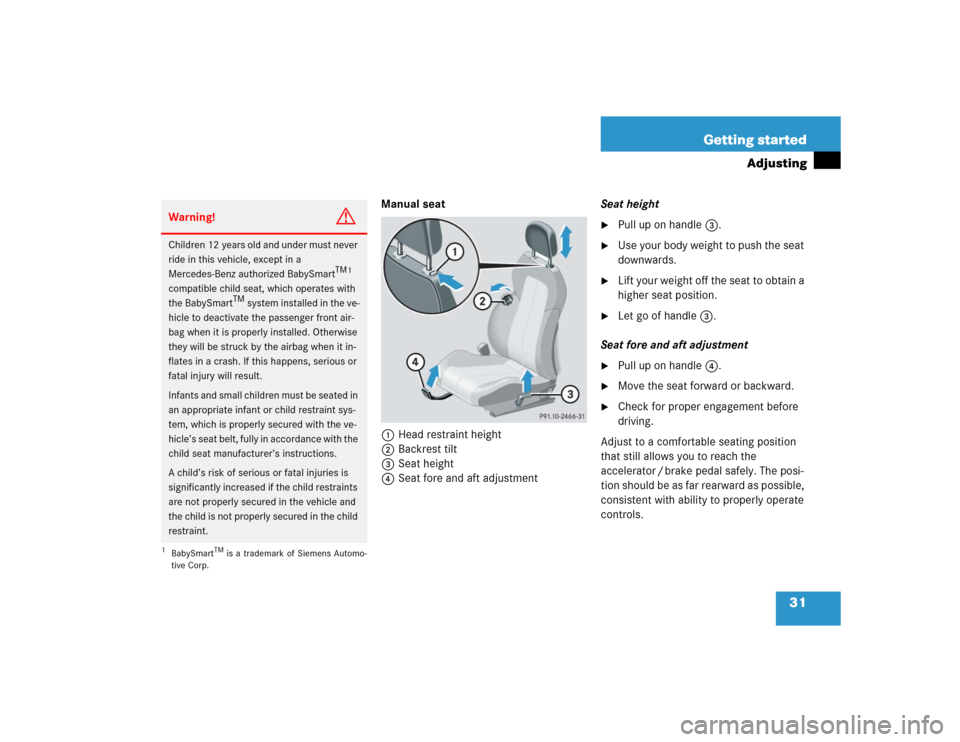

Manual seat
1Head restraint height
2Backrest tilt
3Seat height
4Seat fore and aft adjustmentSeat height

Pull up on handle3.

Use your body weight to push the seat
downwards.

Lift your weight off the seat to obtain a
higher seat position.

Let go of handle3.
Seat fore and aft adjustment

Pull up on handle4.

Move the seat forward or backward.

Check for proper engagement before
driving.
Adjust to a comfortable seating position
that still allows you to reach the
accelerator / brake pedal safely. The posi-
tion should be as far rearward as possible,
consistent with ability to properly operate
controls.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
Infants and small children must be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
1BabySmart
TM is a trademark of Siemens Automo-
tive Corp.

32 Getting startedAdjusting
Let go of handle4. The seat should
make an audible click.
Backrest tilt

Turn handwheel2 forward or back-
ward until your arms are slightly angled
when holding the steering wheel.Head restraint height

Adjust the height of the head restraints
by pulling them upwards manually.

For a lower position, press release
button1 and push down on the head
restraints manually.
More information can be found in the
“Controls in detail” section (
page 73).
iWhen moving the seat, ensure there
are no items in the footwell or behind
the seats. Otherwise you could damage
the seats.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
