2004 MERCEDES-BENZ S430 Owner's Manual

384 Technical dataRims and tires
Rims and tiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. This may result in damage to the
tires or the vehicle.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

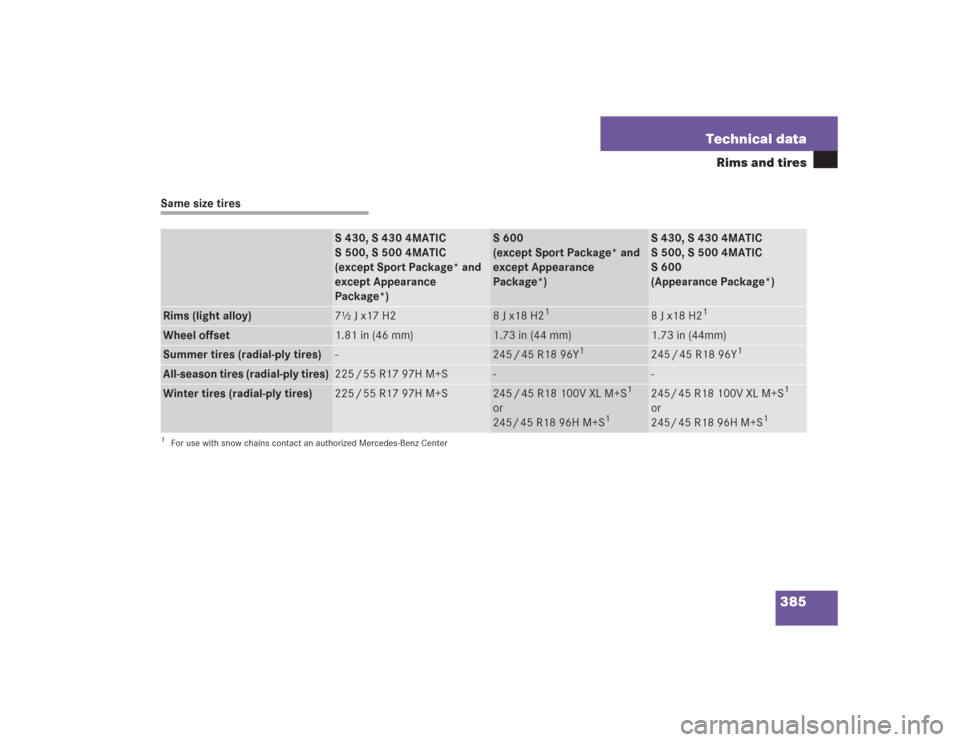

385 Technical data
Rims and tires
Same size tires
S 430, S 430 4MATIC
S 500, S 500 4MATIC
(except Sport Package* and
except Appearance
Package*)
S 600
(except Sport Package* and
except Appearance
Package*)
S 430, S 430 4MATIC
S 500, S 500 4MATIC
S 600
(Appearance Package*)
Rims (light alloy)
7½ J x17 H2
8 J x18 H2
1
1For use with snow chains contact an authorized Mercedes-Benz Center
8 J x18 H2
1
Wheel offset
1.81 in (46 mm)
1.73 in (44 mm)
1.73 in (44mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 96Y
1
245 / 45 R18 96Y
1
All-season tires (radial-ply tires)
225 / 55 R17 97H M+S
-
-
Winter tires (radial-ply tires)
225 / 55 R17 97H M+S
245 / 45 R18 100V XL M+S
1
or
245/ 45 R18 96H M+S
1
245/ 45 R18 100V XL M+S
1
or
245/ 45 R18 96H M+S
1

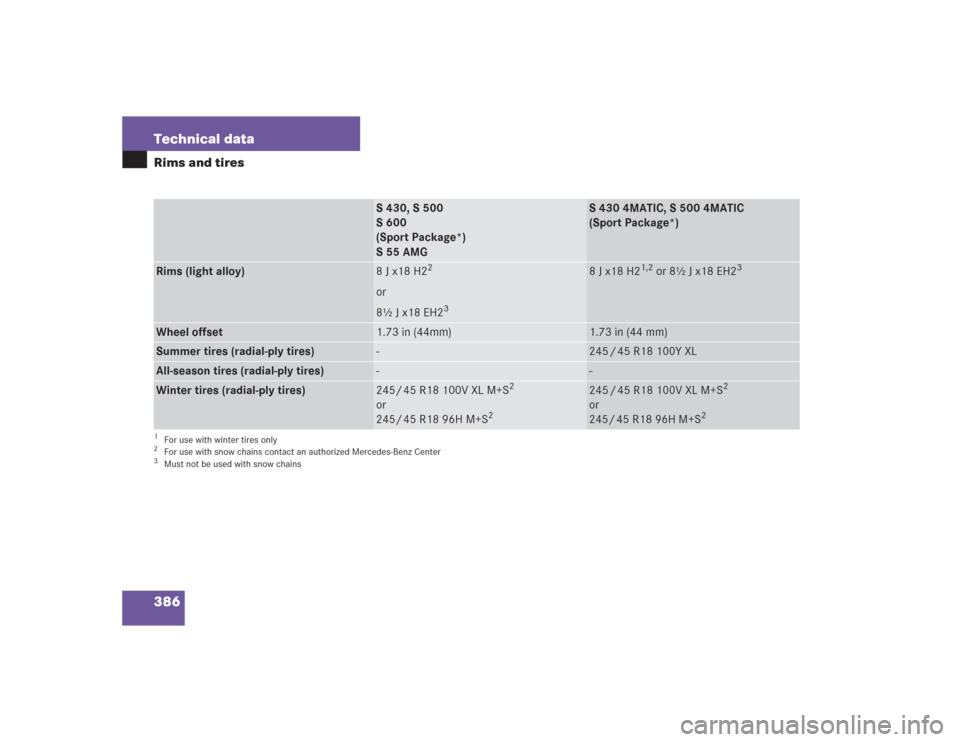

386 Technical dataRims and tires
S 430, S 500
S 600
(Sport Package*)
S 55 AMG
S 430 4MATIC, S 500 4MATIC
(Sport Package*)
Rims (light alloy)
8 J x18 H2
2
or
8½ J x18 EH23
8 J x18 H2
1,2
or 8½ J x18 EH2
3
1For use with winter tires only2For use with snow chains contact an authorized Mercedes-Benz Center3Must not be used with snow chainsWheel offset
1.73 in (44mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 100Y XL
All-season tires (radial-ply tires)
-
-
Winter tires (radial-ply tires)
245/ 45 R18 100V XL M+S
2
or
245/ 45 R18 96H M+S
2
245 / 45 R18 100V XL M+S
2
or
245/ 45 R18 96H M+S
2

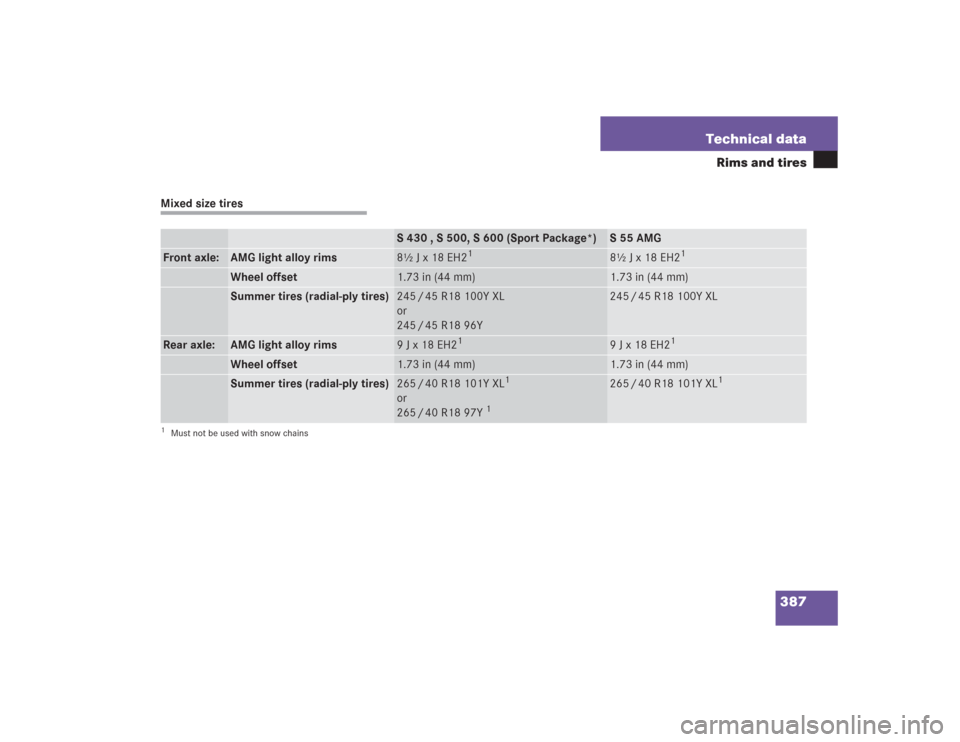

387 Technical data
Rims and tires
Mixed size tires
S 430 , S 500, S 600 (Sport Package*)
S 55 AMG
Front axle:
AMG light alloy rims
8½ J x 18 EH2
1
8½ J x 18 EH2
1
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
245 / 45 R18 100Y XL
or
245 / 45 R18 96Y
245 / 45 R18 100Y XL
Rear axle:
AMG light alloy rims
9 J x 18 EH2
1
9 J x 18 EH2
1
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
265 / 40 R18 101Y XL
1
or
265 / 40 R18 97Y
1
1Must not be used with snow chains
265 / 40 R18 101Y XL
1

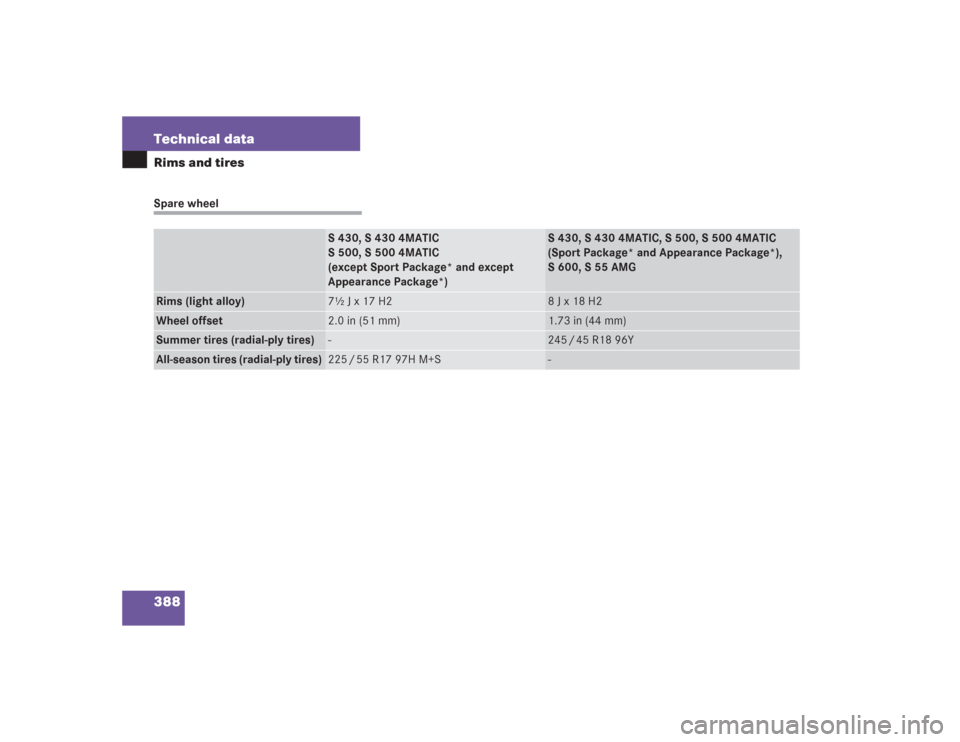

388 Technical dataRims and tiresSpare wheel
S 430, S 430 4MATIC
S 500, S 500 4MATIC
(except Sport Package* and except
Appearance Package*)
S 430, S 430 4MATIC, S 500, S 500 4MATIC
(Sport Package* and Appearance Package*),
S 600, S 55 AMG
Rims (light alloy)
7½ J x 17 H2
8 J x 18 H2
Wheel offset
2.0 in (51 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 96Y
All-season tires (radial-ply tires)
225 / 55 R17 97H M+S
-

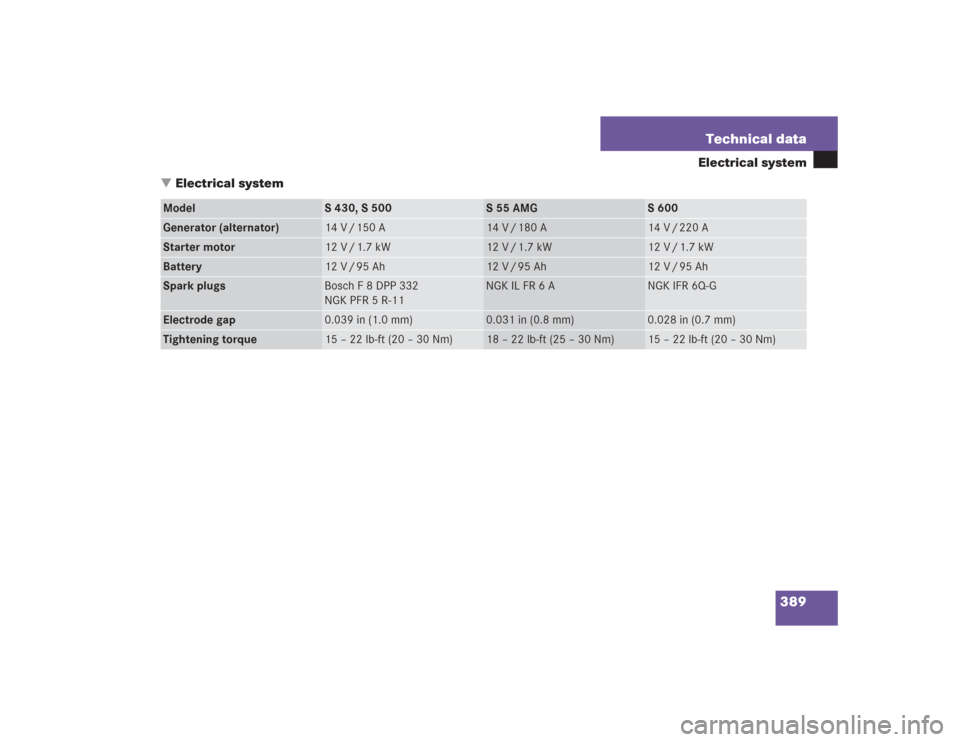

389 Technical data
Electrical system
Electrical system
Model
S 430, S 500
S 55 AMG
S 600
Generator (alternator)
14 V / 150 A
14 V / 180 A
14 V / 220 A
Starter motor
12 V / 1.7 kW
12 V / 1.7 kW
12 V / 1.7 kW
Battery
12 V / 95 Ah
12 V / 95 Ah
12 V / 95 Ah
Spark plugs
Bosch F 8 DPP 332
NGK PFR 5 R-11
NGK IL FR 6 A
NGK IFR 6Q-G
Electrode gap
0.039 in (1.0 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

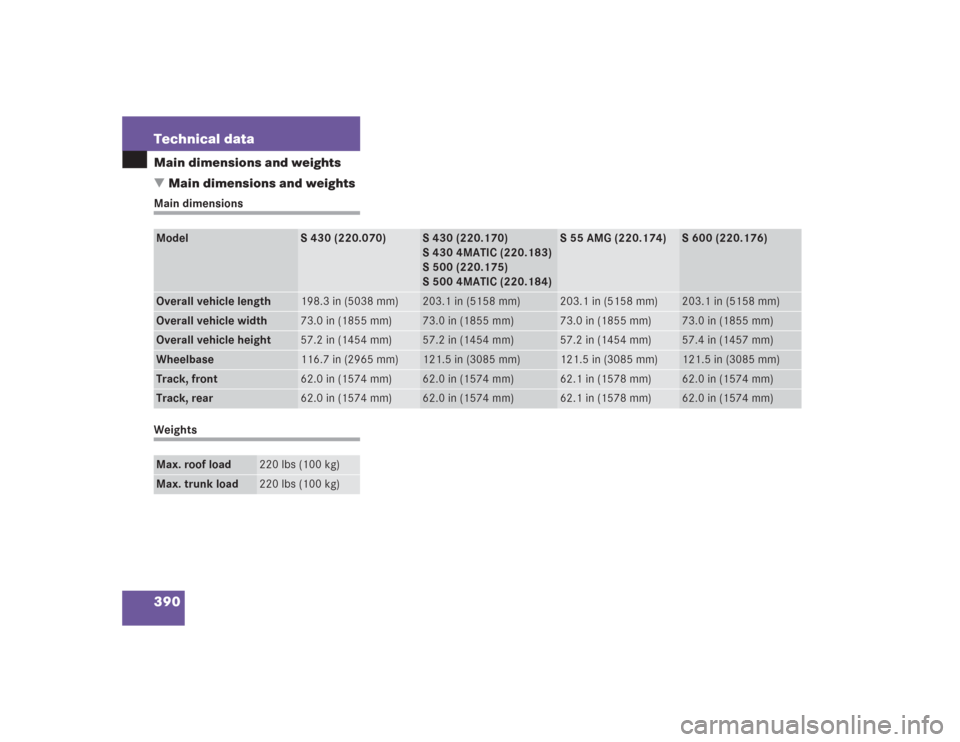

390 Technical dataMain dimensions and weights
Main dimensions and weightsMain dimensionsWeightsModel
S 430 (220.070)
S 430 (220.170)
S 430 4MATIC (220.183)
S 500 (220.175)
S 500 4MATIC (220.184)
S 55 AMG (220.174)
S 600 (220.176)
Overall vehicle length
198.3 in (5038 mm)
203.1 in (5158 mm)
203.1 in (5158 mm)
203.1 in (5158 mm)
Overall vehicle width
73.0 in (1855 mm)
73.0 in (1855 mm)
73.0 in (1855 mm)
73.0 in (1855 mm)
Overall vehicle height
57.2 in (1454 mm)
57.2 in (1454 mm)
57.2 in (1454 mm)
57.4 in (1457 mm)
Wheelbase
116.7 in (2965 mm)
121.5 in (3085 mm)
121.5 in (3085 mm)
121.5 in (3085 mm)
Track, front
62.0 in (1574 mm)
62.0 in (1574 mm)
62.1 in (1578 mm)
62.0 in (1574 mm)
Track, rear
62.0 in (1574 mm)
62.0 in (1574 mm)
62.1 in (1578 mm)
62.0 in (1574 mm)
Max. roof load
220 lbs (100 kg)
Max. trunk load
220 lbs (100 kg)

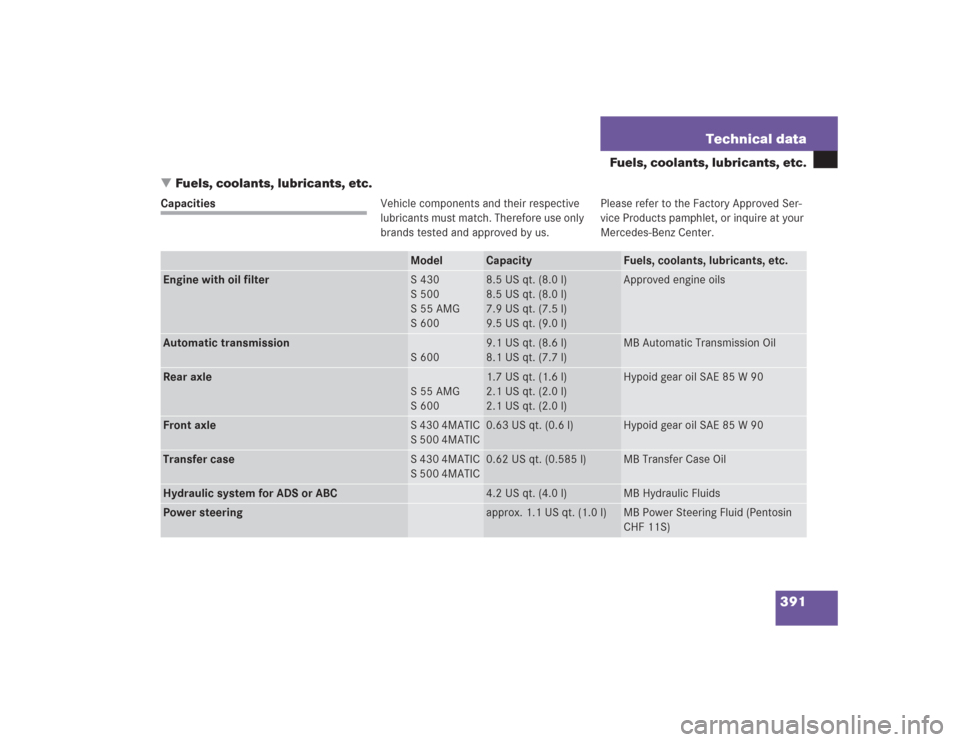

391 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and approved by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
S 430
S 500
S 55 AMG
S 600
8.5 US qt. (8.0 l)
8.5 US qt. (8.0 l)
7.9 US qt. (7.5 l)
9.5 US qt. (9.0 l)
Approved engine oils
Automatic transmission
S 600
9.1 US qt. (8.6 l)
8.1 US qt. (7.7 l)
MB Automatic Transmission Oil
Rear axle
S55AMG
S 600
1.7 US qt. (1.6 l)
2.1 US qt. (2.0 l)
2.1 US qt. (2.0 l)
Hypoid gear oil SAE 85 W 90
Front axle
S 430 4MATIC
S 500 4MATIC
0.63 US qt. (0.6 l)
Hypoid gear oil SAE 85 W 90
Transfer case
S 430 4MATIC
S 500 4MATIC
0.62 US qt. (0.585 l)
MB Transfer Case Oil
Hydraulic system for ADS or ABC
4.2 US qt. (4.0 l)
MB Hydraulic Fluids
Power steering
approx. 1.1 US qt. (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
