2004 MERCEDES-BENZ S430 Owner's Manual

216 Controls in detailDriving systems
The most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grille), especially at times of snow
and ice or heavy rain. In such a case, Dis-
tronic will switch off, and the message CURRENTLY UNAVAILABLE SEE OPER.
MANUAL
appears in the multifunction dis-
play.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 299).Turns and bends
In turns or bends, Distronic may not detect
a moving vehicle in front, or it may detect
one too soon. This may cause your vehicle
to brake late or unexpectedly.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:

a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be on the alert, ob-
serve all traffic and intercede as required by
steering or braking the vehicle.
Warning!
G
Distronic should not be used in snowy or icy
road conditions.
iIf the message
CURRENTLY UNAVAILABLE
SEE OPER. MANUAL
disappears during
driving and the last speed stored flash-
es for approximately five seconds, the
dirt (e.g. slush) has dissolved; Distronic
is again operational.

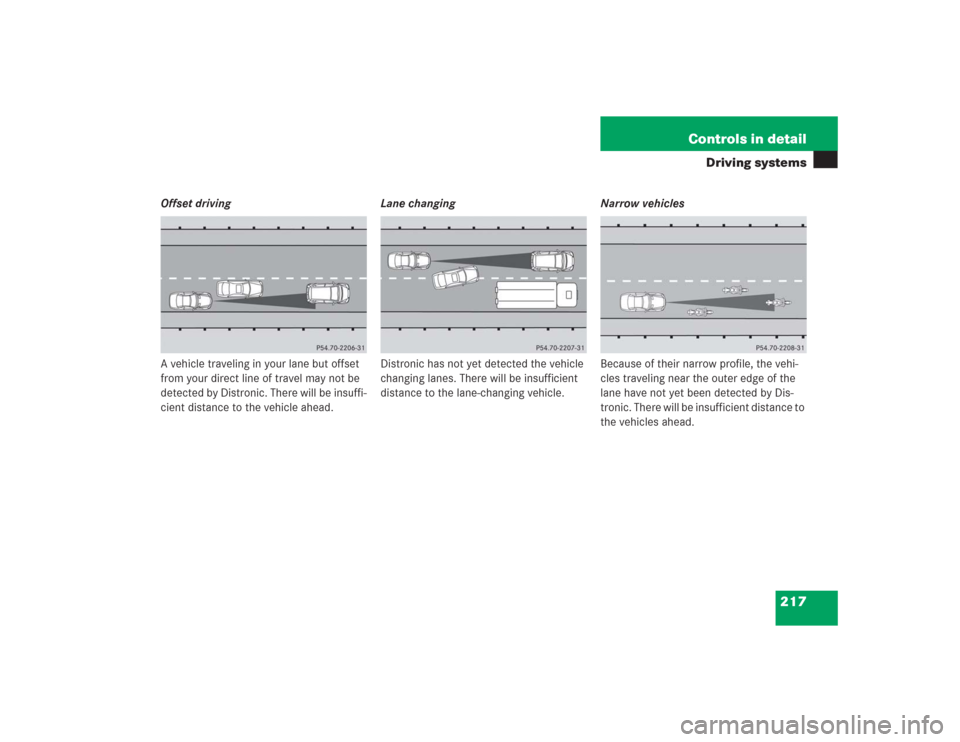

217 Controls in detail
Driving systems
Offset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by Distronic. There will be insuffi-
cient distance to the vehicle ahead.Lane changing
Distronic has not yet detected the vehicle
changing lanes. There will be insufficient
distance to the lane-changing vehicle.Narrow vehicles
Because of their narrow profile, the vehi-
cles traveling near the outer edge of the
lane have not yet been detected by Dis-
tronic. There will be insufficient distance to
the vehicles ahead.

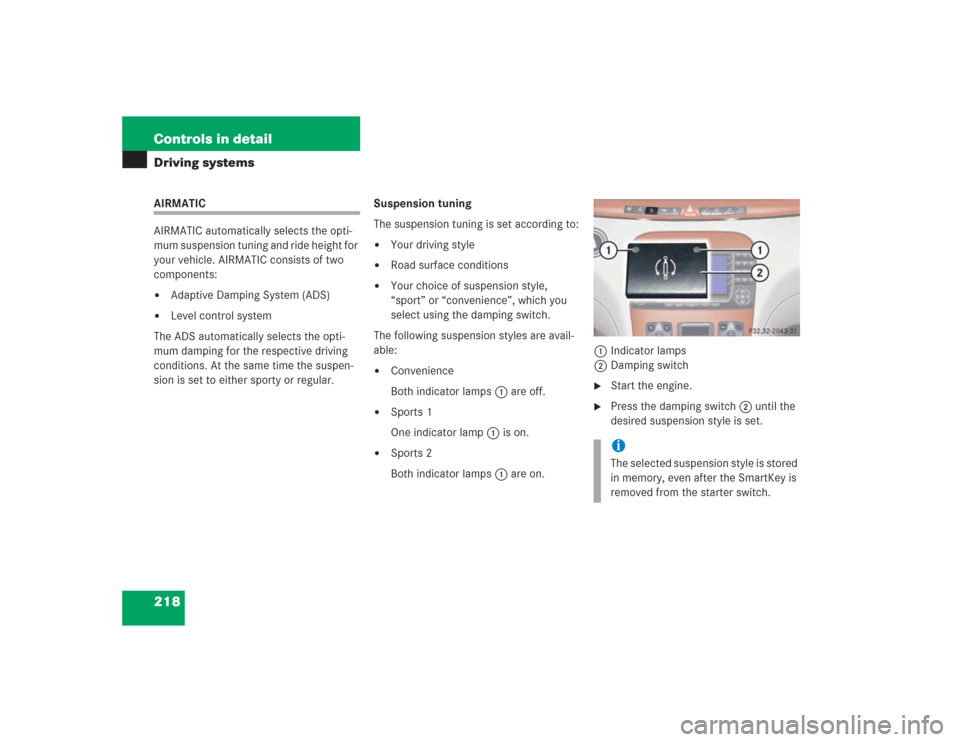

218 Controls in detailDriving systemsAIRMATIC
AIRMATIC automatically selects the opti-
mum suspension tuning and ride height for
your vehicle. AIRMATIC consists of two
components:

Adaptive Damping System (ADS)


Level control system
The ADS automatically selects the opti-
mum damping for the respective driving
conditions. At the same time the suspen-
sion is set to either sporty or regular.Suspension tuning
The suspension tuning is set according to:


Your driving style


Road surface conditions


Your choice of suspension style,
“sport” or “convenience”, which you
select using the damping switch.
The following suspension styles are avail-
able:


Convenience
Both indicator lamps1 are off.


Sports 1
One indicator lamp1 is on.


Sports 2
Both indicator lamps1 are on.1Indicator lamps
2Damping switch

Start the engine.

Press the damping switch2 until the
desired suspension style is set.iThe selected suspension style is stored
in memory, even after the SmartKey is
removed from the starter switch.

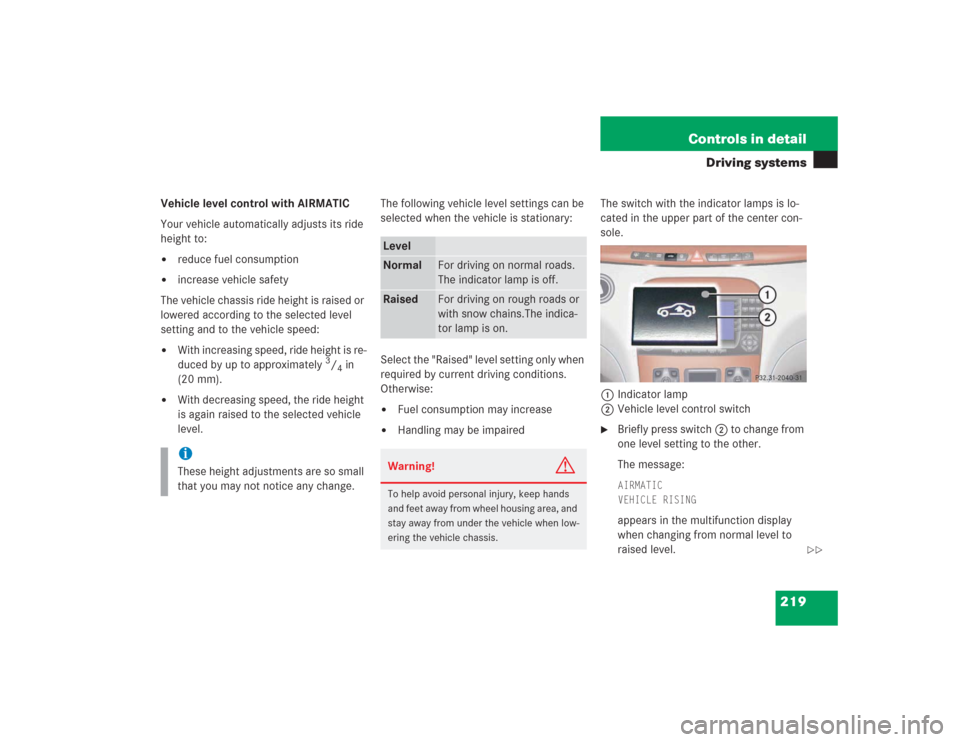

219 Controls in detail
Driving systems
Vehicle level control with AIRMATIC
Your vehicle automatically adjusts its ride
height to:

reduce fuel consumption


increase vehicle safety
The vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


With increasing speed, ride height is re-
duced by up to approximately
3/4in
(20 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.The following vehicle level settings can be
selected when the vehicle is stationary:
Select the "Raised" level setting only when
required by current driving conditions.
Otherwise:


Fuel consumption may increase


Handling may be impairedThe switch with the indicator lamps is lo-
cated in the upper part of the center con-
sole.
1Indicator lamp
2Vehicle level control switch

Briefly press switch2 to change from
one level setting to the other.
The message:AIRMATIC
VEHICLE RISING appears in the multifunction display
when changing from normal level to
raised level.
iThese height adjustments are so small
that you may not notice any change.
LevelNormal
For driving on normal roads.
The indicator lamp is off.
Raised
For driving on rough roads or
with snow chains.The indica-
tor lamp is on.
Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.

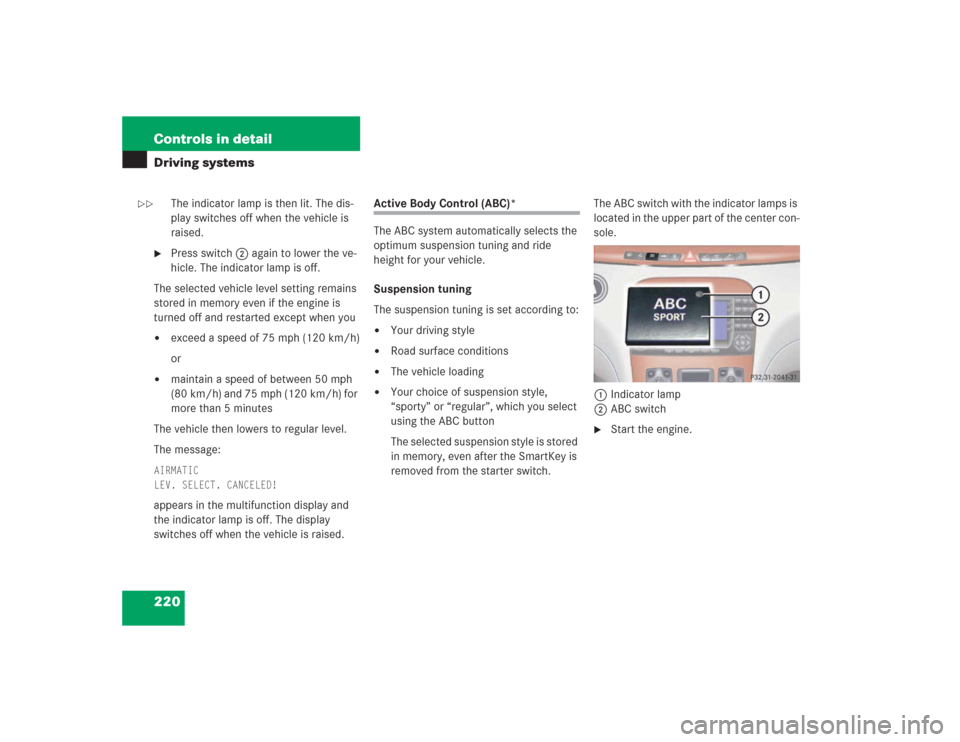

220 Controls in detailDriving systems
The indicator lamp is then lit. The dis-
play switches off when the vehicle is
raised.

Press switch2 again to lower the ve-
hicle. The indicator lamp is off.
The selected vehicle level setting remains
stored in memory even if the engine is
turned off and restarted except when you


exceed a speed of 75 mph (120 km/h)
or


maintain a speed of between 50 mph
(80 km/h) and 75 mph (120 km/h) for
more than 5 minutes
The vehicle then lowers to regular level.
The message:
AIRMATIC
LEV. SELECT. CANCELED!appears in the multifunction display and
the indicator lamp is off. The display
switches off when the vehicle is raised.
Active Body Control (ABC)*
The ABC system automatically selects the
optimum suspension tuning and ride
height for your vehicle.
Suspension tuning
The suspension tuning is set according to:

Your driving style


Road surface conditions


The vehicle loading


Your choice of suspension style,
“sporty” or “regular”, which you select
using the ABC button
The selected suspension style is stored
in memory, even after the SmartKey is
removed from the starter switch.The ABC switch with the indicator lamps is
located in the upper part of the center con-
sole.
1Indicator lamp
2ABC switch

Start the engine.

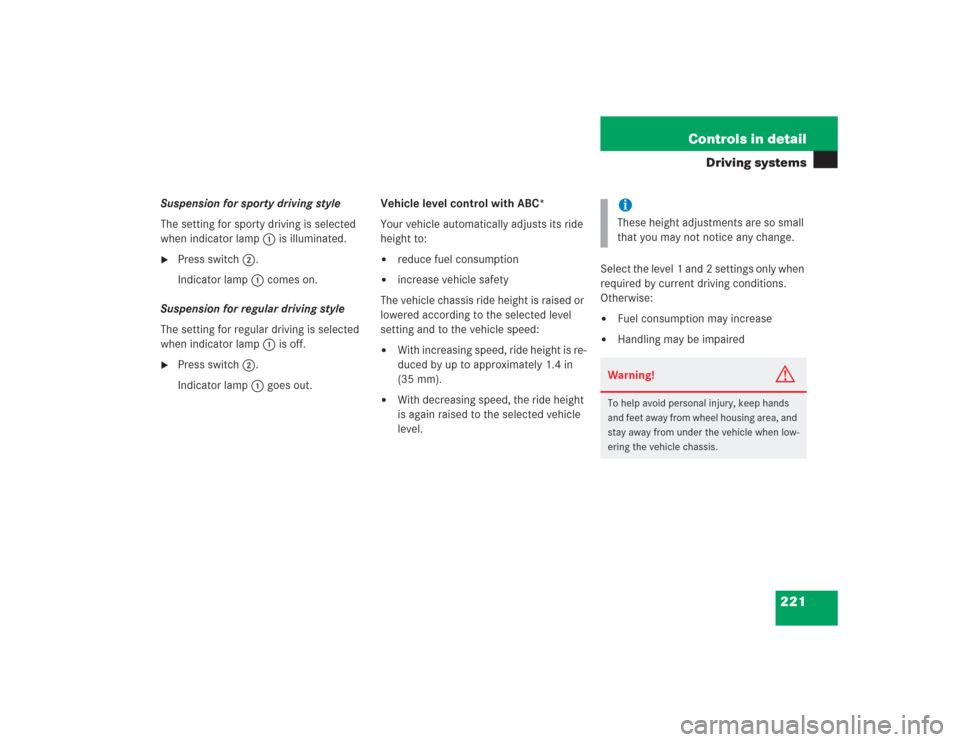

221 Controls in detail
Driving systems
Suspension for sporty driving style
The setting for sporty driving is selected
when indicator lamp1 is illuminated.
Press switch2.
Indicator lamp1 comes on.
Suspension for regular driving style
The setting for regular driving is selected
when indicator lamp1 is off.

Press switch2.
Indicator lamp1 goes out. Vehicle level control with ABC*
Your vehicle automatically adjusts its ride
height to:


reduce fuel consumption


increase vehicle safety
The vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


With increasing speed, ride height is re-
duced by up to approximately 1.4 in
(35 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.Select the level 1 and 2 settings only when
required by current driving conditions.
Otherwise:


Fuel consumption may increase


Handling may be impairediThese height adjustments are so small
that you may not notice any change.Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.

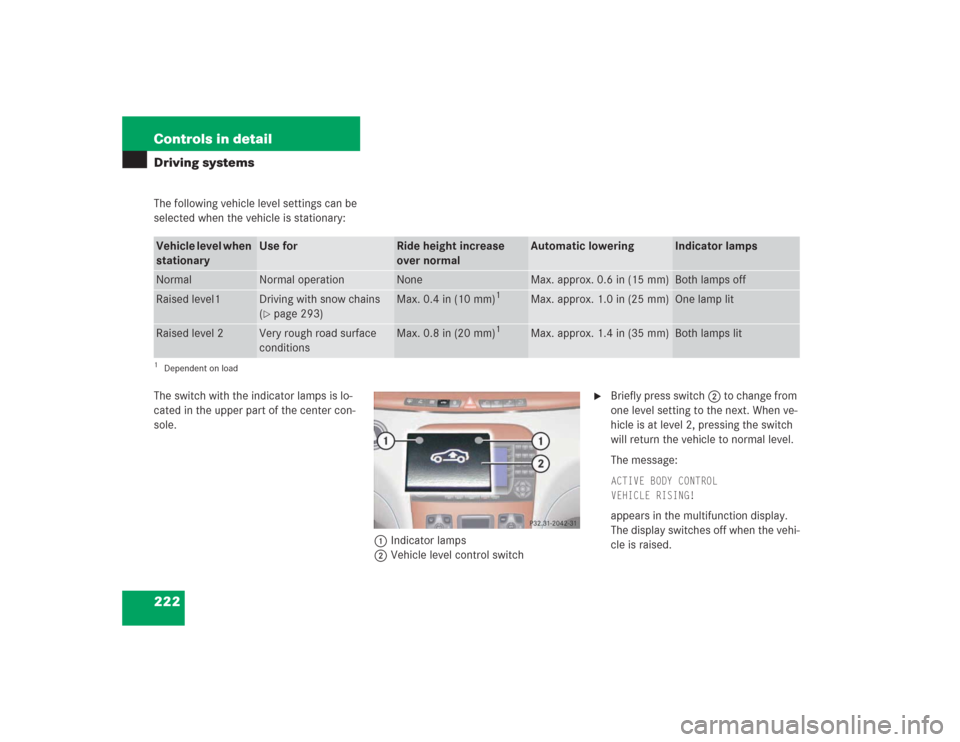

222 Controls in detailDriving systemsThe following vehicle level settings can be
selected when the vehicle is stationary:
The switch with the indicator lamps is lo-
cated in the upper part of the center con-
sole.
1Indicator lamps
2Vehicle level control switch

Briefly press switch2 to change from
one level setting to the next. When ve-
hicle is at level 2, pressing the switch
will return the vehicle to normal level.
The message:ACTIVE BODY CONTROL
VEHICLE RISING! appears in the multifunction display.
The display switches off when the vehi-
cle is raised.
Vehicle level when
stationary
Use for
Ride height increase
over normal
Automatic lowering
Indicator lamps
Normal
Normal operation
None
Max. approx. 0.6 in (15 mm)
Both lamps off
Raised level1
Driving with snow chains
(page 293)
Max. 0.4 in (10 mm)
1
1Dependent on load
Max. approx. 1.0 in (25 mm)
One lamp lit
Raised level 2
Very rough road surface
conditions
Max. 0.8 in (20 mm)
1
Max. approx. 1.4 in (35 mm)
Both lamps lit

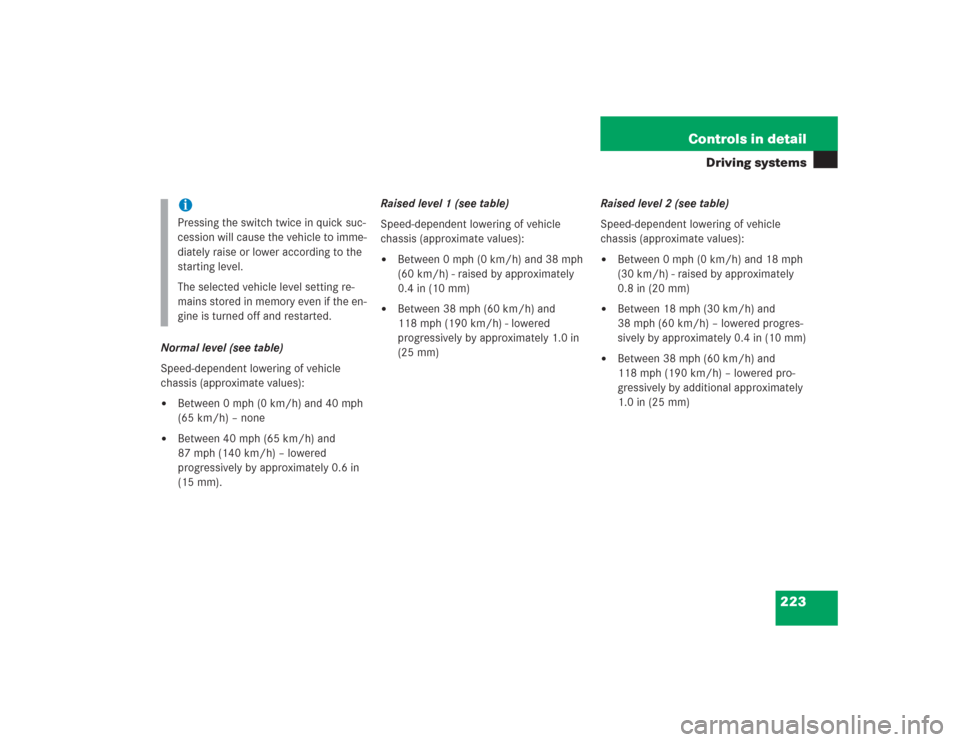

223 Controls in detail
Driving systems
Normal level (see table)
Speed-dependent lowering of vehicle
chassis (approximate values):

Between 0 mph (0 km/h) and 40 mph
(65 km/h) – none


Between 40 mph (65 km/h) and
87 mph (140 km/h) – lowered
progressively by approximately 0.6 in
(15 mm).Raised level 1 (see table)
Speed-dependent lowering of vehicle
chassis (approximate values):


Between 0 mph (0 km/h) and 38 mph
(60 km/h) - raised by approximately
0.4 in (10 mm)


Between 38 mph (60 km/h) and
118 mph (190 km/h) - lowered
progressively by approximately 1.0 in
(25 mm)Raised level 2 (see table)
Speed-dependent lowering of vehicle
chassis (approximate values):


Between 0 mph (0 km/h) and 18 mph
(30 km/h) - raised by approximately
0.8 in (20 mm)


Between 18 mph (30 km/h) and
38 mph (60 km/h) – lowered progres-
sively by approximately 0.4 in (10 mm)


Between 38 mph (60 km/h) and
118 mph (190 km/h) – lowered pro-
gressively by additional approximately
1.0 in (25 mm)
iPressing the switch twice in quick suc-
cession will cause the vehicle to imme-
diately raise or lower according to the
starting level.
The selected vehicle level setting re-
mains stored in memory even if the en-
gine is turned off and restarted.
