2004 MERCEDES-BENZ ML350 Owner's Manual

25 At a glance
Instrument cluster
Item
Page
1
Gauge for
Coolant tempera-
ture
117
Outside tempera-
ture
118
Fuel reserve
warning lamp
252
2
Knob for
Activating instru-
ment cluster
116
Adjusting intensity
of instrument lamps
116
Main odometer
117
Trip odometer
readout / reset
118
Activating Flexible
Service System
(FSS) indicator
232
Item
Page
3
Left indicator lamps
with:¿Brake Assist
System
(BAS) / Electronic
Stability Program
(ESP) malfunction
warning lamp
246
{Electronic Traction
System (4-ETS) mal-
function indicator
lamp
252
-Antilock Brake Sys-
tem (ABS) malfunc-
tion warning lamp
242
2Brake pad wear in-
dicator lamp
254
:Low engine oil level
warning lamp
253
Item
Page
/Low engine coolant
level warning lamp
249
êLow range indicator
lamp
252
?Engine malfunction
indicator lamp
248
4
Speedometer with:v4-ETS (Electronic
Traction
System)/Electronic
Stability Program
(ESP) warning lamp
251
Trip / main
odometer
117
Display for Flexible
Service System
(FSS)
232
Engine oil level indi-
cator
219

26 At a glanceInstrument cluster
Item
Page
5
Photo sensor
(adjusts the brightness of
the digital displays located
in 1, 4 and 8)
6
Right indicator lamps
with:WLow wind-
shield/headlamp
washer system fluid
level warning lamp
253
7Front passenger air-
bag switched off
243
‡Front fog lamp
switched on
111
Item
Page
_Steering wheel ad-
justment not locked
253
warning lamp
253
1Supplemental Re-
straint System
(SRS) indicator
lamp
255
ÉBrake warning lamp
244
#Charge indicator
lamp
254
AHigh beam head-
lamp indicator
49
Item
Page
7
Knob for setting clock
118
8
Tachometer with:
Display for Selector
lever position
121
Clock
118
9
KRight turn signal
indicator lamp
a
LLeft turn signal
indicator lamp

27 At a glance

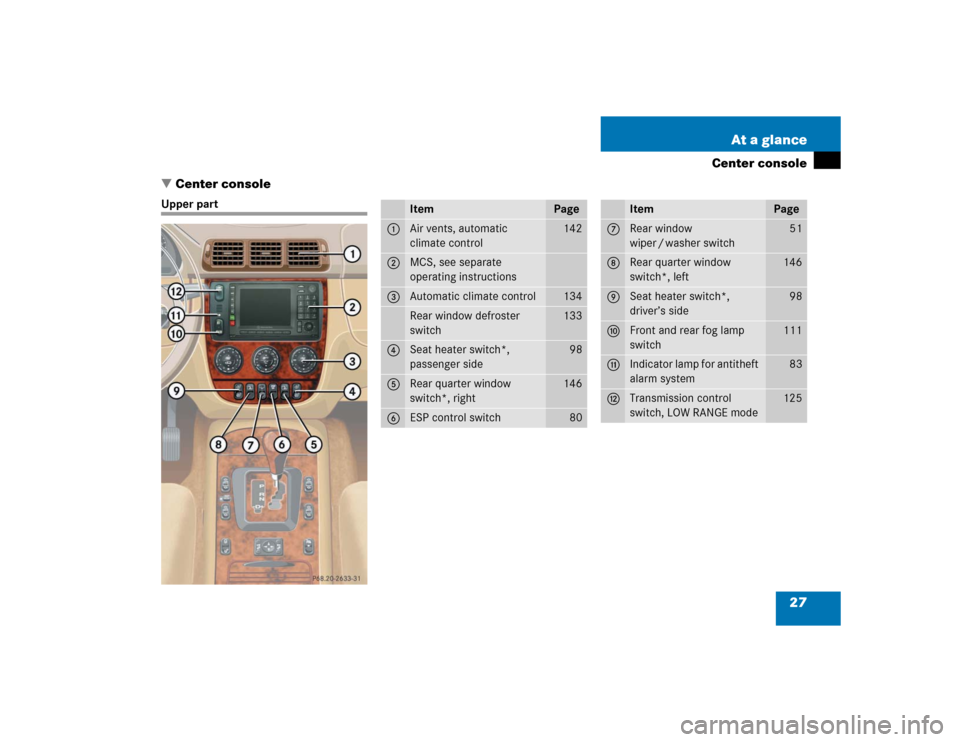

Center console
Center console
Upper part
Item
Page
1
Air vents, automatic
climate control
142
2
MCS, see separate
operating instructions
3
Automatic climate control
134
Rear window defroster
switch
133
4
Seat heater switch*,
passenger side
98
5
Rear quarter window
switch*, right
146
6
ESP control switch
80
Item
Page
7
Rear window
wiper / washer switch
51
8
Rear quarter window
switch*, left
146
9
Seat heater switch*,
driver’s side
98
a
Front and rear fog lamp
switch
111
b
Indicator lamp for antitheft
alarm system
83
c
Transmission control
switch, LOW RANGE mode
125

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray with cigarette
lighter
168
2
Gear selector lever for
automatic transmission
46
3
Power window switch, right
front door
144
4
Power window switch, right
rear door
144
5
Parktronic system*
deactivation switch
156
6
Storage compartment with
cup holder
166
Item
Page
7
Exterior rear view mirror
adjustment switch
40
Exterior rear view mirror
electrically folding*
128
8
Central locking switch
93
9
Power window switch, left
rear door
144
a
Switch for rear door win-
dow override
73
b
Power window switch, left
front door
144

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Front left interior lighting
112
2
Signal transmitter buttons
for garage door opener
180
3
Front right interior lighting
112
4
Roadside Assistance
button
175
Information button
177
5
Interior lighting control
112
6
Trip computer* display
186
7
Rear view mirror
126
Item
Page
8
Right reading lamp on / off
114
9
Automatic antiglare func-
tion* on / off
126
a
Left reading lamp on / off
114
b
Glass breakage sensor
84
c
Trip computer* control
186
Tow-away alarm switch
85
d
Tele Aid* (emergency call
system) button
171
e
Sliding / pop-up roof*
switch
148

30

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking

32 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.
Unlocking

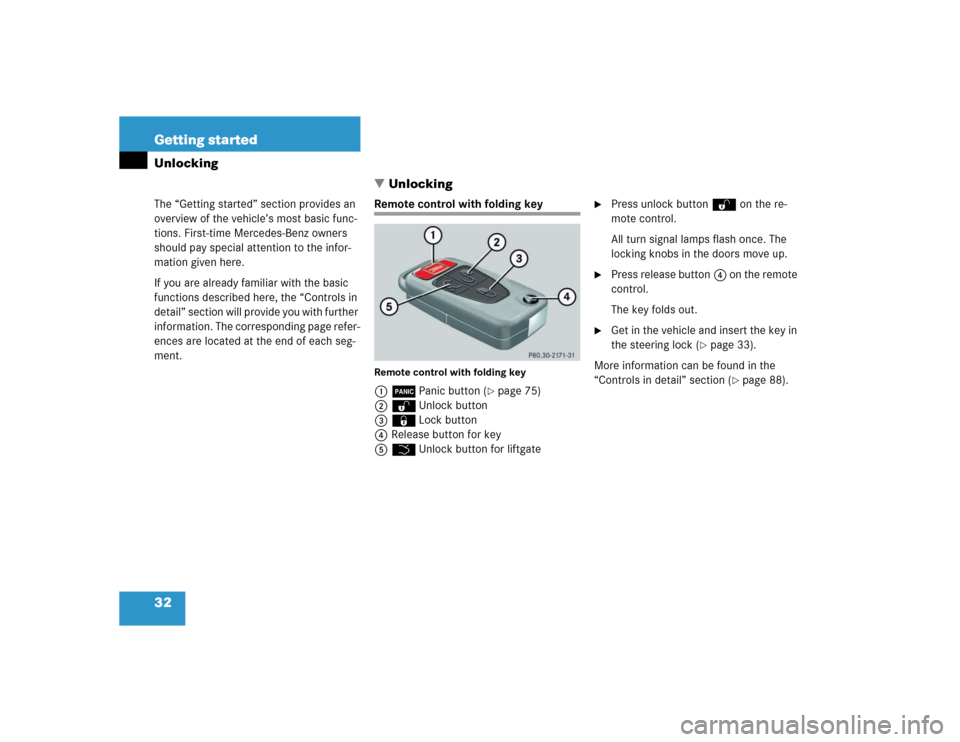

Remote control with folding keyRemote control with folding key1ÂPanic button (
page 75)
2ŒUnlock button
3‹Lock button
4Release button for key
5ŠUnlock button for liftgate

Press unlock buttonΠon the re-
mote control.
All turn signal lamps flash once. The
locking knobs in the doors move up.

Press release button4 on the remote
control.
The key folds out.

Get in the vehicle and insert the key in
the steering lock (
page 33).
More information can be found in the
“Controls in detail” section (
page 88).
