129 Controls in detail
Good visibility
Folding in
Briefly press button1 (
page 127).
The mirrors fold in.Folding out

Briefly press button2.
The mirrors fold out.
Windshield wipers
Information on the windshield wipers is
found in the “Getting started” section
(page 49).
!Before you drive the vehicle through an
automatic car wash, fold the exterior
mirrors in, otherwise they may get
damaged.iIf you are driving at more than approxi-
mately 9 mph (15 km / h), you will not
able to fold the exterior mirrors in.
!If an exterior rear view mirror housing
is forcibly pushed forward (hit from the
rear), reposition it manually by applying
firm pressure until it snaps back into
place.
If an exterior rear view mirror is forcibly
pushed rearward (hit from the front)
press button1 to fold mirrors in, then
press button2 to fold mirrors out. Do
not force mirrors by hand as this may
damage the adjustment mechanism.
The mirror housing is now properly po-
sitioned and you can adjust the mirror
normally.
!If leaves, snow, etc. block the wind-
shield wipers, the wiper motor turns
off.

For safety reasons, withdraw key
from steering lock. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch position1,


set the wiper switch to the next
highest wiper speed.


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center.

130 Controls in detailGood visibilityIntermittent wiping
Windshield wipers without rain sensor*
At speeds of approximately 105 mph
(170 km / h) the wiper switches automati-
cally to continuous wiping. Always obey lo-
cal speed limits.Windshield wipers with rain sensor*
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.

Switch on ignition.

Set the wiper switch to position1
(page 49).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor which monitors the wetness of
windshield.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
iWhen intermittent wiping is on and the
key is turned from position1 to
position2 in the steering lock
(page 33), and kept in that position
for longer than two seconds, the wipe
interval will be set to approximately
five seconds.
!Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.

131 Controls in detail
Good visibility
Headlamp cleaning system*
The button is located on the right side of
the dashboard.Headlamp washer button
Switch on ignition.

Briefly press the upper part of button.
The headlamps will be cleaned with a
high-pressure water jet.Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (
page 224).
Rear window wiper
The rear window wiper will also automati-
cally engage if the windshield wiper is en-
gaged and the gear selector lever is placed
in reverse.Rear window wiper with rain sensor*
Rear window wiper intervals are controlled
automatically according to the amount of
water on the windshield and the speed of
the vehicle, if:


rear window wiper is switched on


front windshield wipers are switched to
intermittent wiping
The interval for the rear window wiper re-
mains constant when the windshield wiper
interval is ten seconds or more.

132 Controls in detailGood visibilitySun visor
The sun visors protect you from sun glare
while driving.
1Mirror cover
2Mounting

Swing sun visors down when you expe-
rience glare.

To use mirror, lift cover1 up.Illuminated vanity mirrors

Turn the key in steering lock to
position1 (
page 33).

Lift cover up.
The lamp switches on.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting2 and pivot to the side.

133 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated
after approximately 6 to 17 minutes of
operation depending on the outside tem-
perature.
Activating
Switch ignition on.

Press buttonF (
page 135).
The indicator lamp on the button
comes on.
Deactivating

Press buttonF again.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

134 Controls in detailAutomatic climate control
Automatic climate control

135 Controls in detail
Automatic climate control

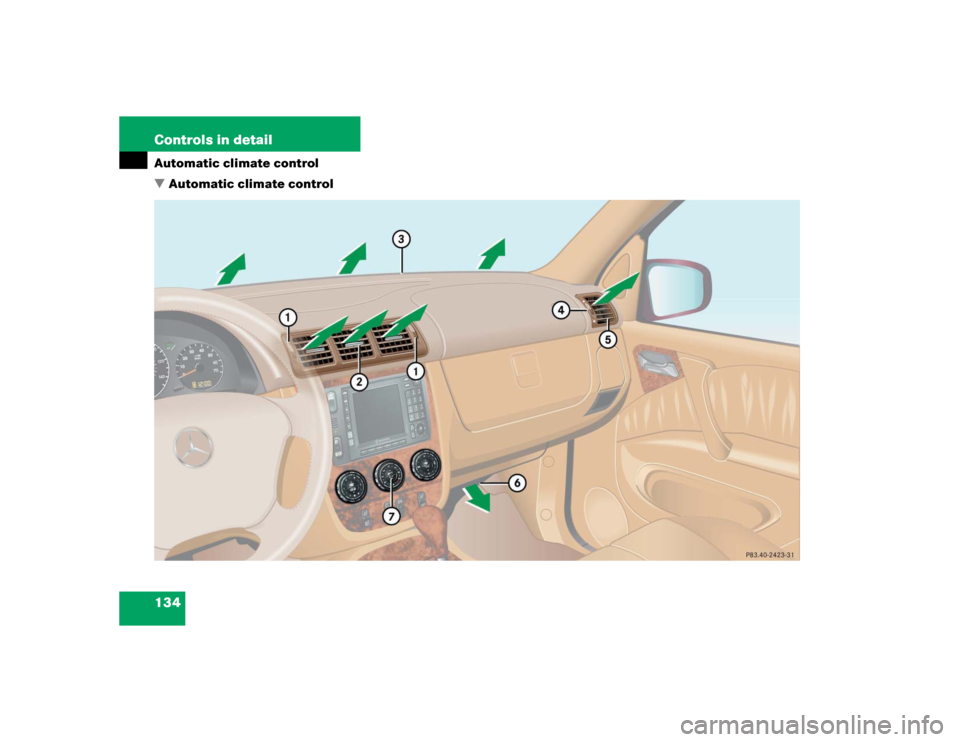

Automatic climate control panel in the front
Item
1
Thumbwheel for center air vent
2
Center air vent, adjustable
3
Defroster air vent windshield
4
Thumbwheels for side air vent
5
Side air vent, adjustable
6
Footwell air vent
7
Automatic climate control
Item
1
Air volume control
2
Defrosting
3
Air recirculation
4
Temperature control
5
Automatic control (temperature, air
distribution, air volume)
6
AC cooling on / off (AC
OFF
)
Residual heat / ventilation (REST)
7
Interior temperature sensor
8
Air distribution control
9
Rear window defroster
a
Rear passenger compartment venti-
lation on / off

136 Controls in detailAutomatic climate controlThe automatic climate control is operatio-
nal whenever the engine is running. You
can operate the climate control system in
either the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burns or frostbite on unprotected skin
in the immediate area of the air vents.
Always keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary, change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 138).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not touch the interior temperature
sensor to maintain a precise tempera-
ture.
The set value is indicated by a lighted
segment on the control wheels.
