2004 MERCEDES-BENZ ML350 Owner's Manual

161 Controls in detail
Loading
Removing partition net
Lift tensioner3 upward to a horizon-
tal position to release tensioning of the
strap.

Disengage tie-down hooks1 from
rings2.

Remove mounting hooks2
(page 159) from holder1
(page 159).

Roll up and close the partition net.

Store partition net behind rear seat
bench.
Cargo area cover blind*
1Handle
2Holder
Closing blind
Pull blind on handle1 across the car-
go area.

Guide blind into holders2.Opening blind

Disengage blind and guide retraction
by its handle.
Removing blind
3Button
4Mounting sleeve

Roll the blind up.

Push mounting sleeve4 inward
against spring pressure until it engag-
es.

Remove blind from mounts.
Warning!
G
Passenger use of third row seats with cargo
area cover blind installed is restricted.

162 Controls in detailLoadingInstalling blind
Place left side of blind in left mount.

Position right side of blind over right
mount.

Push button3, releasing mounting
sleeve to slide into mount.
Cargo floor plates
Removing cargo floor plates
Lift cargo floor plate at rear edge
(arrow).
Cargo floor plate unhinges automati-
cally.

Remove cargo floor plate by pulling it
rearwards.Storing cargo floor plates
1Hook and loop strip

Fold the left cargo floor plate together.

Open the hook and loop strip at the
bottom of backrest of the third row
seats* and insert cargo floor plate.

Close the hook and loop strip.
iBefore you can remove the cargo floor
plates, it is possible that the third row
seats* (
page 102) must be removed.

163 Controls in detail
Loading
Installing cargo floor plates
1Opening
2Pins
3Attachment opening
4Latch
Grip into opening1 and guide pins2
into attachment opening3.
The center pin must snap into place in
latch4.
Roof rack*Roof rails
For further information, inquire at your
Mercedes-Benz Light Truck Center.
Warning!
G
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
The maximum roof load when using roof
rack systems is 220 lbs (100 kg).
!Attach roof racks to the roof rails only.
Use only those roof racks approved by
Mercedes-Benz for your vehicle model.
Follow manufacturer’s installation in-
structions.
The vehicle could otherwise be dam-
aged.

164 Controls in detailUseful features
Useful featuresInterior storage spaces Glove box
1Glove box lid release
2Glove box lid
Opening the glove box

Grab in recess and pull lid release1.
The glove box lid2 opens downward.
Closing the glove box

Push glove box lid up to close.Storage compartment under front
passenger seat*
The storage compartment is lockable with
its separate key.
1Lock cylinder
2Handle
Locking and unlocking the storage com-
partment

Turn the key clockwise.
The storage compartment is locked.

Turn the key counterclockwise.
The storage compartment is unlocked.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Always use partition net when transporting
cargo. Partition net cannot secure hard or
heavy objects.
Parcel nets cannot secure hard or heavy ob-
jects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iThe opened glove box is illuminated
with the key in steering lock position1
(page 33).

165 Controls in detail
Useful features
Opening the storage compartment
Press the lock cylinder in and pull stor-
age compartment out using handle2.
Closing the storage compartment

Push the storage compartment in until
the lock engages.Armrest storage spaces
A flat storage tray with a deeper storage
compartment underneath is located below
the armrest. Both can be opened separate-
ly.
1Button to open storage tray
2Button to open storage compartment
3Open cover4Storage tray
5Coin holder
Opening the storage tray

Press button1 and lift up armrest.
The armrest contains two coin holders.
Opening the storage compartment

Press button2 and lift up armrest.

166 Controls in detailUseful featuresOpening the storage compartment in
front of armrest
Slide the cover3 rearward.
The storage compartment below con-
tains a cup holder (
page 167).
Cup holders Cup holder in instrument panel
A cup holder is located on both the right
and left side of the instrument panel.
Opening the cup holder

Briefly touch top of cover.
The cup holder opens automatically.
Closing the cup holder

Fold the cup holder upwards and press
on it until it engages.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle maneu-
vers.

167 Controls in detail
Useful features
Cup holder in front of armrest
Opening the cup holder
Slide cover rearward (
page 166).

Fold the cup holder forward.
Closing the cup holder

Fold the cup holder backward.

Slide cover forward.Cup holder in rear center console
Opening the cup holder

Briefly touch the cover.
The cup holder opens automatically.
Closing the cup holder

Press the cup holder forward and press
on it until it engages.
Armrest in rear seat bench
Pull the armrest down by its top.
!Close the cup holder before folding the
rear seat bench.

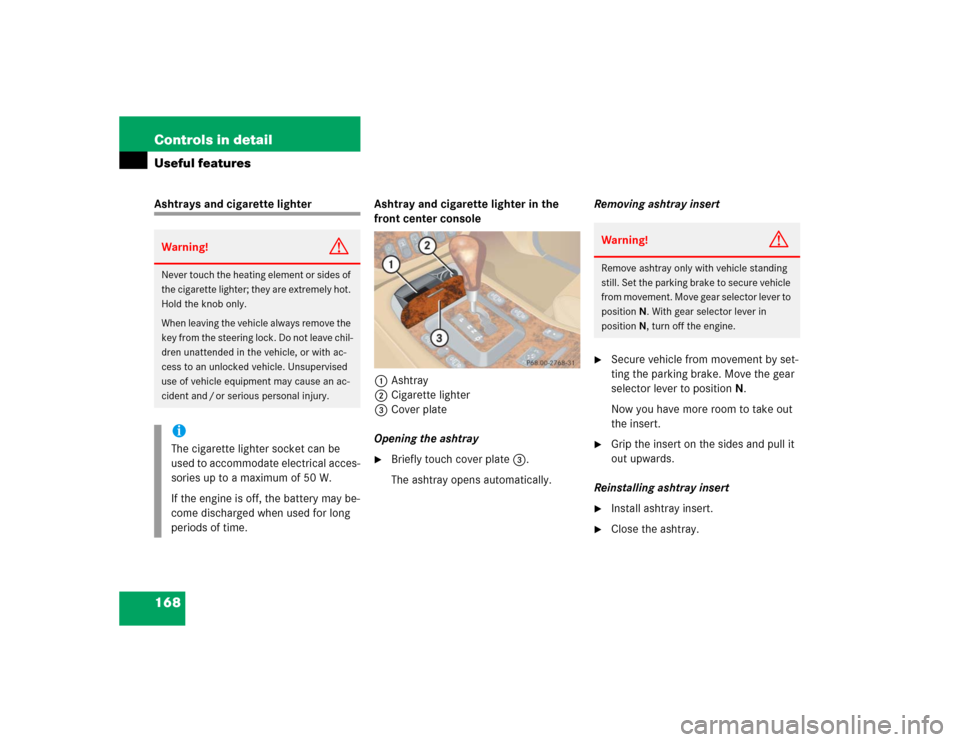

168 Controls in detailUseful featuresAshtrays and cigarette lighter Ashtray and cigarette lighter in the
front center console
1Ashtray
2Cigarette lighter
3Cover plate
Opening the ashtray

Briefly touch cover plate3.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the gear
selector lever to positionN.
Now you have more room to take out
the insert.

Grip the insert on the sides and pull it
out upwards.
Reinstalling ashtray insert

Install ashtray insert.

Close the ashtray.
Warning!
G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
When leaving the vehicle always remove the
key from the steering lock. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and / or serious personal injury.iThe cigarette lighter socket can be
used to accommodate electrical acces-
sories up to a maximum of 50 W.
If the engine is off, the battery may be-
come discharged when used for long
periods of time.
Warning!
G
Remove ashtray only with vehicle standing
still. Set the parking brake to secure vehicle
from movement. Move gear selector lever to
positionN. With gear selector lever in
positionN, turn off the engine.
