2004 Lexus GX470 Engine / LEXUS 2004 GX470 FROM JAN. 2004 THROUGH JUL. 2004 PROD. OWNER'S MANUAL (OM60A87U)

ELECTRICAL COMPONENTS
589
33ABSSOL50
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
34ALT-S7.5Charging system
35MAYDAY7.5Lexus link system
36HORN10Horns
37TRN-HAZ15Turn signal lights
38ETCS10Electronic throttle control system
39EFI20Multiport fuel injection
system/sequential multiport fuel
injection system
40D FR P/W20Power window
41DR/LCK25Power door lock
42TOWING30Towing converter
43RADIO NO.230Car audio system, navigation
system
No.FUSEAMPERECIRCUIT
44IGN10
Multiport fuel injection
system/sequential multiport fuel
injection system, vehicle
stability control system
45SRS10SRS airbag system
46GAUGE7.5Gauges and meters
47ST27.5Multiport fuel injection
system/sequential multiport fuel
injection system

ELECTRICAL COMPONENTS
590
48FR
WIP-WSH30Windshield wipers, windshield
washer
49TEMS20Electronic modulated
suspension
50DIFF20Four-wheel drive system
51RR WIP15Rear window wiper
52D P/SEAT30Driver's power seat
53P P/SEAT30Front passenger's power seat
54PWR
OUTLET15Power outlet (12 VDC)
55IG1 NO.210Rear air conditioning system,
inside rear view mirror, kinetic
dynamic suspension system
56RR WSH15Rear window washer
No.FUSEAMPERECIRCUIT
57ECU-IG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti-lock brake
system, active traction control
system, vehicle stability control
system, air conditioning system,
navigation system, power
windows, moon roof, Lexus link
system, tilt and telescopic
steering, multi- information
display, driving position
memory system, rear view
monitor system, tire pressure
warning system

ELECTRICAL COMPONENTS
591
58IG110
Air conditioning system, back-up
lights, rear window defogger,
seat heaters, vehicle stability
control system
59STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
60P FR P/W20Front passenger's power window
61P RR P/W20Rear right side power window
62D RR P/W20Rear left side power window
63PANEL10Instrument panel lights
No.FUSEAMPERECIRCUIT
64TAIL10Parking lights, tail lights, license
plate lights, front fog lights
65ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, car audio system,
navigation system, power rear
view mirrors, multi- information
display, rear view monitor
system
66CIG10Cigarette lighter
67POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering

ELECTRICAL COMPONENTS
592
CHECKING BATTERY CONDITION
Precautions

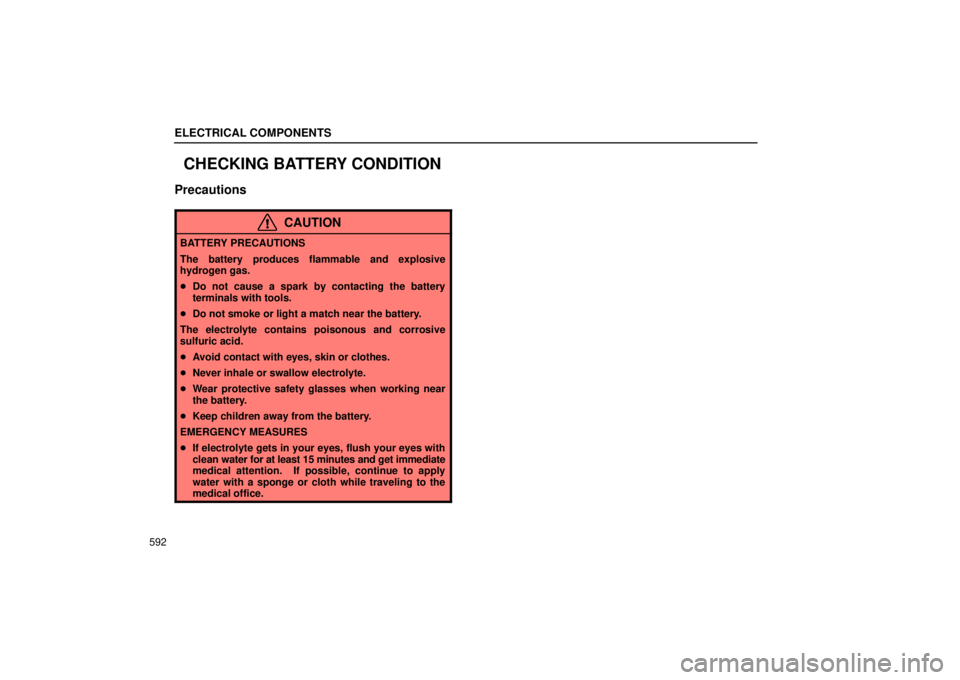

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at l east 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.

ELECTRICAL COMPONENTS
593
If electrolyte gets on your skin, thoroughly wash the
contacted area. If you feel a pain or burn, get medical
attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.
 If you accidentally to swallow electrolyte, drink a
large quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go
immediately for emergency help.

ELECTRICAL COMPONENTS
594
Checking battery exterior
1Terminals2Hold-down clamp
Check the battery for corroded or loose connections,
cracks, or loose hold-down clamps.
1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts Ð but
do not overtighten.
3. Tighten the hold-down clamp only enough to keep the
battery firmly in place. Overtightening may damage the battery
case.

ELECTRICAL COMPONENTS
595
NOTICE
Make sure the engine and all accessories are turnedoff before performing maintenance.
When checking the battery, remove the ground cable
first and reinstall it last.
Be careful not to cause a short circuit with tools.
Take care no solution gets into the battery when washing it.
If the battery is disconnected or run down
The power windows and moon roof may not operate
automatically and the jam protection function will not function
correctly after you reconnect, replace or recharge the battery.
In any of these cases, you should normalize the power
windows and moon roof. To normalize the power windows and
moon roof, see pages 50 and 107.
Checking battery condition
Check the battery condition by the indicator color.
1BLUE Ð Good condition.
2WHITE Ð Charging necessary. Have the battery
checked by your Lexus dealer.
3RED Ð Have the battery checked by your Lexus dealer.

ELECTRICAL COMPONENTS
596
NOTICE
Do not refill the battery with water.
