OCCUPANT RESTRAINT SYSTEMS
165
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
RSCA OFFº indicator light, interconnecting wiring and power
sources. (For details, see Service reminder indicators and
warning buzzersº on page 52 for instructions.) If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

When the ignition key is turned to the ONº position, the light
does not come on, remains on or flashes.
 The light comes on or starts flashing while driving.
If the light stays on, it indicates that the SRS front airbags have
a problem. If the light flashes, the SRS side and curtain shield
airbags have a problem.

OCCUPANT RESTRAINT SYSTEMS
166
16PY156
In the following cases, contact your Lexus dealer as soon as
possible:
The SRS front airbags have been inflated.
 The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS front airbags to inflate.

OCCUPANT RESTRAINT SYSTEMS
167

The pad section of the steering wheel or front passenger
airbag cover (shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
168
SRS SIDE AIRBAGS AND CURTAINSHIELD AIRBAGS
The SRS (Supplemental Restraint System) side airbags
and curtain shield airbags are designed to provide further
protection for the driver, front passenger and rear outside
passengers in addition to the primary safety protection
provided by the seat belts.
In response to a severe side impact, the SRS side airbags and
curtain shield airbags work with the seat belts to help reduce
injury by inflating. The SRS side airbags help reduce injuries
mainly to the driver's or front passenger's torso and the SRS
curtain shield airbags help reduce injuries mainly to the
driver's, front passenger's or rear outside passenger's head. Roll sensing function:
In response to a vehicle rollover, the curtain shield airbags on
both sides work with the seat belts to help reduce injury by
inflating. The
curtain shield airbags help reduce injuries mainly
to the driver's, front passenger's or second passenger's head
and help prevent them from being thrown out of the vehicle.
(This function can be turned off if inflation is not desired. See
Roll sensing of curtain shield airbags off switchº on page 183.)
The SRS side airbag and curtain shield airbag on the
passenger side are activated even with no passenger in the
front seat or second outside seat.
The curtain shield airbags may activate even when the side
airbags are not activated.
Always wear your seat belt properly.
Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver and front passenger when the SRS side
airbags are inflated.

OCCUPANT RESTRAINT SYSTEMS
169

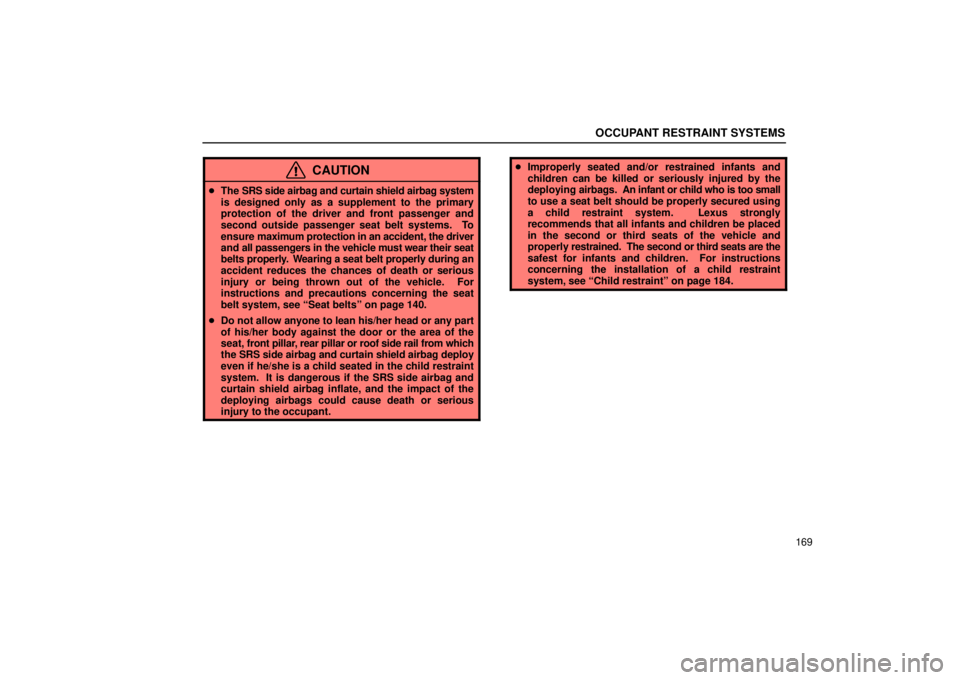

CAUTION
The SRS side airbag and curtain shield airbag system
is designed only as a supplement to the primary
protection of the driver and front passenger and
second outside passenger seat belt systems. To
ensure maximum protection in an accident, the driver
and all passengers in the vehicle must wear their seat
belts properly. Wearing a seat belt properly during an
accident reduces the chances of death or serious
injury or being thrown out of the vehicle. For
instructions and precautions concerning the seat
belt system, see Seat beltsº on page 140.
 Do not allow anyone to lean his/her head or any part
of his/her body against the door or the area of the
seat, front pillar, rear pillar or roof side rail from which
the SRS side airbag and curtain shield airbag deploy
even if he/she is a child seated in the child restraint
system. It is dangerous if the SRS side airbag and
curtain shield airbag inflate, and the impact of the
deploying airbags could cause death or serious
injury to the occupant.
 Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying ai rbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly
recommends that all infants and children be placed
in the second or third seats of the vehicle and
properly restrained. The second or third seats are the
safest for infants and children. For instructions
concerning the installation of a child restraint
system, see Child restraintº on page 184.

OCCUPANT RESTRAINT SYSTEMS
170

1Collision from the side to the vehicle body otherthan the passenger compartment
2Collision from the side at an angle
The SRS side airbag and curtain shield airbag system may
not activate if the vehicle is subjected to a collision from
the side at certain angles, or a collision to the side of the
vehicle body other than the passenger compartment as
shown in the illustration.
The SRS side airbags are designed to inflate when the
passenger com partment area suffers a severe impact from the
side.
The curtain shield airbags are designed to inflate when the
passenger com partment area suffers a severe impact from the
side or vehicle rollover.
Always wear your seat belts properly.

1Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags are not designed to inflate if the
vehicle is involved in a front or rear collision, if it rolls over,
or if it is involved in a low-speed side collision.

OCCUPANT RESTRAINT SYSTEMS
171

1The angle of vehicle tip-up is marginal
2Skidding vehicle hitting a curb stone
The curtain shield airbags may inflate if the angle of
vehicle tip-up is marginal or if the skidding vehicle's tires
hit a curb stone laterally as shown in the illustration.

1Collision from the front
2Collision from the rear
3Pitching end over end
The curtain shield airbags are not designed to inflate if the
vehicle is involved in a front or rear collision, if it pitches
end over end, or if it is involved in a low-speed side
collision.

OCCUPANT RESTRAINT SYSTEMS
172

1Hitting a curb, edge of pavement or hard surface
2Falling into or jumping over a deep hole
3Landing hard or vehicle falling
The SRS side and curtain shield airbags may deploy if a
serious impact occurs to the underside of your vehicle.
Some examples are shown in the illustration.
16PY169
