7A2-40 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)

Condition 2 ("Short"):
When the TCM detects 2 times or more signals o
f
range sensor more than 0.025 sec at following
conditions.

Vehicle speed is more than 19 mph.
 Engine speed is more than 1500 rpm.
Action Taken When The DTC Sets

No 3rd start mode.
 No slope control.

The TCM judges always D range position of range
sensor at "Condition 1".

The TCM judges the position of range sensor with
following priority at "Condition 2".

There is a priority in order of D, 3, 2, L, R, N, and P.

Check Trans ON.

DTC stored.
Conditions For Clearing The DTC

The DTC can be cleared from the TCM history by
using a scan tool.
 The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.

After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

Diagnostic Aids

Inspect the wiring for poor electrical connection at
the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed wire
that could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.

When diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.
 Check range sensor for proper mounting and
adjustment.

TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-43

DTC P0712 (FLASHING CODE 15) Transmission Oil Temperature Sensor
Circuit Low Input

RTW37AMF000201
Circuit Description
The oil temperature sensor is a thermistor sensor that
is installed in the transmission case and converts
temperature changes into continuous electric signals,
then outputs them to the Transmission Control Module
(TCM). When the ATF temperature is low, the
resistance of the sensor (thermistor) goes up, so that
the voltage of the TCM signal becomes high.
As the ATF is gradually warmed, the resistance of the
sensor goes down and the voltage becomes low. At the
normal operating ATF temperature (80

C/176

F) of the
transmission, the voltage of the TCM is about 3.7V.
Condition for setting the DTC

The TCM detects following "Condition" for 5 min
continuously.
Condition ("Short"):

Oil temperature is more than 220

C (428

F).

Action Taken When The DTC Sets

The TCM judges oil temperature is 100

C (212

F).
 Check Trans ON.

DTC stored.
Conditions For Clearing The DTC

The DTC can be cleared from the TCM history by
using a scan tool.
 The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.

After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

7A2-46 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)

DTC P0713 (FLASHING CODE 16) Transmission Oil Temperature Sensor
Circuit Hight Input

RTW37AMF000201
Circuit Description
The oil temperature sensor is a thermistor sensor that
is installed in the transmission case and converts
temperature changes into continuous electric signals,
then outputs them to the Transmission Control Module
(TCM). When the ATF temperature is low, the
resistance of the sensor (thermistor) goes up, so that
the voltage of the TCM signal becomes high.
As the ATF is gradually warmed, the resistance of the
sensor goes down and the voltage becomes low. At the
normal operating ATF temperature (80

C/176

F) of the
transmission, the voltage of the TCM is about 3.7V.
Condition for setting the DTC

The TCM detects following "Condition" for 15 min
from ignition ON.
Condition ("Open"):

Fluctuation of high temperature fixed value is
2.3

C (36

F).
 Fluctuation of low temperature fixed value is -10

C
(14
F).
Action Taken When The DTC Sets

The TCM judges oil temperature is 100

C (212

F).

Check Trans ON.
 DTC stored.
Conditions For Clearing The DTC

The DTC can be cleared from the TCM history by
using a scan tool.

The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.

After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4  (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

7A2-50 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)

 The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.

After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids

Inspect the wiring for poor electrical connection at
the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed wire
that could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.

When diagnosing for a possible intermittent shorto
r
open condition, move the wiring harness while
observing test equipment for a change.
 Check input speed sensor for proper mounting and
adjustment.


DTC P0717 (FLASHING CODE 14) Input Speed Sensor Signal Error


Step Action Value(s) YES NO
1
Was the powertrain On-Board Diagnostic (OBD)
System check performed ? — Go to Step 2 Go to OBD
system check
2

1. Install the scan tool.

2. Key “ON".
3. Review and record scan tool data

4. Operate the vehicle with in scan tool data.
Does the scan tool indicator DTC0717 ? — Go to Step 3 Refer to
Diagnostic Aids
3 Measure voltage of the input revolution sensor by the
J39200 DMM.

1. Key “ON".
2. Engine run.

3. Disconnect the input revolution sensor connector .

4. Measure the voltage between terminal the input
revolution sensor connector E80-1 and E80-2.
Does the scan tool indicate less than specified
value ? 3V Refer to
Diagnostic Aids Go to Step 4

TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-53

 The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.

After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids

Inspect the wiring for poor electrical connection at
the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed wire
that could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.

When diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.
 Check output speed sensor for proper mounting and
adjustment.


DTC P0722 (FLASHING CODE 11) Output Speed Sensor Signal Error


Step Action Value(s) YES NO
1
Was the powertrain On-Board Diagnostic (OBD)
System check performed ? — Go to Step 2 Go to OBD
system check
2

1. Install the scan tool.

2. Key “ON".
3. Review and record scan tool data

4. Operate the vehicle with in scan tool data.
Does the scan tool indicator DTC 0722 ? — Go to Step 3 Refer to
Diagnotic Aids
3 Measure the voltage of the output revolution sensor
by the J39200 DMM.

1. Key “OFF"
2. Lift the driving wheels.

3. Disconnect the output revolution sensor connector.

4. With engine idling in gear.
5. Measure the voltage between the output revolution
sensor connector terminal E81-1 and E81-2.
Does the scan tool indicate less than specified
value ? 3V Refer to
Diagnostic Aids Go to Step 4

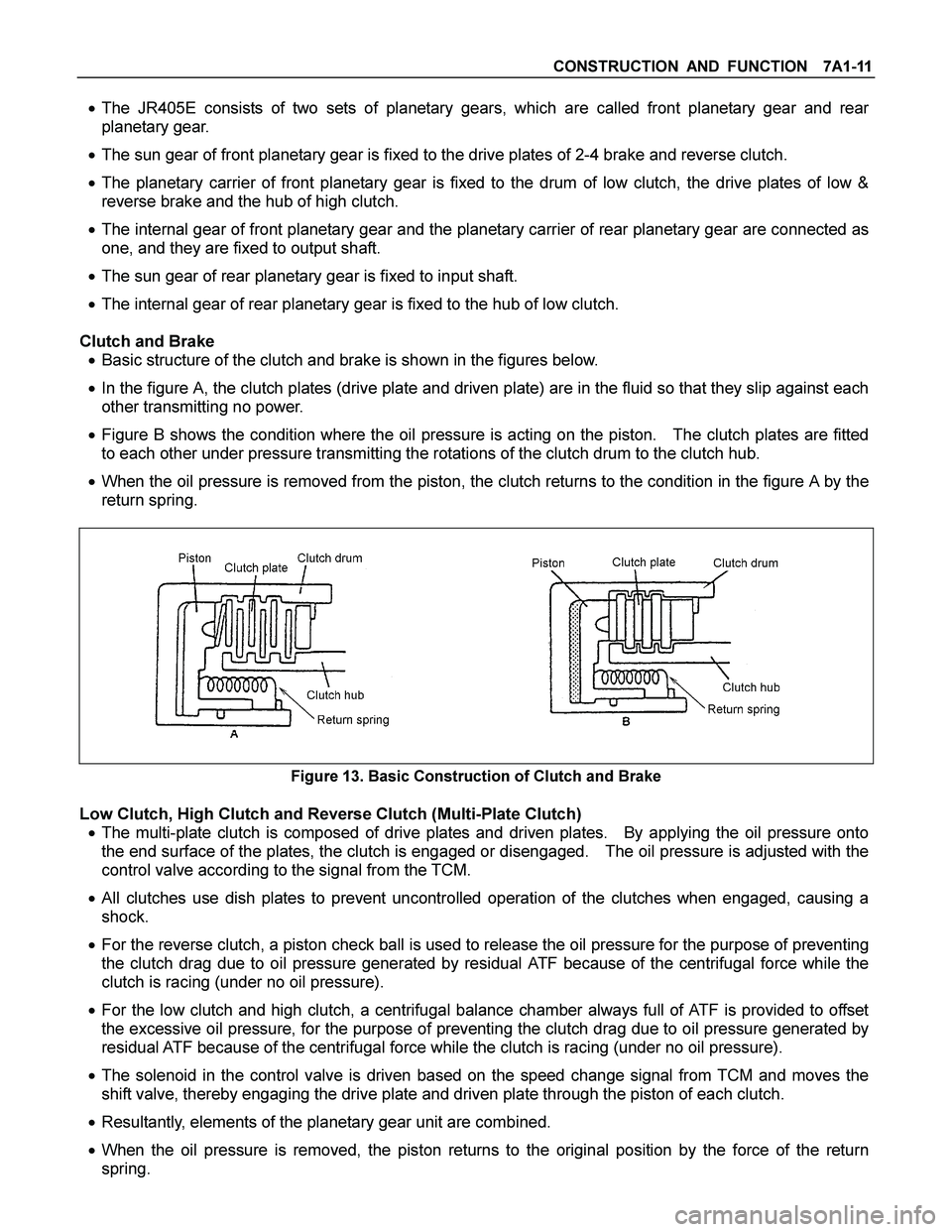

CONSTRUCTION AND FUNCTION 7A1-11


The JR405E consists of two sets of planetary gears, which are called front planetary gear and rear
planetary gear.

The sun gear of front planetary gear is fixed to the drive plates of 2-4 brake and reverse clutch.

The planetary carrier of front planetary gear is fixed to the drum of low clutch, the drive plates of low &
reverse brake and the hub of high clutch.

The internal gear of front planetary gear and the planetary carrier of rear planetary gear are connected as
one, and they are fixed to output shaft.

The sun gear of rear planetary gear is fixed to input shaft.

The internal gear of rear planetary gear is fixed to the hub of low clutch.

Clutch and Brake

Basic structure of the clutch and brake is shown in the figures below.

In the figure A, the clutch plates (drive plate and driven plate) are in the fluid so that they slip against each
other transmitting no power.

Figure B shows the condition where the oil pressure is acting on the piston. The clutch plates are fitted
to each other under pressure transmitting the rotations of the clutch drum to the clutch hub.

When the oil pressure is removed from the piston, the clutch returns to the condition in the figure A by the
return spring.


Figure 13. Basic Construction of Clutch and Brake

Low Clutch, High Clutch and Reverse Clutch (Multi-Plate Clutch)

The multi-plate clutch is composed of drive plates and driven plates. By applying the oil pressure onto
the end surface of the plates, the clutch is engaged or disengaged. The oil pressure is adjusted with the
control valve according to the signal from the TCM.

All clutches use dish plates to prevent uncontrolled operation of the clutches when engaged, causing a
shock.

For the reverse clutch, a piston check ball is used to release the oil pressure for the purpose of preventing
the clutch drag due to oil pressure generated by residual ATF because of the centrifugal force while the
clutch is racing (under no oil pressure).

For the low clutch and high clutch, a centrifugal balance chamber always full of ATF is provided to offset
the excessive oil pressure, for the purpose of preventing the clutch drag due to oil pressure generated by
residual ATF because of the centrifugal force while the clutch is racing (under no oil pressure).

The solenoid in the control valve is driven based on the speed change signal from TCM and moves the
shift valve, thereby engaging the drive plate and driven plate through the piston of each clutch.

Resultantly, elements of the planetary gear unit are combined.

When the oil pressure is removed, the piston returns to the original position by the force of the return
spring.

CONSTRUCTION AND FUNCTION 7A1-13

2-4 Brake and Low & Reverse Brake (Multi-Plate Brake)

The multi-plate brake is composed of drive plates and driven plates. By applying the oil pressure onto
the end surface of the plates, the clutch is engaged or disengaged. The oil pressure is adjusted with the
control valve according to the signal from the TCM.

All brakes use dish plates to prevent uncontrolled operation of the clutches when engaged, causing a
shock.

The solenoid in the control valve is driven based on the speed change signal from TCM and moves the
shift valve, thereby engaging the drive plate and driven plate through the piston of each clutch.

Resultantly, rotation of each element of the planetary gear unit is fixed.

When the oil pressure is removed, the piston returns to the original position by the force of the return
spring.




Figure 19. Construction of 2-4 Brake
Figure 20. Construction of Low & Reverse Brake

Low One-way Clutch

The low one-way clutch employs the sprag which locks the counterclockwise rotation of the front planetary
carrier and rear internal gear.

The one-way clutch outer race is fitted with the low clutch drum and the inner race with the transmission
case.

The outer race rotates freely clockwise but, when it attempts to rotate counterclockwise, the sprag
functions to lock the outer race.

When the vehicle is traveling in 1st gear in the D, 3 or 2range, the low one-way clutch locks the rear
internal gear via the low clutch. It is left free in the 2nd, 3rd or 4th gear position.


Figure 21. Construction of Low One-way Clutch

CONSTRUCTION AND FUNCTION 7A1-15

Line Pressure Solenoid

The line pressure solenoid is turned ON or OFF according to the signal from the TCM. It switches the
line pressure between high and low pressure.

While no power is supplied, the solenoid supplies high pressure.

Shift Solenoid

The shift solenoid is of the duty cycle type which are turned ON or OFF at 50Hz. The ratio of the ON and
OFF time can be freely controlled in the range of 0 - 100%.

While no power is supplied, the solenoid supplies output pressure.

The low clutch solenoid adjusts the low clutch pressure, the high clutch solenoid the high clutch pressure,
the 2-4 brake solenoid the 2-4 brake pressure and the low & reverse brake solenoid the low & reverse
brake pressure respectively.

Lock-up Solenoid

The lock-up solenoid is of the duty cycle type which is turned ON or OFF at 50Hz. The ratio of ON and
OFF time can be freely controlled in the range of 0-100%.

While no power is supplied, the solenoid drains the output pressure.




Figure 23. Shift Solenoid Figure 24. Lock-up Solenoid

Figure 25. Location of Solenoid
