2004 ISUZU TF SERIES oil type

6E-310 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) U2104 (FLASH CODE 67) CAN BUS
RESET COUNTER OVER-RUN



RTW46EMF000301
Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
67 U2104 D CAN BUS Reset
Counter Overrun 1. No DTC CAN BUS Off.
2. CAN valid counter does not change for 2 seconds. Torque reduction control is disable.

CIRCUIT DESCRIPTION
The engine control system in 6VE1 uses high speed
CAN bus system. The individual CAN bus systems are
connected via two interfaces and can exchange
information and data. This allows control modules tha
t
are connected to different CAN bus systems to
communicate. Engine control modules (ECM) in the
vehicle that require continuous, rapid communication
are connected to the high speed CAN bus. The engine
is continuously notified of the current engine load
status. Since the ECM has to react immediately to load
status changes, rapid communication is required
between the ECM and the automatic transmission
control module. The high speed CAN bus in the 6VE1 is
designed as a two-wire CAN bus (twisted pair). The
wires are shielded and twisted. The engine rate is 500
K
band.

DIAGNOSTIC AIDS
 Inspect the wiring for poor electrical connection at the
ECM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire tha
t
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.
 When diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.
 Inspect the wiring for EMI (Erectro-Magnetic
Interference). Check that all wires are properly routed
away from coil, and generator. Also check fo
r
improperly installed electrical options. When this test
is performed, turn “OFF" on electronic auto parts
switches to improperly for a noise preventing.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-329
SYMPTOM DIAGNOSIS
PRELIMINARY CHECKS
Before using this section, perform the "On-Board
Diagnostic (OBD) System Check" and verify all of the
following items:

The engine control module (ECM) and check engine
lamp (MIL=malfunction indicator lamp) are operating
correctly.

There are no Diagnostic Trouble Code(s) stored.

Tech 2 data is within normal operating range. Refer
to Typical Scan Data Values.

Verify the customer complaint and locate the correct
symptom in the table of contents. Perform the
procedure included in the symptom chart.

VISUAL/PHYSICAL CHECK
Several of the symptom procedures call for a careful
visual/physical check. This can lead to correcting a
problem without further checks and can save valuable
time. This check should include the following items:

ECM grounds for cleanliness, tightness and proper
location.

Vacuum hoses for splits, kinks, and proper
connection. Check thoroughly for any type of leak or
restriction.

Air intake ducts for collapsed or damaged areas.

Air leaks at throttle body mounting area, manifold
absolute pressure (MAP) sensor and intake manifold
sealing surfaces.

Ignition wires for cracking, harness, and carbon
tracking.

Wiring for proper connections, pinches and cuts.

INTERMITTENT
Important: An intermittent problem may or may not turn
on the check engine lamp (MIL=malfunction indicato
r
lamp) or store a Diagnostic Trouble Code. Do NOT use
the Diagnostic Trouble Code (DTC) charts fo
r
intermittent problems.
The fault must be present to locate the problem.
Most intermittent problems are cased by faulty electrical
connections or wiring. Perform a careful visual/physical
check for the following conditions.

Poor mating of the connector halves or a terminal
not fully seated in the connector (backed out).

Improperly formed or damaged terminal.


All connector terminals in the problem circuit should
be carefully checked for proper contact tension.

Poor terminal-to-wire connection. This requires
removing the terminal form the connector body to
check.

Ignition coils shorted to ground and arcing at ignition
wires or plugs.

Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM shorted to ground.

Poor ECM grounds. Refer to the ECM wiring
diagrams.

Road test the vehicle with a Digital Multimete
r
connected to a suspected circuit. An abnormal voltage
when the malfunction occurs is a good indication tha
t
there is a fault in the circuit being monitored.
Using Tech 2 to help detect intermittent conditions. The
Tech 2 have several features that can be used to
located an intermittent condition. Use the following
features to find intermittent faults:
To check for loss of diagnostic code memory,
disconnect the mass air flow (MAF) sensor and idle the
engine until the check engine lamp (MIL=malfunction
indicator lamp) comes on. Diagnostic Trouble Code
P0102 should be stored and kept in memory when the
ignition is turned OFF.
If not, the ECM is faulty. When this test is completed,
make sure that you clear the Diagnostic Trouble Code
P0102 from memory.

An intermittent check engine lamp (MIL=malfunction
indicator lamp) with no stored Diagnostic Trouble Code
may be caused by the following:

Ignition coil shorted to ground and arcing at ignition
wires or plugs.

Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM short to ground.

Poor ECM grounds. Refer to the ECM wiring
diagrams.

Check for improper installation of electrical options such
as light, cellular phones, etc. Check all wires from ECM
to the ignition control module for poor connections.
Check for an open diode across the A/C compresso
r
clutch and check for other open diodes (refer to wiring
diagrams in Electrical Diagnosis).

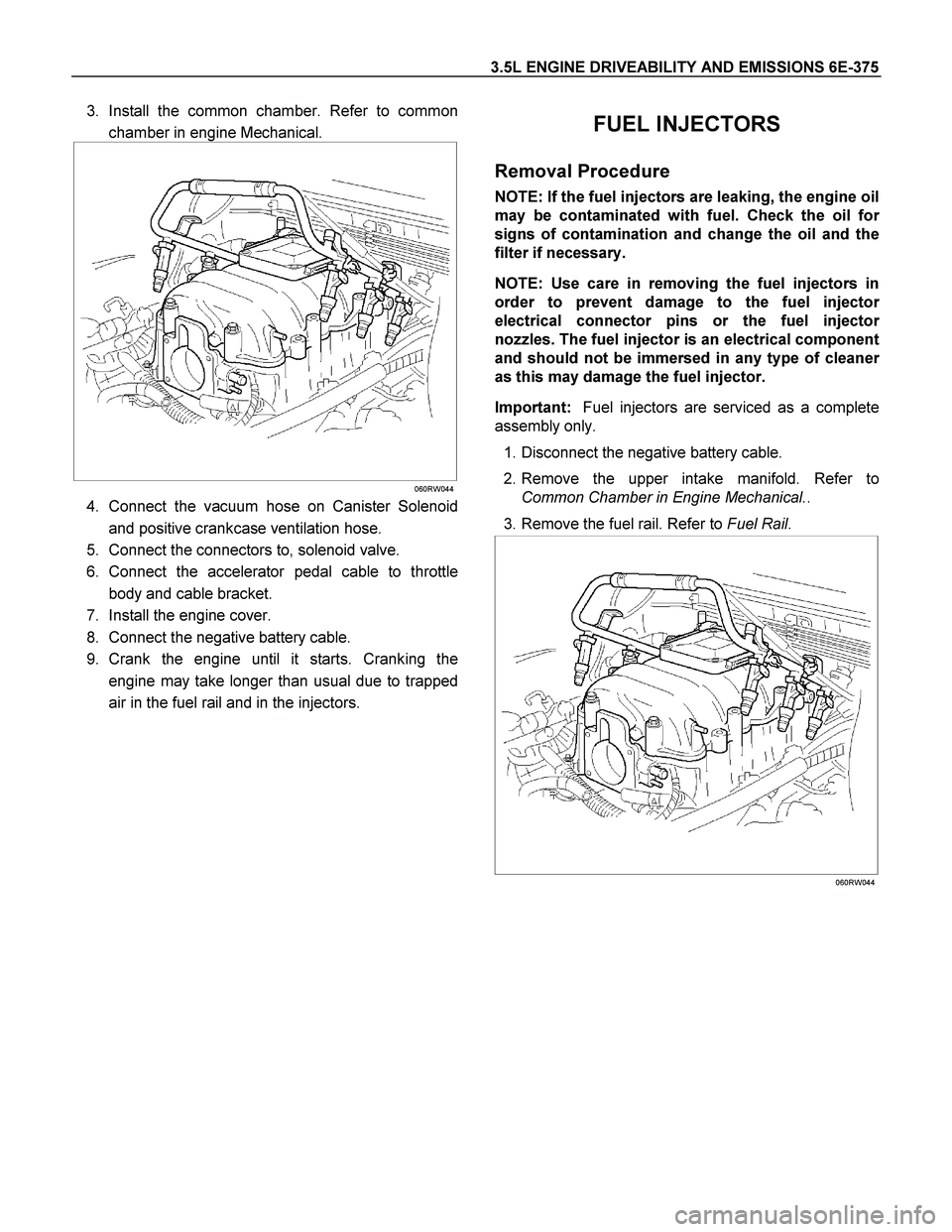

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-375
3. Install the common chamber. Refer to common
chamber in engine Mechanical.




060RW044
4. Connect the vacuum hose on Canister Solenoid
and positive crankcase ventilation hose.
5. Connect the connectors to, solenoid valve.
6. Connect the accelerator pedal cable to throttle
body and cable bracket.
7. Install the engine cover.
8. Connect the negative battery cable.
9. Crank the engine until it starts. Cranking the
engine may take longer than usual due to trapped
air in the fuel rail and in the injectors.

FUEL INJECTORS

Removal Procedure
NOTE: If the fuel injectors are leaking, the engine oil
may be contaminated with fuel. Check the oil fo
r
signs of contamination and change the oil and the
filter if necessary.
NOTE: Use care in removing the fuel injectors in
order to prevent damage to the fuel injecto
r
electrical connector pins or the fuel injector
nozzles. The fuel injector is an electrical component
and should not be immersed in any type of cleane
r
as this may damage the fuel injector.
Important: Fuel injectors are serviced as a complete
assembly only.
1. Disconnect the negative battery cable.
2. Remove the upper intake manifold. Refer to
Common Chamber in Engine Mechanical..
3. Remove the fuel rail. Refer to Fuel Rail.




060RW044

6E-380 3.5L ENGINE DRIVEABILITY AND EMISSIONS
SPARK PLUGS

Removal Procedure
1. Remove spark plugs.

Inspection Procedure
The spark plug affects entire engine performance and
therefore its inspection is very important.
 Check electrode and insulator for presence o
f
cracks, and replace if any.
 Check electrode for wear, and replace if necessary.
 Check gasket for damage, and replace if necessary.
 Measure insulation resistance with an ohmmeter,
and replace if faulty.
 Adjust spark plug gap to 1.0 mm (0.04 in)

1.1 mm
(0.043 in).
 Check fuel and electrical systems if spark plug is
extremely dirty.
 Use spark plugs having low heat value (hot type
plug) if fuel and electrical systems are normal.
 Use spark plugs having high heat value (cold type
plug) if insulator and electrode are extremely
burned.
Sooty Spark Plugs
Much deposit of carbon or oil on the electrode and
insulator of spark plug reduces the engine performance.
Possible causes:
 Too rich mixture
 Presence of oil in combustion chamber
 Incorrectly adjusted spark plug gap
Burning Electrodes
This fault is characterized by scorched or heavily
oxidized electrode or blistered insulator nose.
Possible causes:
 Too lean mixture
 Improper heat value

Measuring Insulation Resistance
 Measure insulation resistance using a 500 volt
megaohm meter.
 Replace spark plugs if measured value is out o
f
standard.
Insulation resistance: 50 M
  or more




011RS010
Cleaning Spark Plugs
 Clean spark plugs with a spark plug cleaner.
 Raise the ground electrode to an angle of 45 to 60
degrees. If electrode is wet, dry it before cleaning.

After spark plug is thoroughly cleaned, check
insulator for presence of cracks.
 Clean threads and metal body with a wire brush.
 File the electrode tip if electrode is extremely worn.

ENGINE DIAGNOSIS (C24SE) 6-5
Rough Engine Running
Condition Possible cause Correction
Engine misfires regularly Ignition coil layer shorted Replace
Spark plugs fouling Clean or install hotter type plug
Spark plug(s) insulator nose
leaking Replace
Spark plug wire incorrect Connect properly or replace
Fuel injector(s) defective Replace
Engine control module faulty Replace
Engine knocks regularly Spark plugs running too hot Install colder type spark plugs
Powertrain control module faulty Replace
Engine lacks power Spark plugs fouled Clean
Spark plug wire incorrect Connect properly or replace
Fuel injectors defective Replace
Manifold Absolute Pressure
(MAP)
Sensor or Manifold Absolute
Pressure Sensor circuit defective Correct or replace
Engine Coolant Temperature
Sensor or Engine Coolant
Temperature Sensor circuit
defective Correct or replace
Engine Control Module faulty Replace
Intake Air Temperature Sensor or
Intake Air Temperature Sensor
circuit defective Correct or replace
Throttle Position Sensor or
Throttle Position Sensor circuit
defective Correct or replace
Knock Sensor or Knock Sensor
circuits defective Correct or replace
Knock Sensor Module or Knock
Sensor Module circuits defective Correct or replace

ENGINE MECHANICAL (C24SE) 6A-11
Main Data and Specifications
Engine - General C24SE
Engine type Four-cycle, water cooled cross-flow with single over head
camshaft
Micro-computer control, fuel injection
Combustion chamber type (Volume) Hemispherical (43.3cm3)
Timing train system Belt drive
No. of cylinders-bore
stroke mm (in) 4-87.5
100.0 (3.44
3.93)
Bore Spacing(C/L to C/L) 93.0 mm (3.66 in)
Firing Order 1-3-4-2
Bore
Stroke mm (in) 87.5
100.0 (3.44
3.93)
Total piston displacement cm3 (in3) 2,405(146.80)
Combustion Chamber Volume 43.3cm3
No. of piston ring Compression ring: 2, Oil ring: 1
Compression pressure kg/cm2 (psi/pa) 12.2-16.3 (174-232/1200-1600)
Ignition timing (BTDC) No adjustment
Idling speed: rpm(WO/AC,W/AC) A/C off 825
Valve clearances (At cold)
Intake mm (in) 0 (0) (Hydraulic valve lash adjustment)
Exhaust mm (in) 0 (0) ( " )
Open at (BTDC) deg 1730’
Close at (ABDC) deg 7630’
Exhaust valves
Open at (BBDC) deg 5830’
Close at (ATDC) deg 3530’
Ignition system Fully transistorized battery ignition
Distributor type Not applicable, Electronic Spark Timing control
Distributor advance type Not applicable, Electronic Spark Timing control
Spark plug type RN9YC4
Spark plug gap mm (in) 1.0--1.1 (0.039--0.043)
Lubrication system
Lubricating method Fully flow pressure circulation
Special engine oil (API grade) SE, SF, SG or SH grade
Oil pressure kg/cm2 (psi/Pa) rpm 4-4.6 (56.9-65.4/400-450)
Oil pump type Gear
Oil filter type Cartridge full flow
Oil capacity lit. (US/UK gal.) 4.25
Cooling system
Radiator type Corrugated fin with reserve tank
Coolant capacity lit.
(US/UK gal.) 2.3 (0.66/0.55)
Water pump type Centrifugal
Thermostat Wax pellet with jiggle hole

ENGINE MECHANICAL (C24SE) 6A-13
Valve System C24SE
Actuation Type Direct-acting Inverted Bucked Tappet
Valve Clearance Adjustment Hydraulic
Valve Rotor Type None
Inlet-Valve Material Chromium Alloyed Steel
-Seat Insert Material Sintered Iron
Exhaust-Valve Material Head: Cr-Mn-Ni Alloyed Shaft: Cr-Si Alloyed &Cr plated
-Seat Insert Material Sintered Iron
Valve Spring Material GME 06 100-C1
Valve Guide Material QS 13 MR 00
Valve Seal Type Lip

Water Pump C24SE
Type Centrifugal
Drive-Material &Type HNBR Toothed-belt
Bearing Type Double Row Ball
Shaft Seal Type Mechanical Ceramic

Thermostat-Coolant C24SE
Type Bypass

Oil Pump & Filter C24SE
Type Gear Pump
Location Front of Engine
Drive Direct Crankshaft Driven
Filter Type Full Flow with Bypass for blocked filter

Oil & Oil Reservoir C24SE
Reservoir-Description & Location 1-piece below Engine
Reservoir Material Aluminum Alloy (pressure cast)
Replacement Oil Fill Volume
-With Filter change 4.25liters
-Without Filter change 4.00liters
Recommended Oil-Run-in 10W/30SG
-Service (above-18C) 10W/40SG
-Service (below-18C) 5W/30SG
Oil Classification API&CCMC

Ignition Components C24SE
Spark Plugs Conventional
Type Electronic Spark Control
No. of Coils &Type 2 Solid State
Coil Location Engine-mounted
Ignition Lead Type Inductive (hi-resistance)

6A-14 ENGINE MECHANICAL (C24SE)
Crankshaft C24SE
Material Nodular Cast Iron
Bearing subjected to End Thrust Guide Bearing NO.3
Main Bearing-Material &Type Steel Backed Tri-metal Babbitt
Front Seal-Diameter &Type 35.0mm Lip Seal
Rear seal-Diameter &Type 90.0mm Micro-lip Seal
Crankshaft Balancing Individually Balanced
No. of Counterweights 8

Camshaft C24SE
Location Overhead (Cylinder Head)
Material Grey Cast Iron
Bearing Material Aluminum
No. of Bearings Camshaft Drive-Material
&Type 200-250 HB5/750
(Camshaft drive type: toothed belt
Camshaft drive material: rubber composite GD380)


Pistons C24SE
Material Aluminum Alloy
Finish & Type Tin-coated Strutless
Piston Rings
Function (top to bottom)
-Ring 1Compression Ring
-Ring 2 Compression Ring
-Ring 3 Oil Ring
Description -Ring 1 Rectangular
-Ring 2 Taper Face
-Ring 3 3-piece (2 Scrapers&1 Expander)
Material -Ring 1 Molybdenum Inlay Nodular Cast Iron
-Ring 2 Cast Iron (individually cast)
-Ring 3 Steel
Material Case Hardened Steel
Retention Locked in Rod
Bearing Machined in Piston Pin Boss

Connecting Rod C24SE
Material Nodular Cast Iron
Bearing-Material &Type Steel Backed Tri-metal Babbitt

Inlet Manifold C24SE
Material Aluminum Alloy

Exhaust Manifold C24SE
Description Dual Take-down
Material High Si-Mo Nodular Iron
