Page 3184 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-20 MANUAL TRANSMISSION

13. Remove the rear cover assembly (3) from the
transmission case (5) and intermediate plate (4).
14. Remove intermediate plate with gear assembly (4)
from transm

Page 3185 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-21

7. Install the speedometer sensor (2).
Torque: 27 N
m (2.8 kg
m/20 lb
ft)
225R300001
8. Install top gear bearing snap ring (10) and counter
front

Page 3242 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-78 MANUAL TRANSMISSION

Rear Oil Seal Replacement
220R300025

Legend
(1) Installer 5-8840-2797-0
(2) Grip 5-8840-0007-0
1. Remove the oil seal from the rear case and discard
the used

Page 3243 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-79

5. Install top gear bearing snap ring (9) and counter
front bearing snap ring (7).

Use a pair of snap ring pliers to install the snap
rings to the mainshaft a

Page 3438 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3B-8 POWER-ASSISTED STEERING SYSTEM

6. Fully close the shutoff valve. Record the highest
pressures.

If the pressure recorded is within 9300-9800 kPa
(95-100 kg/cm
2/1350-1420 psi), the pump is

3B-8 POWER-ASSISTED STEERING SYSTEM

6. Fully close the shutoff valve. Record the highest
pressures.

If the pressure recorded is within 9300-9800 kPa
(95-100 kg/cm
2/1350-1420 psi), the pump is
functioning within its specifications.

If the pressure recorded is higher than 9800 kPa
(100 kg/cm
2/1420 psi), the valve in the pump is
defective.

If the pressure recorded is lower than 9300 kPa (95
kg/cm
2/1350 psi), the valve or the rotating group in
the pump is defective.
7. If the pump pressures are within specifications,
leave the valve open and turn (or have someone
else turn) the steering wheel fully in both directions.
Record the highest pressures and compare with the
maximum pump pressure recorded in step 6. If this
pressure cannot be built in either side of the powe
r
steering unit, the power steering unit is leaking
internally and must be replaced.
8. Shut the engine off, remove the testing gauge.
9. Reconnect the pressure hose, check the fluid level
and make the needed repairs.
10. If the problem still exists, the steering and fron
t
suspension must be thoroughly examined.

Maintenance
The hydraulic system should be kept clean and fluid
level in the reservoir should be checked at regula
r
intervals and fluid added when required. Refer to
Recommended Fluids and Lubricants in General
Information section for the type of fluid to be used and
the intervals for filling.
If the system contains some dirt, flush it as described in
this section. If it is exceptionally dirty, the pump must be
completely disassembled before further usage. (The
steering unit cannot be disassembled.)
All tubes, hoses, and fittings should be inspected for
leakage at regular intervals. Fittings must be tight. Make
sure the clips, clamps and supporting tubes and hoses
are in place and properly secured.
Power steering hoses and lines must not be twisted,
kinked or tightly bent. Air in the system will cause
spongy action and noisy operation. When a hose is
disconnected or when fluid is lost, for any reason, the
system must be bled after refilling. Refer to Bleeding the
Power Steering System in this section.

Inspect belt for tightness.

Inspect pulley for looseness or damage. The pulle
y
should not wobble with the engine running.

Inspect hoses so they are not touching any othe
r
parts of the vehicle.

Inspect fluid level and fill to the proper level.

Fluid Level
1. Run the engine until the power steering fluid
reaches normal operating temperature, about 55
C (130
F), then shut the engine off.
2. Check the level of fluid in the reservoir.
3. If the fluid level is low, add power steering fluid as
specified in General Information to the proper level
and install the receiver cap.
4. When checking the fluid level after the steering
system has been serviced, air must be bled from
the system. Refer to Bleeding the Power Steering
System in this section.

Bleeding The Power Steering System
When a power steering pump or unit has been installed,
or an oil line has been disconnected, the air that has
entered the system must be bled out before the vehicle
is operated. If air is allowed to remain in the powe
r
steering fluid system, noisy and unsatisfactory operation
of the system may result.

Bleeding Procedure
When bleeding the system, and any time fluid is added
to the power steering system, be sure to use only powe
r
steering fluid as specified in General Information.
1. Fill the pump fluid reservoir to the proper level and
let the fluid settle for at least two minutes.
2. Start the engine and let it run for a few seconds. Do
not turn the steering wheel. Then turn the engine
off.
3. Add fluid if necessary.
4. Repeat the above procedure until the fluid level
remains constant after running the engine.
5. Raise and support the front end of the vehicle so
that the wheels are off the ground.
6. Start the engine. Slowly turn the steering wheel right
and left, lightly contacting the wheel stops.
7. Add power steering fluid if necessary.
8. Lower the vehicle, set the steering wheel at the
straight forward position after turning it to its full
steer positions 2 or 3 times, and stop the engine.
9. Check the fluid level and refill as required.
10. If the fluid is extremely foamy, allow the vehicle to
set a few minutes, then repeat the above procedure.

Flushing The Power Steering System
1. Raise and support the front end of the vehicle off
the ground until the wheels are free to turn.
2. Remove the fluid return line at the pump inlet
connector and plug the connector port on the pump.
Position the line toward a large container to catch
the draining fluid.
3. While running the engine at idle, fill the reservoi
r
with new power steering fluid. Turn the steering
wheel in both directions. Do not contact or hold the
steering wheel to the wheel stops. This will cause
the pump to go to pressure relief mode, which ma
y
cause a sudden fluid overflow at the reservoir.

Page 3592 of 4264

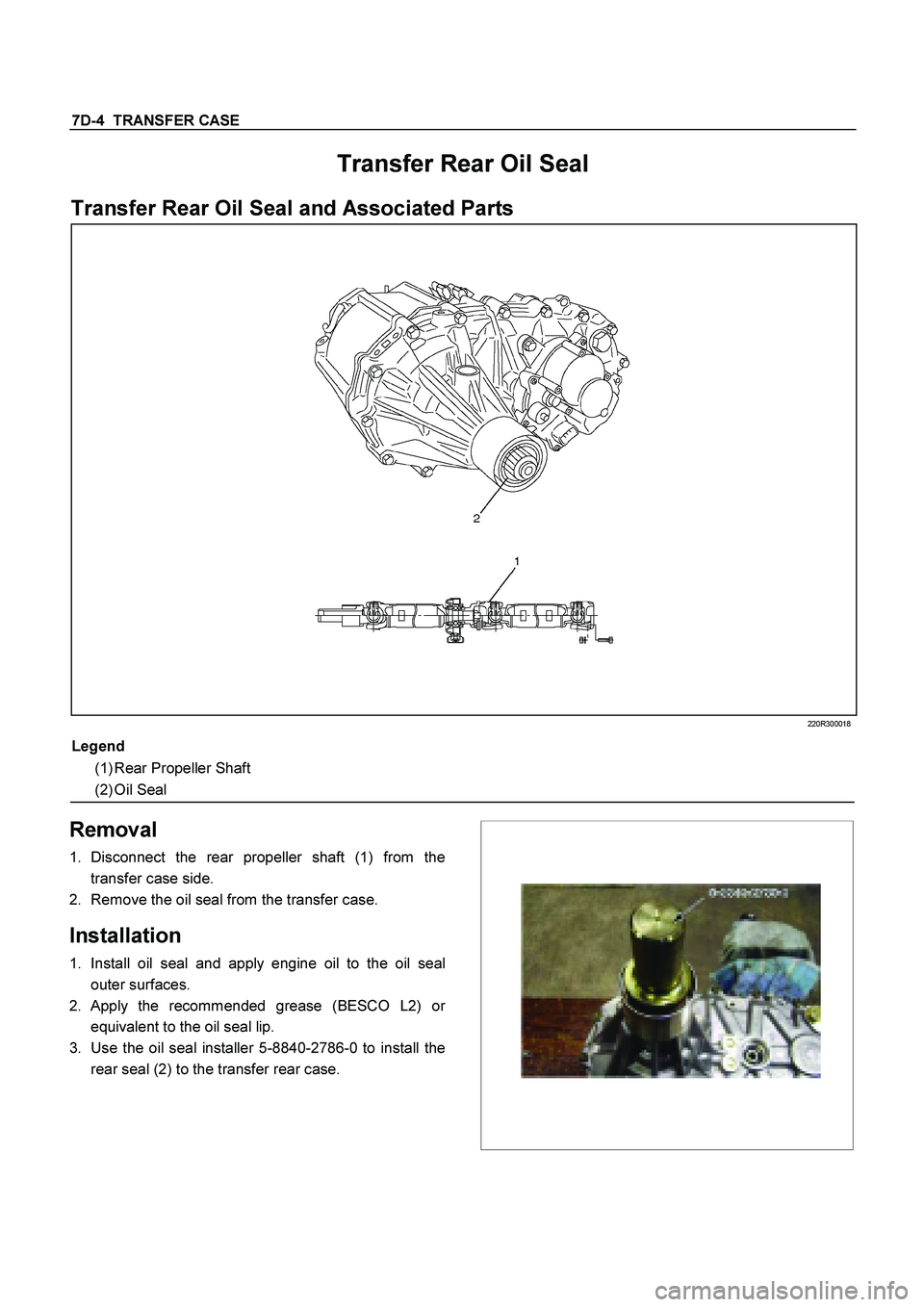

ISUZU TF SERIES 2004 Workshop Manual 7D-4 TRANSFER CASE

Transfer Rear Oil Seal
Transfer Rear Oil Seal and Associated Parts
220R300018
Legend

(1) Rear Propeller Shaft

(2) Oil Seal

Removal
1.
Disconnect the re

Page 3845 of 4264

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–37
Diaassembly, Inspection and
Reassembly of minor Components
NOTE: The instructions here are organized so that you
work on only one component group at a time.
This wi

UNIT REPAIR (AW30–40LE) 7A4–37
Diaassembly, Inspection and
Reassembly of minor Components
NOTE: The instructions here are organized so that you
work on only one component group at a time.
This will help avoid confusion from similar-looking parts
of different subassemblies being on your workbench at
the same time.
The component groups are inspected and repaired from
the converter housing side.
As much as possible, complete the inspection, repair
and reassembly before proceeding to the nex t
component group. If a component group cannot be
reassembled because parts are being ordered, be sure
to keep all parts of that group in separate container
while proceeding with disassembly, inspection, repair
and reassembly of other component groups.
Recommended ATF type DEXRON III.
General Cleaning Notes:
1. All disassembled parts should be washed clean and
any fluid passages and holes should be blown
through with compressed air.
2. When using compressed air to dry parts, always aim
away from yourself to prevent accidentally spraying
automatic transmission fluid in your face.
3. The recommended automatic transmission fluid
should be used for cleaning.
Parts Arrangement:
1. After cleaning, the parts should be arranged in
proper order to allow performing inspection, repairs,
and reassembly with efficiency.
2. When disassembling a valve body, be sure to keep
each valve together with the corresponding spring.
3. New brakes and clutches that are to be used for
replacement must be soaked in transmission fluid
for at least thirty minutes before assembly.
General Assembly:
1. All oil seal rings, clutch discs, clutch plates, rotating
parts, and sliding surfaces should be coated with
transmission fluid prior to reassembly.
2. All gaskets and rubber O-ring should be replaced.
3. Make sure that the ends of a snap ring are not
aligned with one of the cutouts and are installed in
the groove correctly.
4. If a worn bushing is to be replaced, the
subassembly containing that bushing must be
replaced.
5. Check thrust bearings and races for wear or
damage. Replace if necessary.
6. Use petroleum jelly or vaseline to keep parts in
place.

Page 4244 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-70 UNIT REPAIR (JR405E)

AUTOMATIC TRANSMISSION
REASSEMBLY
Assembly cautions
Use your bare hands or vinyl gloves to reassemble the
transmission. Do not use ordinary work gloves (loosen
