0A-2 GENERAL INFORMATION
GENERAL REPAIR INSTRUCTIONS
1. Park the vehicle on level ground and chock the front or rear wheels before lifting the vehicle.
2. Raise the vehicle with a jack set against the axle or the frame.
3. Support the vehicle on chassis stands.
4. Use covers on the vehicle body, seats, and floor to prevent damage and/or contamination.
5. Disconnect the grounding cable from the battery before performing service operations.

This will prevent cable damage or burning due to short circuiting.
6. Handle brake fluid and antifreeze solution with great care.

Spilling these liquids on painted surfaces will damage the paint.
7. The use of the proper tool(s) and special tool(s) where specified is essential to efficient, reliable, and safe
service operations.
8. Always use genuine ISUZU replacement parts.
9. Discard used cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts at disassembly.
Normal function of these parts cannot be guaranteed if they are reused.
10. Prepare new cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts for installation.
11. Keep the disassembled parts neatly in groups.
This will facilitate smooth and correct reassembly.
12. Keep fixing nuts and bolts separate.
Fixing nuts and bolts vary in hardness and design according to installation position.
13. Clean all parts before inspection or reassembly.
14. Clean the oil ports and other openings with compressed air to make certain that they are free from dirt and
obstructions.
15. Lubricate the rotating and sliding faces of all moving parts with oil or grease before installation.
16. Use the recommended liquid gasket to prevent leakage.
17. Carefully observe all nut and bolt torque specifications.
18. When removing or replacing parts that require refrigerant to the discharged from the Air conditioning system, be
sure to use the Vehicle Refrigerant Recovery and Recycling Equipment (VRRRE) to recover and recycle R134a,
to promote the movement for the protection of the ozone layer covering the earth.
19. Check and recheck your work. No service operation is complete until you have done this.

GENERAL INFORMATION 0A-3

NOTES ON THE FORMAT OF THIS MANUAL
1. Find the applicable Section by referring to the index at the front of the Workshop Manual binder.
2. The following technical service information is included in this Section:


Identification


Maintenance schedules


Recommended Iubricants


Recommended fuels


Oil viscosity charts
3. Individual Sections of this Workshop Manual are divided into the following categories:


Main data and specifications


Torque specifications


Recommended liquid gasket


Loctite application procedure


Servicing


Removal and installation


Disassembly


Inspection and repair


Reassembly


Troubleshooting
4. Each "Major Components" page of this Workshop Manual has an exploded view of the applicable area.
A brief explanation of the notation used follows:

0A-4 GENERAL INFORMATION
5. Below is a sample of the Workshop Manual text following the " Major Components " page.
A brief explanation of the notation used follows:


6. The following symbols appear throughout the Workshop Manual.

They tell you at a glance the type of service operation to perform.

........
Removal ........
Adjustment
........
Installation ........
Cleaning
........
Disassembly ........
Important operation requiring extra care
........
Reassembly ........
Specified torque
........
Alignment ........
ISUZU special tool(s) required or recommended
........
Directional indication ........
Other special tool(s) required or recommended
........
Inspection ........
Lubrication (Oil)
........
Measurement ........
Lubrication (Grease)
........
Torque Angle Method ........
Liquid gasket application

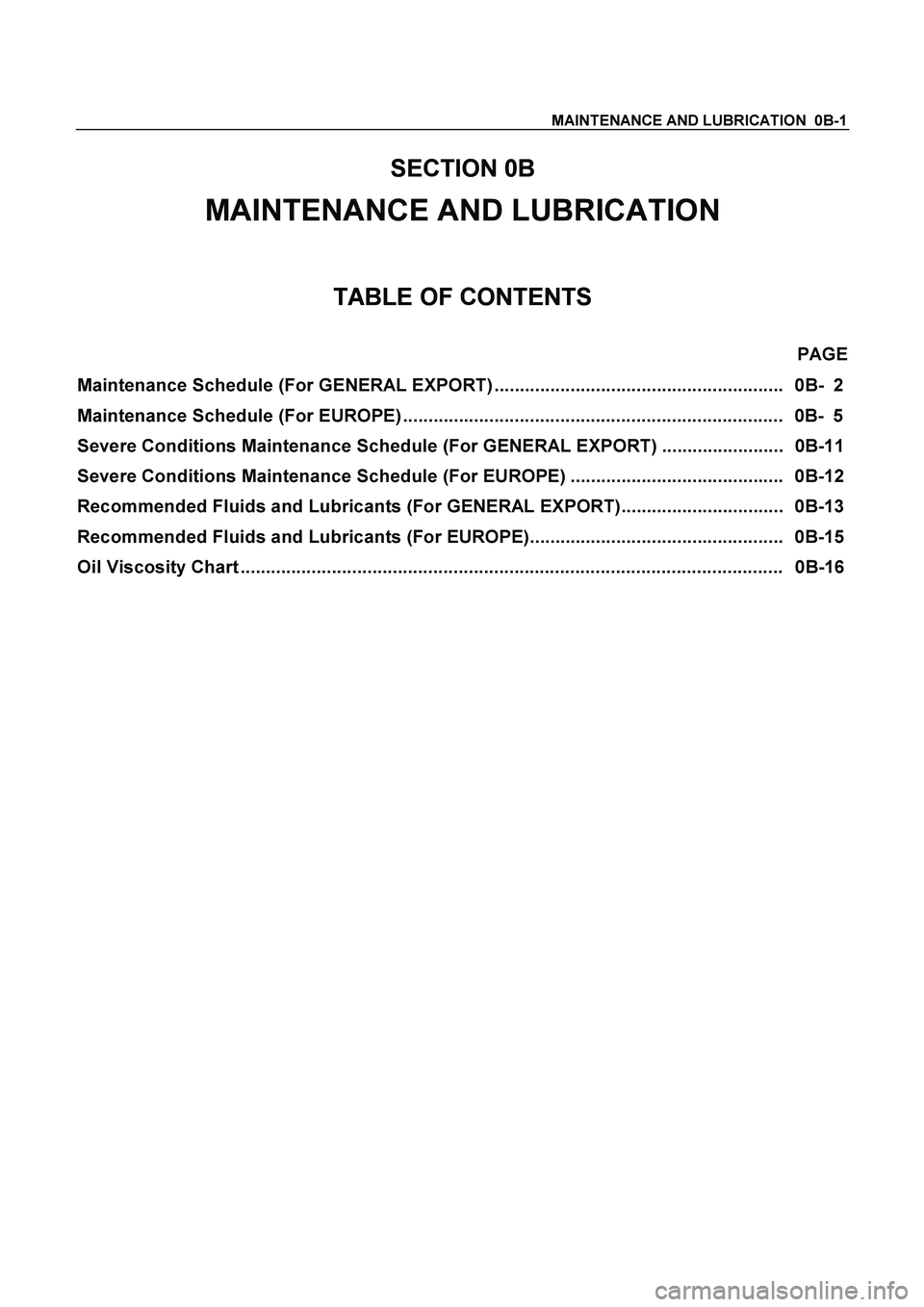

MAINTENANCE AND LUBRICATION 0B-1
SECTION 0B
MAINTENANCE AND LUBRICATION
TABLE OF CONTENTS
PAGE
Maintenance Schedule (For GENERAL EXPORT) ......................................................... 0B- 2
Maintenance Schedule (For EUROPE) ........................................................................... 0B- 5
Severe Conditions Maintenance Schedule (For GENERAL EXPORT) ........................ 0B-11
Severe Conditions Maintenance Schedule (For EUROPE) .......................................... 0B-12
Recommended Fluids and Lubricants (For GENERAL EXPORT)................................ 0B-13
Recommended Fluids and Lubricants (For EUROPE).................................................. 0B-15
Oil Viscosity Chart ........................................................................................................... 0B-16

MAINTENANCE AND LUBRICATION 0B-13
Recommended Fluids and Lubricants (For GENERAL EXPORT)
In order to obtain maximum performance and longest service life from your ISUZU vehicles, it is very important to
select and use correctly best lubricants and diesel fuels.
When lubricating, be sure to use ISUZU genuine lubricants or recommended lubricants listed below, according to
the maintenance schedule for each vehicle model.
The lubrication intervals in the maintenance schedule and coverage and period of new vehicle warranty are based
on the use of ISUZU genuine lubricants or recommended lubricants as given in the chart which will serve as a guide
for selecting lubricants of proper brand name.


GRADE LUBRICATION MAKE BRAND / TYPE
API ACEA

Petrol engine crankcase ISUZU GENUINE
ISUZU GENUINE
ISUZU GENUINE
EXXON / ESSO
EXXON / ESSO
MOBIL
CALTEX / TEXACO SHELL
ELF
TOTAL
CASTROL BESCO RACING - ACE SJ (5W-30)
BESCO MULTI - Z SUV (5W-30)
BESCO MULTI - ACE (7.5W-30)
ESOO SUPERFLO (15W-40, 15W-50, 20W-50)
ESOO UNIFLO (15W-40, 15W-50, 20W-50)
MOBIL SUPER XHP (15W-40, 15W-50, 20W-50)
HAVOLINE FORMULA-3 (15W-40, 20W-50)
HELIX SUPER (10W-30)
SUPER SPORTI S (15W-40)
QUARTZ 5000 (15W-40, 20W-50)
GTX-2 (15W-40) SJ
SH/CF
SG
SJ
SJ
SJ
SJ
SJ
SG
SJ
SG/SH



A2
A2
A3


A2

Diesel engine crankcase ISUZU GENUINE
ISUZU GENUINE
ISUZU GENUINE
ISUZU GENUINE
EXXON / ESSO
EXXON / ESSO
MOBIL CALTEX/CHEVRON SHELL
ELF
TOTAL
CASTROL BESCO MULTI - Z TYPE CE (10W-30)
BESCO MULTI - Z (10W-30)
BESCO MULTI - Z SUV (5W-30)
BESCO S-3 (10W, 20W, 30, 40)
ESSOLUBE XD-3+ (15W-40)
ESSOLUBE XT 331 (15W-40)
DELVAC HP (15W-40, 30, 40)
DELO CXJ (15W-40, 30, 40)
RIMULA D (15W-40, 30, 40)
PERFORMANCE TROPHY (15W-40)
RUBIA XT (15W-40)
RX SUPER PLUS (15W-40)
CE
CD
SH/CF
CD
CG-4/CF
CG-4/CF
CF/CE
CF
CD/CF
CE
CF-4
CC/CD
CG-4/CH-4



E2/B2
E2/B2



E3
E2
E3/B3

Manual transmission Transfer
case ISUZU GENUINE
EXXON / ESSO
EXXON / ESSO
MOBIL CALTEX / TEXACO SHELL
ELF
TOTAL
CASTROL BESCO GEAR OIL TRANSAXLE (5W-30)
ESSOLUBE XD-3+ (15W-40)
ESSOLUBE XT 331 (15W-40)
MOBIL SUPER (10W-30)
HAVOLINE FORMULA-3 (15W-40, 20W-50)
RIMULA D (15W-40)
SUPER SPORTI S (15W-40)
QUARTZ 5000 (15W-40, 20W-50)
RX SUPER PLUS (15W-40)
SG
CG-4/CF
CG-4/CF
SH
SH
CD/CF
SG/CD
SJ/CF
CC/CD
CG-4/CH-4
E2/B2
E2/B2




A2/B2
E3/B3

Differential
Shift on the fly system
(GL-5 only) ISUZU GENUINE
ISUZU GENUINE
EXXON / ESSO
MOBIL
CALTEX
SHELL
ELF
TOTAL
CASTROL
CASTROL BESCO GEAR OIL SH (80W-90, 90, 140)
BESCO SHIFT ON THE FLY (75W-90)
GEAR OIL GX (85W-90)
MOBILUBE HD (80W-90, 85W-140)
THURBAN GL-5 EP (80W-90, 85W-140)
SPIRAX HD (90, 140)
TRANSELF TYPE B (80W-90, 85W-140)
TRANSMISSION TM (80W-90, 85W-140)
EPX 90 (90)
DYNA DRIVE (80W-90) GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5









Differential
(Limited Slip Differential) ISUZU GENUINE
EXXON / ESSO
MOBIL
CALTEX
ELF
TOTAL
CASTROL BESCO GEAR OIL LSD (140)
GEAR OIL LSA (90)
MOBILUBE HD LS (80W-90)
GEAR OIL LSD (90)
TRANSELF TYPE BLS (90)
TRANSMISSION DA (85W-90)
HYPOY LS (90) GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5

MAINTENANCE AND LUBRICATION 0B-15
RECOMMENDED FLUIDS AND LUBRICANTS (For EUROPE)






In order to obtain maximum performance and longest service life from your ISUZU vehicles, it is very important to
select and use correctly best lubricants and diesel fuels.
When lubricating, be sure to use ISUZU genuine lubricants or recommended lubricants listed below, according to
the maintenance schedule for each vehicle model.

LUBRICATION/FLUID GRADE
API ACEA OTHER
Diesel engine crankcase B2/B3
E2/E3
Manual transmission
Transfer case B2/B3
E2/E3
Differential
Shift on the fly system
(GL-5 only)
GL-5 BESCO GEAR OIL SH (80W-90, 90, 140) (ISUZU GENUINE)
BESCO SHIFT ON THE FLY (75W-90) (ISUZU GENUINE)
GEAR OIL GX (85W-90) (EXXON / ESSO)
MOBILUBE HD (80W-90, 85W-140) (MOBIL)
THURBAN GL-5 EP (80W-90, 85W-140) (CALTEX)
SPIRAX HD (90, 140) (SHELL)
TRANSELF TYPE B (80W-90, 85W-140) (ELF)
TRANSMISSION TM (80W-90, 85W-140) (TOTAL)
Differential
(Limited Slip Differential)
GL-5 * Limited
Slip
Differential
Gear
Lubricant
BESCO GEAR OIL LSD (140) (ISUZU GENUINE)
GEAR OIL LSA (90) (EXXON/ESSO)
MOBILUBE HD LS (80W-90) (MOBIL)
GEAR OIL LSD (90) (CALTEX)
TRANSELF TYPE BLS (90) (SHELL)
TRANSMISSION DA (85W-90) (ELF)
HYPOY LS (90) (TOTAL)
Automatic transmission
Power steering
DEXRON II, III
Propeller shaft sliding yoke
Universal joint
(General purpose grease in
Molybdenum) NLGI #2 or #3
multi purpose type grease
containing molybdenum disulfide
Engine cooling system Good quality ethylene glycol antifreeze or GM spec.
6033-M or equivalent
* If GL-5 Limited Slip Differential Lubricant is not available, use GL-5 Lubricant together with Limited Slip Differential Lubricant additive (Parts No. 8-01052-358-0) or
equivalent.



FLUID TYPE

Clutch and brake fluid reservoir Besco brake fluid (For light duty)
Hydraulic brake fluid SAE J1703
FMVSS 116 DOT.3 grade


DIESEL FUEL/APPLICABLE STANDARD
JIS (JAPANESE INDUSTRIAL STANDARD)
DIN (DEUTSCHE INDUSTRIE NORMEN)
SAE (SOCIETY OF AUTOMOTIVE ENGINEERS)
BS (BRITISH STANDARD) Based on K2204 GAS OIL
Based on EN590: 1997L
Based on SAE J-313C
Based on BS EN590: 1997
NOTE:
Use the applicable standard or equivalent for diesel fuels.

7B-32 MSG MODEL



11. Mainshaft Ball Bearing
1) Apply the engine oil to the ball bearing inside
circumference.
2) Use a bench press and the bearing installer to install the
bearing.
The bearing snap ring groove must be facing the front o
f
the transmission.
Bearing Installer : 5-8840-0015-0 (J-22912-01)




12. Needle Bearing
13. 3rd Gear
1) Apply the engine oil to the 3rd needle bearing and the 3rd
gear.
2) Install the needle bearing and the gear to the mainshaft.
The dog teeth of the 3rd gear must, be facing the front side
of the transmission.






15. 3rd-4th Synchronizer Assembly
1)
Apply the recommended lubricating oil to the clutch hub
spline.
2) Install the synchronizer assembly to the mainshaft.
The sleeve light chamfering

1 and the clutch hub heavy
boss

2 must be facing the rear of the transmission.



16. Mainshaft Snap Ring
1) Select the snap ring which will provide the minimum
clearance between the mainshaft and the snap ring.
There are four snap ring sizes available.
The snap rings are numbered to indicate their thickness.
Mainshaft and Snap Ring Clearance mm(in)
Standard
0 - 0.05 (0.002)


Snap Ring Availability mm(in)Thickness Identification Number
1.50 (0.059) 1
1.55 (0.061) 2
1.60 (0.063) 3
1.65 (0.065) 4
2) Use a pair of snap ring pliers to install the snap ring to the
mainshaft.

MSG MODEL 7B-41

RTW47BSH000201
Important Operations
2. Rear Cover with Oil Seal
1)
Align the pins at the lower side of the rear cover with the
holes in the lower side of the intermediate plate.
2)
Apply recommended liquid gasket or its equivalent to the
rear cover fitting surfaces.
3) Install the rear cover to the intermediate plate.
4) Tighten the rear cover bolts to the specified torque.
Rear Cover Bolt Torque N
m(kgf
m/lb
ft)
37.2 (3.8 / 27.5)
Note:
Take care not to twist or puncture the oil seal during the
installation procedure.


RTW47BSH000301

3. Transmission Case
4. Bearing Snap Ring
1) Apply the engine oil to the transmission case top gear shaft
ball bearing fitting faces.
2)
Apply recommended liquid gasket or its equivalent to the
transmission case fitting surfaces.
3) Install the transmission case to the intermediate plate.
4) Pull the top gear shaft from the transmission case until the
ball bearing snap ring grove protrudes from the
transmission case front cover fitting faces.
5) Use a pair of snap ring pliers to install the snap ring to the
ball bearing.



6. Front Cover with Oil Seal
1) Clean and apply recommended liquid gasket or its
equivalent to the through bolt threads.
2) Install the new gasket and tighten the new cover bolt to the
specified torgue.
Front Cover Bolt Torgue N
m(kgf
m/lb.ft)
24.5 (2.5 / 18.1)









RTW47BSH000101
10. Shift Fork
Apply molybdenum disulfide type grease to the areas as
shown in the figure and install shift fork (Diesel engine).
