2004 ISUZU TF SERIES immobilizer

6E –156 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
11 Using the DVM and check the IAT sensor ground
circuit.
Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install the breaker box as type A. (ECM disconnected) Ref. Page 6E-103
3. Disconnect the MAF & IAT sensor connector.
4. Check the circuit for open circuit.
Was the problem found?
Breaker box is not available: 1. Ignition “Off ”, engine “Off ”.
2. Disconnect the MAF & IAT sensor connector and ECM connector.
3. Check the circuit for open circuit.
Was the problem found?
— Repair faulty
harness and verify repair Go to Step 14
12 Substitute a known good MAF & IAT sensor assembly and recheck.
Was the problem solved? —Go to Step 13 Go to Step 14
13 Replace the MAF & IAT sensor assembly. Is the action complete? —Verify repair —
14 Is the ECM programmed with the latest software release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System) ”.
Was the problem solved? —Verify repair Go to Step 15
15 Replace the ECM. Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement ” for
the ECM/Immobilizer linking procedure. —Verify repair —
Step Action Value(s) Yes No
C-11692Breaker Box



3
92
C-116
C-57(B)

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –159
7 Using the DVM and check the IAT sensor signal
circuit.
Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install the breaker box as type A. (ECM disconnected) Ref. Page 6E-103
3. Disconnect the MAF & IAT sensor connector.
4. Check the circuit for short to sensor ground or ground circuit.
Was the problem found?
Breaker box is not available: 1. Ignition “Off ”, engine “Off ”.
2. Disconnect the MAF & IAT sensor connector and ECM connector.
3. Check the circuit for short to sensor ground or ground circuit.
Was the problem found?
— Repair faulty
harness and verify repair Go to Step 10
8 Substitute a known good MAF & IAT sensor assembly and recheck.
Was the problem solved? —Go to Step 9 Go to Step 10
9 Replace the MAF & IAT sensor assembly. Is the action complete? —Verify repair —
10 Is the ECM programmed with the latest software release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System) ”.
Was the problem solved? —Verify repair Go to Step 11
11 Replace the ECM. Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement ” for
the ECM/Immobilizer linking procedure. —Verify repair —
Step Action Value(s) Yes No
8492


Breaker Box


92
84
C-57(B)

6E–164 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
12 Substitute a known good ECT sensor assembly and
recheck.
Was the problem solved?—Go to Step 13Go to Step 14
13 Replace the ECT sensor.
Is the action complete?—Verify repair—
14 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 15
15 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No

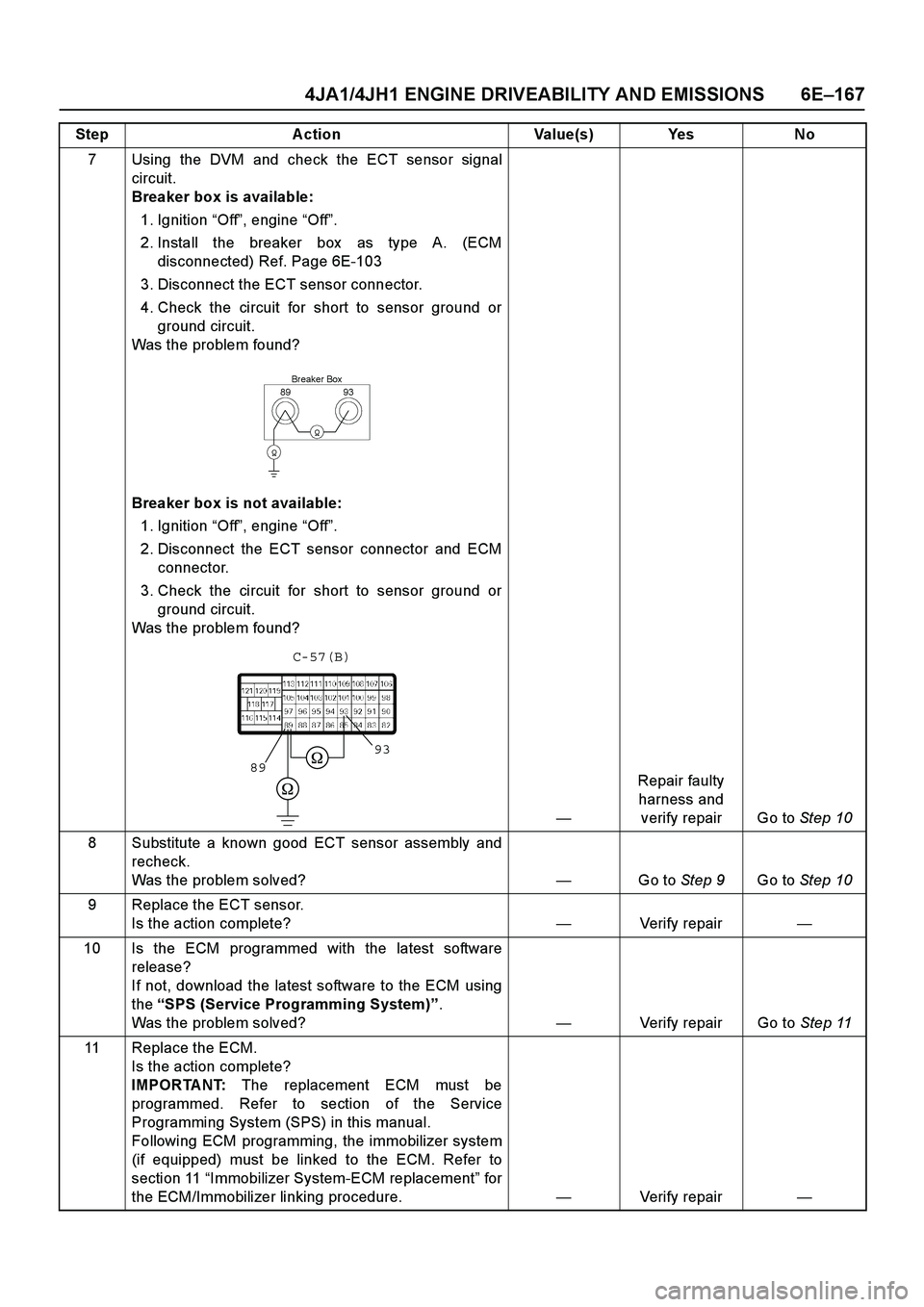

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –167
7 Using the DVM and check the ECT sensor signal
circuit.
Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install the breaker box as type A. (ECM disconnected) Ref. Page 6E-103
3. Disconnect the ECT sensor connector.
4. Check the circuit for short to sensor ground or ground circuit.
Was the problem found?
Breaker box is not available: 1. Ignition “Off ”, engine “Off ”.
2. Disconnect the ECT sensor connector and ECM connector.
3. Check the circuit for short to sensor ground or ground circuit.
Was the problem found?
— Repair faulty
harness and verify repair Go to Step 10
8 Substitute a known good ECT sensor assembly and recheck.
Was the problem solved? —Go to Step 9 Go to Step 10
9 Replace the ECT sensor. Is the action complete? —Verify repair —
10 Is the ECM programmed with the latest software release?
If not, download the latest software to the ECM using
the “ SPS (Service Programming System) ”.
Was the problem solved? —Verify repair Go to Step 11
11 Replace the ECM. Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement ” for
the ECM/Immobilizer linking procedure. —Verify repair —
Step Action Value(s) Yes No
8993


Breaker Box


93
89
C-57(B)

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–169
moving connectors and wiring harness related to the
sensor.
Diagnostic Trouble Code (DTC) P0180 (Sy mptom Code B) (Flash Code 15) Fuel
Temperature Sensor Circuit Range/Performance
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0180 (Symptom Code B) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0180 (Symptom Code B) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6Go to Step 7
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—
7 Replace the injection pump assembly.
Is the action complete?—Verify repair—

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–177
Diagnostic Trouble Code (DTC) P0215 (Sy mptom Code D) (Flash Code 52) Fuel
Cutoff Solenoid Valve Malfunction
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0215 (Symptom Code D) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0215 (Symptom Code D) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6Go to Step 7
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—
7 Replace the injection pump assembly.
Is the action complete?—Verify repair—

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–181
5 V i s u a l l y / p h y s i c a l l y i n s p e c t f o r t h e f o l l o w i n g c o n d i t i o n s .
Restrict fuel supply system. Check for a pinched
fuel ho se /pi pe.
Check for a condition that causes fuel wax ing or
icing, such as the customer is using an incorrect
fuel type in winter season or water mix ed with the
f u e l.
If a problem is found, repair as necessary.
Was a problem found? - Verify repair Go to Step 6
6 Replace the fuel fi lt er.
Was the problem solved? - Verify repair Go to Step 7
7 Remove the eye bolt with gauze filter from the
injection pump and check for the following conditions.

Objects blocking at the gauze filter. Check for a
condition that causes contaminated fuel, such as
the customer is using an aftermarket fuel filter or
ex tended maintenance interval.
Check for a condition that causes fuel wax ing or
icing, such as the customer is using an incorrect
fuel type in winter season or water mix ed with the
f u e l.
If a problem is found, repair as necessary.
Was the problem found?
-Replace the
eye bolt with
gauze filter and
verify repair Go to Step 8
8 Is the ECM programmed with the latest software
release? If
not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved? - Verify repair Go to Step 9
9 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 "Immobilizer System-ECM replacement" for
the ECM/Immobilizer linking procedure. - Go to Step 10Go to Step 11 Step Action Value(s) Yes No

6E–182 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
1 0 R e p l a c e t h e E C M .
I s t h e a c t i o n c o mp l e t e ?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 "Immobilizer System-ECM replacement" for
the ECM/Immobilizer linking procedure. - Verify repair -
1 1 R e p l a c e t h e i n j e c t i o n p u m p a s s e m b l y .
Is the action complete? - Verify repair - Step Action Value(s) Yes No
