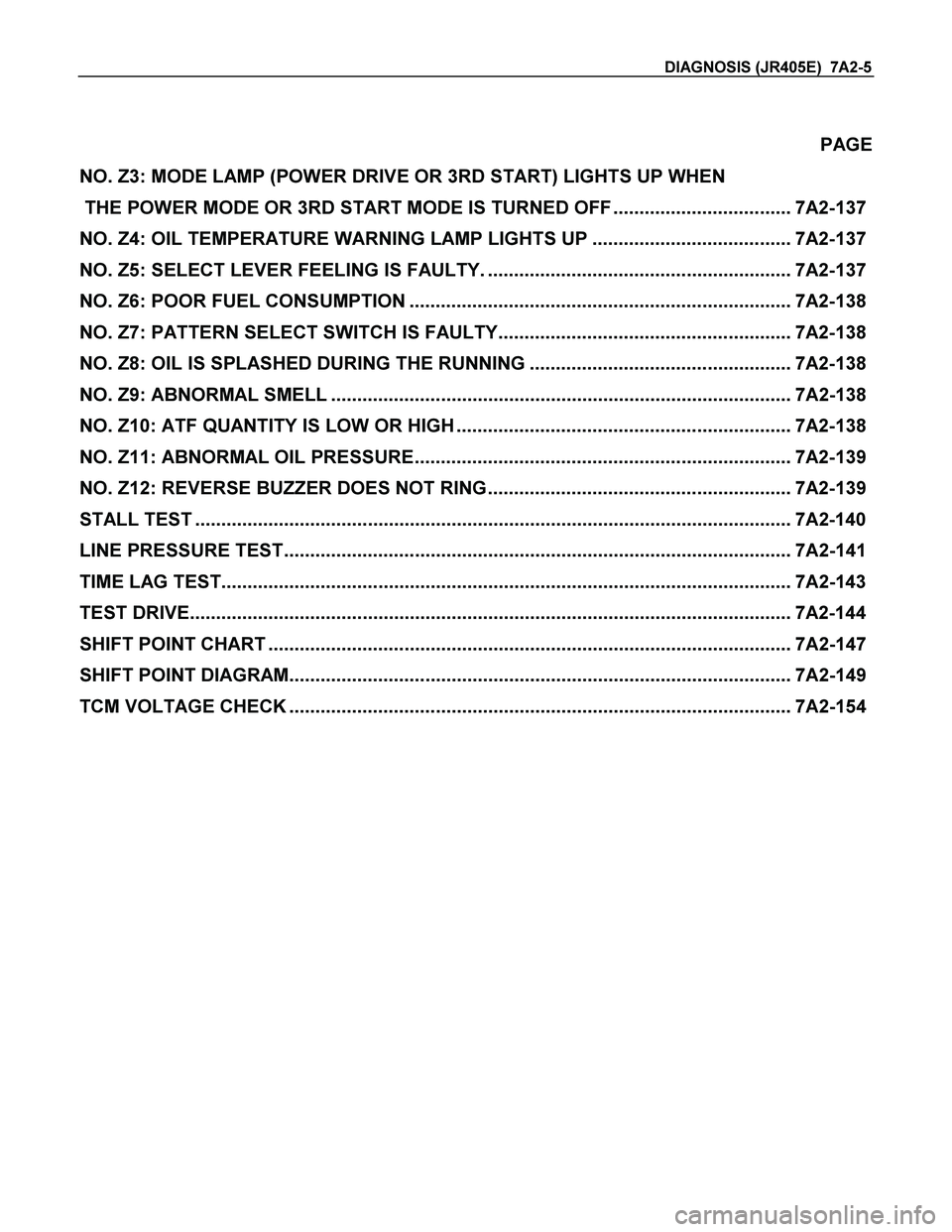

Page 3997 of 4264
DIAGNOSIS (JR405E) 7A2-5
PAGE
NO. Z3: MODE LAMP (POWER DRIVE OR 3RD START) LIGHTS UP WHEN
THE POWER MODE OR 3RD START MODE IS TURNED OFF .................................. 7A2-137
NO. Z4: OIL TEMPERATURE WARNING LAMP LIGHTS UP ...................................... 7A2-137
NO. Z5: SELECT LEVER FEELING IS FAULTY. .......................................................... 7A2-137
NO. Z6: POOR FUEL CONSUMPTION ......................................................................... 7A2-138
NO. Z7: PATTERN SELECT SWITCH IS FAULTY........................................................ 7A2-138
NO. Z8: OIL IS SPLASHED DURING THE RUNNING .................................................. 7A2-138
NO. Z9: ABNORMAL SMELL ........................................................................................ 7A2-138
NO. Z10: ATF QUANTITY IS LOW OR HIGH ................................................................ 7A2-138
NO. Z11: ABNORMAL OIL PRESSURE........................................................................ 7A2-139
NO. Z12: REVERSE BUZZER DOES NOT RING .......................................................... 7A2-139
STALL TEST .................................................................................................................. 7A2-140
LINE PRESSURE TEST................................................................................................. 7A2-141
TIME LAG TEST............................................................................................................. 7A2-143
TEST DRIVE................................................................................................................... 7A2-144
SHIFT POINT CHART .................................................................................................... 7A2-147
SHIFT POINT DIAGRAM................................................................................................ 7A2-149
TCM VOLTAGE CHECK ................................................................................................ 7A2-154

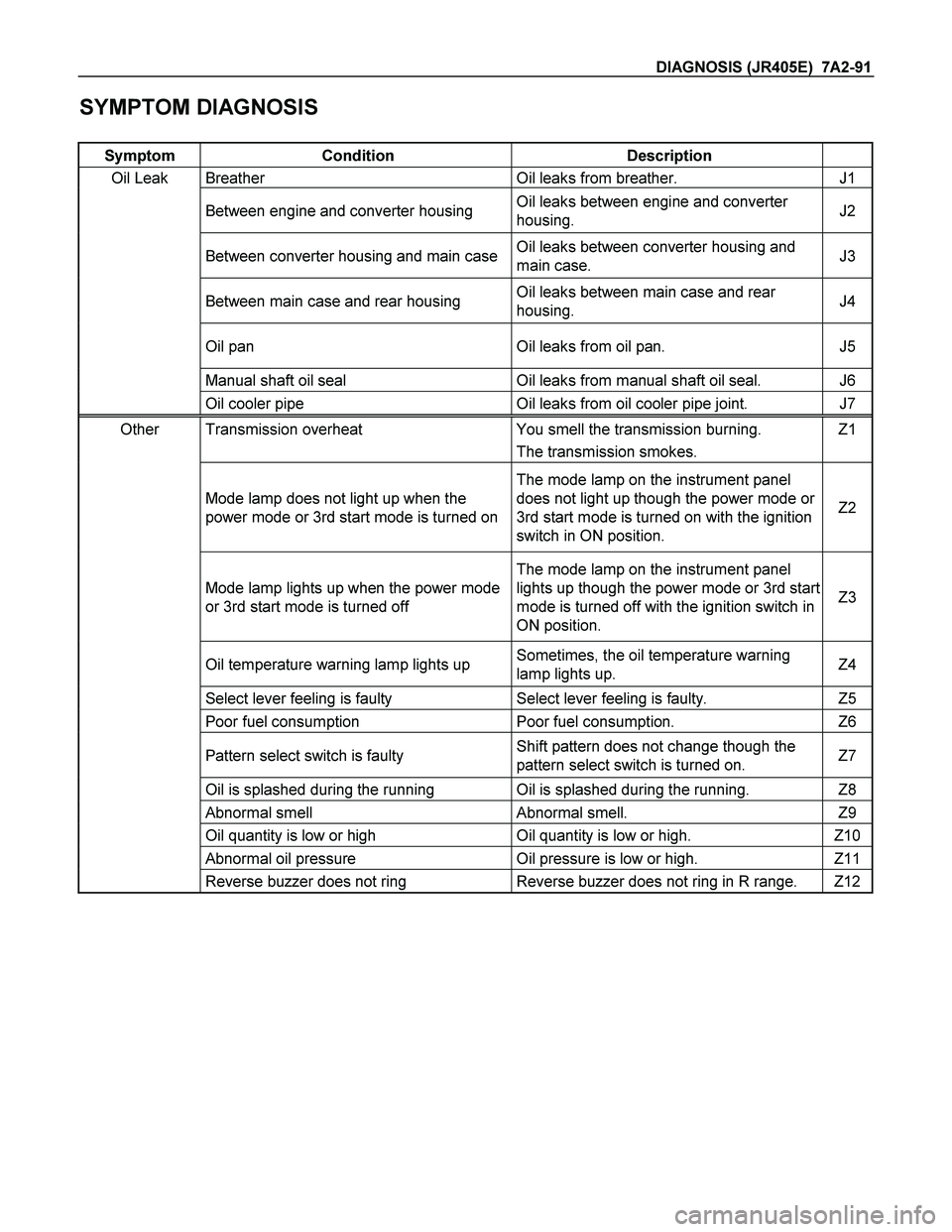

Page 4083 of 4264
DIAGNOSIS (JR405E) 7A2-91
SYMPTOM DIAGNOSIS
Symptom Condition Description
Oil Leak Breather Oil leaks from breather. J1
Between engine and converter housing Oil leaks between engine and converter
housing. J2
Between converter housing and main caseOil leaks between converter housing and
main case. J3
Between main case and rear housing Oil leaks between main case and rear
housing. J4
Oil pan Oil leaks from oil pan. J5
Manual shaft oil seal Oil leaks from manual shaft oil seal. J6
Oil cooler pipe Oil leaks from oil cooler pipe joint. J7
Other Transmission overheat You smell the transmission burning. Z1
The transmission smokes.
Mode lamp does not light up when the
power mode or 3rd start mode is turned on
The mode lamp on the instrument panel
does not light up though the power mode or
3rd start mode is turned on with the ignition
switch in ON position.
Z2
Mode lamp lights up when the power mode
or 3rd start mode is turned off
The mode lamp on the instrument panel
lights up though the power mode or 3rd start
mode is turned off with the ignition switch in
ON position.
Z3
Oil temperature warning lamp lights up Sometimes, the oil temperature warning
lamp lights up. Z4
Select lever feeling is faulty Select lever feeling is faulty. Z5
Poor fuel consumption Poor fuel consumption. Z6
Pattern select switch is faulty Shift pattern does not change though the
pattern select switch is turned on. Z7
Oil is splashed during the running Oil is splashed during the running. Z8
Abnormal smell Abnormal smell. Z9
Oil quantity is low or high Oil quantity is low or high. Z10
Abnormal oil pressure Oil pressure is low or high. Z11
Reverse buzzer does not ring Reverse buzzer does not ring in R range. Z12

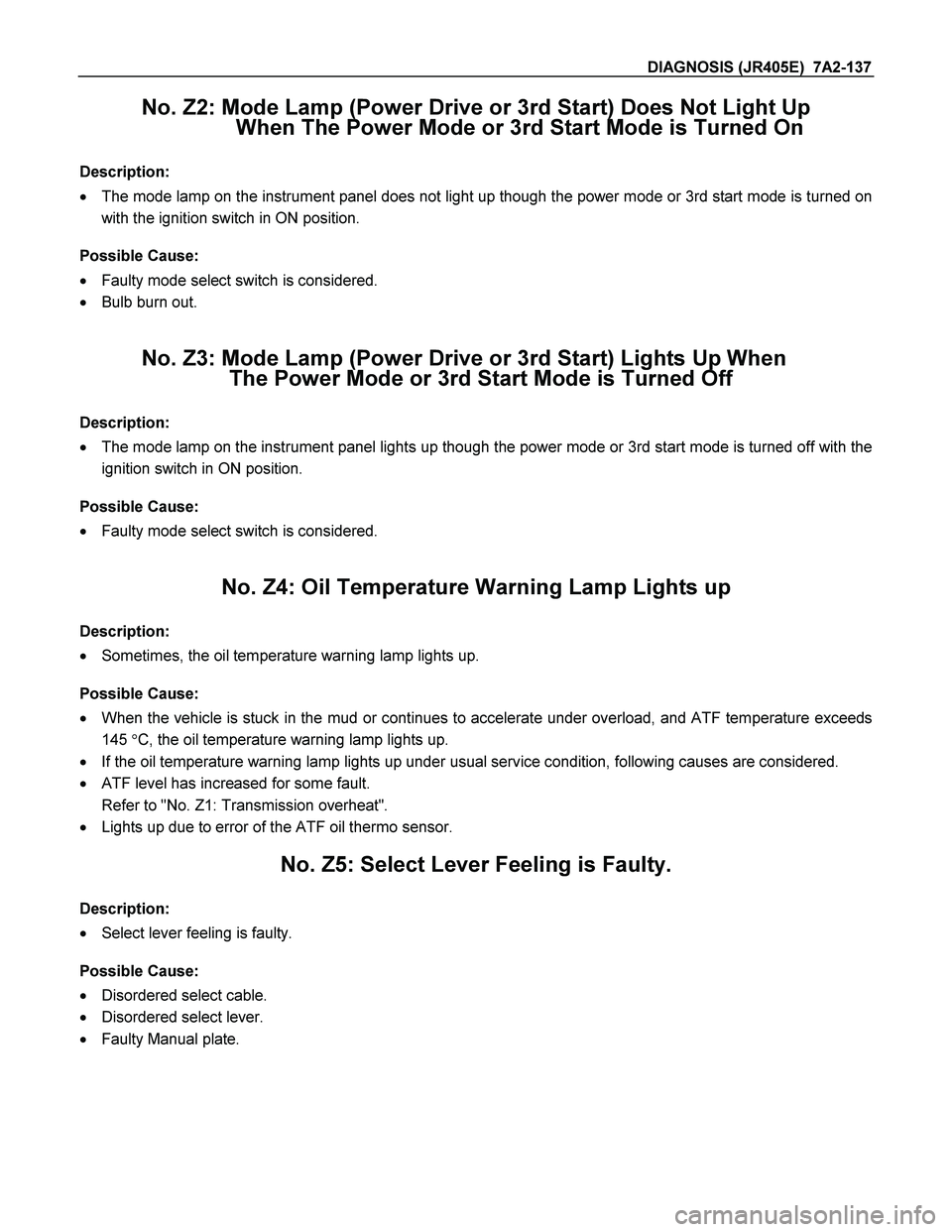

Page 4129 of 4264
DIAGNOSIS (JR405E) 7A2-137
No. Z2: Mode Lamp (Power Drive or 3rd Start) Does Not Light Up
When The Power Mode or 3rd Start Mode is Turned On
Description:
The mode lamp on the instrument panel does not light up though the power mode or 3rd start mode is turned on
with the ignition switch in ON position.
Possible Cause:
Faulty mode select switch is considered.
Bulb burn out.
No. Z3: Mode Lamp (Power Drive or 3rd Start) Lights Up When
The Power Mode or 3rd Start Mode is Turned Off
Description:
The mode lamp on the instrument panel lights up though the power mode or 3rd start mode is turned off with the
ignition switch in ON position.
Possible Cause:
Faulty mode select switch is considered.
No. Z4: Oil Temperature Warning Lamp Lights up
Description:
Sometimes, the oil temperature warning lamp lights up.
Possible Cause:
When the vehicle is stuck in the mud or continues to accelerate under overload, and ATF temperature exceeds
145 C, the oil temperature warning lamp lights up.
If the oil temperature warning lamp lights up under usual service condition, following causes are considered.
ATF level has increased for some fault.
Refer to "No. Z1: Transmission overheat".
Lights up due to error of the ATF oil thermo sensor.
No. Z5: Select Lever Feeling is Faulty.
Description:
Select lever feeling is faulty.
Possible Cause:
Disordered select cable.
Disordered select lever.
Faulty Manual plate.
