2004 ISUZU TF SERIES dimensions

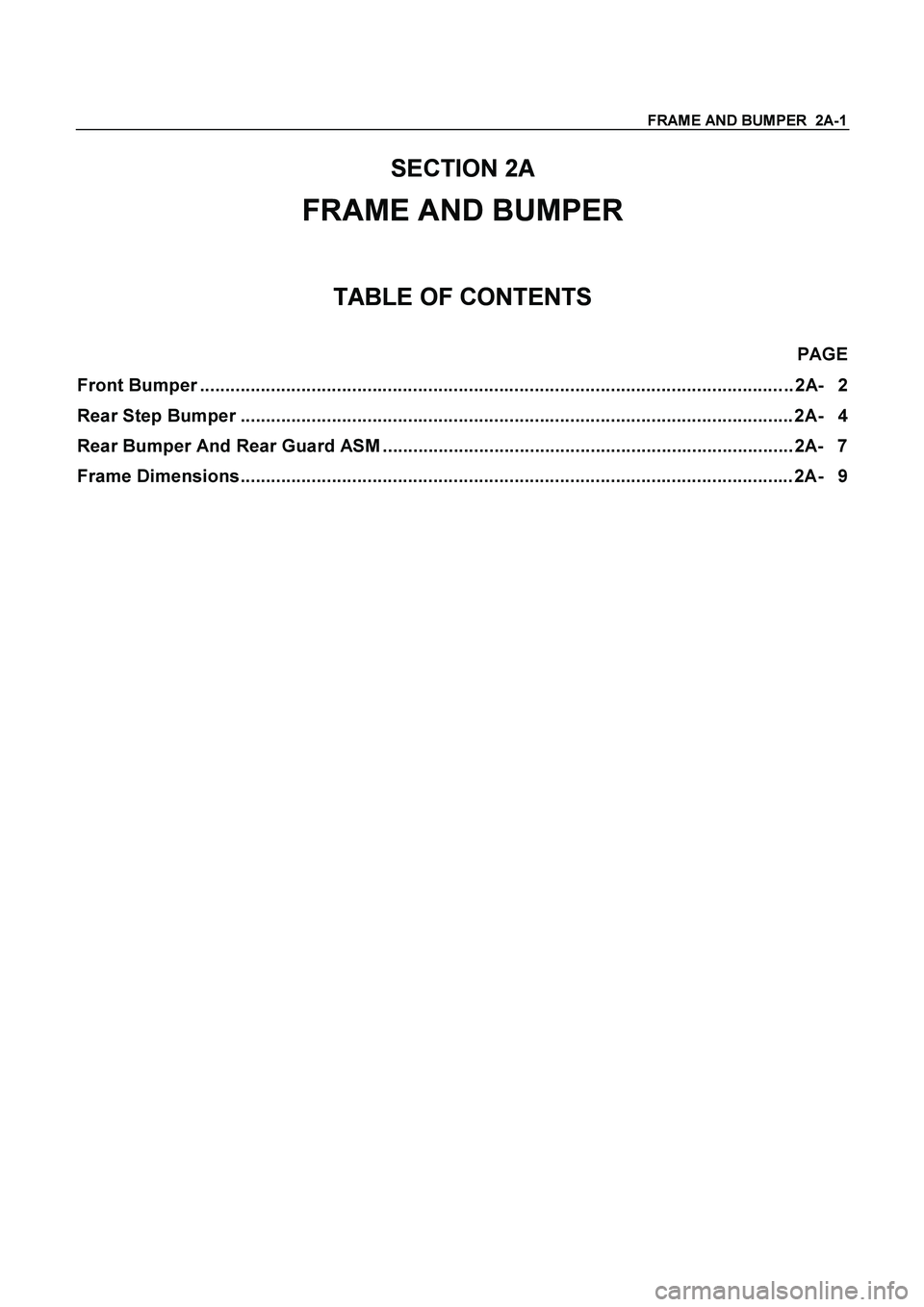

FRAME AND BUMPER 2A-1

SECTION 2A
FRAME AND BUMPER
TABLE OF CONTENTS
PAGE
Front Bumper ..................................................................................................................... 2A- 2
Rear Step Bumper ............................................................................................................. 2A- 4
Rear Bumper And Rear Guard ASM ................................................................................. 2A- 7
Frame Dimensions............................................................................................................. 2A- 9

FRAME AND BUMPER 2A-9

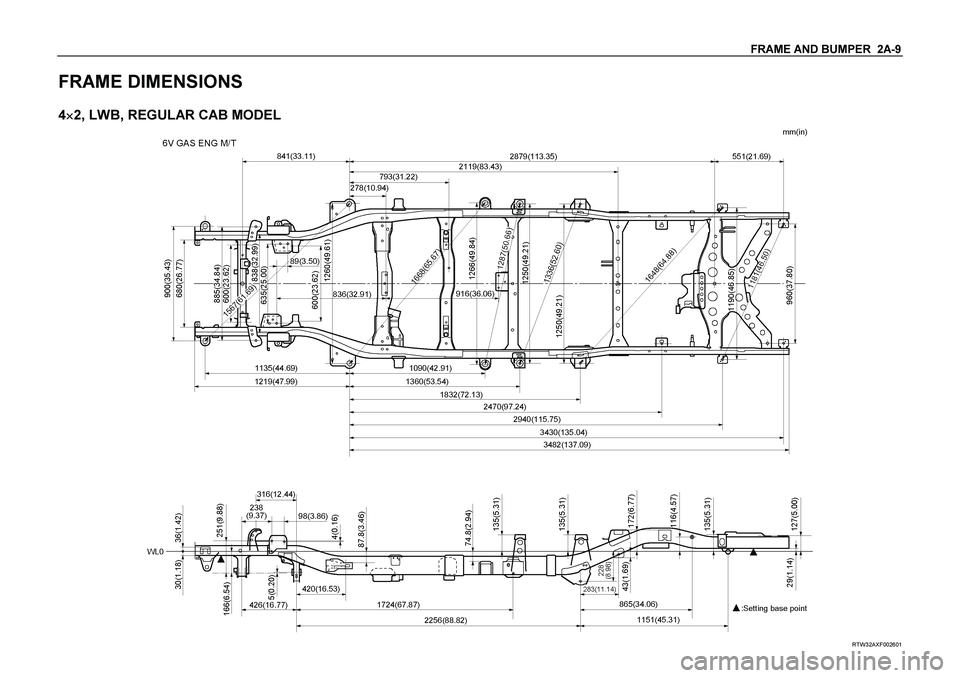

FRAME DIMENSIONS 4




2, LWB, REGULAR CAB MODEL

RTW32AXF002601

HEATER AND AIR CONDITIONING 1-15
MAIN DATA AND SPECIFICATIONS

AIR COMPRESSOR

Model CR-14
Type 5 Vane rotary type
Displacement cm3 (lmp fl oz) 144 (4.03)
Oil type DH-PR
Oil capacity cm3 (lmp fl oz) 180 (5.04)
Magnetic clutch Type: Dry single disc dia. 109 mm (4.3 in.)

HEATING UNIT (VENT UNIT)

Type Rehead air mix
Core dimension mm (in.) (L

H

W) 180 (7.06)

182.3 (7.18)

27 (1.06)
Capacity (kcal./hr.) 4200

BLOWER UNIT

Type Sirocco fan type

COOLING UNIT

Type Fin and tube evaporator
Evaporator element dimensions mm (in.) (L

H

W) 230 (9.06)

212 (8.35)

74 (2.91)
Evaporator capacity (kcal./hr.) 2960/4420 kcal./hr. (300/500 m3/hr.)
* Expansion Valve type
External pressure equalizer type
* Thermo Switch type (Cooler)
Variable electronic thermostat

Maximum Cool position (
C)
OFF 3
0.5
DIFF 1.5
0.5

Minimum Cool position (
C)
OFF 11.6 2
DIFF 2.9 2
* Thermo Switch type (A/C) (
C)
Fixed electronic thermostat
OFF 3
0.5
DIFF 1.5
0.5
* Trinary Pressure Switch
Low pressure control and High pressure control are same
as Dual pressure switch
* Medium pressure control
OFF 1128  118 kpa (11.5  1.2 kg/cm
2G)
ON 1521  88 kpa (15.5  0.92 kg/cm2G)
CONDENSER
Type Aluminum louvered fins
Capacity (kcal./hr.) 12300 kcal./hr.

ELECTRIC FAN

Fan Dia
250
Motor Power (w) 90
